Product Overview

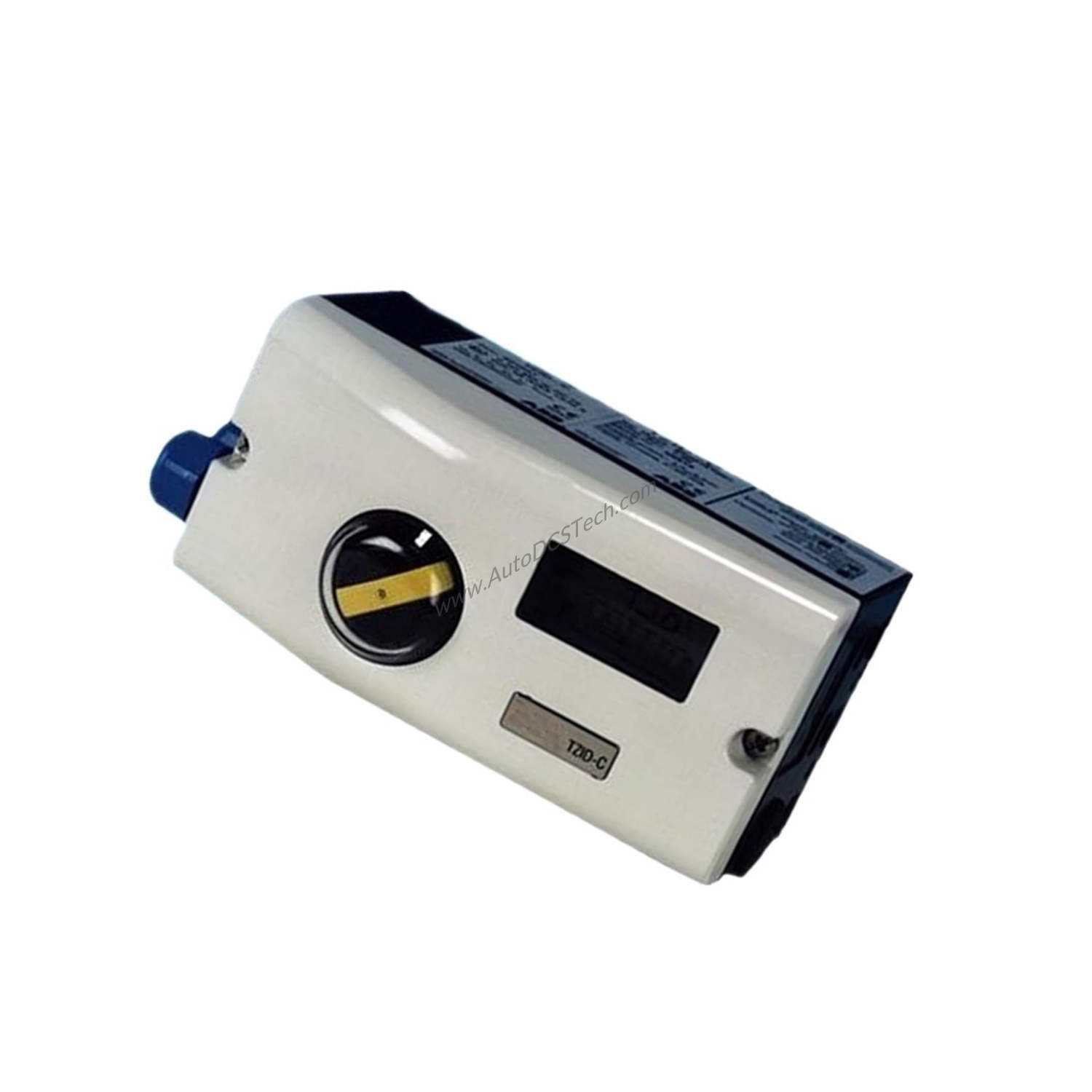

When selecting a digital positioner for critical valve control, the ABB V18348-10111310110 TZIDC-200 Digital Positioner V18348 offers a robust solution. This intelligent positioner features a flameproof enclosure and software configurability via a Local Communication Interface (LKS) and HART communication. Designed for linear and rotary actuators, it provides high-precision control and operational reliability.
Technical Specifications Breakdown
The V18348-10111310110 includes several key features that define its performance:
- Enclosure: Flameproof enclosure made of varnished aluminium, suitable for mounting to linear actuators per DIN/IEC 534/NAMUR or rotary actuators per VDI/VDE 3845.
- Operation: Integrated operator panel and display in the enclosure cover for local configuration and monitoring.
- Explosion Protection: ATEX Ex d II C T4/T5/T6 Gb certification for hazardous environments.
- Output/Safe Position: Single acting, fail-safe operation ensures the valve moves to a safe position during electrical power failure.
- Connections: Cable connection via 1/2-14 NPT thread; air pipe via 1/4-18 NPT thread.
- Analog Feedback: Plug-in module for analog position feedback with a 4...20 mA two-wire signal.
- Communication: HART protocol for remote configuration and monitoring.
Industry Applications
This positioner suits applications requiring precise valve control in hazardous areas. Typical uses include:
- Oil and Gas: Control of flow and pressure valves in refineries and pipelines where ATEX certification is mandatory.
- Chemical Processing: Regulation of corrosive fluids and gases in potentially explosive atmospheres.
- Power Generation: Steam and water valve control in thermal and nuclear plants demanding high reliability.
Installation & Setup Guidance
Mount the V18348-10111310110 directly onto the actuator using the appropriate mounting kit. Ensure the air supply connects to the 1/4-18 NPT port and electrical wiring to the 1/2-14 NPT cable entry. Configure parameters via the local operator panel or HART communicator. Set the signal range (4-20 mA) and action (direct or reverse) according to your process requirements. Perform an automatic adjustment to optimize control parameters.
Maintenance & Reliability
Regularly inspect the enclosure and connections for signs of wear or corrosion. Verify the integrity of the flameproof enclosure seals. Check the air supply for cleanliness and proper pressure. The positioner's microprocessor-based control and adaptive tuning reduce the need for frequent manual adjustments, enhancing long-term reliability.
Selection Guide & Purchasing Advice
Before purchasing the ABB V18348-10111310110, confirm compatibility with your actuator type (linear or rotary) and required explosion protection zone. Verify the availability of the analog feedback module and HART communication in your control system. SpareTechPLC stocks this unit as new and original in factory packing with a 12-month warranty. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: What is the input signal range for the V18348-10111310110?
A: The minimum signal is 4 mA and the maximum is 20 mA, with a freely selectable range for split-range operation.
Q: Does this positioner support HART communication?
A: Yes, the V18348-10111310110 includes HART communication for remote configuration and monitoring.
Q: What explosion protection does this model offer?
A: It has ATEX Ex d II C T4/T5/T6 Gb certification for use in hazardous environments.
Q: Can I use this positioner with a double-acting actuator?
A: The standard configuration is single acting, fail-safe. For double-acting actuators, the actuator spring action corresponds to pressurizing the pneumatic output OUT2.
Q: What is the factory warranty?
A: SpareTechPLC provides a 12-month factory warranty on this new and original unit.
