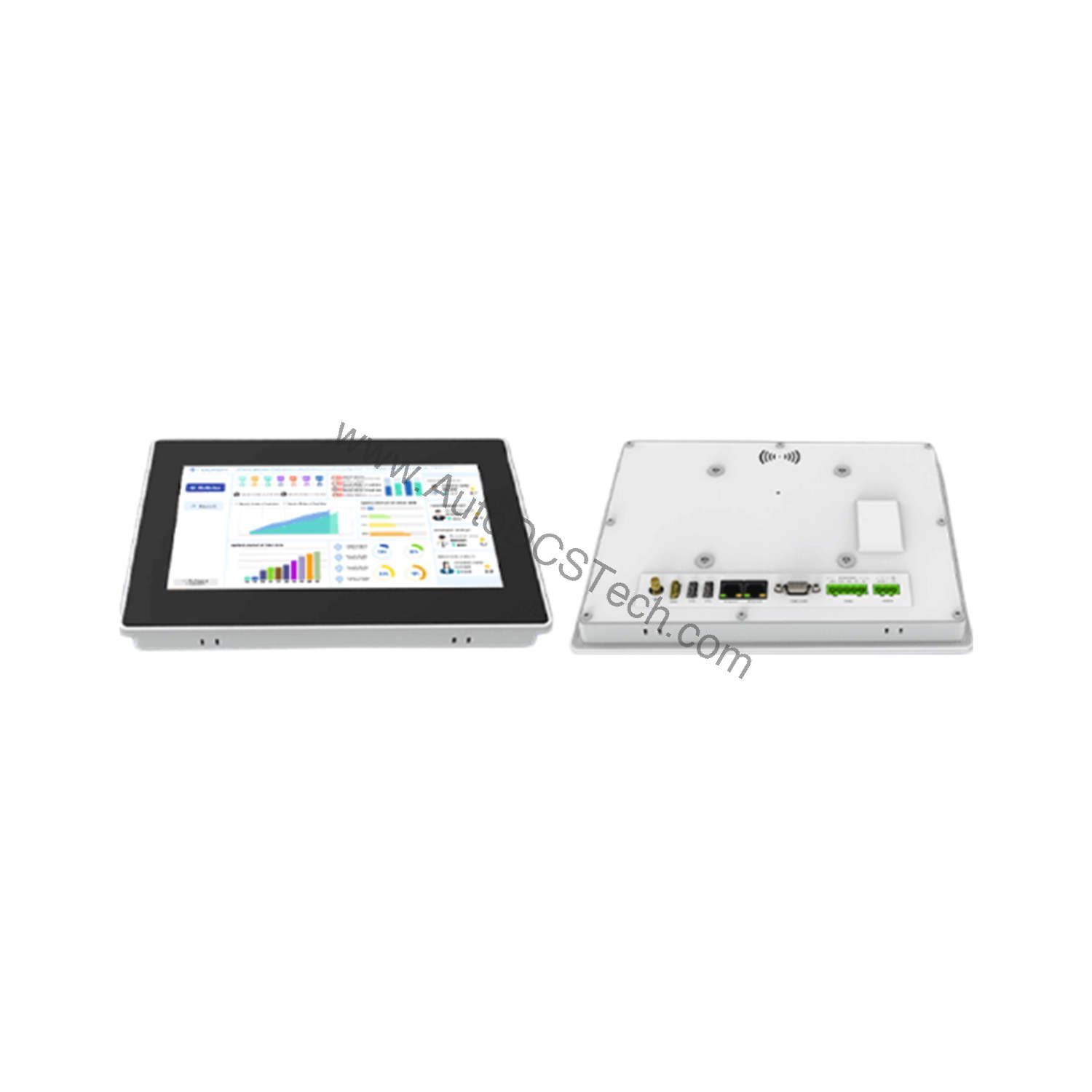

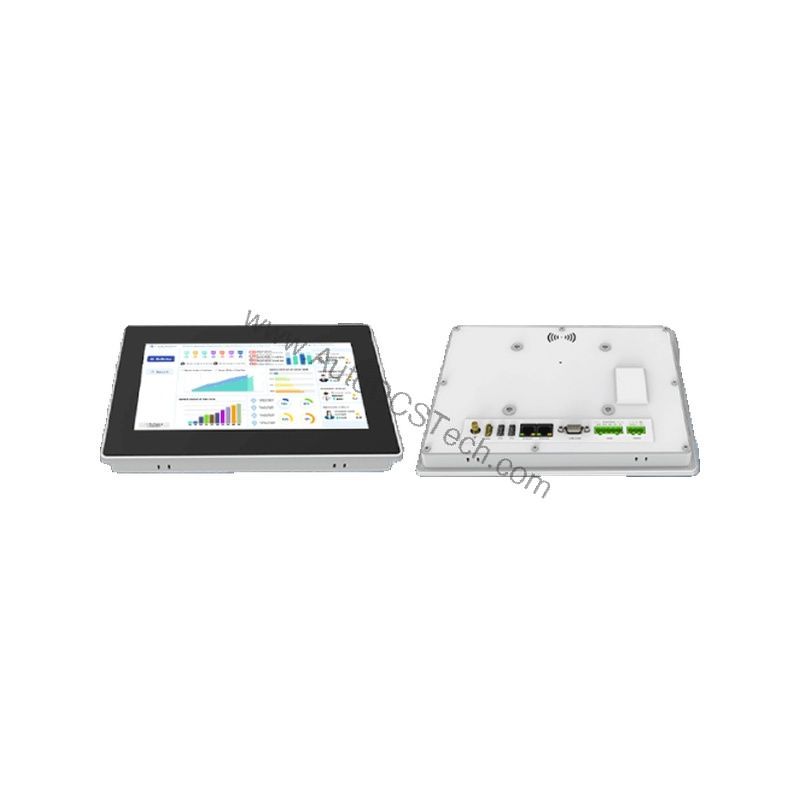

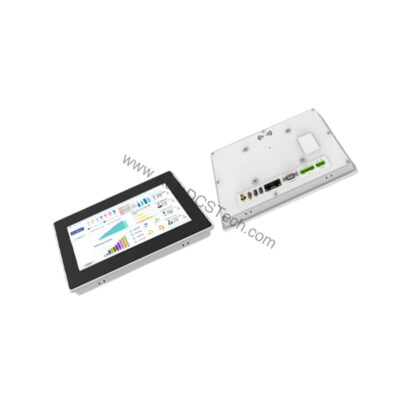

Flexem FPad710 10.1 Inch Industrial IoT HMI with HDMI

Technical Specifications Breakdown

Key parameters for the FPad710 are listed below for quick reference:

Real-World Applications for High-Definition HMI

The FPad710 is designed for applications where visual clarity and fast communication are critical. Its 10.1-inch TFT LCD with 1280x800 resolution and 400 cd/m² brightness ensures that even in well-lit factory floors, operators can read data clearly.

In a packaging line, for example, the HMI can show real-time machine status while simultaneously playing a maintenance tutorial on the same screen. The dual gigabit Ethernet ports allow the device to communicate with PLCs, SCADA systems, and other network devices without bottlenecks. This reduces downtime and improves operator response times.

Another common use is in remote monitoring stations. With optional WiFi and 4G modules, the FPad710 can transmit data to the cloud or a central control room. The built-in RTC ensures accurate time-stamping of events, which is essential for data logging and troubleshooting.

Installation and Setup Guidance

Proper installation is key to maximizing the FPad710's performance. The device is designed for flush-mounted installation, so prepare a cutout of 260×202mm. Use the provided mounting clamps to secure the unit firmly. Ensure the front panel is properly sealed to maintain the IP65 rating when used with a NEMA panel.

For power, connect a DC 24V supply within the working range of 18V to 28V. The isolated power adapter with lightning surge protection helps safeguard the device in industrial environments. Verify that the power interruption tolerance of less than 5ms is acceptable for your application; if your power source is unstable, consider adding an uninterruptible power supply (UPS).

Connect the Ethernet cables to the gigabit ports. Use shielded cables for industrial environments to reduce electromagnetic interference. For serial communication, refer to the pinout for COM1, COM2, and COM3. Ensure that the RS485/RS422 wiring is properly terminated to avoid signal reflections.

Maintenance and Reliability

The FPad710 is built for long service life, with an LED backlight rated for 50,000 hours. To maintain reliability, keep the unit clean and free from dust. The front IP65 rating protects against water and dust ingress, but the back is only IP20, so avoid exposing the rear connectors to moisture or debris.

Inspect the device periodically for any signs of wear on the touch panel or connectors. The operating temperature range is -10 to 60°C, so ensure proper ventilation. Natural cooling is sufficient, but do not block the ventilation areas. Avoid operating in high UV environments, as noted in the specifications.

Why the FPad710 Stands Out for Smart Manufacturing

Industrial operations today demand more than basic touch panels. They need a human-machine interface that can handle high-definition video, rapid data exchange, and a wide range of connectivity options. The Flexem FPad710 is built for these challenges. It combines a powerful processor with versatile I/O and a bright, crisp display, making it a reliable choice for modern automation systems.

Compatibility and Integration

The FPad710 runs on Linux, which offers a flexible platform for custom applications. Its multiple serial ports (RS232, RS485, RS422) allow connection to a wide variety of industrial devices, such as VFDs, sensors, and barcode scanners. The dual Ethernet ports support standard industrial protocols like Modbus TCP, Ethernet/IP, and Profinet, depending on the software configuration.

The HDMI port can drive an external monitor for larger displays, while the USB 3.0 ports allow connection of peripherals like keyboards, mice, or USB storage. This makes the FPad710 a versatile hub for operator interaction and data collection.

Selection Guide and Purchasing Advice

When selecting an HMI, consider the specific requirements of your application. The FPad710 is a powerful option if you need high-definition video, fast communication, and a wide range of I/O options. Its 4-core CPU and 2GB DDR4 RAM ensure smooth performance even with complex graphics.

At AutoDCSTech, we offer the Flexem FPad710 as a genuine product. We understand that industrial automation requires reliable components, and we are committed to providing quality parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering, as product availability may change.

For more information or to place an order, visit our website or contact our sales team. We are here to help you find the right solution for your automation needs.
