Flexem FR-D0016N 16-Point NPN Digital Output Module

Digital Output Module Overview

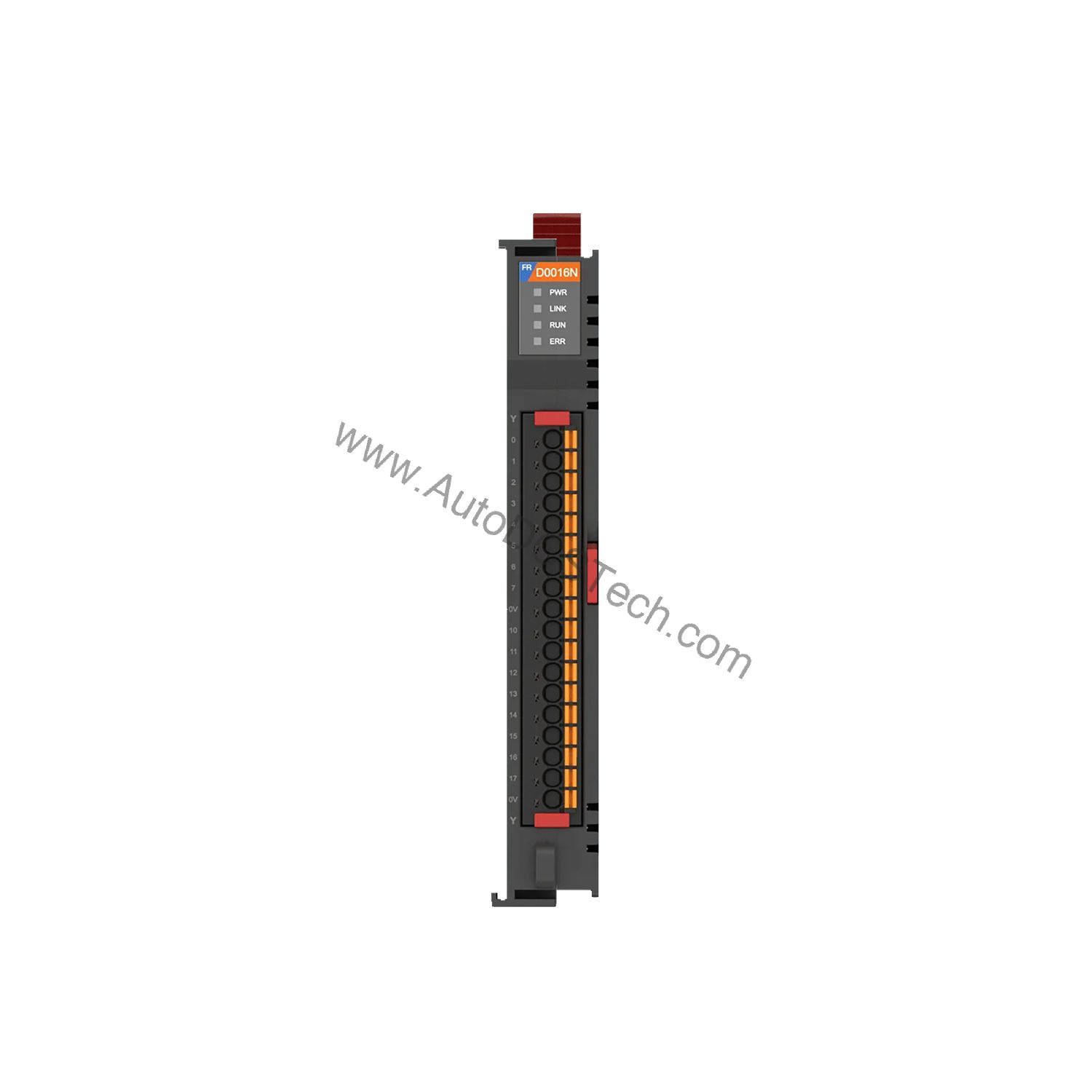

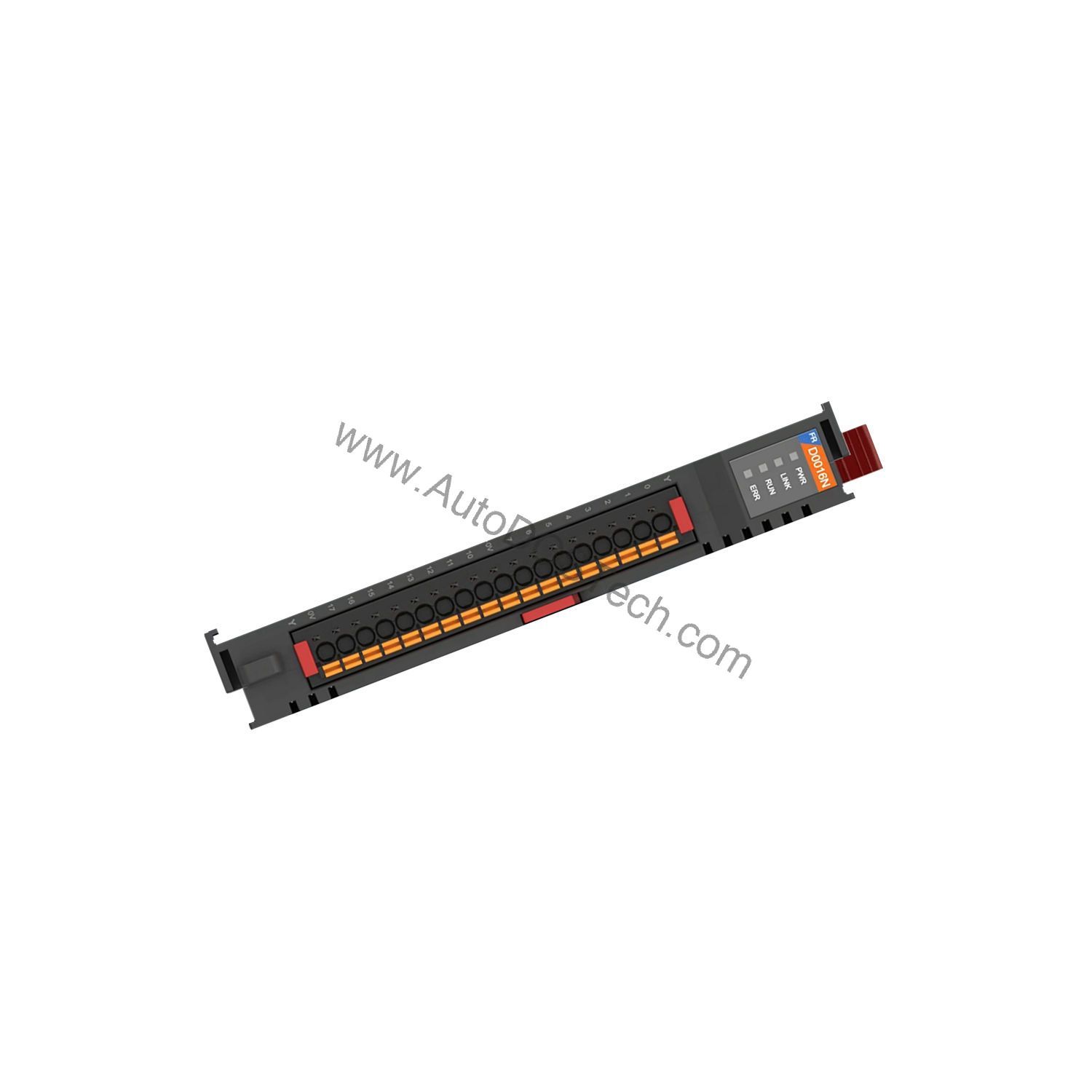

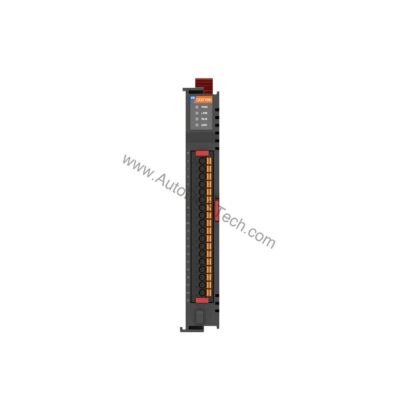

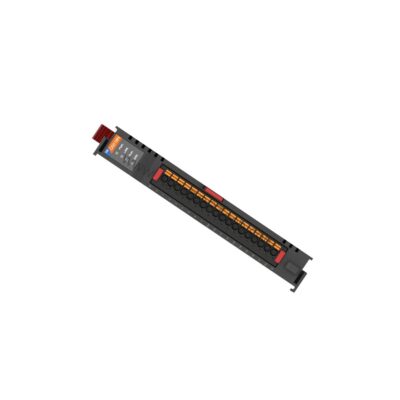

This 16-point NPN output unit is engineered for industrial environments where precise switching of solenoids, relays, and indicator lamps matters. With a compact 111mm × 18mm × 76mm footprint, it fits neatly into crowded control panels without sacrificing output capability.

Technical Specifications Breakdown

Key parameters for the FR-D0016N are listed below for quick reference:

Industry Applications

Automated Assembly Lines

In high-speed assembly, the module drives pneumatic valves and small actuators. Each channel handles up to 1000mA, so you can switch multiple devices without external drivers. The simultaneous output rating of 500mA ensures safe operation when many channels activate together.

Packaging Machinery

Packaging equipment requires rapid, repeated cycling. The FR-D0016N's NPN outputs interface directly with PLCs and sensors, reducing wiring complexity. Its 16 LED indicators give immediate visual feedback, helping operators spot active channels at a glance.

Material Handling Systems

Conveyor systems often need distributed I/O. This module's DIN-rail mounting simplifies installation alongside other control components. The lightweight 65g design minimizes panel load, while the compact dimensions allow dense packing.

Installation & Setup Guidance

Mount the module on a standard 35mm DIN rail. Ensure adequate clearance for airflow and wiring. Connect the output common to the appropriate DC supply, respecting the NPN (sinking) configuration. Verify that the total current draw of all simultaneously active outputs does not exceed 500mA, and each individual channel stays below 1000mA. Use proper wire gauges to handle the rated currents and avoid voltage drops.

Maintenance & Reliability

Periodically inspect the module for dust accumulation and loose terminal connections. Check the LED indicators during operation to confirm correct output states. In harsh environments, protect the module from excessive moisture and vibration. The robust design supports long service life, but routine checks help prevent unexpected downtime.

Compatibility & Integration

As a digital output module, the FR-D0016N integrates with most PLC systems that support NPN sinking outputs. It is commonly used with Flexem controllers and other industrial automation platforms. No special software is required for basic operation, but consult your PLC manual for proper I/O mapping and addressing.

Selection Guide & Purchasing Advice

When selecting an output module, consider the number of channels, current rating, and mounting style. The FR-D0016N offers 16 channels with high per-channel current, making it suitable for applications with mixed loads. For assistance with compatibility or to place an order, contact AutoDCSTech. They stock genuine Flexem parts and provide expert technical support.

Troubleshooting & Common Issues

If outputs do not activate, first check the power supply and wiring polarity. Verify that the PLC output command is present and the module's LED indicator lights up. If an output appears stuck, measure the voltage across the load to confirm the switching transistor is functioning. For simultaneous output issues, ensure the total current stays within the 500mA limit. If problems persist, consult the Flexem documentation or contact AutoDCSTech for guidance.
