Honeywell TREXCHPKLWS3 AMS Trex Device Communicator with HART & Wireless

Product Overview

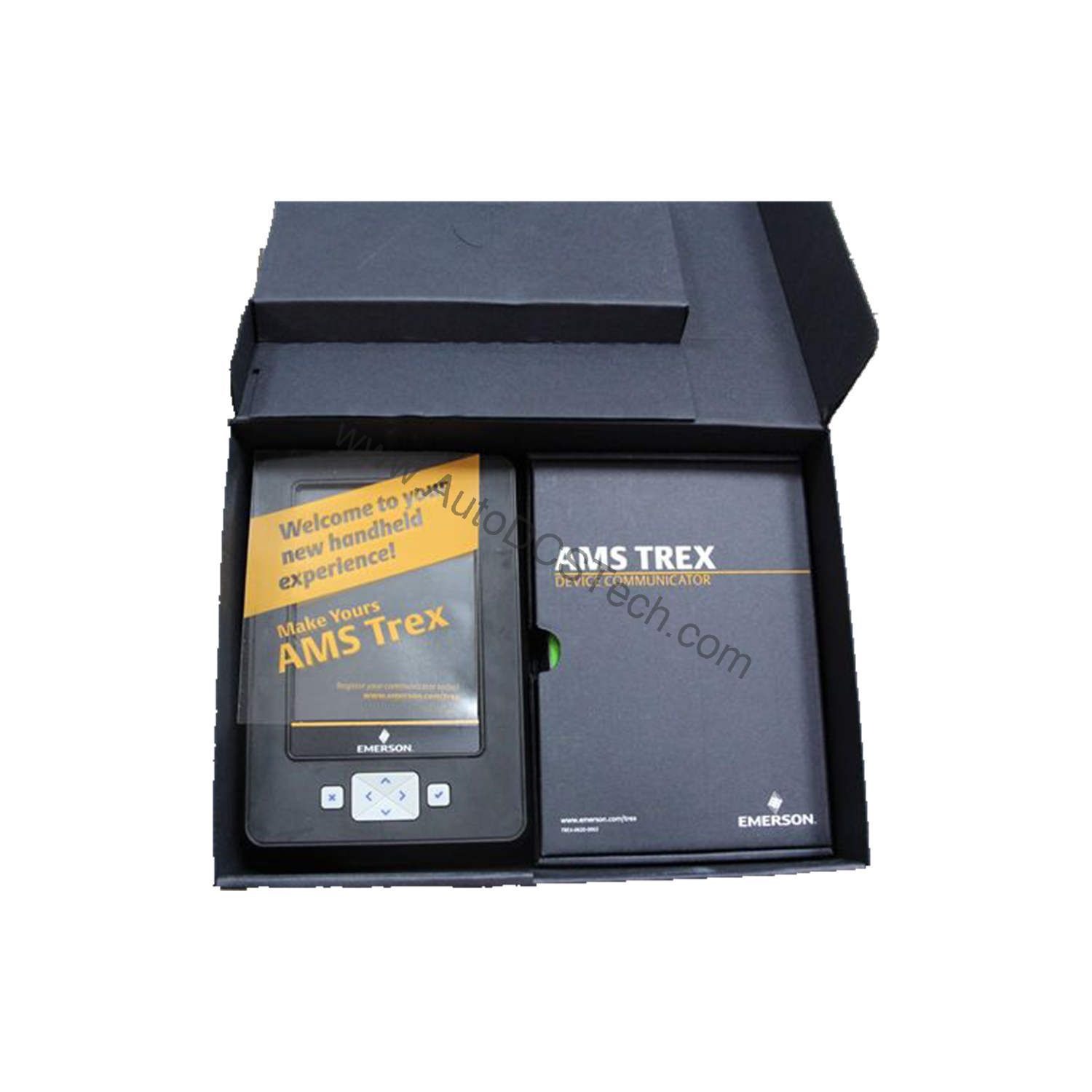

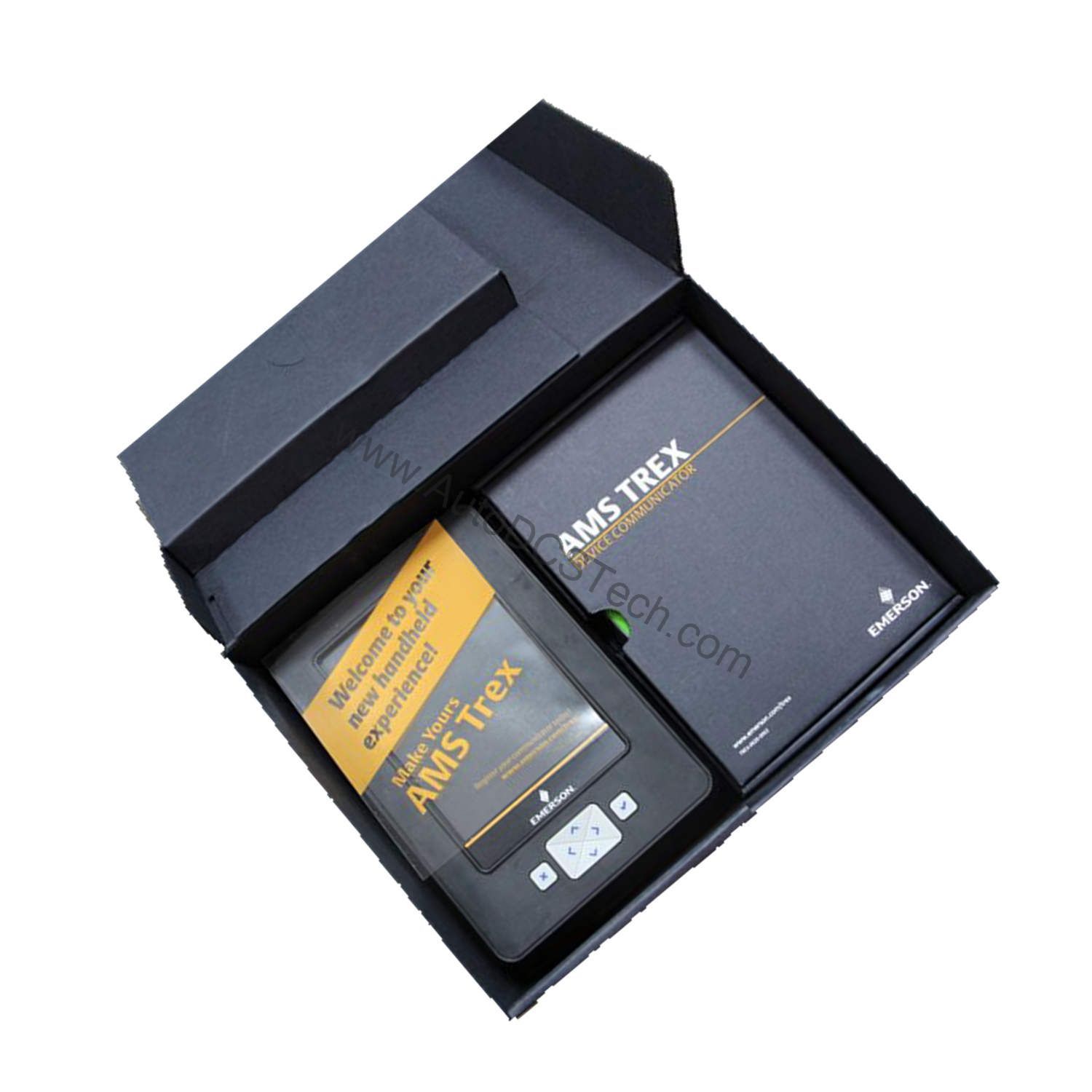

The TREXCHPKLWS3 is an AMS Trex Device Communicator manufactured by Emerson, designed for field device configuration, diagnostics, and maintenance in industrial automation environments. This handheld communicator combines the rugged Base Trex Platform with a Device Communicator communication module, HART application support, and a rechargeable Li-Ion power module. It is certified ATEX, CSA (US/Canada), and IECEx Intrinsically Safe, including FISCO where applicable, making it suitable for hazardous area use. The unit features a wireless radio option and comes with Standard Support for three years.

Technical Specifications Breakdown

Key parameters for the TREXCHPKLWS3 are listed below for quick reference:

Industry Applications

With HART application support, it enables quick configuration and calibration of HART field devices, reducing downtime during loop checks. The wireless radio option allows remote monitoring and diagnostics, improving operational efficiency in hard-to-reach locations. Intrinsic safety certifications ensure safe operation in explosive atmospheres, making it a reliable tool for routine maintenance and emergency troubleshooting.

Installation & Setup Guidance

Before using the TREXCHPKLWS3, ensure the power module is fully charged. Connect the device communicator to the HART loop using the appropriate leads, and verify the loop is powered. The wireless feature requires proper network configuration; consult your plant's wireless infrastructure guidelines. For hazardous area use, confirm that the area classification matches the device's intrinsic safety certifications. Always follow your organization's standard operating procedures when connecting to live process loops.

Maintenance & Reliability

Regularly inspect the device for physical damage, especially the display and communication ports. Keep the rechargeable Li-Ion power module charged to maintain battery health. Calibrate the device periodically according to manufacturer recommendations to ensure accurate readings. Store the unit in a clean, dry environment when not in use. For any hardware issues, contact AutoDCSTech for replacement options.

Compatibility & Integration

The TREXCHPKLWS3 is designed for HART communication, making it compatible with a wide range of HART-enabled field devices from various manufacturers. The wireless radio option supports integration into existing wireless networks, enabling seamless data transfer to asset management systems. The device runs on Windows Embedded Compact 2013, providing a familiar interface for configuration and diagnostics.

Selection Guide & Purchasing Advice

When selecting an AMS Trex Device Communicator, consider the application requirements, communication protocols, and certifications needed for your environment. The TREXCHPKLWS3 offers a balanced combination of HART support, wireless capability, and intrinsic safety. For purchasing, contact AutoDCSTech to verify availability and current lifecycle status. They can provide guidance on the best configuration for your maintenance team.

Troubleshooting & Common Issues

If the device fails to communicate with a field device, check the connection leads and ensure the loop is powered. For wireless connectivity issues, verify network settings and signal strength. If the display is unresponsive, try a soft reset by powering off and on. For persistent problems, consult the user manual or contact AutoDCSTech for technical support. Always follow safety protocols when working in hazardous areas.
