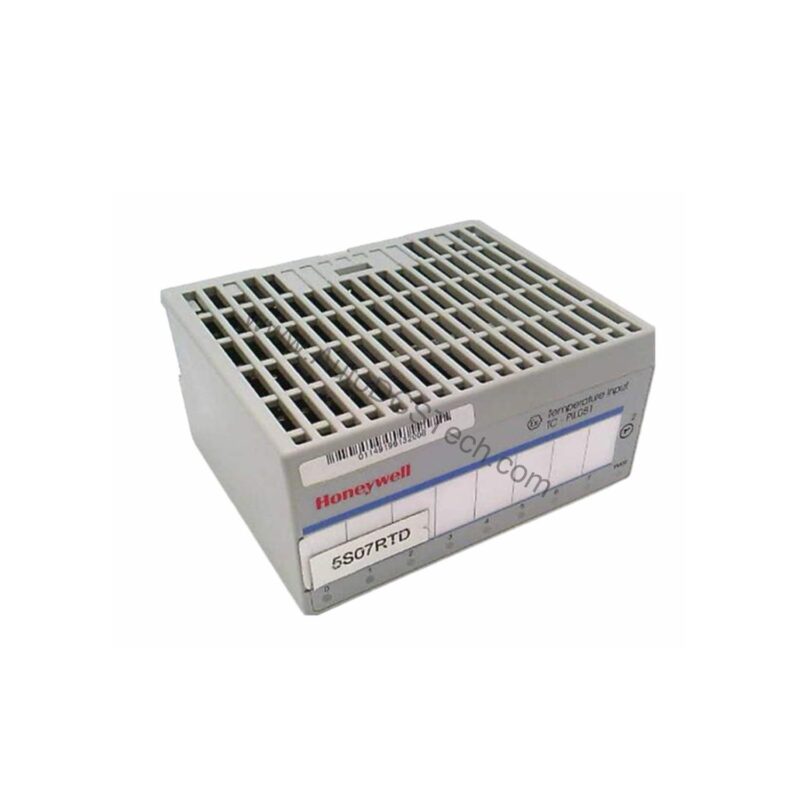

TC-PIL081: 8 Point Intrinsically Safe Temperature Input Module
The TC-PIL081 is the 8 Point Intrinsically Safe Temperature Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 0.247 kg.
This configuration's 8 point intrinsically safe temperature input module is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 8 point intrinsically safe temperature input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0.247 kg against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Honeywell |
| Brand | Honeywell |
| Part Number | TC-PIL081 |
| Input Capacity | 8 channels |
| Intrinsically Safe Input | II (1) 2G EEx ia/ib IIB/IIC T4 (CENELEC) |
| Input Type | Configurable for groups 0-3 and 4-7 -- 0.2, 0.5, 1, 2, 3, 10 Hz |
| Thermocouple Types | mV, E, J, K, N, R, S, T (B and L not supported) |
| RTD Types | Pt100 (IEC 751), Pt200 (IEC 751), Pt100 (JIS), Pt200 (JIS), Ni100, Ni200, Ni120, Cu10 |
| Resolution | 16 Bits |
| Response Time | 4 ms |
| Power Dissipation | 1.6W |
| Dimensions | 76 x 94 x 46 mm |
| Weight | 0.247 kg |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| honeywell-tc-pia081-analog-current-input-module-8-point | confirm the configuration against your installation |
| honeywell-tc-pia082-analog-current-input-module-8-point | confirm the configuration against your installation |
| honeywell-tc-pib161-16-point-digital-input-module-intrinsically-safe | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | TC-PIL081 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
