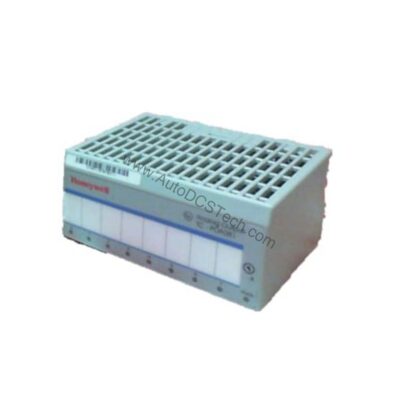

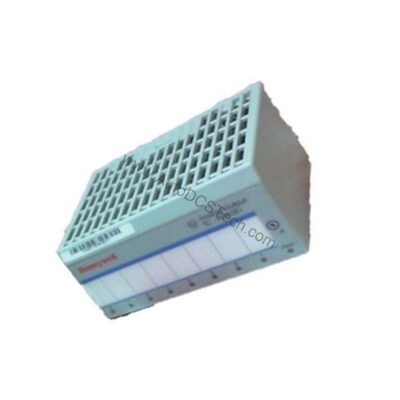

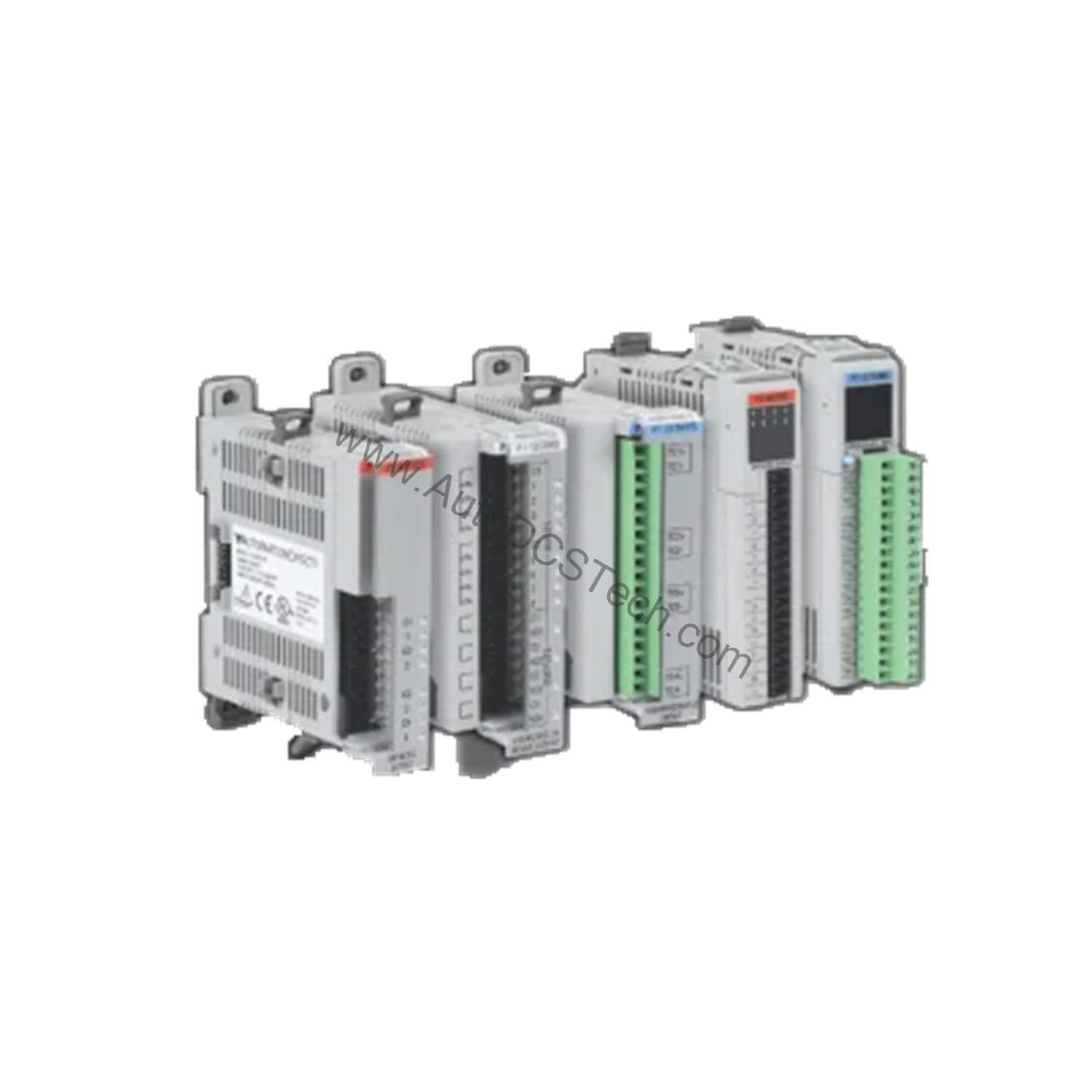

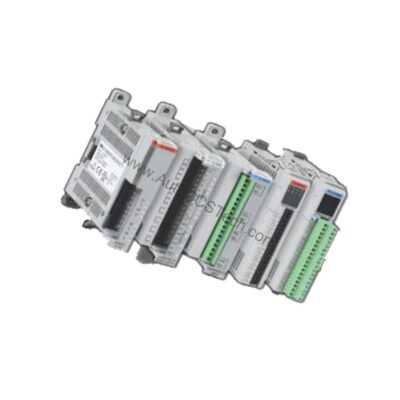

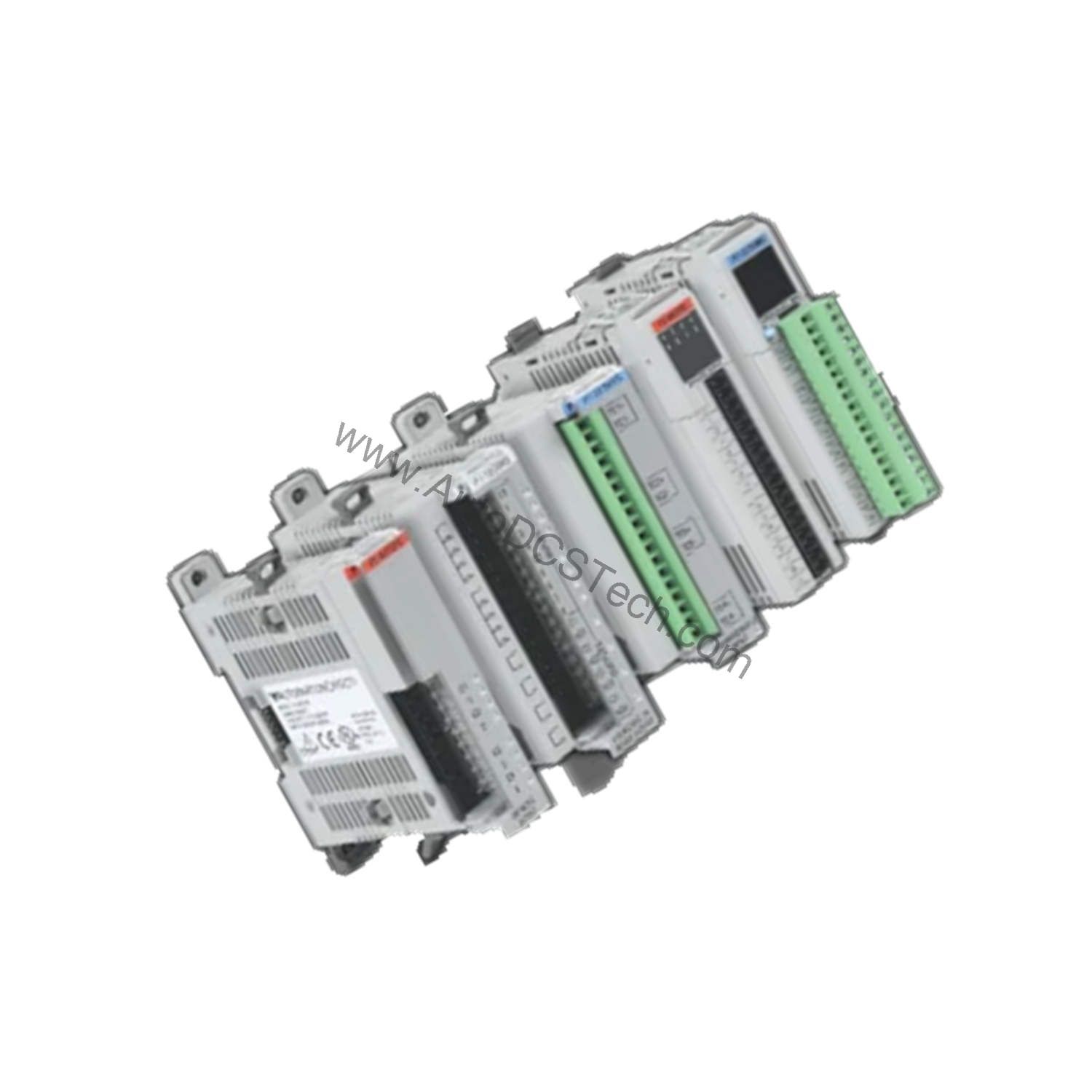

Honeywell TC-PIA082 Analog Current Input Module 8-Point

Product Overview

In process automation, accurate and reliable signal acquisition is the foundation of safe and efficient operations. The Honeywell TC-PIA082 analog current input module delivers precisely that for demanding industrial environments. This 8-point module accepts standard 4 to 20mA signals from field transmitters, converting them into digital values for your control system. Its intrinsically safe design allows direct connection to sensors located in hazardous areas, simplifying installation and enhancing safety.

Technical Specifications Breakdown

Key parameters for the TC-PIA082 are listed below for quick reference:

Industry Applications

Typical use cases include:

• Chemical and Petrochemical Plants: Monitoring pressure, temperature, and flow from transmitters installed in explosive atmospheres. The module's CENELEC certification (II (1) 2G EEx ia/ib IIB/IIC T4) ensures safe operation in Zone 1 and Zone 2 areas.
• Pharmaceutical Manufacturing: Ensuring precise control of critical process parameters like pH and conductivity, where signal accuracy and reliability are essential for product quality and regulatory compliance.
• Oil and Gas Facilities: Connecting to level and pressure transmitters on storage tanks and pipelines, providing critical data for safe and efficient operation.

Installation & Setup Guidance

Proper installation is crucial for optimal performance and safety. Follow these engineering guidelines:

1. Mounting: Install the module in a suitable enclosure. For field installation, a separate housing with protection class IP54 or better is required.
2. Wiring: Use shielded multicore cables with a shield for each channel to achieve EMC protection class. Ensure isolation for each channel is greater than 500V.
3. Terminal Connections: Refer to the I/O terminal assignments for 2-wire or 3-wire input configurations. For example, for 2-wire input, channel 0 connects to terminals 0 and 1; for 3-wire, channel 0 uses terminals 0, 1, and 2.
4. Keyswitch: Set the keyswitch position to 3 as required by the backplane.

Maintenance & Reliability

The TC-PIA082 is designed for long-term reliability in harsh environments. To ensure consistent operation:

• Periodic Inspection: Inspect the module and wiring connections at regular intervals, typically every 6-12 months, depending on the environment.
• Environmental Monitoring: Keep the module within the specified ambient temperature range (–20°C to 70°C) and relative humidity below 95% (non-condensing).
• Pollution Control: The module is tested to G3 level according to ISA-S71.04-1985. In highly corrosive environments, additional protection may be necessary.
• Fault Indication: The module provides lead breakage indication via an alarm signal through the backplane bus and a flashing red LED on the channel. This allows for quick detection and resolution of wiring issues.

Compatibility & Integration

The TC-PIA082 communicates via a vendor-specific bus, designed for seamless integration with Honeywell control systems. It is an intrinsically safe output, meaning it can directly interface with field devices in hazardous areas without the need for external safety barriers. The module supports both 2-wire and 3-wire transmitter connections, offering flexibility in field wiring.

Selection Guide & Purchasing Advice

When selecting an analog input module, consider the number of channels, signal range, and safety certifications. The TC-PIA082 offers 8 channels, a 4-20mA range, and intrinsic safety, making it a robust choice for hazardous area applications. Contact our team to verify current lifecycle status and availability before ordering. We are here to help you find the right solution for your process control needs.

Troubleshooting & Common Issues

If the module is not performing as expected, consider these common issues:

• No Signal: Check the wiring connections against the terminal assignments. Ensure the transmitter is powered correctly.
• Lead Breakage Alarm: This indicates an open circuit in the transmitter loop. Verify the wiring and the transmitter's health.
• Inaccurate Readings: Check for ground loops or electromagnetic interference. Ensure proper shielding and isolation as per installation guidelines.
• Channel Fault: If a specific channel LED is flashing red, it indicates a fault. Review the configuration for that channel, including overrange, underrange, and transmitter alarms.

For persistent issues, consult the Honeywell documentation or contact AutoDCSTech for technical support.
