TREXCHPKLWP1S Emerson AMS Trex Device Communicator by Honeywell

Product Overview

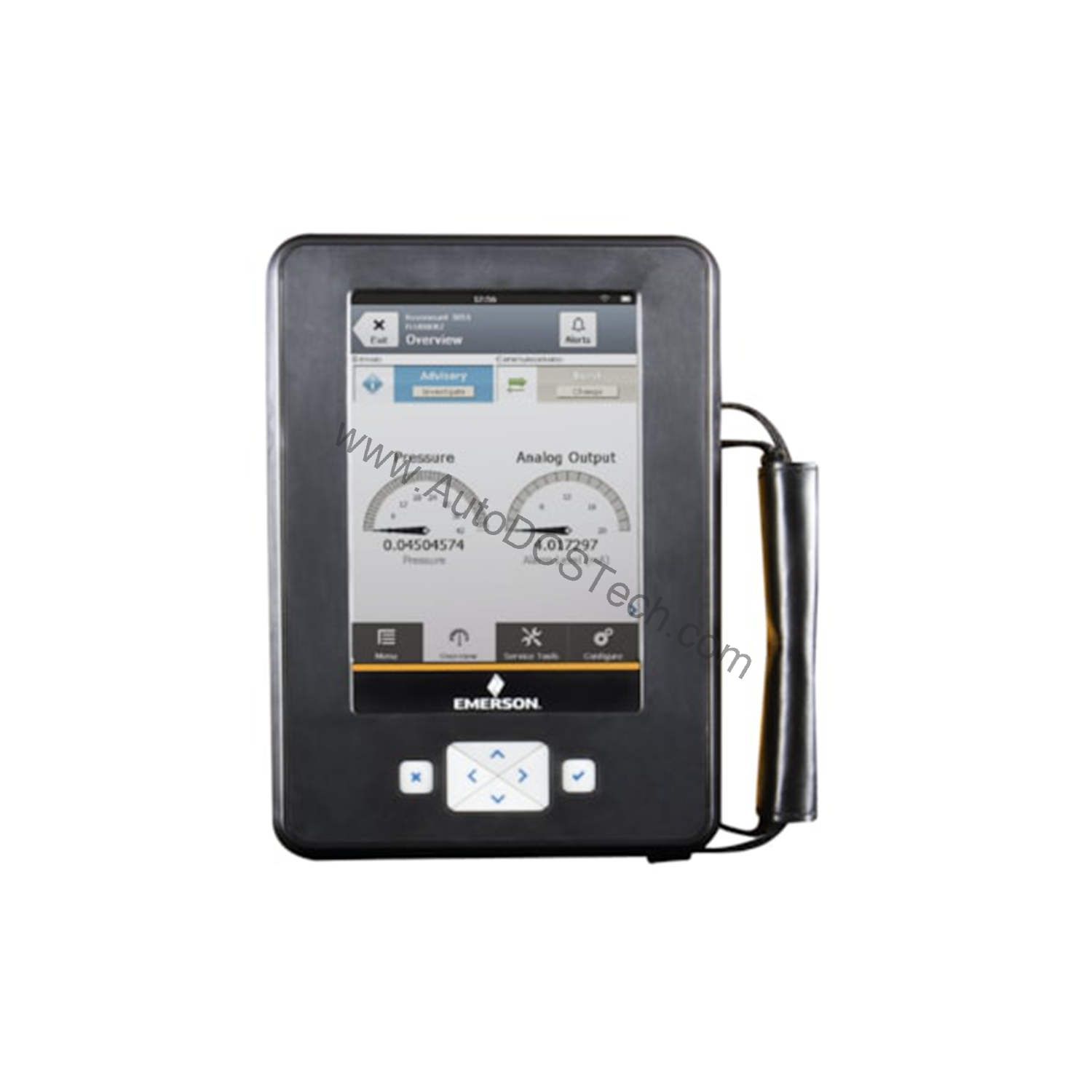

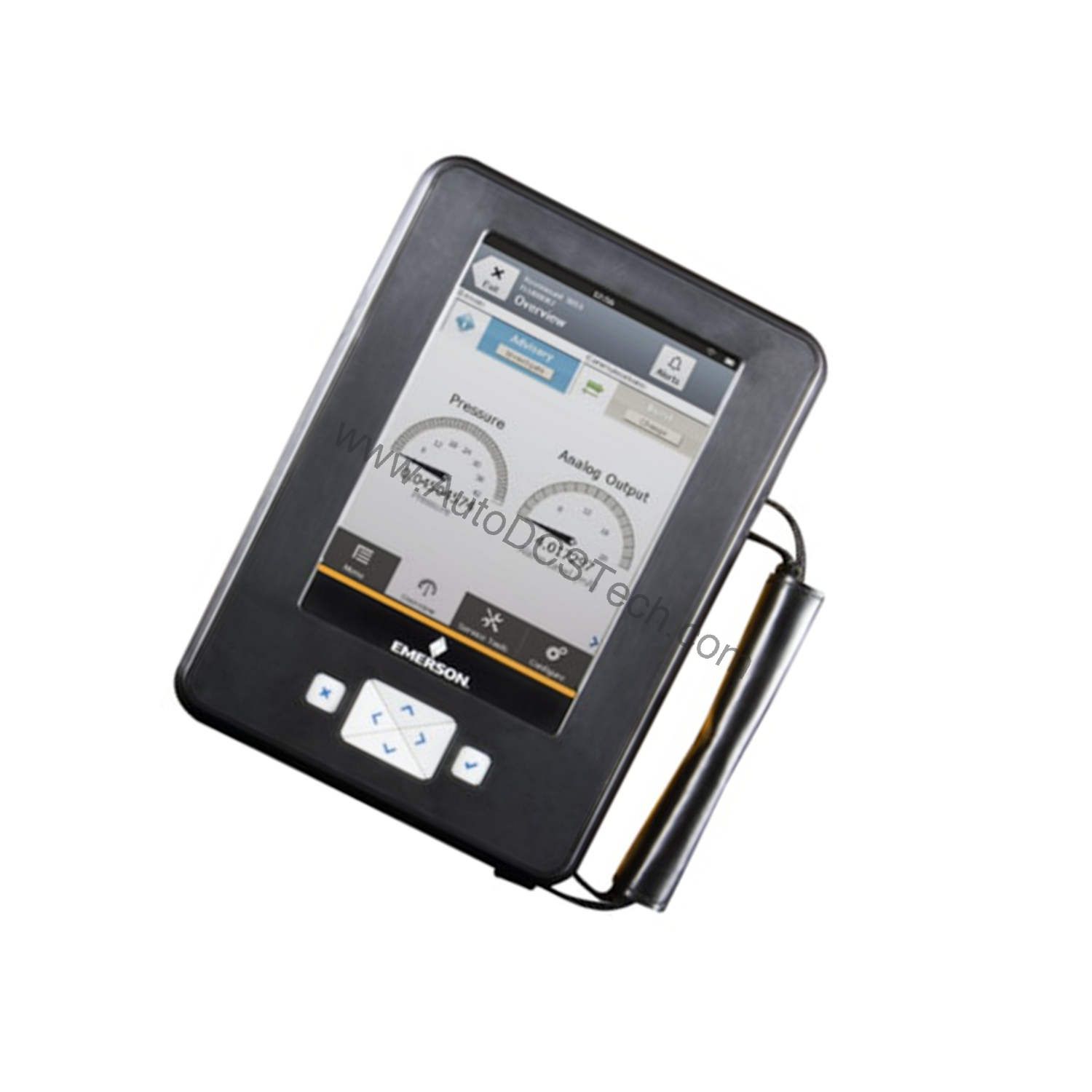

The TREXCHPKLWP1S is a new, factory-packed Emerson AMS Trex Device Communicator. It is built for industrial environments where reliability and accuracy are non-negotiable. The model number decodes its configuration: it includes a Device Communicator communication module, HART application, rechargeable Li-Ion power module, and ATEX, CSA (US/Canada), and IECEx intrinsic safety certifications. The 'W' indicates wireless capability, and 'P1' adds one year of Premium Support. A carrying case is included. This unit ships with an AC adapter, USB cable, lead set with connectors, hand strap, quick start guide, and resource DVD.

Technical Specifications Breakdown

Key parameters for the TREXCHPKLWP1S are listed below for quick reference:

Industry Applications

HART Device Commissioning and Configuration

Technicians can quickly configure transmitters, positioners, and analyzers without needing a separate power supply. The handheld form factor allows direct connection to the loop. This reduces setup time and minimizes errors.

Preventive Maintenance and Diagnostics

For plants running continuous processes, the device enables on-demand diagnostics. You can check device status, review calibration history, and perform loop tests. The 8+ hour battery life supports full shift usage. The rugged IP54 enclosure and 1-meter drop survival make it suitable for harsh field conditions.

Wireless Data Transfer and Documentation

With built-in Bluetooth, WiFi, and NFC radios, the communicator supports wireless data transfer. This is useful in hazardous areas where wired connections are impractical. The ValveLink Mobile application is available at no charge after activation, extending functionality for valve diagnostics.

Installation & Setup Guidance

Connect the lead set to the device and then to the HART loop. Ensure the loop is powered and within the device's operating temperature range. Use the touchscreen to navigate to the HART application. The resistive screen works with gloves, which is essential for field use. For wireless features, verify that your location has spectrum approval. Activate the device to access ValveLink Mobile.

Maintenance & Reliability

To maintain reliability, keep the device clean and dry. The IP54 rating protects against dust and water splashes, but avoid prolonged submersion. Inspect the lead set and connectors periodically for damage. Calibrate the touchscreen if response becomes inaccurate. Store the device in the included carrying case when not in use. The Li-Ion battery will degrade over time; replace it with an authorized part to maintain performance.

The Evolution of Field Device Communication

Field device configuration has evolved from manual potentiometer adjustments to sophisticated handheld communicators. The TREXCHPKLWP1S Emerson AMS Trex Device Communicator represents this modern era, combining rugged hardware with intelligent software. It reduces downtime by providing immediate access to device health and configuration data.

Compatibility & Integration

The TREXCHPKLWP1S is designed for HART applications, as indicated by the 'H' in the model number. It integrates with Emerson's AMS suite. The wireless radios (Bluetooth, WiFi, NFC) enable connection to mobile devices and asset management systems. The included USB cable allows PC connectivity for data transfer and firmware updates. Always verify compatibility with your specific HART devices before use.

Selection Guide & Purchasing Advice

When selecting a device communicator, consider the communication protocols you use. The TREXCHPKLWP1S is optimized for HART. If you need other protocols, consider other Trex models. This unit includes premium support and a carrying case, which adds value. For a new, factory-packed unit with a 12-month warranty, contact AutoDCSTech. They offer competitive pricing and fast worldwide shipping. Verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the device does not power on, check the battery charge. If the display is unresponsive, perform a reset. For communication errors, inspect the lead set and loop wiring. Ensure the device is within the operating temperature range. If wireless features fail, confirm spectrum approval and radio settings. For persistent issues, refer to the resource DVD or contact support.
