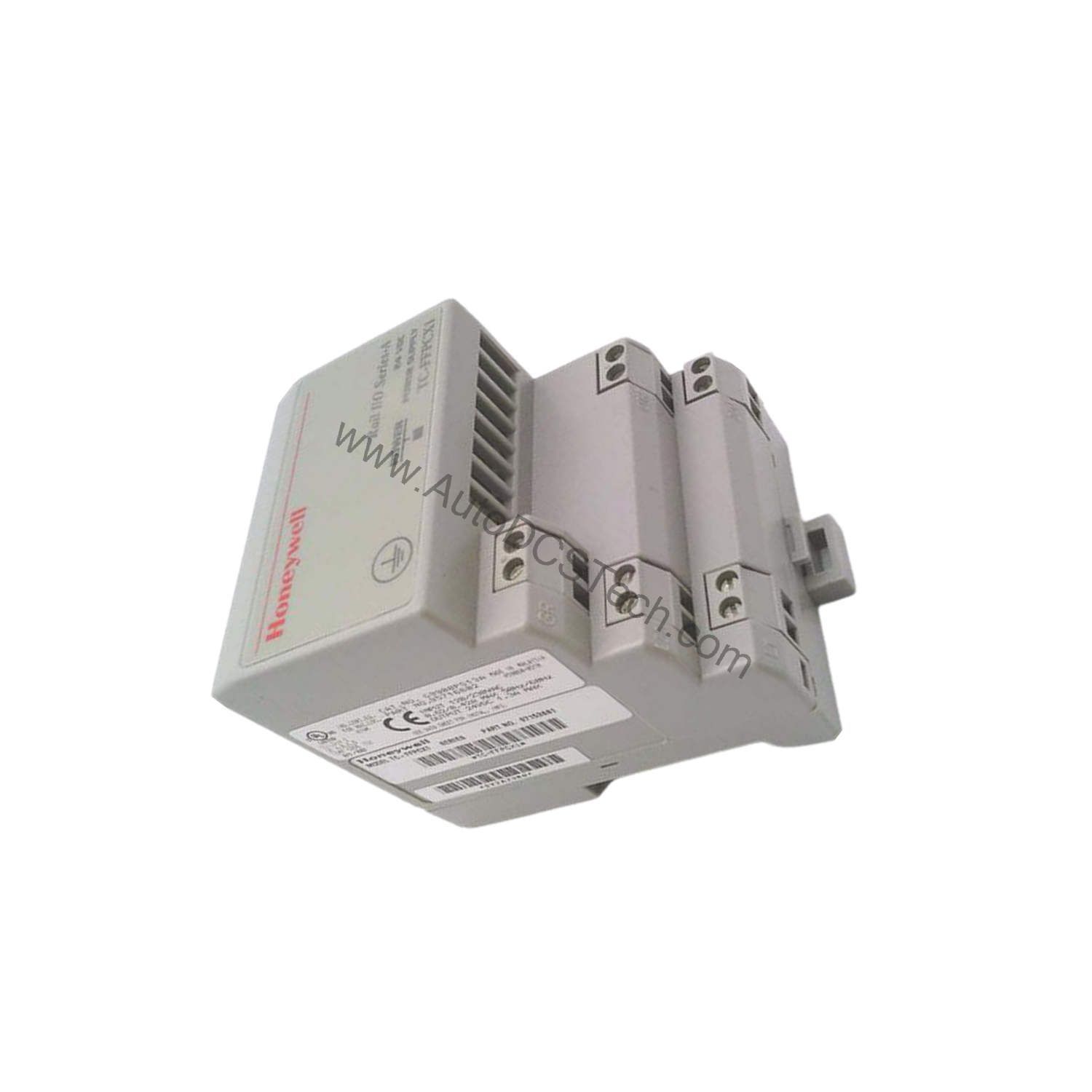

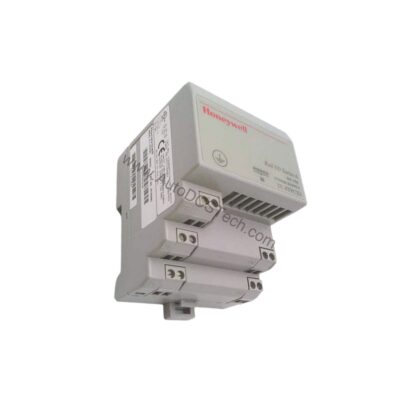

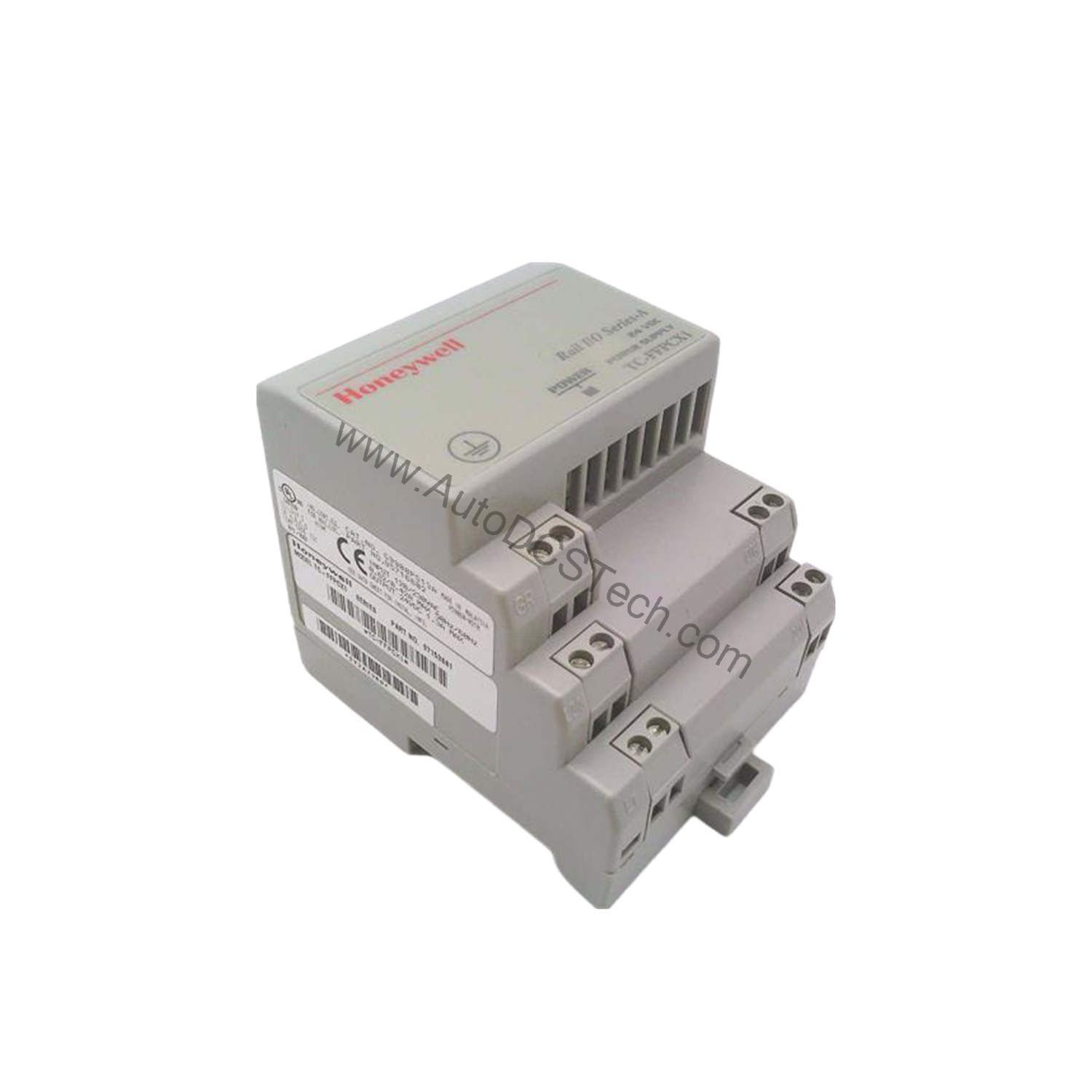

Honeywell TC-PIB161 16-Point Digital Input Module | Intrinsically Safe

Overview: The Honeywell TC-PIB161 Digital Input Module

This 16-point module is engineered for intrinsically safe applications, meeting CENELEC classification II (1) 2G EEx ia/ib IIB/IIC T4. It accepts NAMUR proximity sensors and switch contacts, converting them into clean digital signals for your control system. With its robust design and precise switching characteristics, the TC-PIB161 ensures accurate detection of process states, even in demanding industrial settings.

Technical Specifications Breakdown

Key parameters for the TC-PIB161 are listed below for quick reference:

Hazardous Area Monitoring

In chemical plants and refineries, the TC-PIB161 connects to NAMUR sensors installed in explosive atmospheres. Its intrinsically safe design limits energy to safe levels, preventing ignition. The module's fast 1ms response time ensures that critical alarms, such as high pressure or gas leaks, are detected immediately.

Valve Position Feedback

For automated valve control in oil and gas pipelines, this digital input module reads limit switches and proximity sensors. The configurable digital filter time (1 to 64ms) helps eliminate false signals caused by vibration, improving reliability. Lead breakage and short-circuit detection (0.35mA and 6mA thresholds) alert operators to wiring faults before they cause downtime.

Process Control in Pharmaceutical Manufacturing

In clean rooms, the module's IP20 protection is suitable for control cabinets. The CENELEC certification allows installation in Zone 2 areas when housed appropriately. Its low power dissipation (2.8W) reduces heat buildup in enclosed panels, extending component life.

Installation & Setup Guidance

• Mounting: Install the module on a DIN rail or panel using the provided keyswitch position 6. Ensure adequate clearance for ventilation and wiring.
• Wiring: Use shielded multicore cables to meet EMC requirements per DIN EN 50081-2 and DIN EN 50082-2. Connect NAMUR sensors to the input terminals, observing polarity.
• Configuration: Set the four DIP switches on the bottom to enable/disable fault detection for channel groups (0-3, 4-7, 8-11, 12-15). Adjust the digital filter time via the backplane bus to match your sensor's switching frequency.
• Power: The module receives intrinsically safe power through the terminal base. Verify the supply voltage matches the quiescent voltage (approx. 8Vdc) before energizing.

Maintenance & Reliability

Regular inspection is essential to maintain performance. Check all wiring connections for tightness and signs of corrosion. Clean the module surface with a dry cloth; do not use solvents. Monitor the channel LEDs: a flashing red LED indicates a fault condition (lead breakage or short circuit). Periodically test the fault detection function using the DIP switches. The module operates reliably in ambient temperatures from -20°C to 70°C and can be stored from -20°C to 100°C. It withstands 15g shock (11ms) and 2g vibration (10-500Hz) per IEC 68-2-6, making it suitable for harsh industrial environments.

Compatibility & Integration

The TC-PIB161 uses a vendor-specific bus for communication with the backplane. It is designed for Honeywell control systems, ensuring seamless integration. The backplane bus update time ranges from 1 to 64ms, depending on the filter time setting, allowing you to balance speed and noise immunity. The module provides galvanic isolation between inputs and the backplane bus, as well as between inputs and power supply, protecting the control system from ground loops.

Selection Guide & Purchasing Advice

When selecting a digital input module for hazardous areas, verify the intrinsic safety classification matches your zone. The TC-PIB161 meets CENELEC II (1) 2G EEx ia/ib IIB/IIC T4, suitable for gas groups IIB and IIC. It supports NAMUR sensors per EN 50 227, ensuring compatibility with most proximity switches. For replacement or new installations, contact AutoDCSTech to confirm availability and lifecycle status. We offer genuine Honeywell parts with fast shipping and competitive pricing.

Troubleshooting & Common Issues

• Channel LED flashing red: Indicates a fault on that channel. Check for lead breakage (current 6mA). Inspect wiring and sensor condition.
• No response from module: Verify power supply and backplane connection. Ensure the DIP switches are set correctly for the channel group.
• Intermittent signals: Adjust the digital filter time to suppress noise. Use shielded cables and ensure proper grounding.
• Communication errors: Check the backplane bus update time setting. If too fast, increase the filter time to stabilize communication.

For persistent issues, consult the Honeywell documentation or contact AutoDCSTech technical support.
