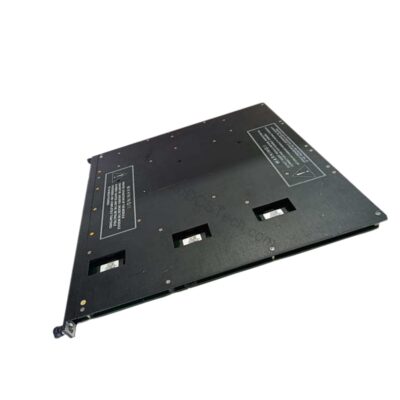

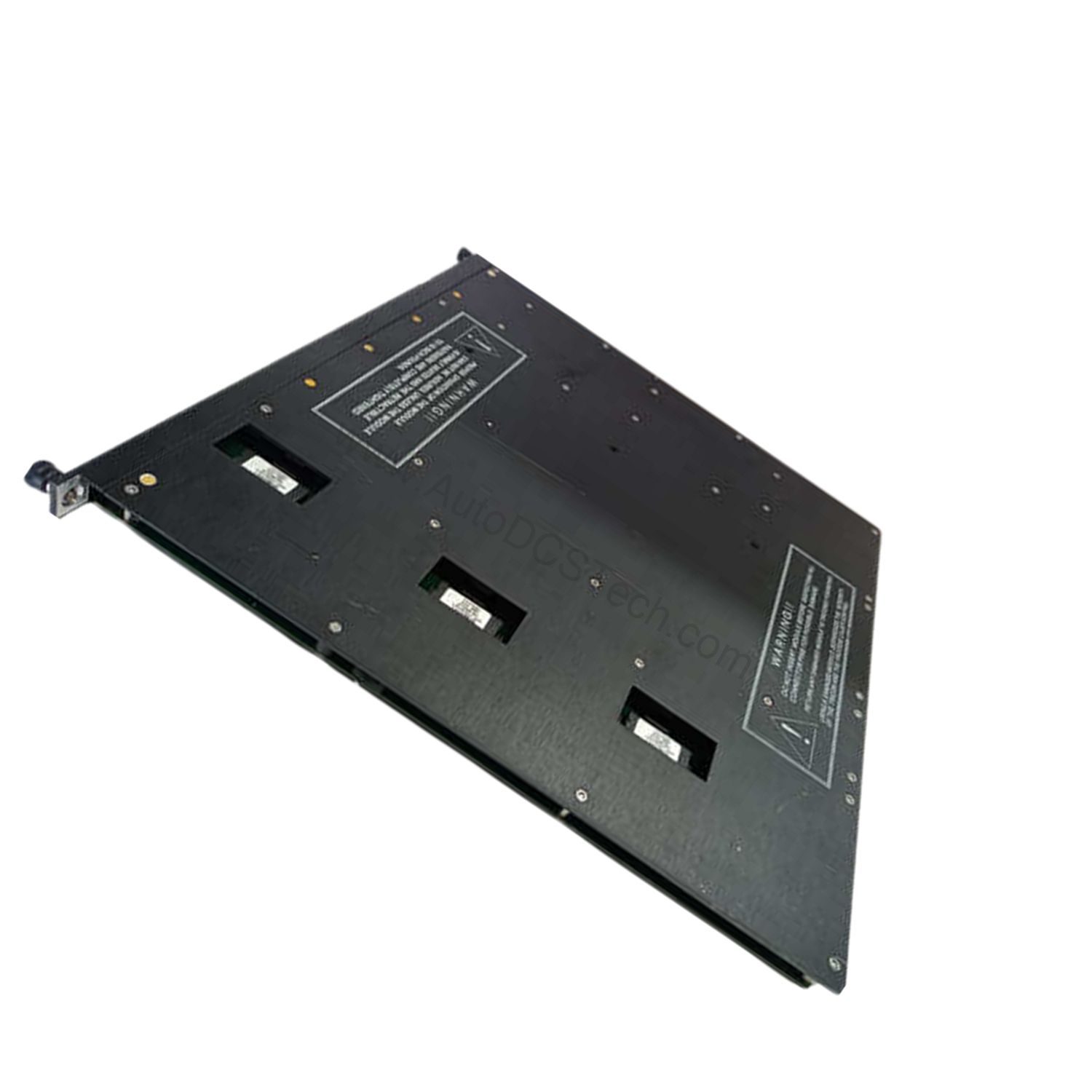

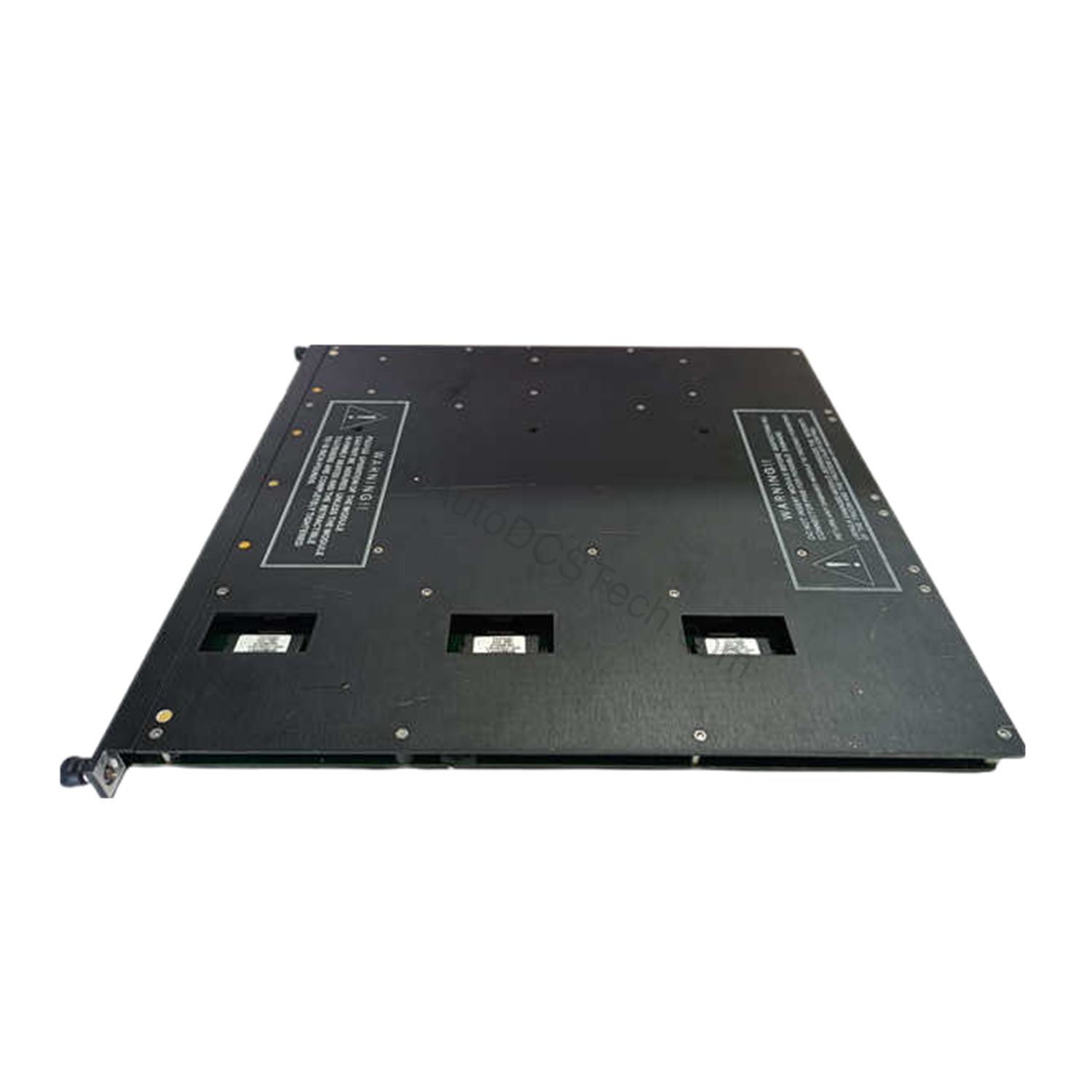

3805E 4-20 mA TMR Analog Output Module

Introduction to the Triconex 3805E

When process uptime matters, the 3805E from Triconex delivers dependable analog output performance. This Triple Modular Redundant (TMR) module is engineered for safety-critical applications where signal integrity is non-negotiable. With its 4-20 mA output range and 8 output points, the 3805E integrates seamlessly into existing Triconex systems.

As an analog output module, the 3805E converts digital commands into precise current signals. Its TMR architecture ensures that a single point of failure does not compromise the output. This makes it a solid choice for demanding industrial environments.

Key Features and Technical Specifications

The 3805E offers a range of features that support accurate and reliable operation. Below are the core specifications drawn directly from the datasheet.

• Output Current Range: 4-20 mA with +6% overrange capability.
• Number of Output Points: 8 isolated points, commoned return, DC coupled.
• Resolution: 12 bits for fine control.
• Output Accuracy: <0.25% of FSR (0-21.2 mA) across 32° to 140°F (0° to 60°C).
• Over-range Protection: +42.5 VDC continuous.
• Switch Time on Leg Failure: <10 ms typical.
• External Loop Power: Reverse voltage protected, max +42.5 VDC, nominal +24 VDC.
• Diagnostic Indicators: PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2 per module.
• Color Code: Pea green for quick identification.

The 12-bit resolution and high accuracy ensure that output signals remain within tight tolerances. The fast switch time on leg failure (<10 ms) helps maintain process stability during fault conditions.

Comparison with Other Analog Output Modules

When selecting an analog output module, engineers often compare key parameters. The table below highlights how the 3805E stacks up against typical non-TMR modules.

While non-TMR modules may offer higher resolution, the 3805E's TMR design provides fault tolerance that is critical in safety applications. The fast switch time ensures minimal disruption during a leg failure.

Applications and Use Cases

The 3805E is well-suited for processes that require high reliability. In oil and gas, chemical, or power generation plants, analog outputs control valves, dampers, and variable speed drives. The TMR architecture ensures that a single component failure does not lead to a plant trip, thereby reducing unplanned downtime.

Moreover, the 3805E's commoned return and DC coupling simplify wiring in existing installations. Its over-range protection up to +42.5 VDC safeguards the module from voltage spikes, which is common in industrial environments. Consequently, the 3805E supports both new projects and retrofits.

Installation and Setup

Installing the 3805E is straightforward when following Triconex guidelines. Begin by verifying that the module is compatible with your chassis and backplane. Ensure that the external loop power supply meets the requirements: for a 250-ohm load, a minimum of 20 VDC is needed; for 500 ohms, 25 VDC; for 750 ohms, 30 VDC; and for 1000 ohms, 35 VDC. The power supply must be capable of delivering at least 1 amp.

Mount the module securely and connect the field wiring to the appropriate terminals. The 3805E uses a commoned return, so all output returns share a common connection. Double-check polarity to avoid reverse voltage damage, although the module is reverse voltage protected. After installation, power up and observe the diagnostic indicators: PASS should be lit, and FAULT should be off.

Maintenance and Reliability

Regular inspection of the 3805E helps maintain long-term reliability. Check the diagnostic LEDs periodically to ensure no faults are present. Verify that the loop power supply voltage remains within the specified range. Since the module is TMR, it can tolerate a single leg failure without losing output, but the fault should be addressed promptly.

Keep the module clean and free from dust and moisture. Operate within the specified temperature range of 32° to 140°F (0° to 60°C) to ensure accuracy. Following these practices minimizes downtime and extends service life.

Compatibility and Integration

The 3805E is designed for use with Triconex safety systems. It connects to the Triconex backplane and is compatible with standard termination panels, such as the 9853-610F basic term panel. The module communicates with the Triconex controller, which handles the TMR voting logic. No additional protocols are required for basic operation.

For integration, refer to the Triconex system manual to ensure proper configuration. The 3805E works with existing Triconex I/O chassis, making it easy to expand or replace modules in an installed system.

Troubleshooting Common Issues

If the 3805E does not produce the expected output, check the following:

• Verify that the module is seated correctly and the backplane connection is secure.
• Check the diagnostic LEDs: FAULT indicates a problem; ACTIVE shows normal operation.
• Measure the loop power supply voltage at the module terminals. Ensure it meets the minimum requirement for your load.
• Inspect field wiring for shorts or opens, especially the common return.
• If a leg fails, the module switches in <10 ms, but the fault should be investigated.

For persistent issues, consult the official Triconex documentation or contact AutoDCSTech for support.

Product Support and Availability

The 3805E is available from AutoDCSTech. As a trusted supplier of industrial automation parts, AutoDCSTech can provide genuine Triconex modules and support. Contact AutoDCSTech for current availability and lifecycle status before ordering.
