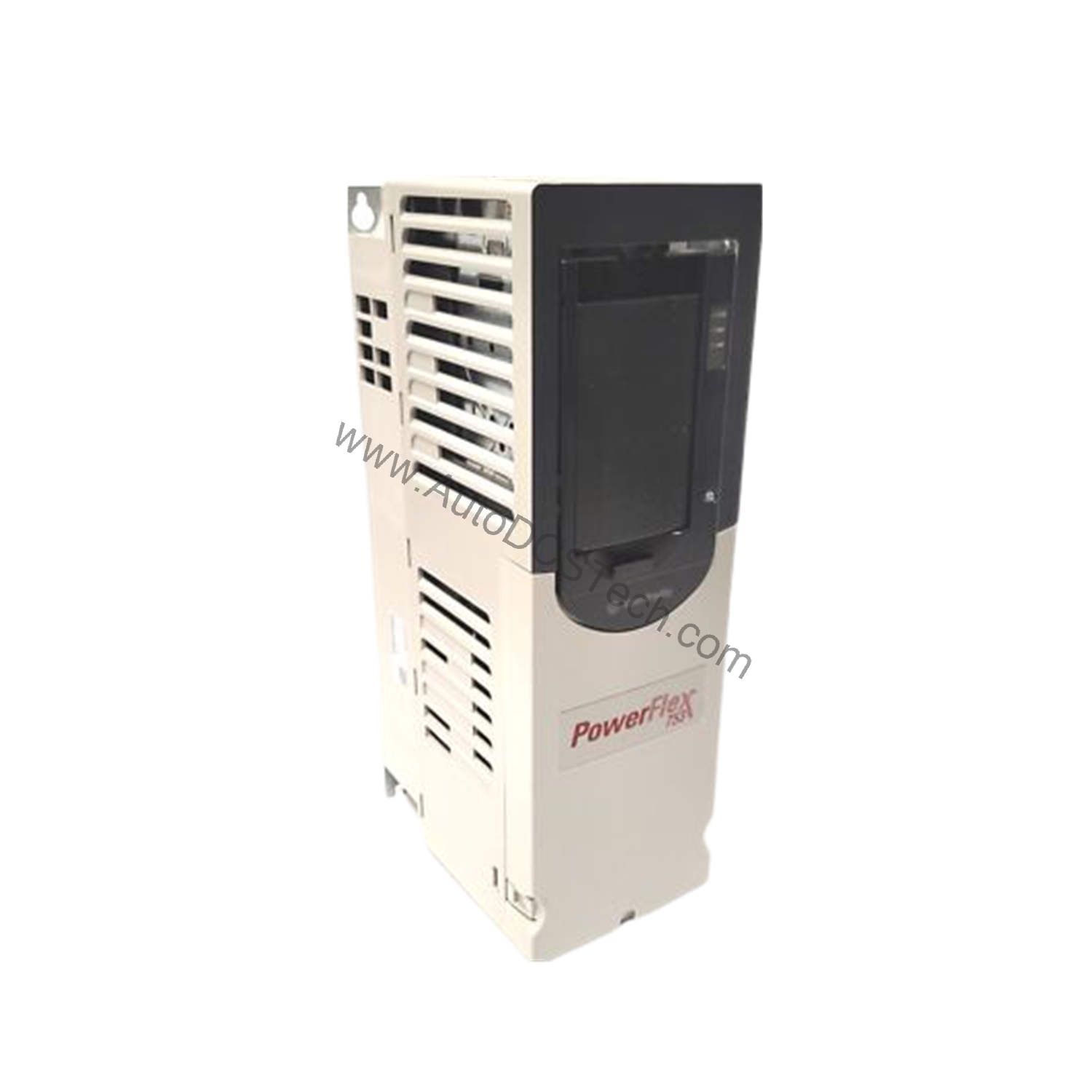

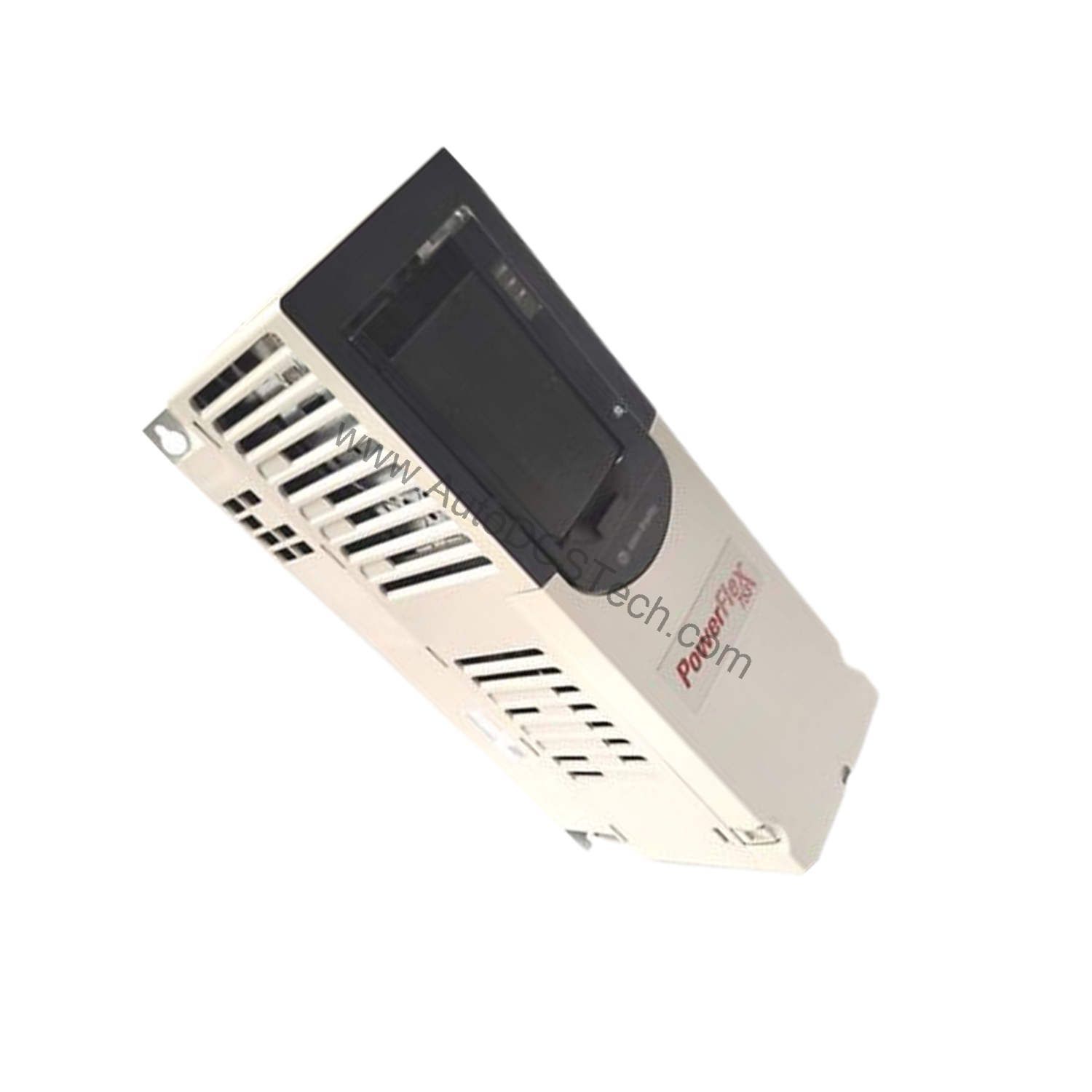

Allen-Bradley PowerFlex 753 20F11ND011AA0NNNNN Adjustable Frequency Drive 5.5 kW

Technical Specifications Breakdown

Key parameters for the 20F11ND011AA0NNNNN are listed below for quick reference:

Industry Applications and Operational ROI

Typical uses include conveyors, pumps, fans, and compressors in industries such as automotive, food and beverage, and material handling. By leveraging the drive's volts/hertz and vector control methods, engineers can achieve significant energy savings and reduce mechanical stress on equipment. The internal brake transistor further enhances system efficiency by enabling controlled deceleration, which minimizes wear and extends component life.

Installation and Setup Guidance

The 20F11ND011AA0NNNNN features an open-type mounting style and an IP20/IP00 enclosure rating, simplifying integration into existing panels. The common mode jumper has been removed to facilitate straightforward installation. Ensure the ambient temperature remains between 0°C and 50°C for optimal performance. The drive accepts AC input with precharge and includes DC terminals for flexible wiring configurations. Always follow local electrical codes and the manufacturer's manual during installation.

Maintenance and Reliability

Air-cooled design enhances thermal management, reducing the risk of overheating in continuous-duty applications. Periodic inspection of the cooling fins and fan is recommended to maintain airflow. The included EMC filtering helps mitigate electromagnetic interference, supporting system integrity. Although no specific maintenance intervals are provided, routine checks of connections and environmental conditions will prolong drive life.

Optimize Motor Control with the Allen-Bradley PowerFlex 753 20F11ND011AA0NNNNN

Industrial operations demand robust and flexible motor control solutions. The Allen-Bradley PowerFlex 753, part number 20F11ND011AA0NNNNN, is an adjustable frequency drive engineered to deliver consistent performance across a wide range of applications. With a power rating of 5.5 kW (7.5 HP) and support for three-phase input voltages up to 480 VAC or 650 VDC, this drive provides the versatility needed for modern manufacturing environments.

Selection Guide and Purchasing Advice

When selecting a drive for your application, consider the power rating, input voltage, and output current requirements. The 20F11ND011AA0NNNNN is well-suited for 5.5 kW (7.5 HP) loads with three-phase 480 VAC supply. For assistance with lifecycle status or availability, contact AutoDCSTech. Our team can help you verify compatibility and ensure you receive the correct component for your system.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
