6ES7315-2AH14-0AB0 24V DC CPU 315-2DP

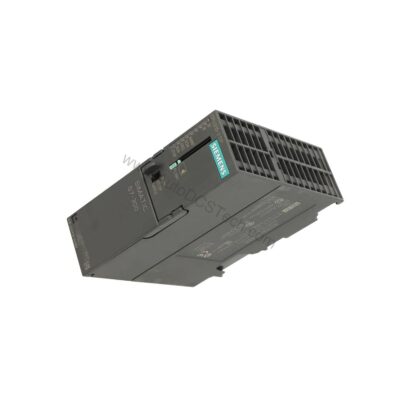

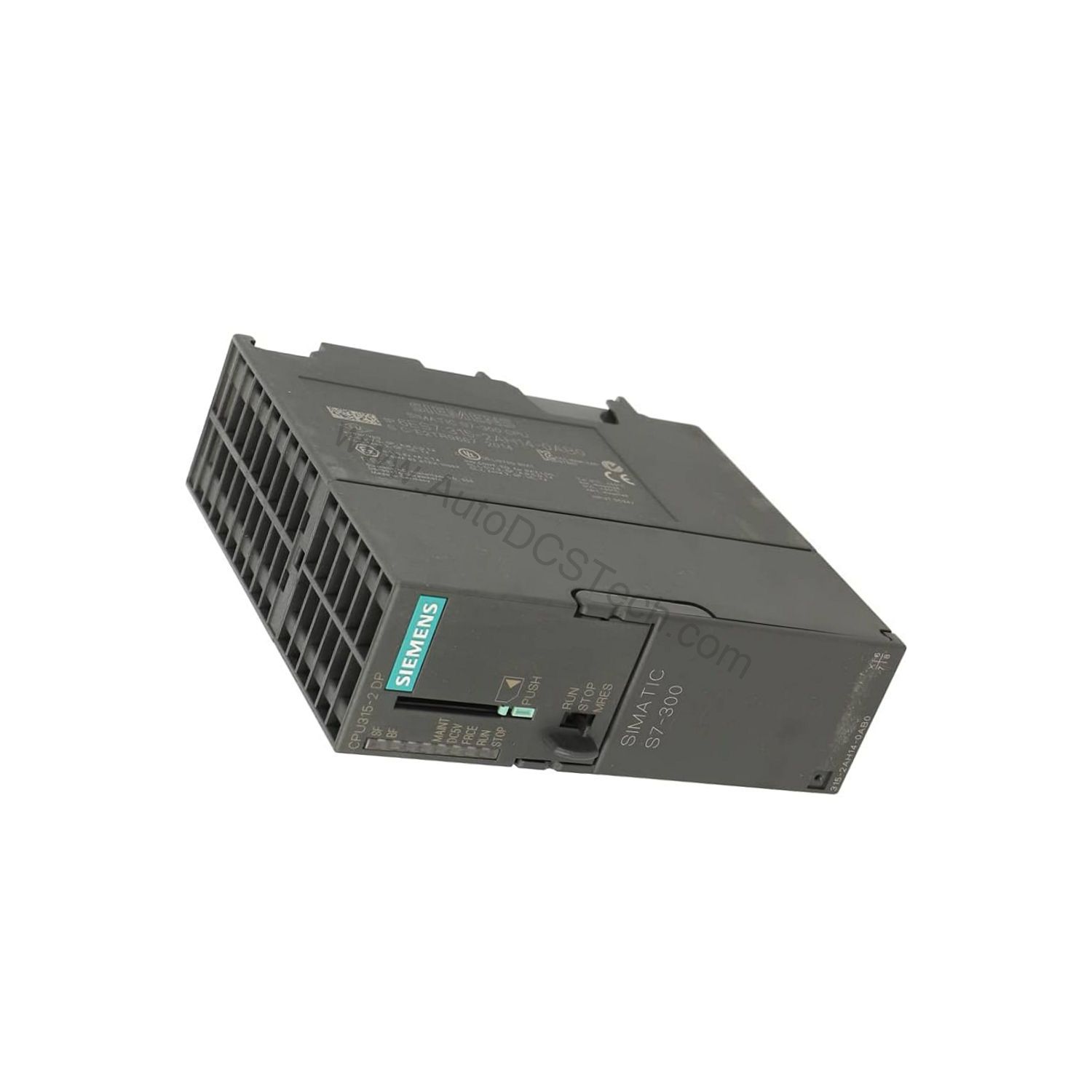

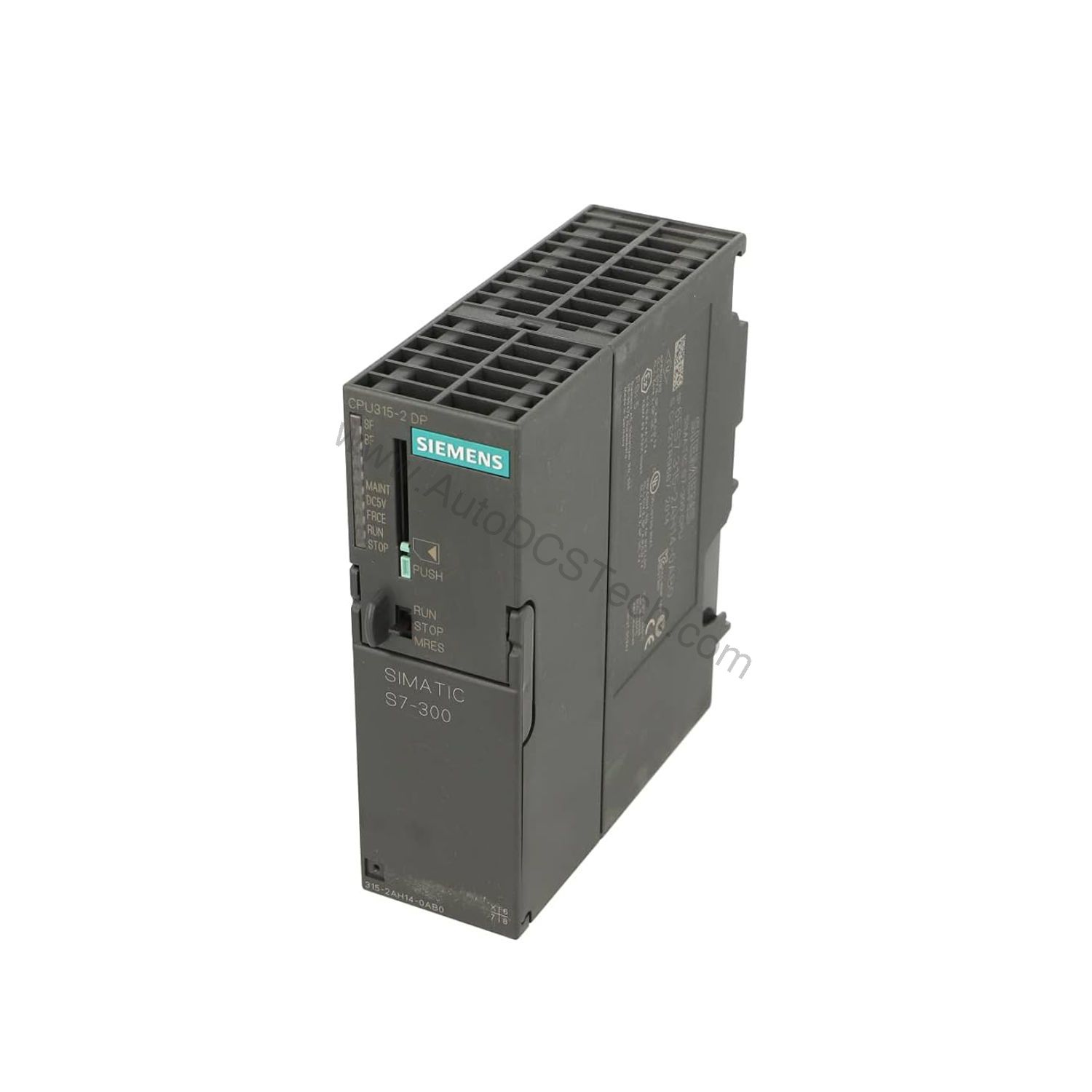

Overview of the Siemens 6ES7315-2AH14-0AB0 CPU 315-2DP

When a control system demands dependable processing and flexible communication, the 6ES7315-2AH14-0AB0 stands out. This Siemens SIMATIC S7-300 CPU 315-2DP integrates a 24V DC power supply and 256 KB of work memory. It is designed for medium-sized automation tasks where performance and cost-efficiency matter.

The CPU features two RS485 interfaces: one for MPI and one for PROFIBUS DP master/slave. This dual-interface design allows seamless integration into existing plant networks. With a compact form factor of 40 mm width, it fits neatly into standard S7-300 racks, saving valuable cabinet space.

For engineers seeking a balance between processing power and energy consumption, this CPU delivers. Its typical power loss of 4.5 W contributes to lower operational costs over the long term. Additionally, the unit requires a Micro Memory Card (MMC) for operation, ensuring reliable program storage without battery backup.

Key Features and Technical Specifications

The 6ES7315-2AH14-0AB0 is built on proven S7-300 architecture. Below are the critical specifications that define its performance and cost-effectiveness:

• Supply voltage: 24V DC (range 19.2V to 28.8V) – ensures stable operation even with voltage fluctuations.
• Work memory: 256 KB integrated, not expandable – sufficient for complex logic and data handling.
• Processing speed: 0.05 µs for bit operations, 0.45 µs for floating point – fast execution reduces cycle times.
• Interfaces: 2 RS485 (MPI and PROFIBUS DP), with PROFIBUS DP supporting up to 12 Mbit/s.
• Digital I/O: 16,384 inputs and outputs (max, with expansion) – scalable for large applications.
• Analog I/O: 1,024 inputs and outputs (max, with expansion) – handles analog signals efficiently.
• Power loss: 4.5 W typical – low energy consumption lowers operating expenses.
• Dimensions: 40 x 125 x 130 mm, weight approx. 290 g – compact and lightweight for easy mounting.

One distinctive feature is the isochronous mode (OB 61) on the PROFIBUS DP interface. This enables synchronized data exchange with drives and other devices, improving control accuracy. For cost-conscious operations, this reduces waste and enhances product quality.

Installation and Setup

Installing the 6ES7315-2AH14-0AB0 is straightforward. Mount it on a standard S7-300 DIN rail in a rack with up to 8 modules. Ensure the 24V DC supply is within the permissible range (19.2V to 28.8V) and protected with a 2A fuse (recommended).

Connect the MPI interface for programming via STEP 7 software (V5.5 SP1 or higher). For PROFIBUS DP, use the second RS485 interface, which is isolated for enhanced noise immunity. Set the station address and configure the network parameters in STEP 7.

Remember to insert a Micro Memory Card (MMC) before powering up, as the CPU requires it for program storage. The MMC also retains data without battery, simplifying maintenance.

Maintenance and Reliability

Routine maintenance for the 6ES7315-2AH14-0AB0 is minimal. Periodically check the ambient temperature and ensure it stays within 0°C to 60°C. Verify that the power supply voltage remains stable and that the MMC is properly seated.

The CPU’s hardware clock has a backup time of 6 weeks at 40°C, ensuring time retention during power outages. This feature is crucial for time-stamped data logging and event sequencing, reducing data loss risks.

For long-term reliability, follow the manufacturer’s guidelines for environmental conditions. Avoid exposure to excessive dust or moisture, which could affect the RS485 connectors. Regular inspection of the rack and wiring connections helps prevent unexpected failures.

Cost-Benefit and ROI Analysis

Investing in the 6ES7315-2AH14-0AB0 delivers measurable returns. Its low power consumption (4.5 W) directly cuts energy bills, especially in facilities running multiple CPUs. The integrated PROFIBUS DP master eliminates the need for separate communication processors, reducing hardware costs.

Moreover, the CPU supports up to 124 DP devices per master, allowing centralized control without additional gateways. This simplifies wiring and maintenance, lowering installation and troubleshooting expenses. The 256 KB work memory handles substantial programs, reducing the need for frequent upgrades.

Additionally, the unit’s robust design (operating temperature 0°C to 60°C) ensures long service life, minimizing replacement and downtime costs. For engineers, this translates to a lower total cost of ownership compared to less efficient alternatives.

Compatibility and Integration

The 6ES7315-2AH14-0AB0It supports up to 4 racks and 3 expansion units, allowing system scalability. The CPU works with STEP 7 programming software, supporting LAD, FBD, STL, SCL, CFC, GRAPH, and HiGraph® languages.

Communication options include MPI (up to 187.5 kbit/s) and PROFIBUS DP (up to 12 Mbit/s). It also supports S7 communication (as server) and PG/OP communication, enabling integration with HMIs and engineering stations. For distributed I/O, the DP master can handle up to 124 devices, making it suitable for large installations.

Additionally, the CPU supports global data communication (GD loops) and S7 basic communication, providing flexible data exchange between CPUs. This compatibility reduces integration effort and accelerates project commissioning.

Common Issues and Troubleshooting

Like any industrial component, the 6ES7315-2AH14-0AB0 may encounter issues. A common problem is communication failure on the PROFIBUS DP network. Check the bus termination and ensure the baud rate matches all devices. The CPU supports automatic baud rate search only in passive mode, so verify settings.

Another issue is memory overflow. With 256 KB work memory, large programs may exceed capacity. Monitor the memory usage in STEP 7 and optimize code if necessary. The MMC size can be up to 8 MB, but work memory is fixed.

If the CPU fails to start, verify the MMC is inserted and not corrupted. Also, check the 24V supply and the external protection fuse. Use the diagnostic buffer (up to 500 entries) to identify faults quickly.

Product Support and Availability

The 6ES7315-2AH14-0AB0 is available through AutoDCSTech. As an industrial automation parts supplier, AutoDCSTech ensures genuine Siemens products with reliable delivery. Contact AutoDCSTech for current pricing and stock availability.
