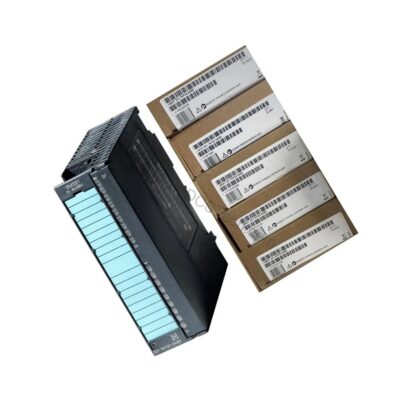

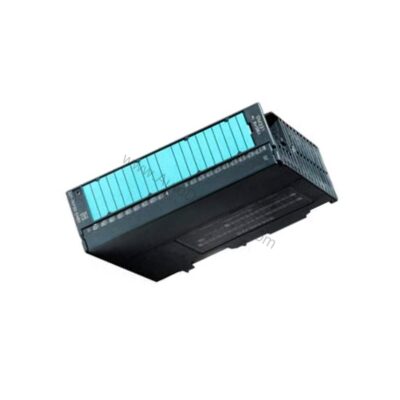

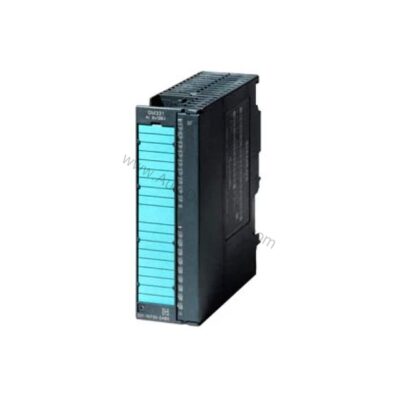

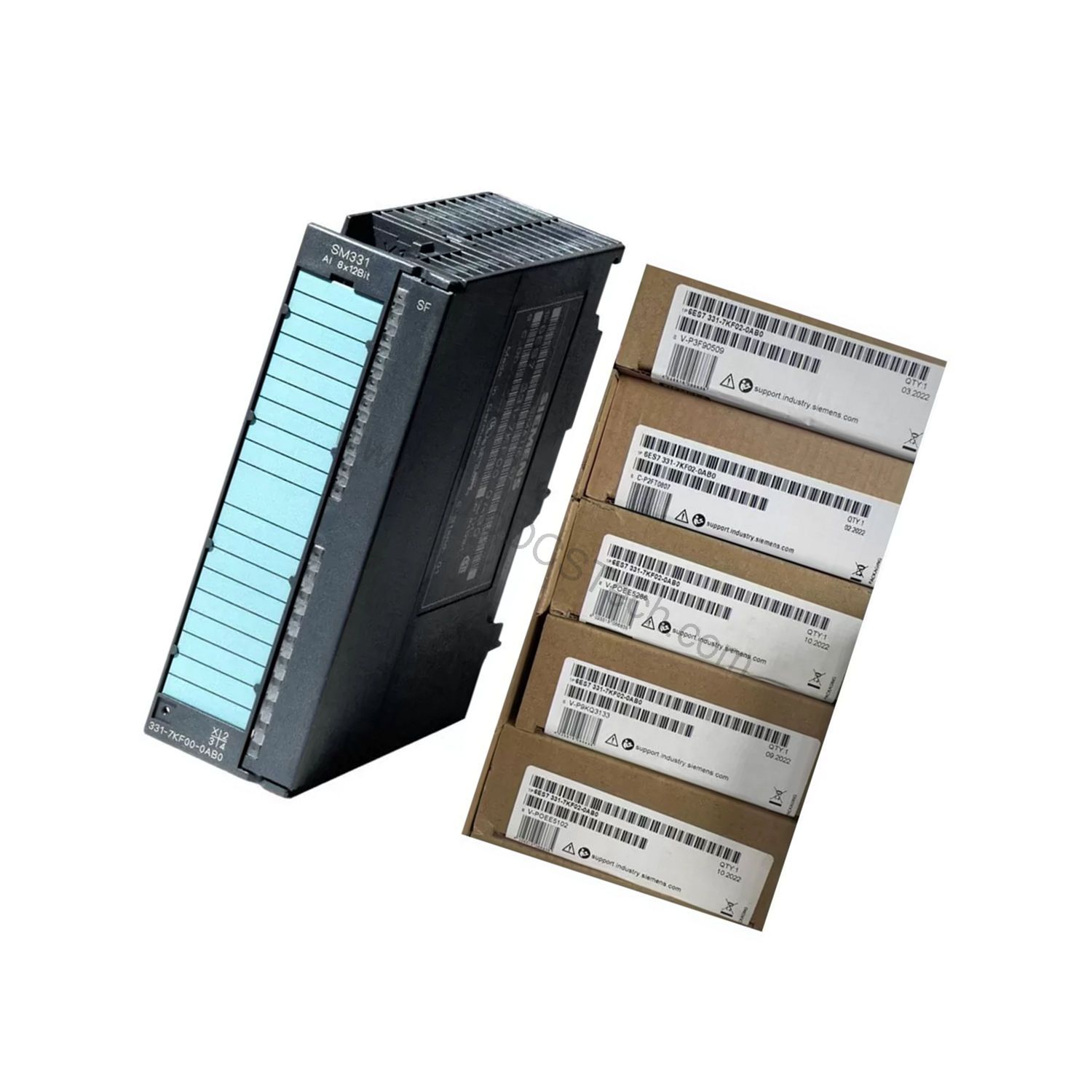

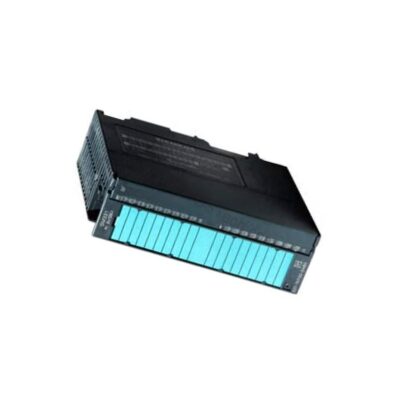

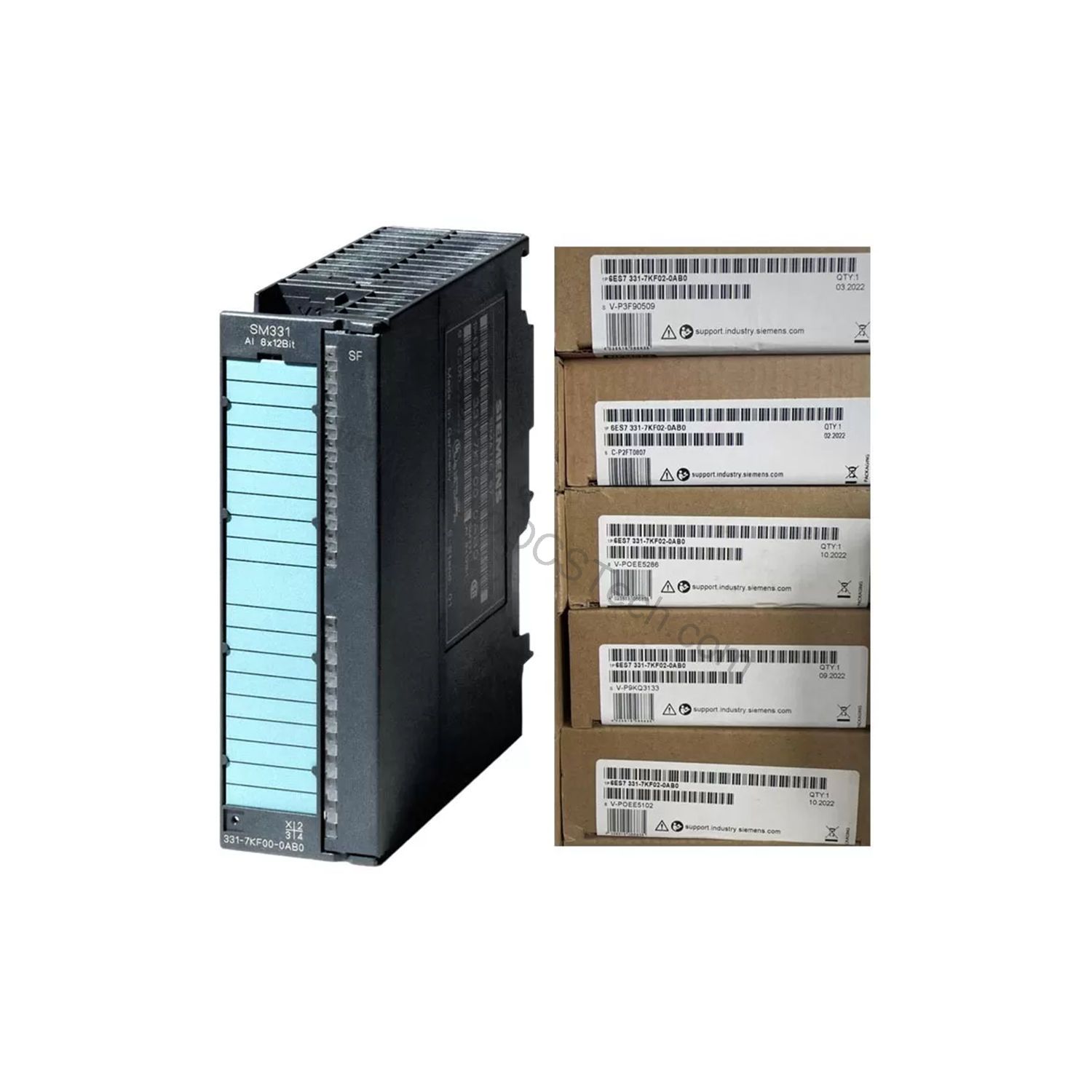

6ES7331-7KF02-0AB0 8 AI Analog Input Module

Introduction to the Siemens 6ES7331-7KF02-0AB0

When process variability demands precise analog signal acquisition, the 6ES7331-7KF02-0AB0 from Siemens delivers a robust solution. This SIMATIC S7-300 analog input module SM 331 provides eight isolated channels, making it a versatile choice for industrial automation systems. Its ability to handle voltage, current, thermocouple, and resistance inputs reduces the need for multiple modules, simplifying inventory and lowering overall costs.

Key Features and Technical Specifications

The 6ES7331-7KF02-0AB0 is engineered for accuracy and flexibility. With a rated load voltage of 24 V DC and reverse polarity protection, it ensures reliable operation in demanding environments. The module draws a maximum of 30 mA from the load voltage and 50 mA from the 5 V DC backplane bus, contributing to efficient power usage and reduced energy costs.

• Eight analog inputs, with four configurable for resistance measurement.
• Resolution options of 9, 12, or 14 bits, allowing fine measurement granularity.
• Input ranges include 1 V to 5 V, -10 V to +10 V, 0 to 20 mA, and 4 to 20 mA, among others.
• Thermocouple types E, J, K, L, and N supported with internal or external compensation.
• Resistance thermometer support for Pt100 and Ni100, standard and climatic ranges.
• Diagnostic and limit value alarms are parameterizable, enhancing system monitoring.
• Isolation tested at 500 V DC, ensuring signal integrity and safety.

One distinctive feature is the module's ability to measure resistance with two-, three-, or four-wire connections, providing flexibility in sensor wiring and improving measurement accuracy. This capability can reduce installation costs by accommodating existing field wiring.

Applications and Use Cases

In a chemical processing plant, for instance, the 6ES7331-7KF02-0AB0 can acquire thermocouple signals from reactors and resistance signals from RTDs, all within a single module. This consolidation reduces wiring complexity and installation time, directly impacting project costs. Furthermore, its ability to handle both current and voltage signals makes it suitable for retrofitting existing systems without extensive rewiring.

Installation and Setup

Mounting the 6ES7331-7KF02-0AB0 is straightforward within a SIMATIC S7-300 rack. The module requires a 20-pin front connector (not included) for field wiring. Ensure the load voltage L+ is 24 V DC and observe reverse polarity protection. For thermocouple inputs, use shielded cables; maximum shielded cable length is 200 m, but reduce to 50 m when using 80 mV ranges or thermocouples. Configure the module's parameters via your engineering software, selecting integration times of 2.5 ms, 16.67 ms, 20 ms, or 100 ms to match your interference frequency (400, 60, 50, or 10 Hz).

Maintenance and Reliability

Routine maintenance is minimal due to the module's solid-state design. Periodically inspect the front connector and wiring for signs of wear or corrosion. Verify that the module's diagnostic LEDs (group error SF) are off during normal operation. If a fault occurs, use the diagnostic information readable from the module to pinpoint issues. Following the manufacturer's manual for periodic checks ensures long-term reliability and avoids unexpected failures.

Cost-Benefit and ROI Analysis

Investing in the 6ES7331-7KF02-0AB0 offers long-term value through reduced downtime and maintenance. The module's diagnostic functions and alarms enable early detection of signal issues, preventing costly process interruptions. Its wide input range compatibility means fewer spare modules are needed, lowering inventory carrying costs. Additionally, the module's power loss is typically just 1 W, contributing to energy savings in large installations.

Compatibility and Integration

The 6ES7331-7KF02-0AB0 is part of the Siemens SIMATIC S7-300 family, ensuring seamless integration with S7-300 CPUs and other modules. It supports hot swapping with an active backplane bus, allowing module replacement without shutting down the system—a key feature for minimizing production downtime. The module's isolated analog inputs prevent ground loops, enhancing signal quality in mixed-signal environments.

Troubleshooting and Common Issues

If you encounter inaccurate readings, first verify that the input range configuration matches your sensor. For thermocouples, ensure proper cold-junction compensation is enabled. If the module shows a diagnostic alarm, check channel 0 and 2, as these are parameterizable for diagnostics. Also, confirm that the supply voltage is stable and within 24 V DC. For persistent issues, consult the Siemens documentation or contact AutoDCSTech for support.

Product Support and Availability

The 6ES7331-7KF02-0AB0 is available from AutoDCSTech, an industrial automation parts supplier. Our team can assist with technical inquiries and provide documentation. Please verify current lifecycle status and availability before ordering.
