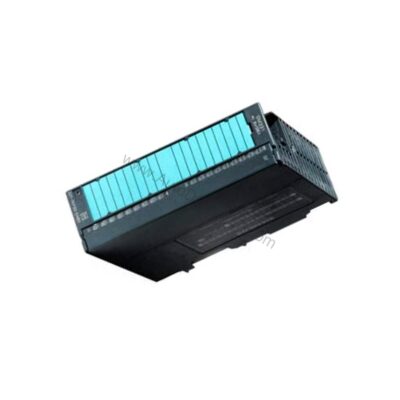

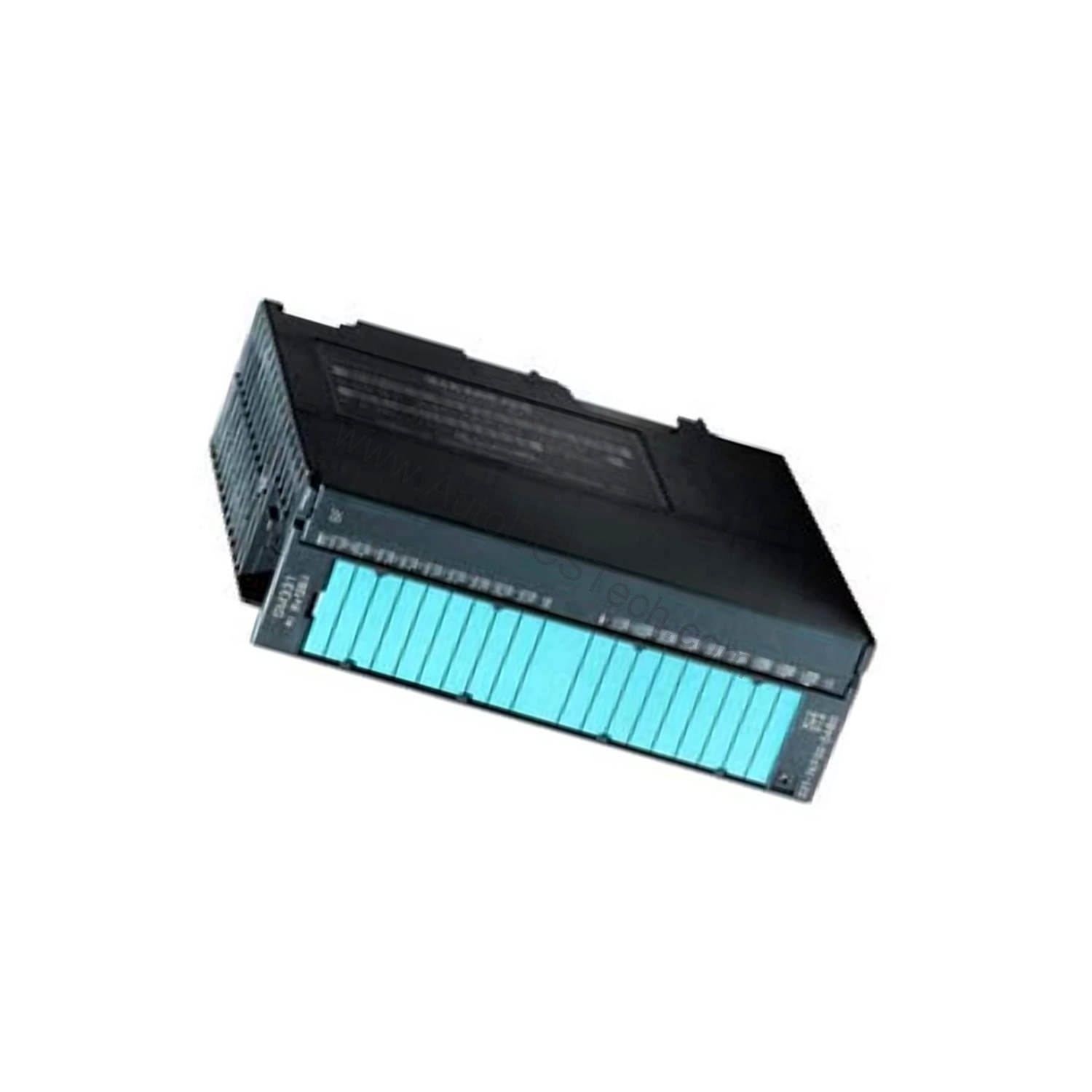

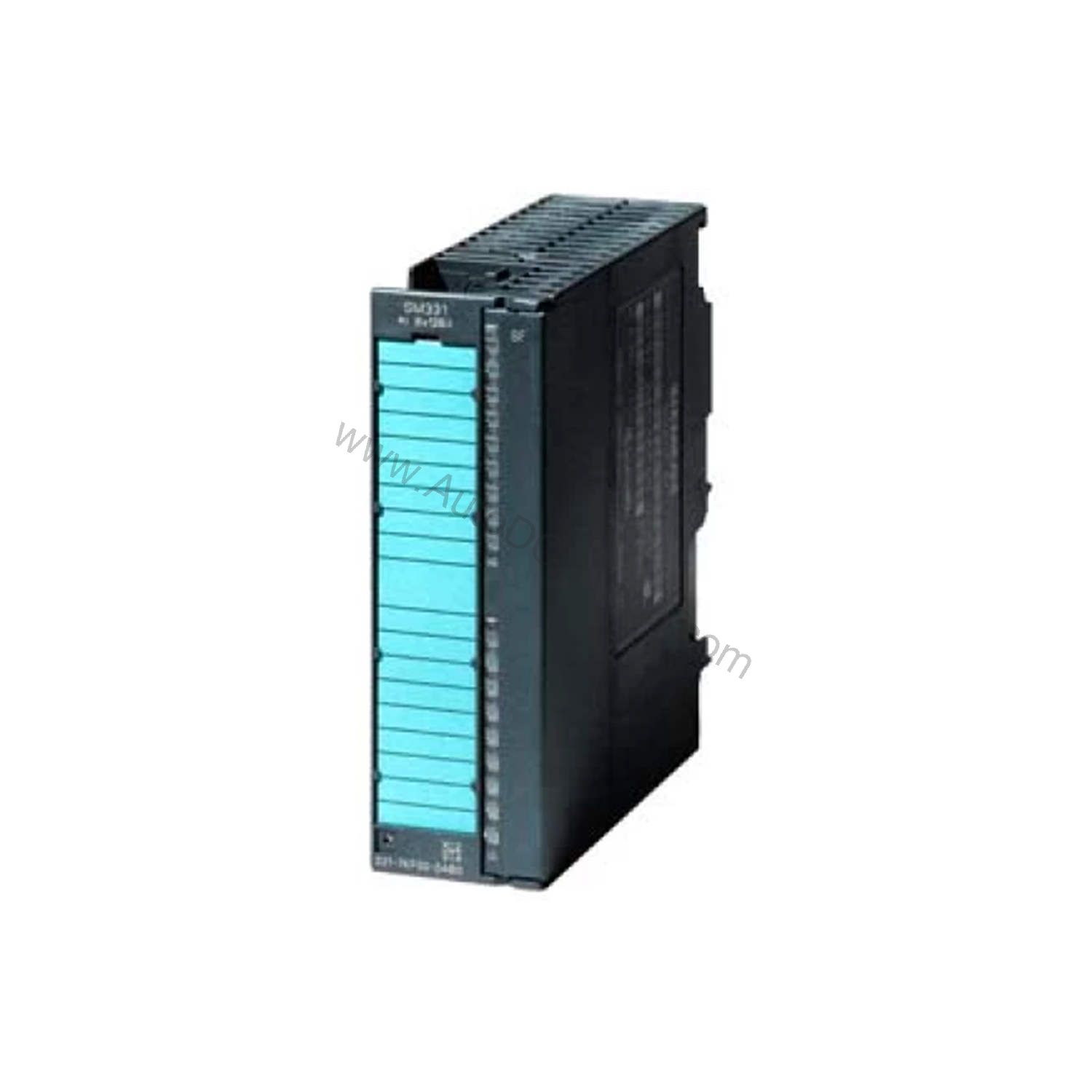

Introduction to the 6ES7331-7PF01-0AB0
When your process demands precise temperature and resistance monitoring, the 6ES7331-7PF01-0AB0 from Siemens delivers reliable performance. This isolated analog input module is engineered for S7-300 PLC systems, providing eight dedicated channels for resistance thermometers (Pt, Ni, Cu) and resistors.
Key Features and Technical Specifications
The module offers a 16-bit resolution with two's complement format, ensuring detailed and accurate readings. Its isolation voltage of 500 V DC between channels and backplane/power supply enhances safety and reduces interference. Conversion time is configurable: 10 ms for up to 4 channels, 80 ms for 8 channels, and 190 ms for more than 5 channels per module cycle. This flexibility lets you balance speed and precision based on your application needs.
- 8 input channels for resistance and RTD measurements.
- 500 V DC isolation between channels and backplane/power supply.
- 16-bit resolution with overrange capability.
- Configurable conversion time (10 ms, 80 ms, 190 ms) per module cycle.
- Noise rejection at 50 Hz, 60 Hz, and 400 Hz.
- Supports 2-wire, 3-wire, or 4-wire connections.
- Operational accuracy: ±0.1% for resistors; ±1 K for RTDs.
- Basic accuracy at 25°C: ±0.05% for resistors; ±0.5 K for RTDs.
One distinctive spec is the configurable conversion time, which allows you to optimize cycle time for the number of active channels—critical for high-speed processes or when scanning multiple sensors.
Applications and Use Cases
Its support for various RTD types (Pt, Ni, Cu) and resistors (0-150/300/600 Ω) makes it versatile. For example, in a plastic molding plant, the module can monitor mold temperatures with ±1 K accuracy, ensuring product quality. Additionally, its noise rejection at 50 Hz, 60 Hz, and 400 Hz helps maintain stable readings in electrically noisy environments.
Installation and Setup
When installing the 6ES7331-7PF01-0AB0, ensure proper mounting on the S7-300 DIN rail. Use shielded cables up to 200 m maximum length to maintain signal integrity. Select the appropriate wiring configuration (2-wire, 3-wire, or 4-wire) based on your sensor type and lead resistance. For 3-wire and 4-wire setups, the module compensates for lead resistance, improving accuracy. Always follow Siemens guidelines for backplane connections and power supply (24 V DC).
Maintenance and Reliability
Regular inspection of the module and its connections is essential to prevent downtime. Check for loose wiring, corrosion, or damage to the shielded cables. The module's isolation design reduces the risk of ground loops, but periodic verification of isolation integrity is recommended. Since the module operates in industrial environments, keep it free from excessive dust and moisture. Following the manufacturer's manual ensures long-term reliability and consistent performance.
Compatibility and Integration
The 6ES7331-7PF01-0AB0 is designed specifically for Siemens S7-300 PLC systems. The module supports configurable alarms (limit, diagnostic, hardware interrupt) per channel, allowing proactive monitoring. Ensure your S7-300 CPU firmware is compatible with this module version.
Troubleshooting and Common Issues
If readings are inaccurate, first check the wiring configuration and ensure proper shielding. Verify that the conversion time setting matches your channel count—using 190 ms for 8 channels is normal, but for fewer channels, a faster setting may be needed. If you experience noise interference, confirm that the interference suppression frequency (50 Hz, 60 Hz, 400 Hz) matches your local power line. For persistent issues, consult the official Siemens documentation or contact AutoDCSTech for support.
Product Support and Availability
The 6ES7331-7PF01-0AB0 is available at AutoDCSTech. Contact us for current stock and lead times.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7331-7PF01-0AB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
