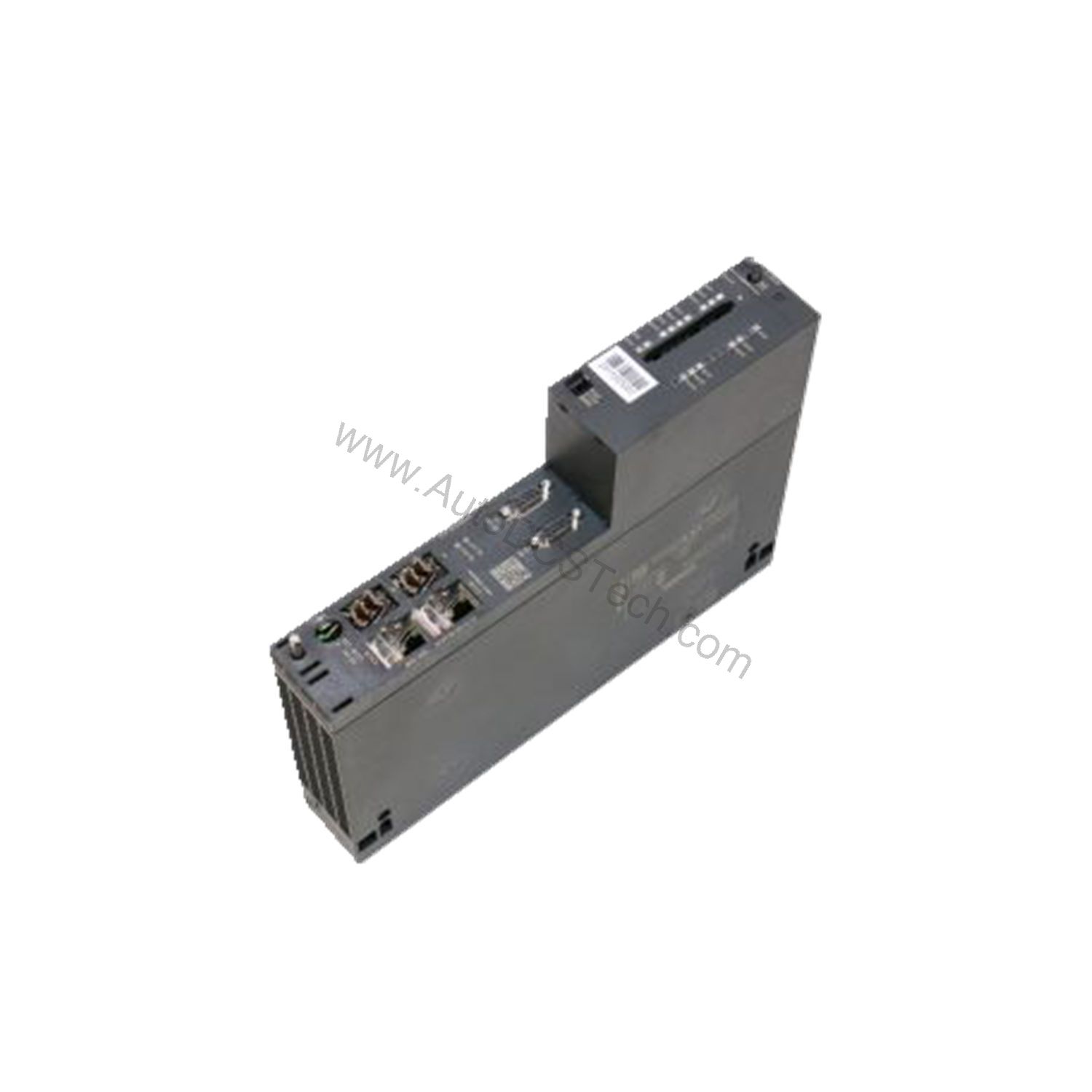

Introduction to the Siemens 6ES7414-4HM14-0AB0
When uptime is critical, the 6ES7414-4HM14-0AB0 from Siemens provides a robust foundation for fault-tolerant automation. This SIMATIC S7-400H CPU 414H is engineered for redundant systems, ensuring continuous operation even if one subsystem fails.
The CPU 414H supports both S7-400H and S7-400F/FH configurations, making it a versatile choice for high-availability applications. Its four interfaces—one MPI/DP, one DP, and two for synchronization modules—enable seamless integration into existing plant networks. This model is designed to maintain process integrity, reducing unplanned downtime and safeguarding production.

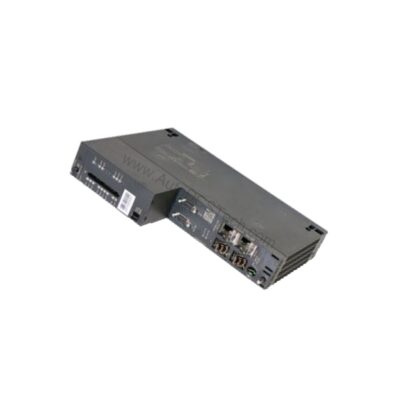

Key Features and Technical Specifications
The 6ES7414-4HM14-0AB0 is packed with features that support demanding industrial environments. Below are the core specifications extracted directly from the datasheet:
- Work memory: 2.8 MB total (1.4 MB program, 1.4 MB data)
- Interfaces: 1 MPI/PROFIBUS DP, 1 PROFIBUS DP, 2 for synchronization modules
- Power loss: 6 W typical
- Number of expansion units: max. 21
- Dimensions (H x W x D): 29 cm x 5 cm x 21.9 cm
- Weight: 0.995 kg
- Backup battery current: 190 µA typical (up to 40°C), max. 660 µA
- CPU processing times: 0.045 µs for bit, word, and fixed-point operations; 0.135 µs for floating-point
- Number of DP masters: 2 integrated
One distinctive feature is the ability to expand load memory up to 64 MB via FEPROM or RAM, providing flexibility for large applications. The CPU also supports up to 4,095 data blocks and 2,048 function blocks, offering ample space for complex logic.
Applications and Use Cases
The 6ES7414-4HM14-0AB0In these environments, the CPU's fault-tolerant design ensures that a single point of failure does not halt production. For example, in a continuous manufacturing line, the CPU can switch to a standby unit without interrupting the process, maintaining product quality and safety.
Moreover, its support for PROFIBUS DP communication allows integration with remote I/O and drives, making it suitable for distributed control systems. The CPU's ability to handle up to 65,536 digital inputs and outputs, along with 4,096 analog channels, enables comprehensive monitoring and control of large-scale operations.

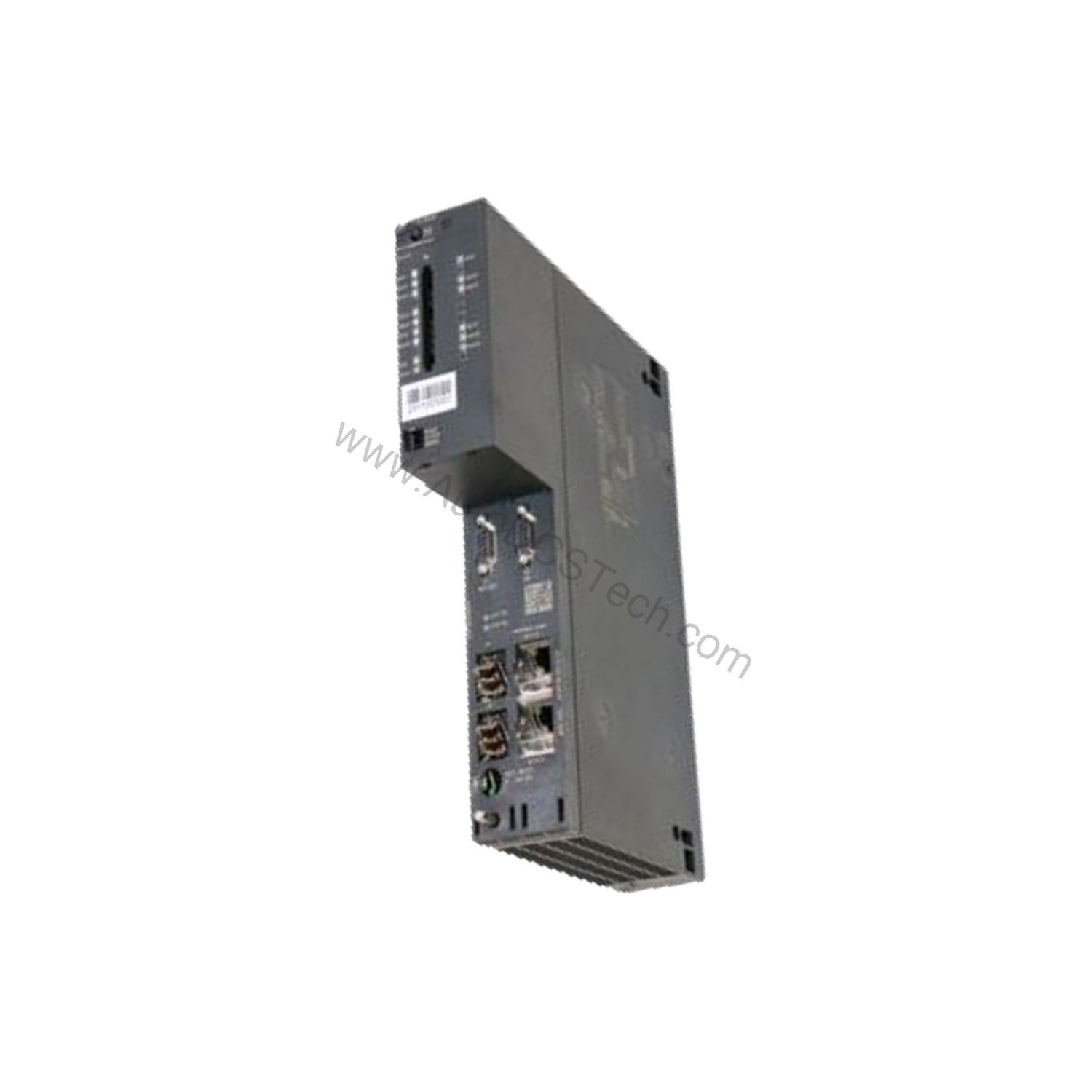

Installation and Setup Considerations
Proper installation is crucial to leverage the full capabilities of the 6ES7414-4HM14-0AB0. The CPU requires two slots in the S7-400 rack and connects to the backplane bus. Ensure that the power supply provides 5 V DC via the system power supply, as the CPU draws up to 1.7 A from the backplane bus. For the DP interfaces, each can draw up to 150 mA from the 24 V DC supply.
When configuring the system, use STEP 7 V5.3 SP2 or higher with HW update. The CPU supports Configuration in RUN (CiR), allowing changes to the I/O configuration without stopping the process. This feature reduces downtime during system modifications, enhancing operational efficiency.
Maintenance and Reliability
Regular inspection of the CPU and its environment is essential for long-term reliability. The CPU includes a backup battery that maintains all data when the main power is off; typical backup current is 190 µA, and the battery should be checked periodically. The hardware clock is retentive and synchronizable, with a deviation of up to 1.7 seconds per day when buffered.
To ensure optimal performance, keep the CPU within its specified operating conditions and verify that the backup battery is functional. The diagnostic buffer, with up to 3,200 entries, helps identify issues quickly. Following the manufacturer's manual for maintenance procedures is recommended to avoid any safety risks.
Compatibility and Integration
The 6ES7414-4HM14-0AB0It supports MPI communication with up to 32 connections and PROFIBUS DP master functionality with transmission rates up to 12 Mbit/s. The CPU can connect to up to 31 operator panels without message processing, or 8 with message processing.
For synchronization, the CPU uses pluggable synchronization submodules IF 960 (part numbers 6ES7960-1AA04-0XA0 or 6ES7960-1AB04-0XA0). These modules ensure that the redundant CPUs stay in sync, maintaining consistent data across the system. The CPU also supports S7 communication as both server and client, with user data per job up to 64 kbytes.
Troubleshooting Common Issues
If the CPU fails to start, check the power supply and backplane bus connections. Verify that the backup battery is installed and charged, as a depleted battery can cause loss of retentive data. For communication issues, confirm that the DP interfaces are properly configured and that the transmission rate matches the network settings.
If the system reports a synchronization error, inspect the synchronization modules and their fiber optic connections. Ensure that both CPUs are using the same firmware version and that the synchronization cables are within the specified length. For persistent problems, consult the diagnostic buffer to identify the root cause.
Product Support and Availability
The 6ES7414-4HM14-0AB0 is available through AutoDCSTech. Contact our team to confirm current stock and lead times.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7414-4HM14-0AB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
