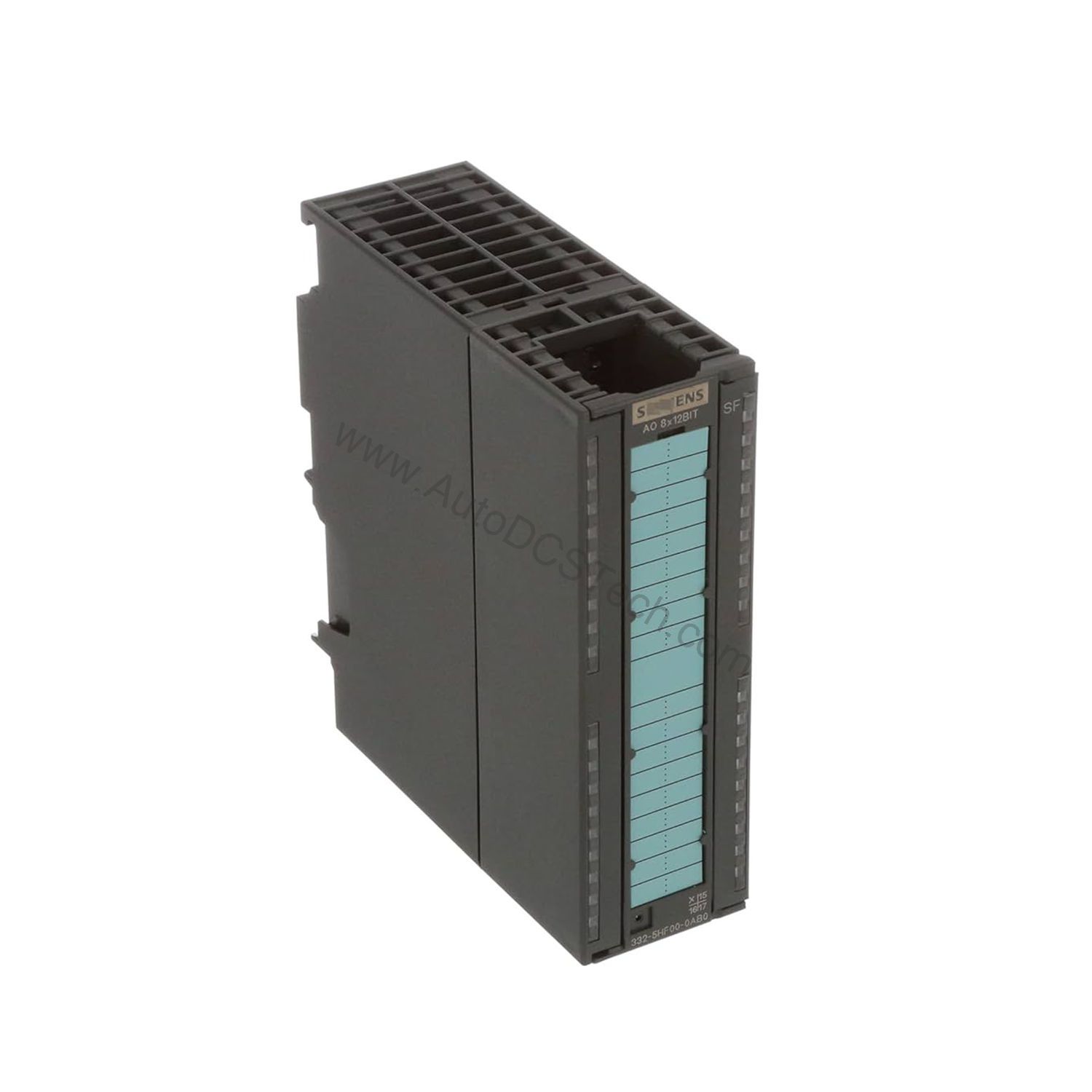

6ES7332-5HF00-0AB0 8 AO Isolated Analog Output Module

Key Features and Technical Specifications

The 6ES7332-5HF00-0AB0 is an analog output module (SM 332) designed for the SIMATIC S7-300 system. It provides eight analog outputs, each isolated from the backplane bus and load voltage, ensuring signal integrity in noisy industrial environments.

• 8 analog outputs, isolated, with voltage and current ranges
• Voltage outputs: 0 to 10 V, 1 V to 5 V, -10 V to +10 V
• Current outputs: 0 to 20 mA, -20 mA to +20 mA, 4 mA to 20 mA
• Resolution: 11 bits + sign for ±10 V, ±20 mA, 4-20 mA, 1-5 V; 12 bits for 0-10 V, 0-20 mA
• Conversion time: 0.8 ms per channel
• Diagnostics function with parameterizable diagnostic alarm
• Group error SF (red) LED indicator
• Hot-swapping possible with active backplane bus

With a load voltage L+ rated at 24 V DC and reverse polarity protection, the module ensures robust operation. The power loss is typically 6 W, and the module draws a maximum of 340 mA from L+ (without load) and 100 mA from the backplane bus.

Applications

The 6ES7332-5HF00-0AB0Its isolated outputs prevent ground loops, making it suitable for harsh industrial environments.

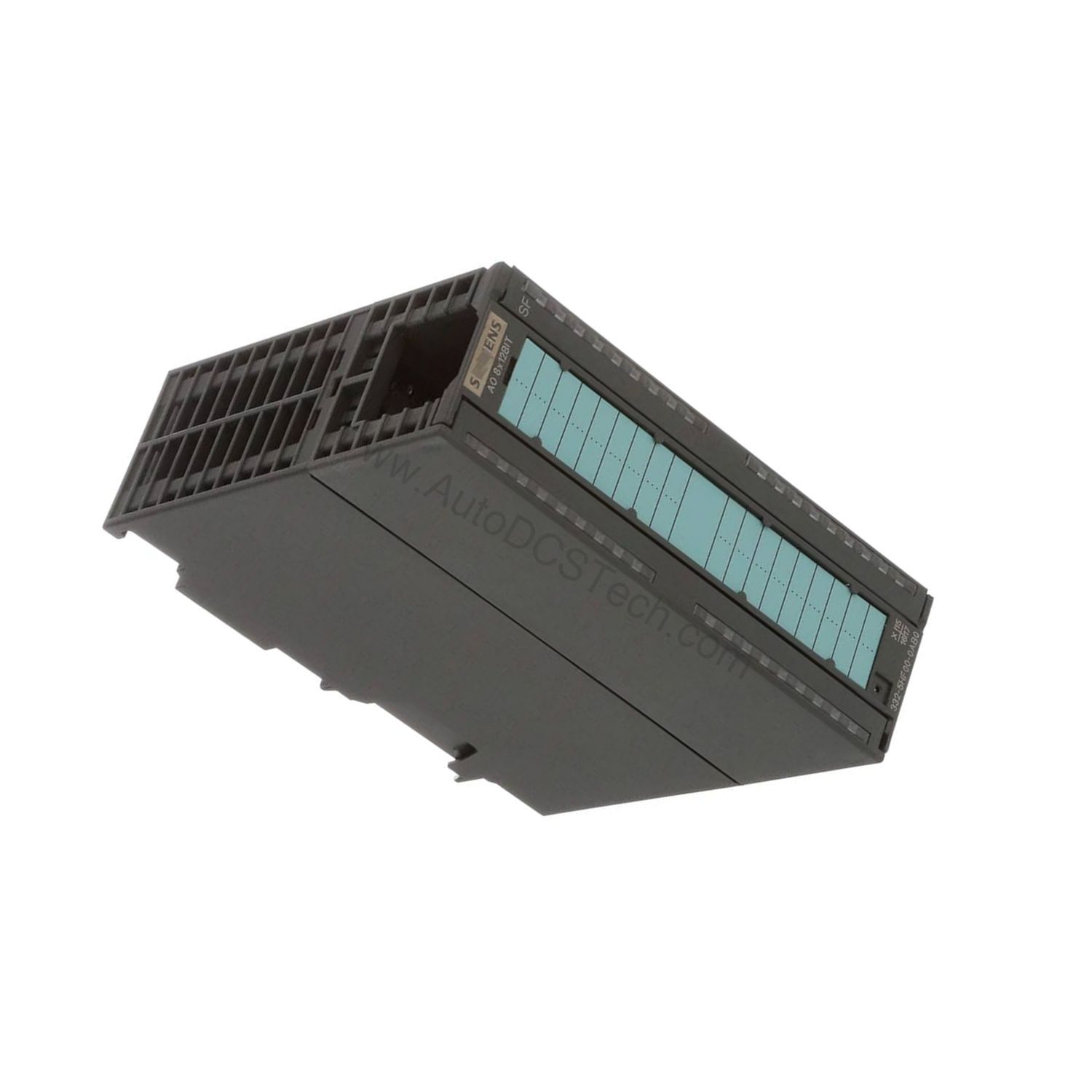

Installation and Integration

Mounting the 6ES7332-5HF00-0AB0 is straightforward. It requires a 40-pin front connector (not included) and fits into any S7-300 mounting rail. The module supports removal and insertion while the backplane bus is active, minimizing downtime during maintenance.

For wiring, ensure the load impedance is within specified limits: minimum 1 kΩ for voltage outputs, maximum 500 Ω for current outputs. Capacitive loads up to 1 µF and inductive loads up to 10 mH are supported. Shielded cables up to 200 meters can be used for signal transmission.

Diagnostics and Reliability

Diagnostics are a key feature of the 6ES7332-5HF00-0AB0. The module can generate diagnostic alarms and provides readable diagnostic information. The red SF LED indicates group errors, allowing quick identification of faults. Isolation testing is performed at 500 V DC, ensuring safe operation.

In terms of maintenance, periodic inspection of the module and its connections is recommended to ensure long-term reliability. The module's robust design and hot-swap capability reduce downtime, contributing to overall system availability.

Performance and Accuracy

The module offers high accuracy with a basic error limit of 0.4% for voltage outputs and 0.5% for current outputs at 25 °C. Over the full temperature range, the operational error limit is 0.5% for voltage and 0.6% for current. Settling times are fast: 0.2 ms for resistive loads, 3.3 ms for capacitive loads, and 0.5 ms for inductive loads (1 mH).
