Introduction: Reliable 24V Power for Critical Automation

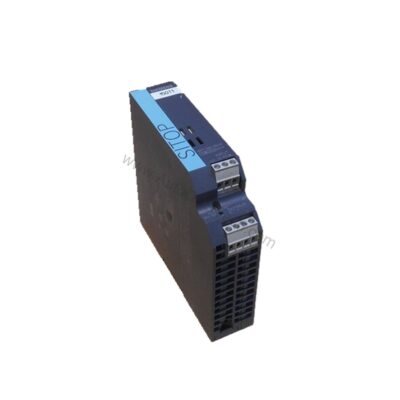

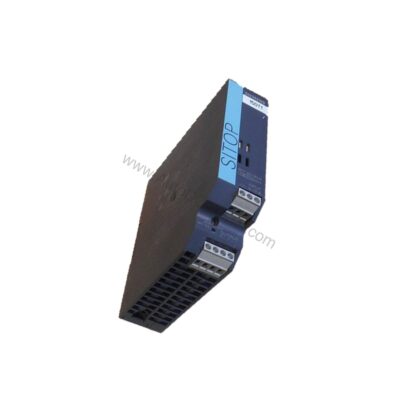

When control panels demand stable DC power, the 6EP1332-2BA20 from Siemens provides a dependable solution. This SITOP PSU100S stabilized power supply converts a single-phase 120/230 V AC input into a regulated 24 V DC output. Rated at 2.5 A, it supports a wide range of industrial loads, from PLCs to sensors and actuators. Its compact design and robust construction make it suitable for demanding environments.
Key Features & Technical Specifications
Engineered for precision, the 6EP1332-2BA20 offers several notable specifications:
- Input voltage: 120 V AC or 230 V AC with automatic range selection.
- Output voltage: 24 V DC, adjustable via potentiometer from 22.8 V to 28 V.
- Output current: rated 2.5 A, with a range of 0 to 3 A up to +45°C; derating above +60°C.
- Efficiency: 85% at rated load, reducing energy waste.
- Galvanic isolation between input and output, ensuring safety.
- Protection class IP20, suitable for enclosed control cabinets.
- CE, UL, CSA, UKCA, and EAC approvals (as listed in the datasheet).
One distinctive feature is the adjustable output voltage, which allows fine-tuning to match specific load requirements. This flexibility helps engineers optimize performance in sensitive applications.
Applications & Use Cases
The 6EP1332-2BA20It powers PLCs, HMIs, and field devices in manufacturing lines. In process control, it ensures stable operation of transmitters and controllers. For building automation, it supplies reliable DC power to sensors and actuators. Its wide input voltage range makes it suitable for global installations, and its compact size fits easily into control panels.
Installation & Setup
Mounting the 6EP1332-2BA20 is straightforward. It snaps onto a standard DIN rail (EN 60715 35x7.5/15). The screw terminals accept wires from 0.5 to 2.5 mm² for input, output, and signaling connections. Ensure adequate spacing: 50 mm top and bottom, and 0 mm left and right. The unit can be lined up with other devices, saving panel space. Always follow the manufacturer's manual for wiring and configuration.
Maintenance & Reliability
Reliability is a key strength of the 6EP1332-2BA20. With an MTBF of 1,804,044 hours at 40°C, it offers long service life. The unit includes protection against overvoltage, short circuits, and overloads, minimizing downtime. For maintenance, periodically inspect the unit for dust accumulation and ensure proper ventilation. Verify that the input voltage remains within specified limits. No special cleaning is required; follow standard industrial practices.
Compatibility & Integration
The 6EP1332-2BA20 integrates easily into existing systems. It provides a relay contact (NO contact, rated 60 V DC/0.3 A) for the “24 V OK” signal, enabling remote monitoring. The output can be paralleled (up to 2 units) to increase power. It is compatible with Siemens SITOP buffer modules for bridging brief power failures. This makes it a flexible choice for expanding automation networks.
Troubleshooting & Common Issues
Common issues with power supplies include voltage drops and overloads. The 6EP1332-2BA20 addresses these with a constant current characteristic and short-circuit protection. If the output voltage is not within tolerance, check the input supply and load conditions. The green LED indicates normal operation; if it is off, verify the input power and connections. For persistent issues, consult the official Siemens documentation or contact AutoDCSTech for support.
Product Support & Availability
The 6EP1332-2BA20 is available from AutoDCSTech. We offer competitive pricing and fast shipping. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and provide documentation.
Availability & Condition at AutoDCSTech
| Part Number | 6EP1332-2BA20 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
