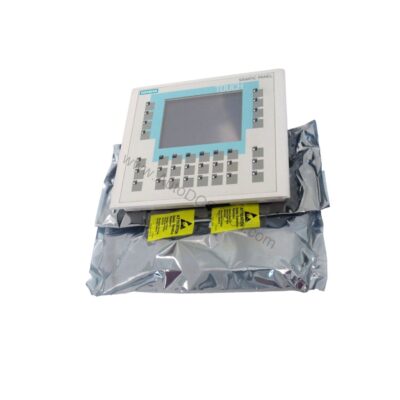

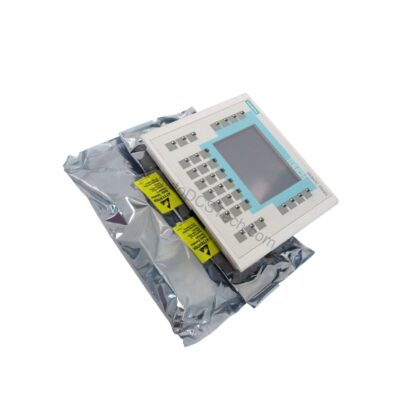

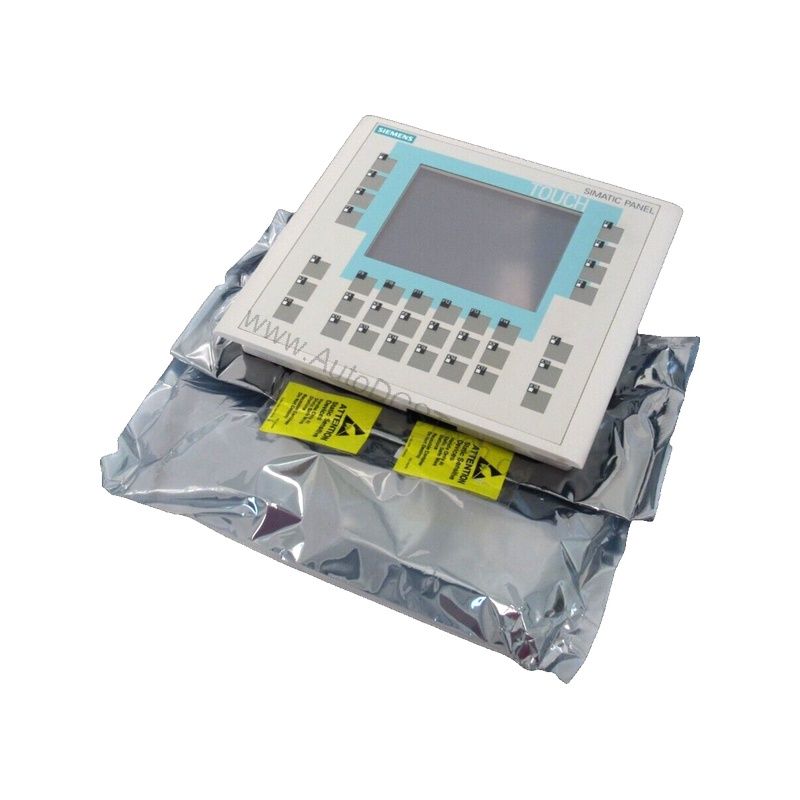

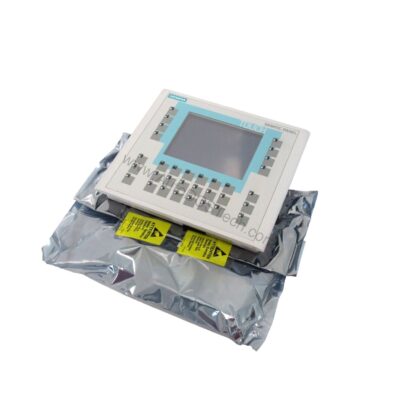

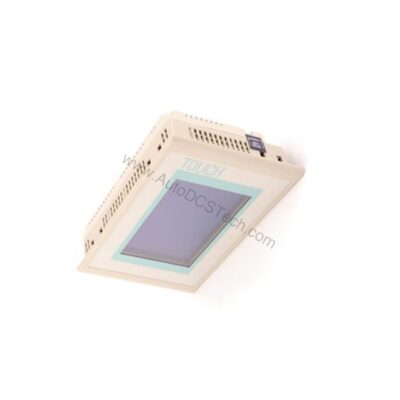

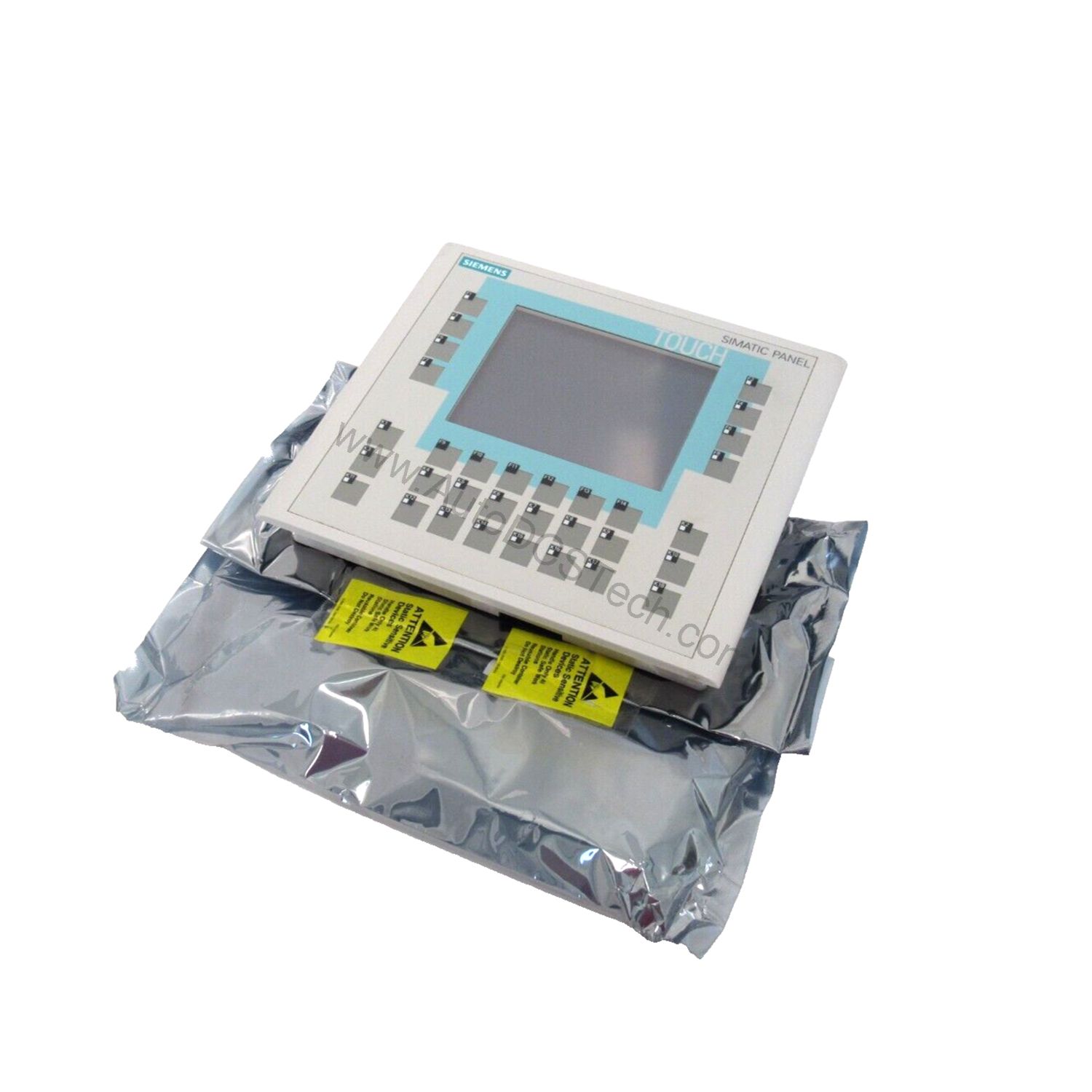

Introduction to the Siemens 6AV6642-0DC01-1AX1
In the evolving landscape of industrial automation, the demand for intuitive and robust human-machine interfaces has never been greater. The 6AV6642-0DC01-1AX1 from Siemens addresses this need, offering a balanced blend of display clarity and flexible control. As part of the SIMATIC OP177B series, this 6-inch panel is engineered for applications where space is limited but performance cannot be compromised.
With its blue mode STN display and combined touch and key operation, the 6AV6642-0DC01-1AX1 provides operators with a familiar and efficient interface. It supports MPI and PROFIBUS-DP protocols, ensuring seamless integration into existing Siemens architectures. This introduction sets the stage for a detailed exploration of its capabilities, applications, and the value it brings to modern production environments.
Key Features and Technical Specifications
The 6AV6642-0DC01-1AX1 is defined by a set of specifications that cater to demanding industrial tasks. Below is a structured breakdown of its core parameters:
- Display: 5.7-inch STN, 4 blue levels, 320 x 240 pixels.
- Control Elements: Membrane keyboard with 32 function keys (26 with LEDs) and analog resistive touch screen.
- Supply Voltage: 24 V DC, rated current 0.24 A.
- Processor: ARM, 200 MHz.
- Memory: 2048 KB user memory (Flash/RAM).
- Interfaces: 1 x RS422, 1 x RS485 (max 12 Mbit/s), 1 x USB, optional RS232.
- Protocols: MPI, PROFIBUS-DP, Sm@rtServer.
- Protection: Front IP65, NEMA 4x/12; rear IP20.
- Certifications: CE, UL, CSA, GL, ABS, BV, DNV, LRS, FM Class I Div. 2, EX Zone 2/22.
- Weight: 1 kg.
A distinctive feature is the backlighting MTBF of approximately 50,000 hours at 25°C, which translates to extended service intervals and reduced downtime. This is particularly valuable for continuous-process industries where unplanned stops are costly.
Applications and Use Cases
The 6AV6642-0DC01-1AX1 finds its place in a variety of sectors, including machine building, food and beverage, and material handling. Its compact footprint allows for easy panel mounting, while the IP65 front ensures resistance to dust and water jets, making it suitable for washdown environments. For example, in a bottling line, the touch interface enables quick recipe changes, and the PROFIBUS-DP connection ensures real-time data exchange with PLCs.
Furthermore, the device supports multiple controller connections, including S7-200, S7-300/400, and Allen Bradley (DF1), offering flexibility in mixed-vendor plants. The ability to handle up to 1000 variables and 500 images makes it a powerful tool for visualizing complex processes.
Installation and Setup
Mounting the 6AV6642-0DC01-1AX1 is straightforward, with a vertical orientation recommended and a permissible inclination of ±35° without external ventilation. The device requires a 24 V DC supply, and it is crucial to adhere to the specified current ratings to avoid overloading. For communication, connect the RS485 interface to a PROFIBUS-DP network, ensuring proper termination and baud rate settings (up to 12 Mbit/s). The USB port allows for quick data transfer and peripheral connection.
Configuration is performed using WinCC flexible Compact (Version 2005 or higher), which must be ordered separately.
Maintenance and Reliability
Routine maintenance is minimal, but periodic inspection of the front seal and connectors is recommended to preserve the IP65 rating. The long backlight life reduces the need for lamp replacements, and the absence of a battery backup for the clock simplifies upkeep. To ensure long-term reliability, keep the unit within the specified storage temperature range (-20°C to +60°C) and avoid exceeding 90% relative humidity.
Given the device's suitability for safety functions is marked as 'No', it should not be used in safety-critical applications without additional measures. Always refer to the official Siemens manual for detailed maintenance procedures.
Compatibility and Integration
It connects to Siemens S5, S7-200, S7-300/400, and WinAC, as well as third-party systems like Mitsubishi (FX), Telemecanique (ADJUST), and Modicon (Modbus). The device also supports Sm@rtServer for remote access, enabling efficient troubleshooting and monitoring.
For configuration, it is compatible with WinCC flexible Compact, Standard, and Advanced, as well as TIA Portal options like WinCC Comfort and Advanced. This versatility ensures that the HMI can be adapted to various automation environments, making it a valuable asset for system integrators.
Troubleshooting and Common Issues
One common issue is communication failure with the PLC. Verify that the RS485 interface is correctly wired and that the PROFIBUS address matches the configuration. If the display appears dim, check the backlight settings and ensure the device is within the temperature range. For touch calibration issues, use the built-in touch calibration function, accessible via the service tools.
If the device fails to boot, check the 24 V DC supply and the integrity of the memory card if used. For persistent problems, consult the Siemens support documentation or contact AutoDCSTech for assistance.
Support and Availability
The 6AV6642-0DC01-1AX1 is available from AutoDCSTech, a trusted supplier of industrial automation parts. With a 1-year warranty and free hotline support, you can rely on prompt assistance. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 6AV6642-0DC01-1AX1 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
