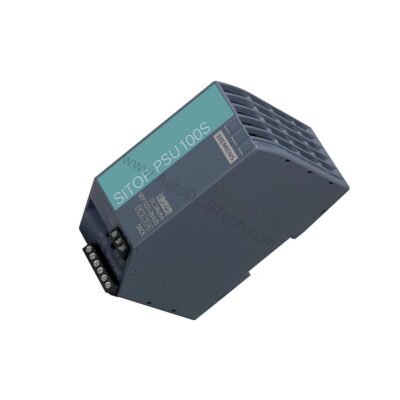

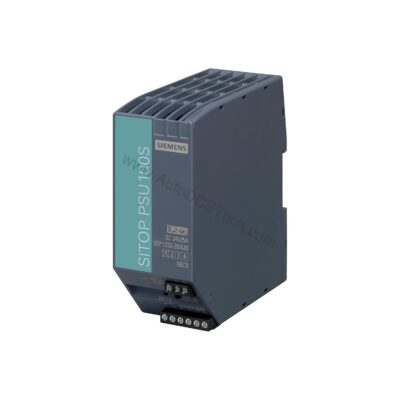

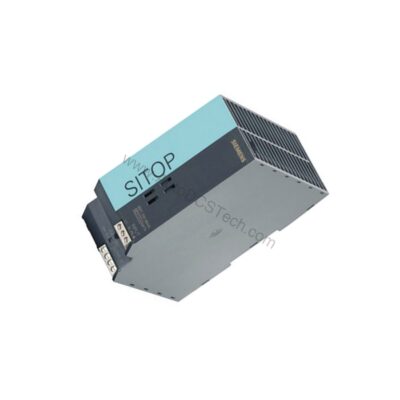

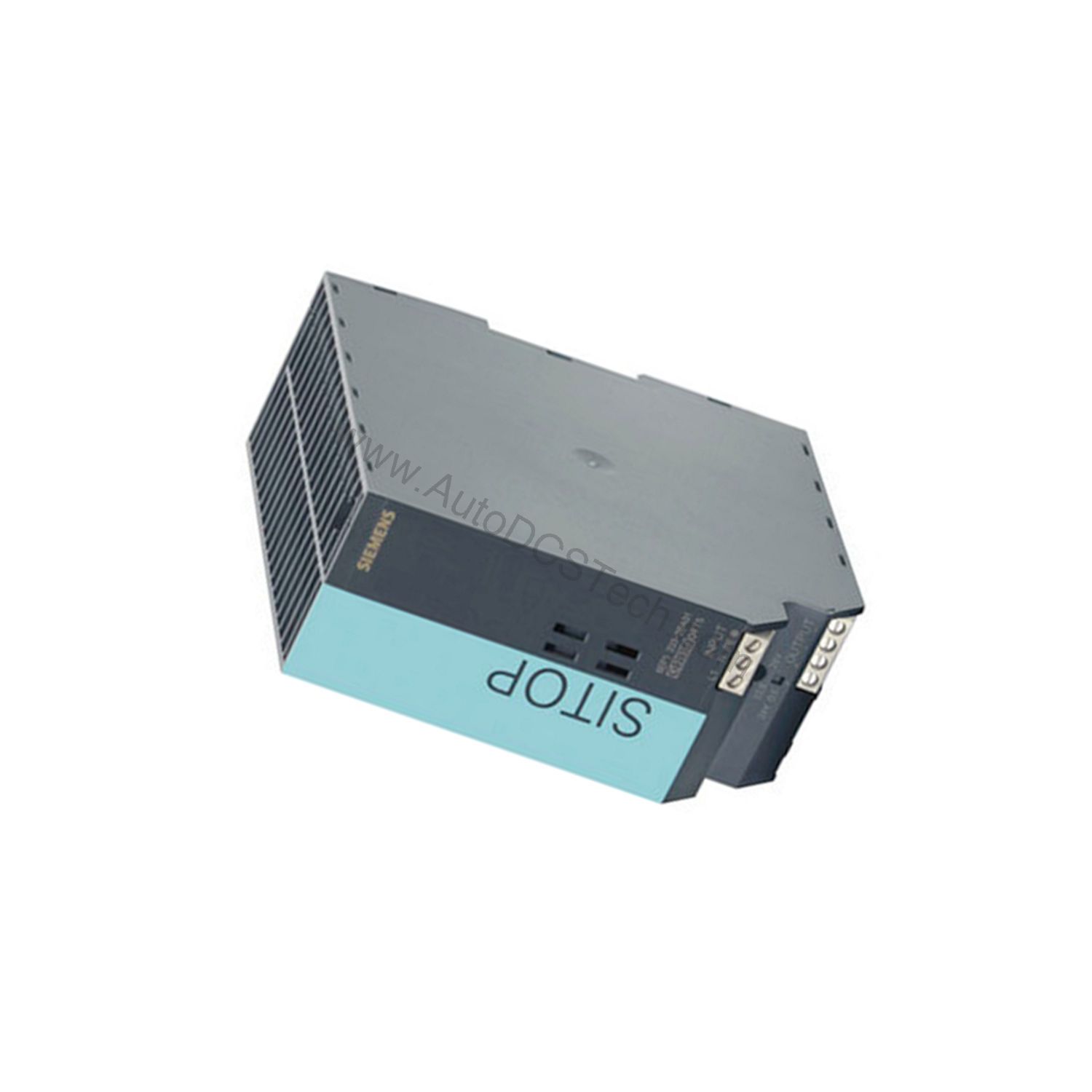

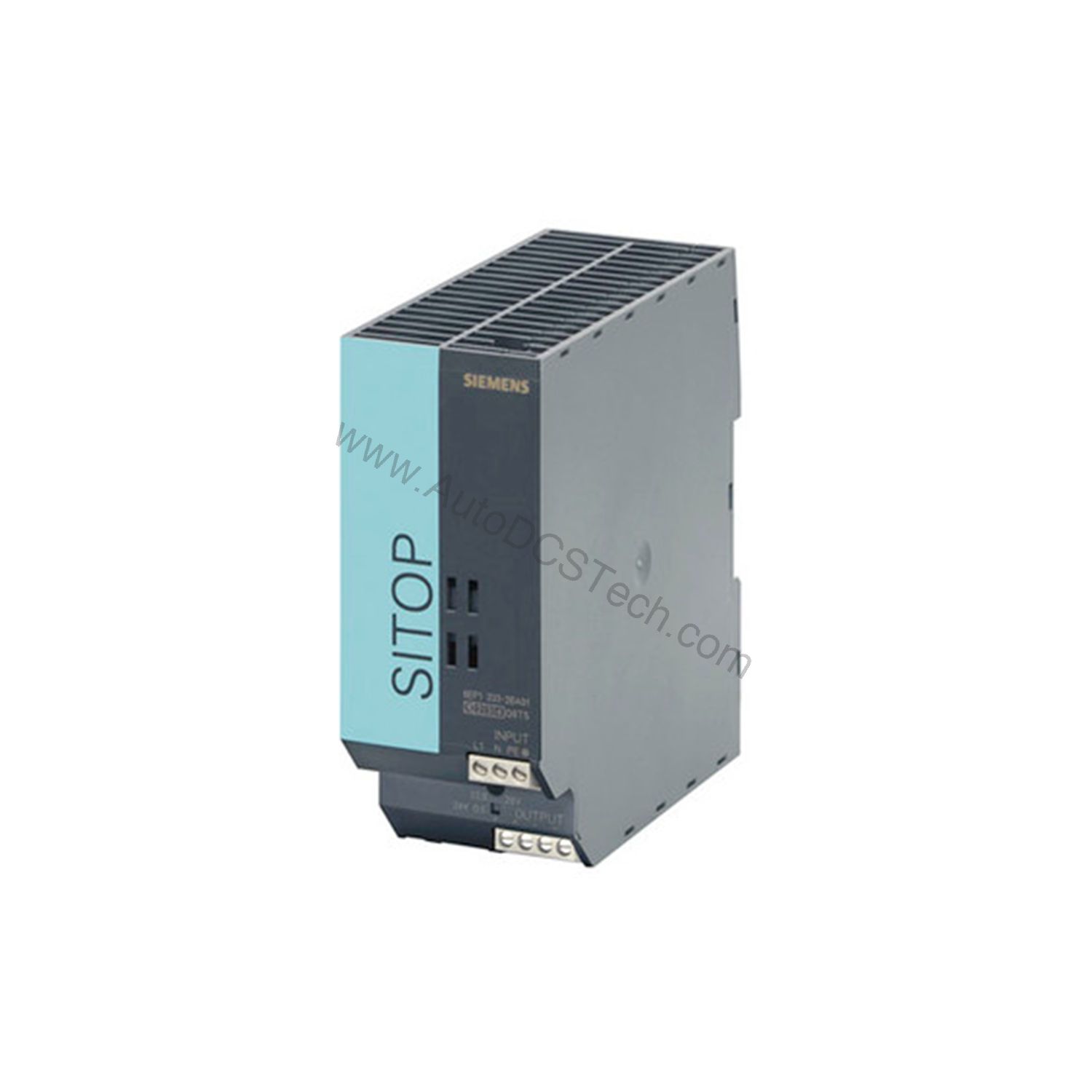

Introduction to the 6EP1333-2AA01
When your control cabinet demands reliable 24V DC power, the 6EP1333-2AA01 from Siemens provides a stabilized output of 24V DC at 5A. This SITOP SMART power supply accepts 120/230V AC input, making it a flexible choice for global machinery. Its compact 50mm housing fits neatly on a DIN rail, saving valuable panel space.
Engineered for continuous industrial operation, the 6EP1333-2AA01 offers a wide input voltage range of 85–132V AC and 170–264V AC, selectable via a switch. With an efficiency of approximately 87%, it minimizes energy loss and heat generation. The unit is CE-marked and carries UL/CSA approvals, ensuring compliance with international standards.
Key Features & Technical Specifications
The 6EP1333-2AA01 is designed to deliver stable performance under demanding conditions. Below are the core specifications extracted from the datasheet:
- Input voltage: 120/230V AC (selectable), ranges 85–132V and 170–264V
- Output voltage: 24V DC, adjustable 22.8–28V
- Output current: 5A rated, up to 6A at +45°C
- Efficiency: approx. 87% at rated load
- Mains buffering: min. 20ms at rated current
- Protection: short-circuit proof, current limitation 6.4–6.6A
- Isolation: safety extra-low voltage per EN 60950-1 and EN 50178
- Degree of protection: IP20
- Ambient temperature: 0–60°C operation
One standout feature is the parallel switching capability—up to two units can be paralleled for enhanced performance, allowing you to scale output current for larger loads. Additionally, the output overvoltage protection (<33V) safeguards connected equipment.
Industry Applications & Use Cases
Its robust design handles the electrical noise typical in industrial environments, thanks to compliance with EN 55022 Class B for emitted interference and EN 61000-6-2 for noise immunity. For example, in a packaging line, this power supply ensures stable voltage to programmable logic controllers, reducing unexpected downtime. Similarly, in machine tool applications, the wide input range accommodates fluctuating mains voltages, maintaining consistent output.
Installation & Setup
Mounting the 6EP1333-2AA01 is straightforward: it snaps onto a DIN rail EN 60715 (35x7.5/15). The screw-type terminals accept 0.5–2.5 mm² wires for both input (L, N, PE) and output (L+, M). Before wiring, set the input voltage selector switch to match your local supply (120V or 230V). Ensure adequate ventilation—the unit relies on natural convection and operates within 0–60°C ambient. For enhanced performance, you can parallel two units, but follow the manual for proper configuration.
Maintenance & Reliability
Routine inspection is recommended to ensure long-term reliability. Check terminal connections periodically for tightness, as vibration can loosen them. Keep the enclosure free of dust and debris to maintain airflow. The built-in incoming fuse (T 3.15A/250V) is not accessible, so if the unit fails to power up, verify the upstream miniature circuit breaker (recommended 6A, characteristic C). With proper care, the SITOP SMART series offers years of dependable service.
Troubleshooting & Common Issues
If the output voltage is absent, first check the input fuse and the selector switch position. The green LED on the front indicates 24V OK; if it is off, verify input power. In case of overload, the current limitation engages at 6.4–6.6A, preventing damage. For persistent issues, consult the Siemens manual or contact AutoDCSTech for support.
Product Support & Availability
The 6EP1333-2AA01 is available from AutoDCSTech. Contact us for current pricing and lead times. Our team can assist with technical inquiries and ensure you receive the right power supply for your application.
Comparison with Similar Power Supplies
Compared to standard 24V power supplies, the 6EP1333-2AA01 stands out with its wide input range and parallel capability. Many basic units offer only fixed input voltage or lack overload protection. The following table highlights key differences:
| Feature | 6EP1333-2AA01 | Typical Basic Supply |
|---|---|---|
| Input voltage range | 85–132V / 170–264V | Fixed 230V only |
| Output current | 5A (6A at +45°C) | 5A fixed |
| Parallel operation | Yes (up to 2 units) | No |
| Short-circuit protection | Constant current | Fuse only |
| Efficiency | ~87% | ~80% |
This makes the 6EP1333-2AA01 a superior choice for applications requiring flexibility and reliability.
Availability & Condition at AutoDCSTech
| Part Number | 6EP1333-2AA01 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
