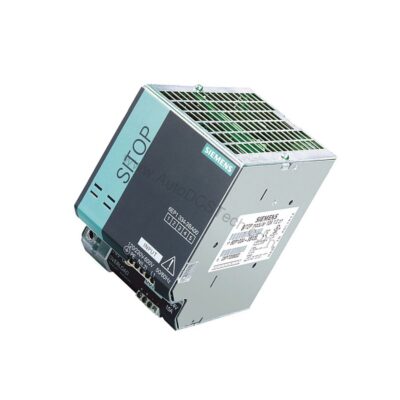

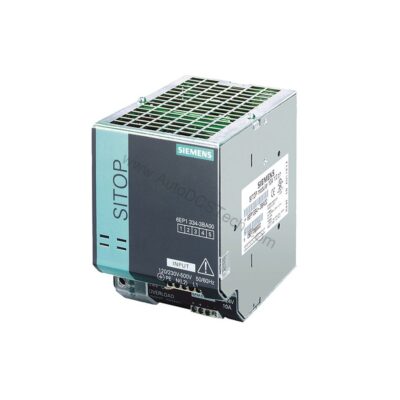

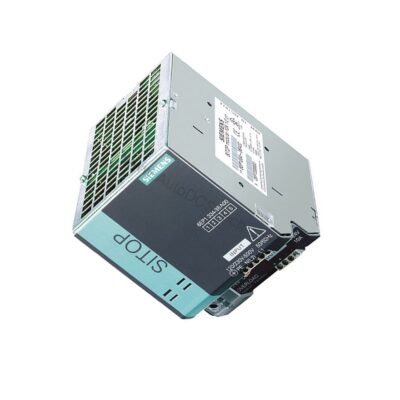

6EP1334-2AA01-0AB0 24V 10A SITOP Power Supply

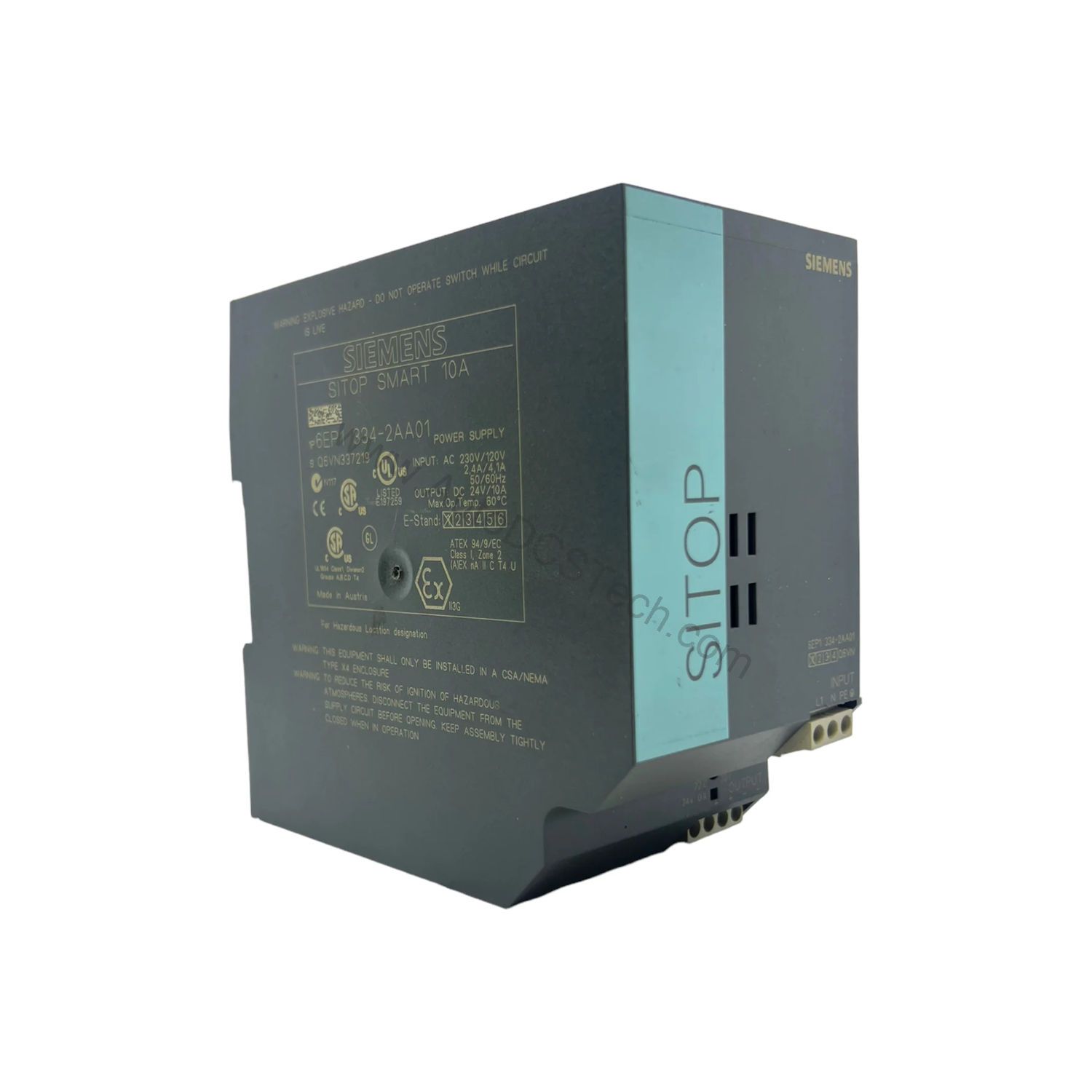

Introduction to the Siemens 6EP1334-2AA01-0AB0

When your control cabinet demands a dependable 24V DC source, the 6EP1334-2AA01-0AB0 from Siemens SITOP smart series provides a robust solution. This stabilized power supply accepts 120/230V AC input and delivers a rated output of DC 24V at 10A, making it suitable for a wide range of industrial automation applications. With a compact wall-mount design and 240W output, it fits neatly into existing setups.

Key Features and Technical Specifications

• Input voltage: Selectable 120V or 230V AC via a switch; accepts 85...132V or 170...264V ranges.
• Output voltage: Rated 24V DC, adjustable from 22.8V to 28V via potentiometer.
• Output current: Rated 10A, with overload capability up to 12A at temperatures up to +45°C.
• Efficiency: 90% typical, reducing energy losses.
• Short-circuit protection: Constant current characteristic with current limitation response at 12.5...13.5A.
• Galvanic isolation: Safety extra-low output voltage per EN 60950-1 and EN 50178.
• Protection class: IP20 for indoor use.
• Connections: Screw terminals for input and output, accepting 0.5...2.5 mm² wires.

One distinctive feature is the adjustable output voltage, which allows you to compensate for voltage drops in long cable runs, ensuring your loads receive the correct voltage. Additionally, the wide input voltage range ensures stable operation even when mains supply fluctuates.

Applications and Use Cases

Its compact size and wall-mount capability make it a flexible choice for control panels with limited space. Furthermore, the ability to parallel two units for increased power (up to 2 units) supports scalability when your system grows.

Installation and Setup

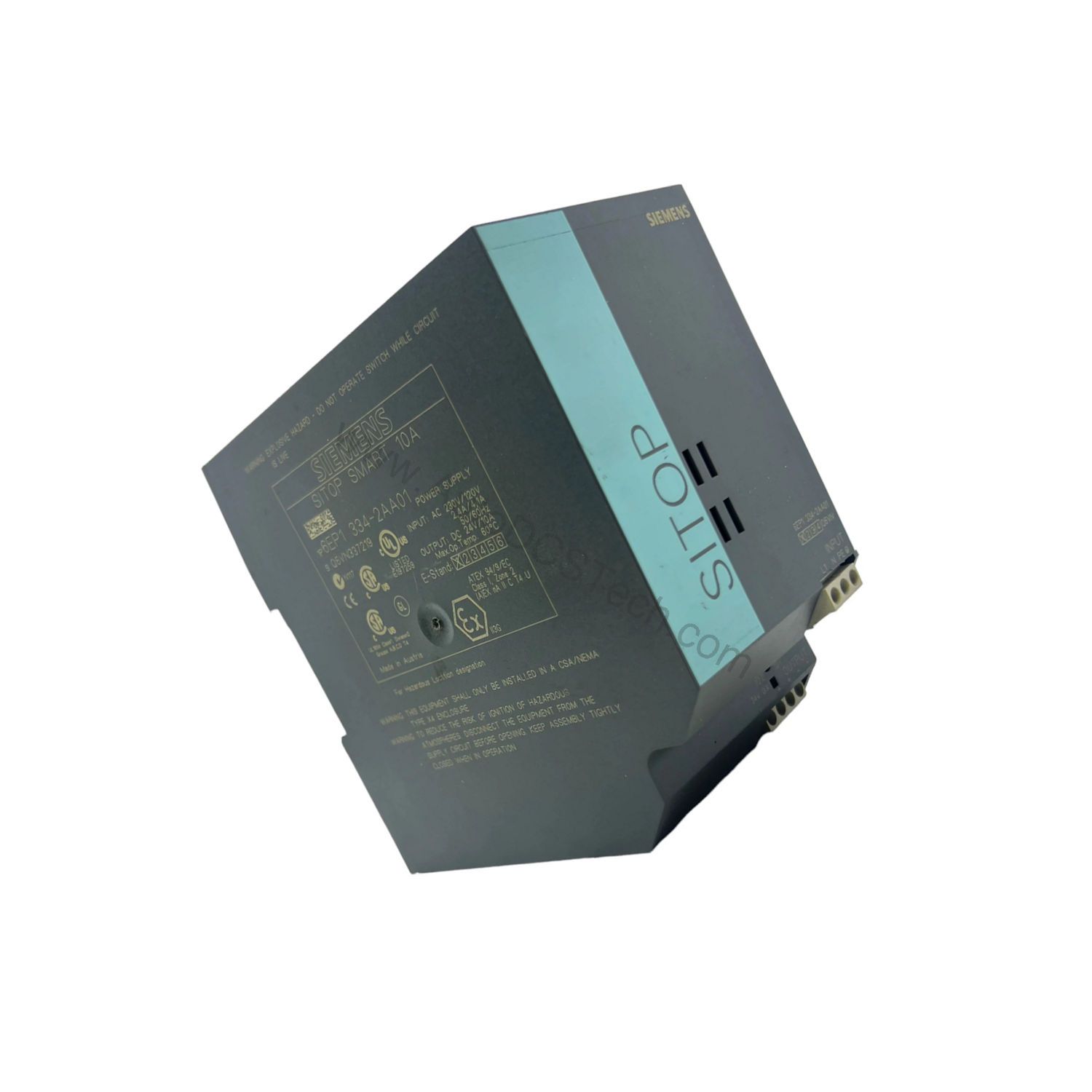

Mounting the 6EP1334-2AA01-0AB0 is straightforward: it is designed for wall mounting, and the enclosure dimensions are 70 x 125 x 125 mm. Ensure adequate clearance around the unit—at least 50 mm top and bottom—for proper convection cooling. Connect the input wires (L, N, PE) to the designated screw terminals, and the output wires (L+, M) to the output terminals. Use a miniature circuit breaker with a rating of at least 10A characteristic C in the feeder line for protection. After wiring, set the input voltage selector switch to match your local supply (120V or 230V).

Maintenance and Reliability

With an MTBF of 1,460,803 hours at 40°C, this power supply is built for long service life. Routine maintenance is minimal: periodically inspect the unit for dust accumulation and ensure ventilation paths are clear. Check that all terminal connections remain tight to prevent overheating. Given its high efficiency, the unit generates less heat, which contributes to component longevity and reduces cooling requirements in the cabinet.

Compatibility and Integration

The SITOP smart series is designed to integrate into Siemens automation environments, but it is also compatible with other industrial control systems that require a stable 24V DC supply. The output is isolated and protected, making it safe to power sensitive electronics. For systems requiring higher current, two units can be paralleled to increase output capacity, with built-in features to support such configurations.

Troubleshooting and Common Issues

If the output voltage is absent, first check the input supply and the selector switch setting. The green LED indicates normal operation (24V OK). If the LED is off, verify that the input voltage is within the specified range and that the circuit breaker has not tripped. In case of overload, the constant current characteristic limits the output current, preventing damage. Should the unit fail to deliver rated voltage, check the potentiometer setting and adjust if necessary.

Product Support and Availability

The Siemens 6EP1334-2AA01-0AB0 is available from AutoDCSTech. Contact us for current pricing and lead times. We are ready to assist with your industrial automation power requirements.
