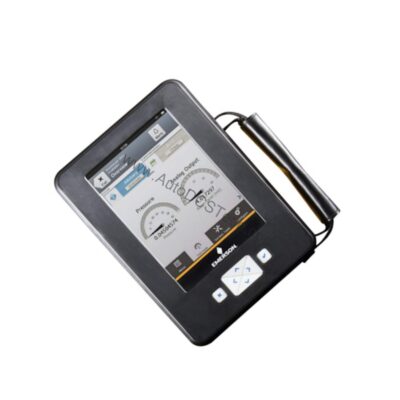

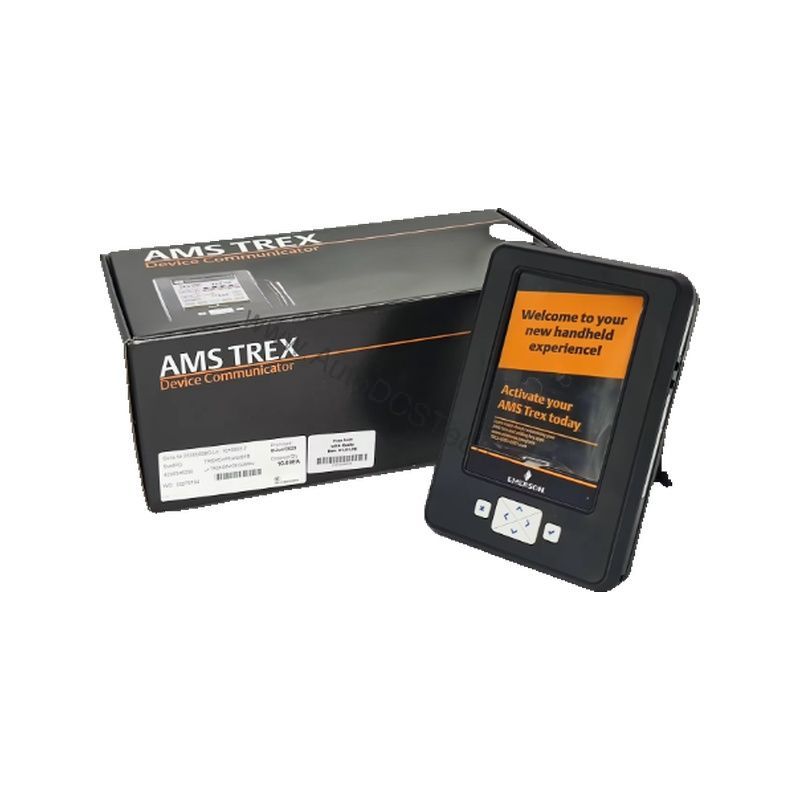

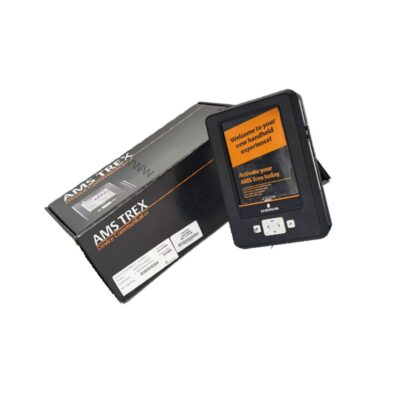

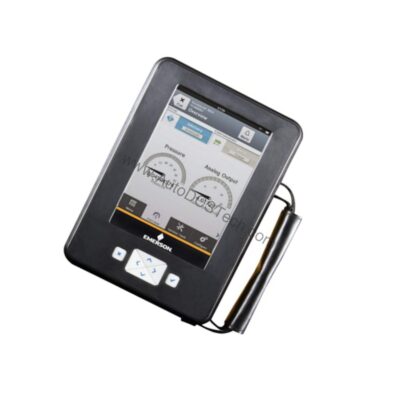

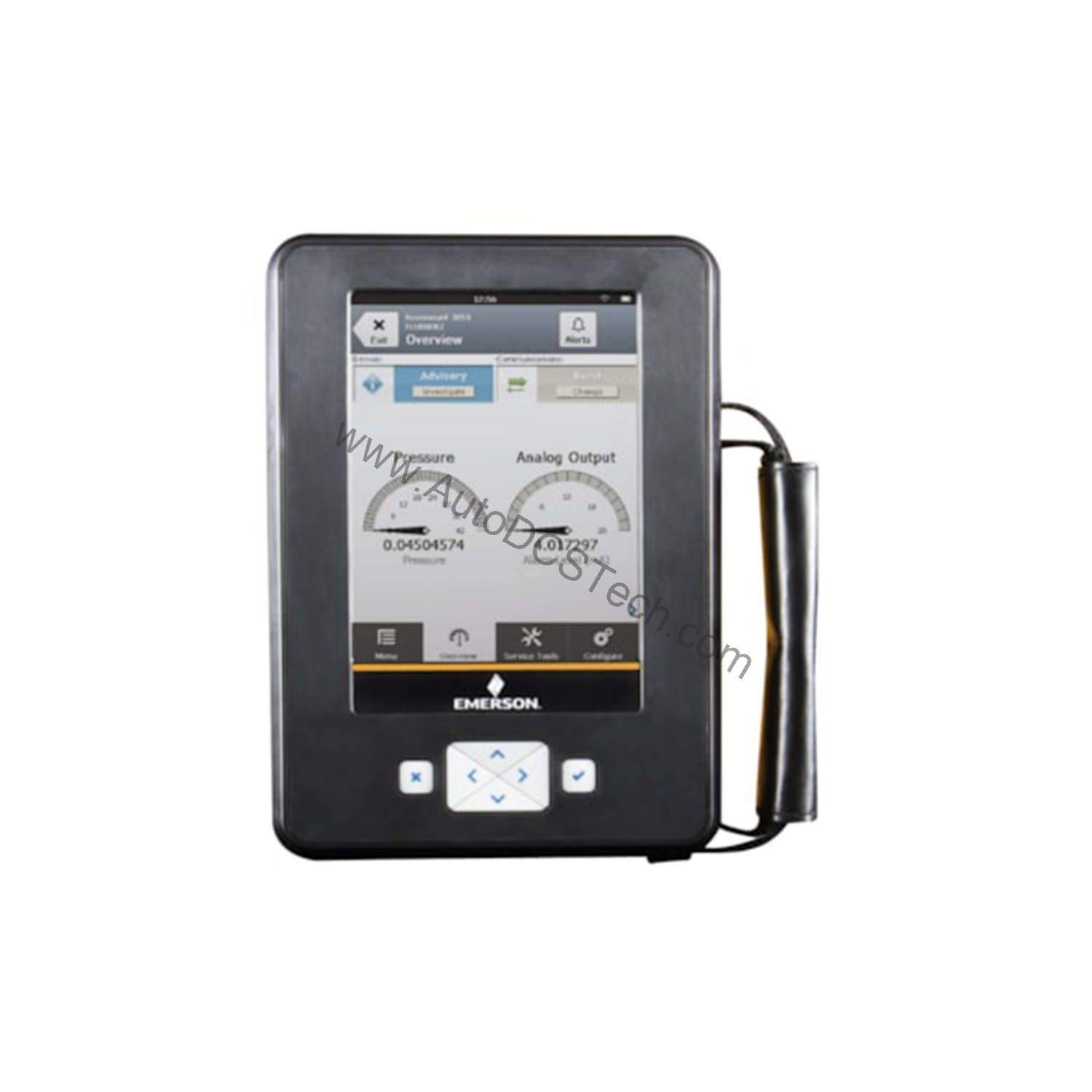

Honeywell TREXCHPNAWS3 AMS Trex Device Communicator with HART & Wireless

Technical Specifications Breakdown

Key parameters for the TREXCHPNAWS3 are listed below for quick reference:

For example, a technician can use it to configure a HART-enabled pressure transmitter, verify its output, and diagnose wiring issues—all without needing a separate laptop. The wireless radio option allows remote connectivity, which is useful when the device is in a hazardous or hard-to-reach area.

Installation & Setup Guidance

Before using the TREXCHPNAWS3, ensure the battery is fully charged. The rechargeable Li-Ion power module provides portable operation. When connecting to a HART device, use the appropriate leads and follow standard safety procedures. For wireless communication, pair the communicator with the plant’s wireless network according to your organization’s IT policies. The device runs on Windows Embedded Compact 2013, so familiarize yourself with the touch interface and menu navigation. Always refer to the manufacturer’s manual for detailed connection diagrams and configuration steps.

Maintenance & Reliability

To maintain reliable performance, keep the device clean and store it in a dry, protective case when not in use. Periodically inspect the display and connectors for damage. Calibrate the HART application as recommended by the manufacturer. The 3-year standard support ensures you receive software updates and technical assistance, extending the device’s useful life. Avoid exposing the device to extreme temperatures or moisture, as these can degrade the battery and electronics.

Compatibility & Integration

The TREXCHPNAWS3 is part of the AMS Trex platform, which integrates with HART-based field devices from various manufacturers. The wireless option allows connection to plant networks, enabling remote diagnostics and configuration. The device communicates using the HART protocol, a widely used standard in process automation. This compatibility simplifies integration into existing systems, reducing the need for multiple tools.

Selection Guide & Purchasing Advice

When selecting a field communicator, consider the applications you support, the communication protocols required, and the environment. The TREXCHPNAWS3 is a robust choice for HART-centric plants. At AutoDCSTech, we offer this model with the assurance of genuine parts and expert support. Contact us to verify current availability and lifecycle status before ordering, as industrial electronics can change rapidly.

Troubleshooting & Common Issues

If the device does not power on, check the battery charge and connections. For communication errors, verify the HART device is powered and the leads are correctly attached. If the wireless connection drops, move closer to the access point or check network settings. For persistent issues, consult the troubleshooting section of the user manual or contact technical support. Avoid opening the device; internal repairs should be performed by qualified personnel.
