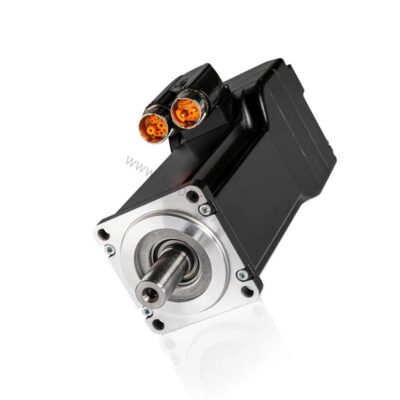

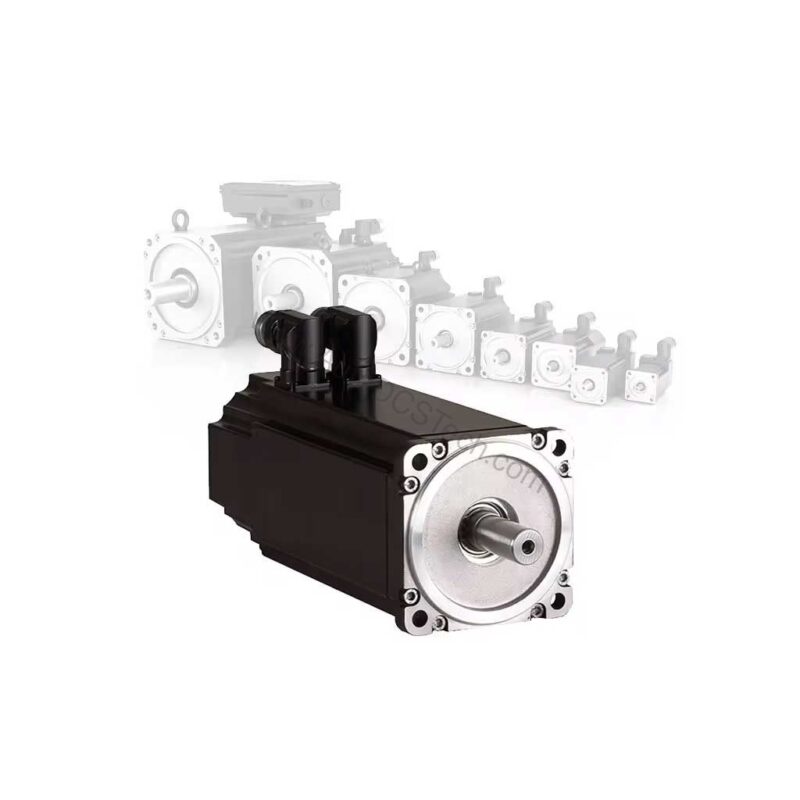

8LSC53.ee045ff00-4: 4500 rpm B&R Servo Motor
The 8LSC53.ee045ff00-4 is the 4500 rpm B&R Servo Motor covered on this page. The attribute that decides whether it fits the existing installation without modification is 5023 W.
What separates this variant from its siblings is 4500 rpm b&r servo motor. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. 4500 rpm b&r servo motor is the attribute that decides fit and function, and verifying 5023 W against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | B&R |
| Brand | B&R |
| Part Number | 8LSC53.ee045ff00-4 |
| Nominal speed | 4500 rpm |
| Nominal torque | 10.7 Nm |
| Nominal power | 5023 W |
| Nominal current | 9.8 A |
| Maximum torque | 30.0 Nm |
| Maximum speed | 5000 rpm |
| Torque constant | 1.09 Nm/A |
| Stator resistance | 0.647 Ohm |
| Moment of inertia | 6.8 kg·cm² |
| Mass (without brake) | 10.60 kg |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | 8LSC53.ee045ff00-4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
