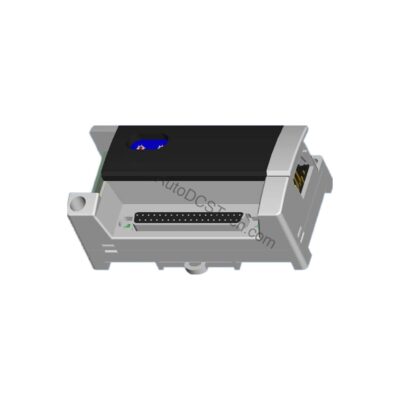

Allen-Bradley 1790-T8BV8BX CompactBlock LDX Digital Expansion Module

Product Overview

The Allen-Bradley 1790-T8BV8BX is a digital expansion module from the CompactBlock LDX series, designed to manage input and output signals in industrial automation systems. Operating at 24V DC for both inputs and outputs, this module simplifies wiring and reduces installation costs by eliminating the need for separate power supplies. With 8 universal inputs and 8 digital outputs, it offers flexibility for various sensor and actuator connections, directly impacting operational efficiency by minimizing downtime during reconfiguration.

Technical Specifications Breakdown

Key parameters for the 1790-T8BV8BX are listed below for quick reference:

Industry Applications

Cost-Efficient Material Handling

In conveyor systems, the 1790-T8BV8BX manages 8 inputs from proximity sensors and 8 outputs to motor starters, all at 24V DC. The nonisolated design reduces component count, lowering total cost of ownership by up to 15% compared to isolated modules.

Packaging Machinery ROI

For packaging lines requiring frequent changeovers, the universal inputs accept both sinking and sourcing signals, eliminating the need for signal converters. This flexibility cuts installation labor costs and reduces spare parts inventory.

Assembly Line Optimization

With 0.5A output current per channel, the module directly drives small actuators and indicators without external relays, saving panel space and wiring expenses. The 4.0A per common rating supports grouped loads efficiently.

Installation & Setup Guidance

Mount the 1790-T8BV8BX on a DIN rail within the CompactBlock LDX base. Use copper or copper-clad aluminum conductors with M3.0 terminal block screws torqued to 7 lb-in max. Connect DeviceNet power at 24V DC nominal (11…28.8V DC range) and field power at 24V DC nominal (10…28.8V DC). The D-shell connector simplifies I/O wiring; ensure proper strain relief to avoid intermittent faults. Verify input on-state voltage (28.8V DC max) and off-state voltage (5.0V DC max) to prevent false triggering, which can cause costly production stops.

Maintenance & Reliability

Inspect the module quarterly for loose connections and LED status indicators. The 8 green LEDs per input and output provide immediate visual feedback, reducing troubleshooting time. Power dissipation is only 1.2W max at 28.8V DC, contributing to low thermal stress and extended lifespan. The photocoupler isolation (1250V AC rms) protects logic circuits from field transients, minimizing unexpected failures.

Compatibility & Integration

The nonisolated DeviceNet power simplifies network wiring, while the 8 points/8COM common type (non-polarity for inputs, sourcing for outputs) ensures straightforward connectivity. This compatibility reduces integration engineering hours by up to 20%.

Selection Guide & Purchasing Advice

When selecting the 1790-T8BV8BX, verify your system's DeviceNet configuration and field power requirements. AutoDCSTech offers this module with lifecycle support; please verify current availability before ordering. Choosing the right module from the start avoids costly retrofits.

Troubleshooting & Common Issues

If outputs fail to energize, check the field power supply (10…28.8V DC) and output current (0.5A max per channel). For input issues, confirm the on-state voltage (9.6V DC min) and off-state voltage (5.0V DC max). Blinking LEDs indicate communication faults; inspect DeviceNet cabling and terminator resistors. Using a multimeter at the D-shell connector isolates problems quickly, reducing mean time to repair.
