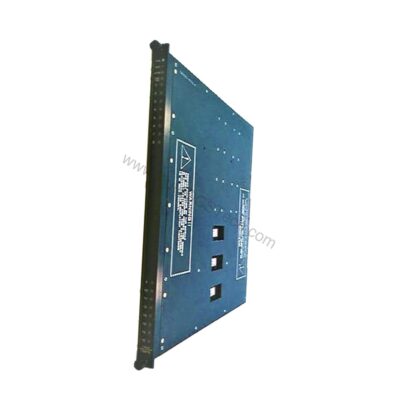

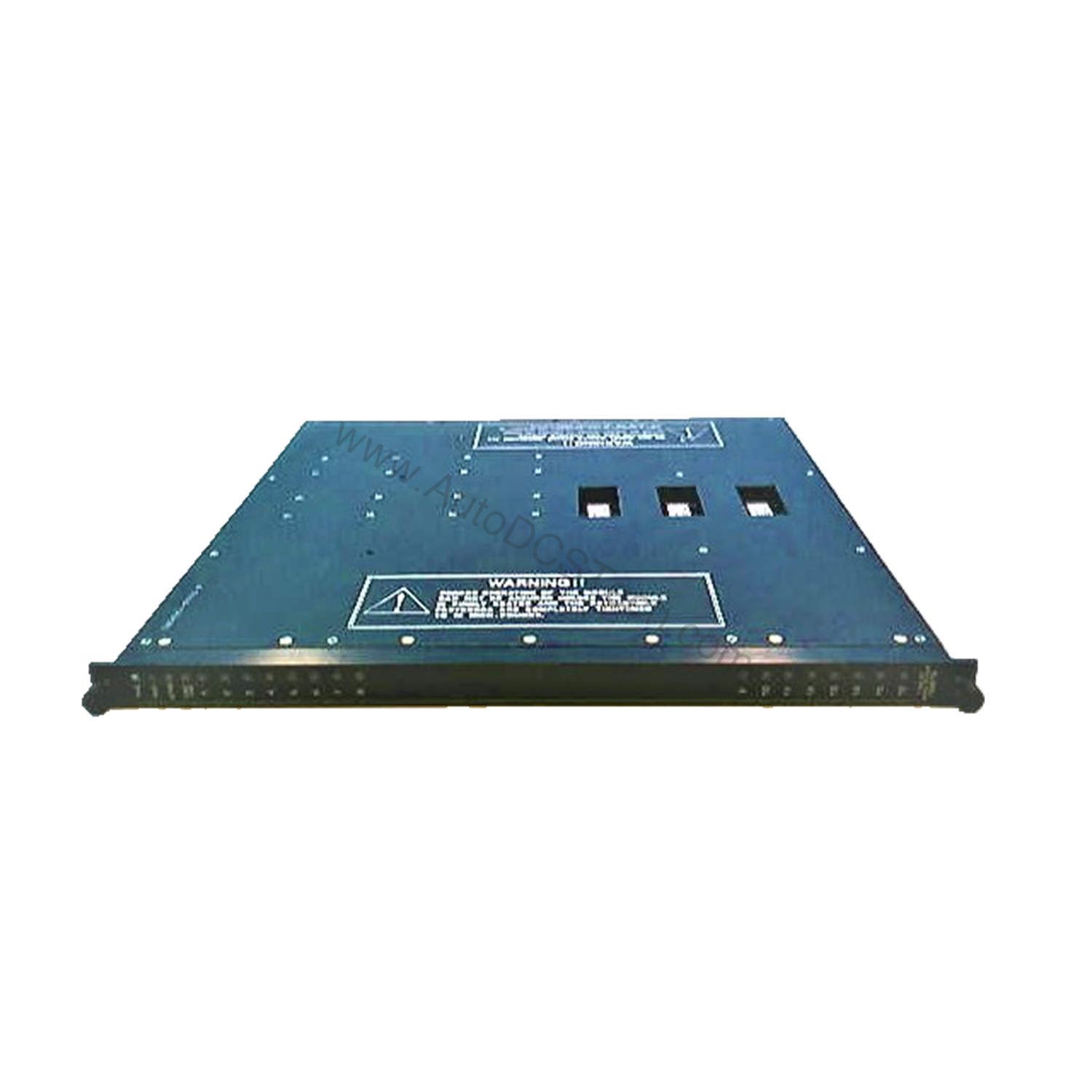

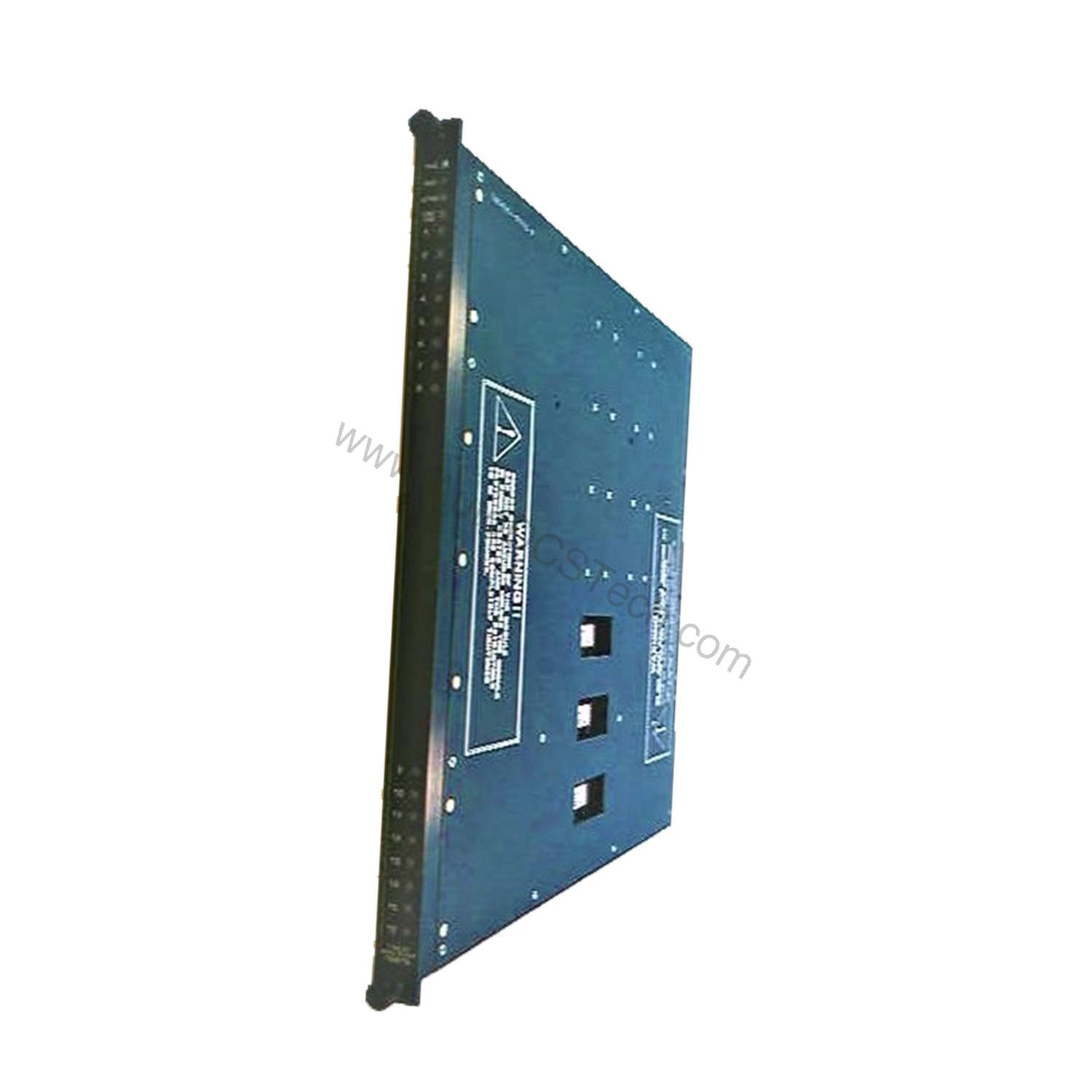

3601E 16-Point TMR Digital Output Module

Introduction to the 3601E Digital Output Module

When high-voltage safety loops demand absolute reliability, the 3601E from Triconex provides a robust AC output solution. Designed for Triple Modular Redundant (TMR) architectures, this digital output module handles the heavy inductive loads typical of large AC solenoid valves and motor starters. Its non-commoned design ensures each of the 16 points is individually isolated, preventing cross-channel faults in complex Emergency Shutdown (ESD) or Fire and Gas (F&G) systems.

Engineered for continuous operation, the 3601E operates at a nominal voltage of 115 VAC with an operational range of 80 to 155 VAC. This wide tolerance accommodates fluctuating plant power conditions, reducing nuisance trips. With a 2A continuous current rating per point and a 12A surge capability per cycle, the module confidently drives demanding loads without derating.

Key Features and Technical Specifications

The 3601E offers a comprehensive set of features that enhance both performance and diagnostics. Below are the core specifications extracted from the official datasheet:

• Module Type: Triple Modular Redundant (TMR), Digital Output (DO).
• Output Density: 16 points, non-commoned (individually isolated).
• Nominal Voltage: 115 VAC.
• Operational Voltage Range: 80 to 155 VAC.
• Frequency Range: 47 to 63 Hz.
• Voltage Drop: Typically less than 3V.
• Load Leakage: 2 mA maximum @ 60 Hz.
• Chassis Leakage: 4 mA maximum @ 60 Hz.
• Maximum Continuous Current: 2A per point.
• Maximum Surge Current: 12A surge per cycle.
• Point Isolation: 1,500 VDC (with peak tolerance up to 2,500 VDC).
• Fusing: Requires 1 per output, 3A fast-acting fuse on the Field Termination.

One distinctive spec is the non-commoned architecture. Unlike commoned modules where outputs share a return path, each of the 16 points on the 3601E is individually isolated. This prevents a single point failure from affecting neighboring channels, a critical advantage in safety applications where fault containment is paramount.

Applications and Use Cases

The 3601E is purpose-built for high-voltage safety loops in process industries. In ESD systems, it reliably de-energizes solenoids to isolate equipment during emergencies. Similarly, in F&G systems, it drives alarm and suppression actuators with confidence. The module's 2A continuous rating and 12A surge capability make it suitable for inductive loads like motor starters, where inrush currents can be several times the steady-state value.

Furthermore, the wide frequency range of 47 to 63 Hz ensures compatibility with both 50 Hz and 60 Hz power grids, simplifying global deployment. The high isolation voltage (1,500 VDC, peak 2,500 VDC) protects downstream logic from transient surges, enhancing system robustness.

Installation and Setup

Proper installation is essential for optimal performance. The 3601E requires a 3A fast-acting fuse on each output's field termination. Ensure that the field wiring is rated for the operational voltage range (80-155 VAC) and that all connections are torqued to the manufacturer's specifications. The module's green color code helps identify it within a populated rack, reducing installation errors.

When mounting, verify that the module is seated firmly in the chassis and that the locking mechanism engages. Observe the point status indicators (one per output) during commissioning to confirm correct wiring. For detailed wiring diagrams and termination requirements, consult the official Triconex product manual.

Maintenance and Reliability

Routine maintenance of the 3601E focuses on visual inspection and functional testing. Periodically check the module health indicators (PASS, FAULT, ACTIVE) to ensure normal operation. The dedicated LOAD/FUSE alarm indicators provide early warning of open circuits or blown field fuses, allowing prompt corrective action.

Because the module operates in safety-critical environments, follow the manufacturer's recommended testing intervals to verify output switching and diagnostic functionality. Keep the module free from dust and moisture, and ensure adequate ventilation to prevent overheating. With proper care, the 3601E delivers long-term reliability, minimizing downtime and maintenance costs.

Compatibility and Integration

The 3601E is part of the Triconex TMR family, designed to integrate seamlessly with Triconex controllers. It communicates over the proprietary TMR bus, ensuring synchronized voting and fault tolerance. The module's non-commoned outputs can be wired to a variety of field devices, including solenoids, motor starters, and indicator lamps, as long as the electrical ratings are within the specified limits.

For system expansion, multiple 3601E modules can be installed in the same chassis, each providing 16 isolated outputs. This scalability allows engineers to tailor I/O capacity to specific safety loop requirements without compromising isolation or performance.

Troubleshooting and Common Issues

Common issues with digital output modules include blown fuses, open field wiring, and load faults. The 3601E's diagnostic indicators simplify troubleshooting. If a LOAD/FUSE alarm activates, check the corresponding field fuse and wiring continuity. The point status LED indicates whether the output is commanded on or off, helping to isolate control logic vs. field faults.

If the module fails to respond to commands, verify that the PASS/FAULT indicators are normal and that the module is properly seated. Refer to the official Triconex documentation for detailed fault codes and recovery procedures. For persistent issues, contact AutoDCSTech for technical support.
