Lenze K-D M12W-3P-5m-PVC M12 Connector Cable 5m PVC

Technical Specifications Breakdown

Key parameters for the Lenze K-D M12W-3P-5m-PVC are listed below for quick reference:

Industrial Applications and Benefits

The angled connector helps avoid cable strain in confined panels or along machine frames. The PVC jacket provides good resistance to oils and chemicals, making it suitable for machine tools, packaging lines, and material handling equipment.

Because the cable supports up to 250 VAC/DC and 4 A per contact, it can handle both signal and low-power applications. The 5-meter length offers flexibility in system layout, reducing the need for extension cables or junction boxes.

Installation and Setup Guidance

When installing the Lenze K-D M12W-3P-5m-PVC, ensure the connector is fully seated and the locking nut is tightened to the recommended torque of 0.6 Nm. The self-locking design prevents accidental disconnection due to vibration. For fixed installations, avoid bending the cable below the minimum bending radius of 10 times the sheath diameter. For flexible applications, ensure the cable is not subjected to repeated bending below -5°C.

Always verify that the operating voltage and current do not exceed the rated values. Use proper strain relief to protect the cable from mechanical stress, especially at the connector entry point.

Maintenance and Reliability

Periodically inspect the cable for cuts, abrasions, or signs of wear, especially in areas where it may rub against machine parts. Check the connector for corrosion or loose contacts. Clean the connector surfaces with a dry cloth if needed. The PVC jacket is designed for long service life, but environmental factors such as UV exposure or extreme temperatures can degrade it over time. Replace the cable if any damage is detected.

Reliable M12 Connection for Industrial Sensors and Actuators

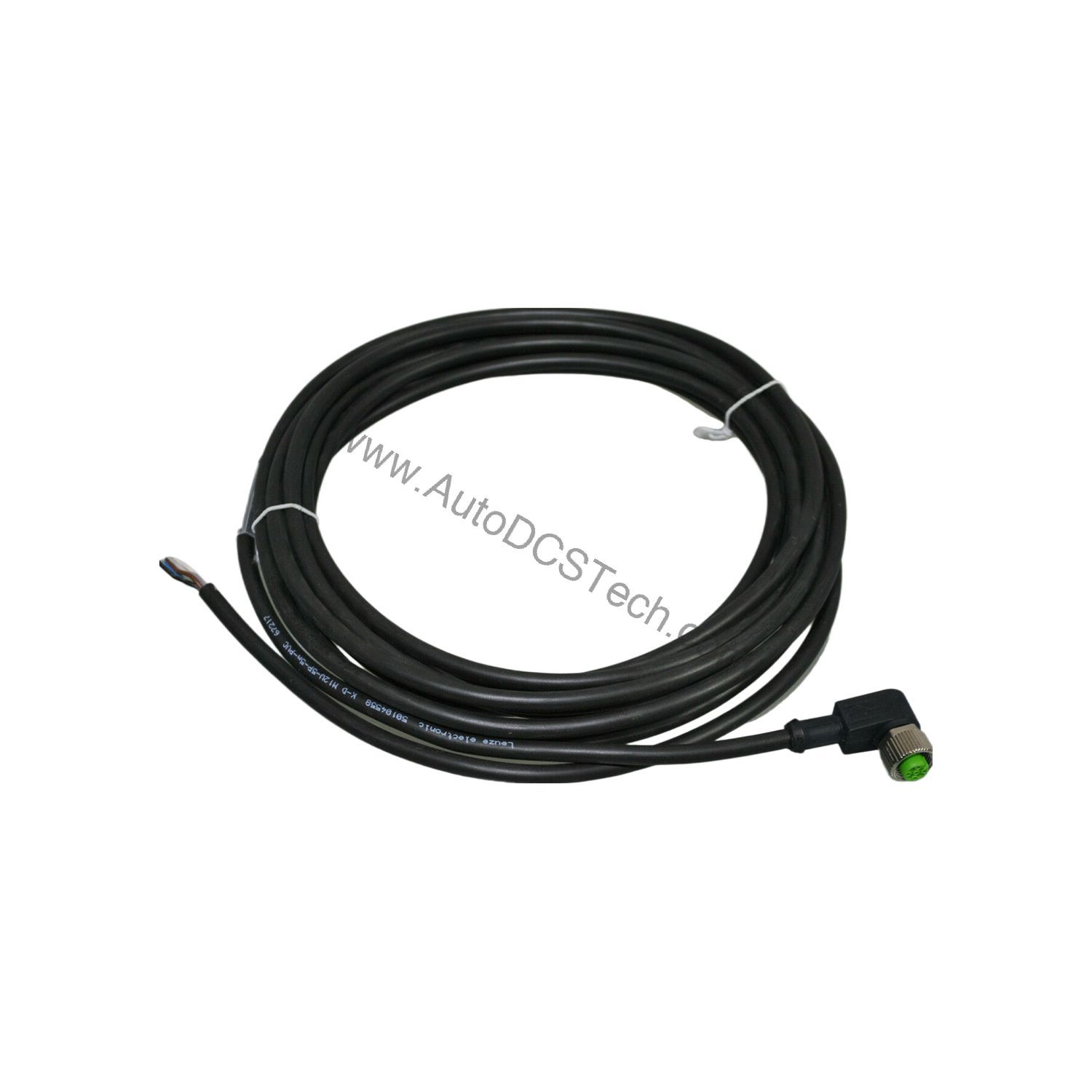

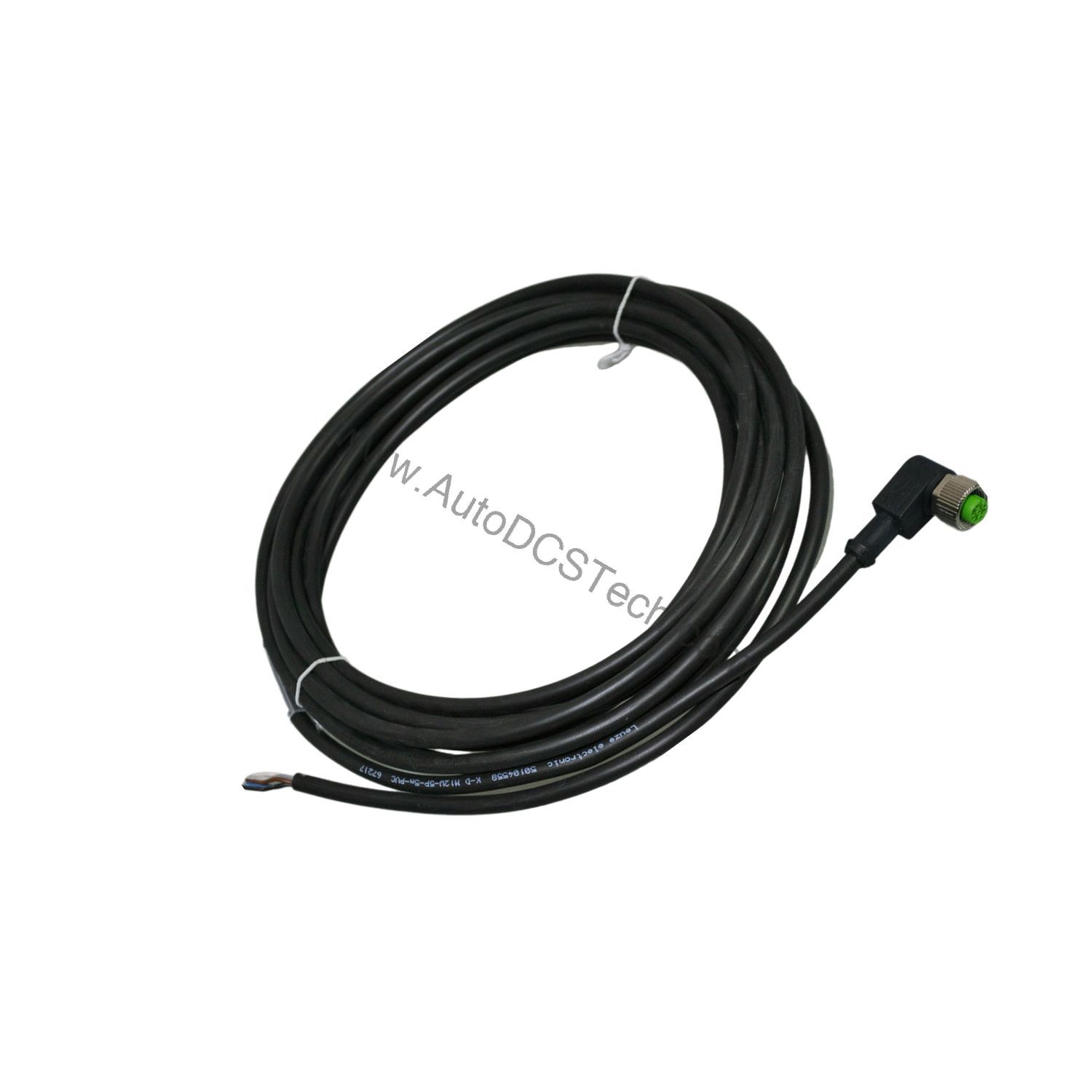

Industrial automation systems depend on secure, durable connections between sensors, actuators, and controllers. The Lenze K-D M12W-3P-5m-PVC is a pre-assembled connection cable designed to deliver consistent signal integrity and power transmission in demanding factory environments. With a 5-meter length and an angled M12 connector, this cable simplifies routing in tight spaces while maintaining a robust electrical link.

Compatibility and Integration

The K-D M12W-3P-5m-PVC is a standard M12 3-pin cable, compatible with a wide range of industrial sensors and actuators that use M12 connectors. It can be used with Lenze drives and controllers, as well as other automation equipment. The angled design helps maintain a low profile, making it easier to integrate into existing wiring layouts.

Selection Guide and Purchasing Advice

When selecting a connection cable, consider the pin count, cable length, and environmental conditions. The Lenze K-D M12W-3P-5m-PVC meets the requirements for most standard M12 sensor connections. For longer runs or higher pin counts, other models are available. Contact our team to verify availability and lifecycle status before placing your order.

Troubleshooting and Common Issues

If you experience intermittent signals, check the connector for proper seating and torque. Loose connections can cause voltage drops or signal loss. Inspect the cable for cuts or pinched areas that could short the conductors. If the cable is exposed to moisture, ensure the connector is rated for the environment. For persistent issues, replace the cable with a new one to rule out internal wire breakage.
