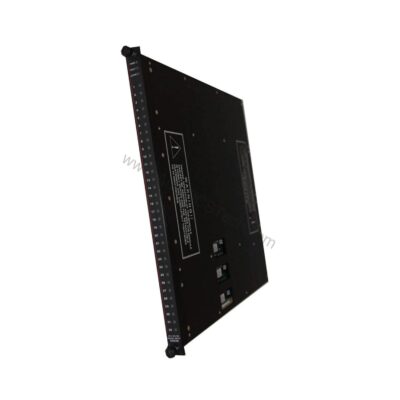

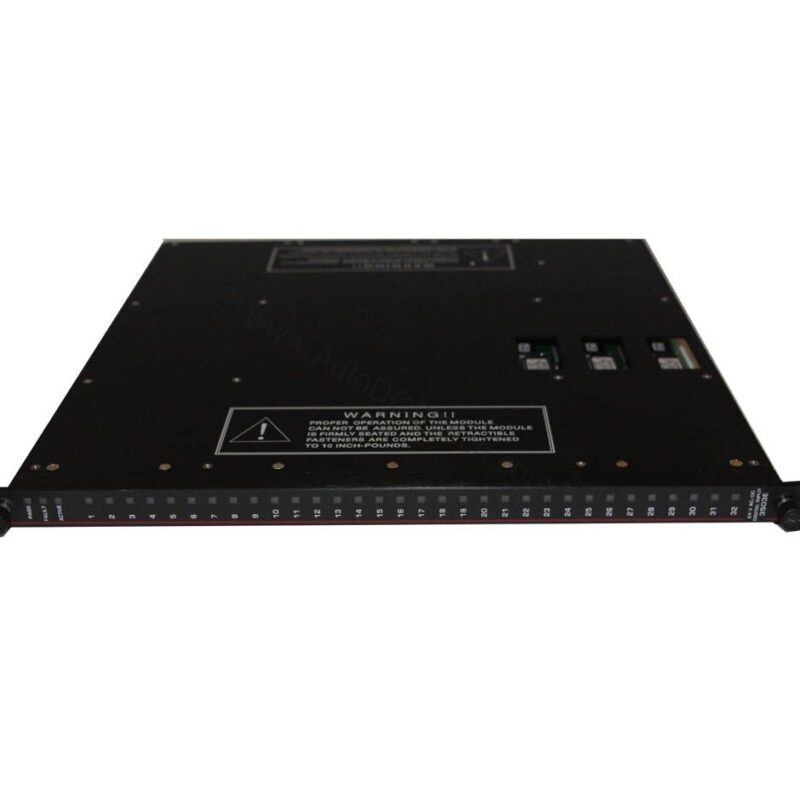

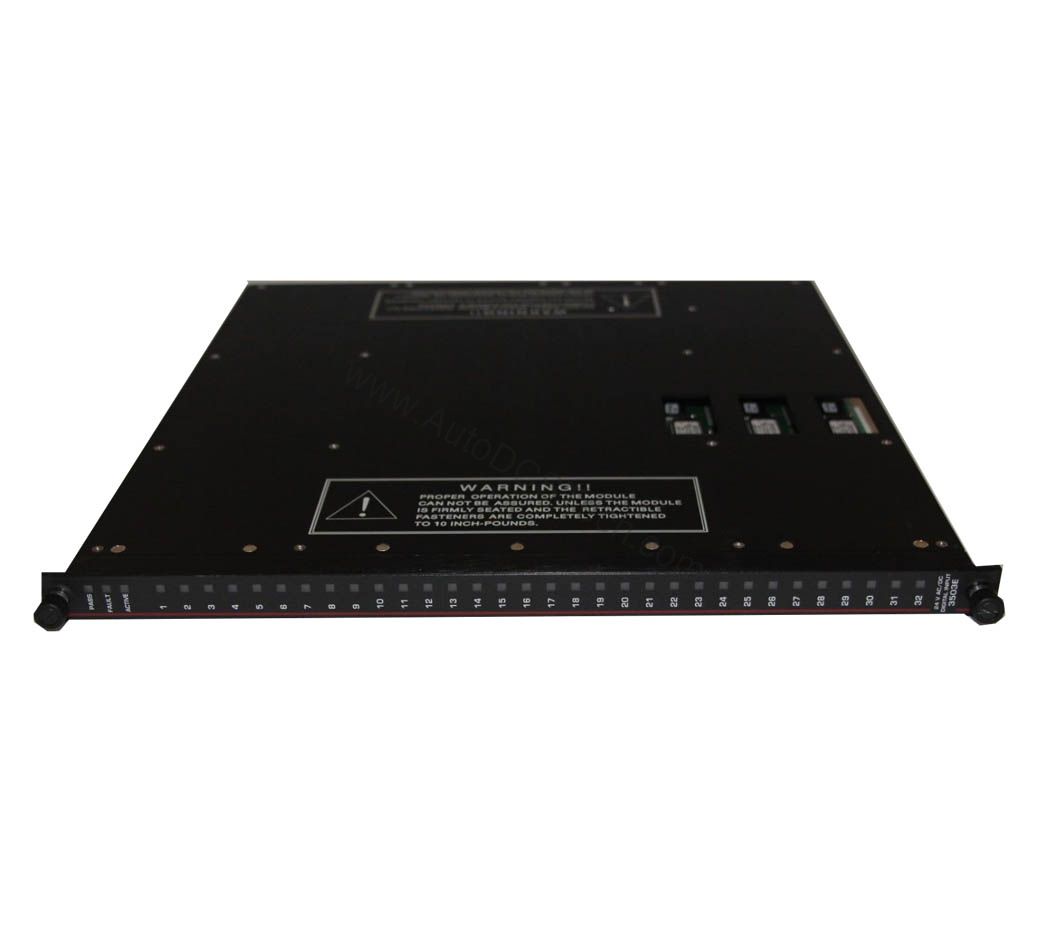

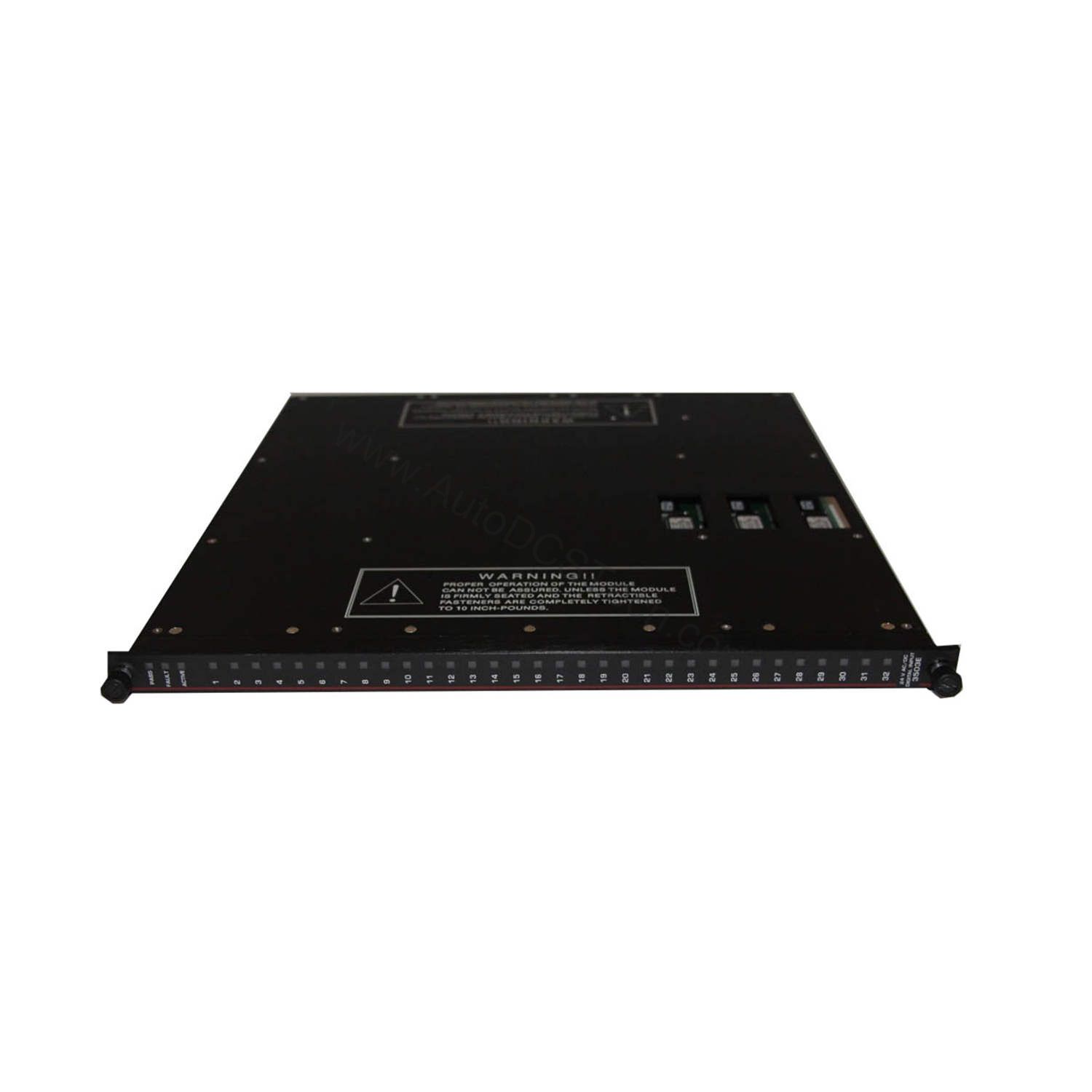

3502E 32-Point TMR Digital Input Module

Introduction: The Triconex 3502E for Safety-Critical Input Monitoring

When a digital input module fails to detect a stuck-On condition, the safety system may not trip when required. The 3502E from Triconex addresses this challenge with an integrated self-test function that verifies each point can transition to the Off state. This capability is essential for de-energize-to-trip architectures, where the inability to detect an Off point could compromise the entire safety loop.

As a TMR (Triple Modular Redundant) module, the 3502E provides the high integrity expected in safety instrumented systems. It is designed for use in Tricon controllers, offering hot-spare capability and requiring a separate external termination panel (ETP) with a cable interface to the backplane.

Key Features and Technical Specifications

The 3502E is engineered for robust performance in demanding industrial environments. Its key specifications include:

• Module Type: TMR (Triple Modular Redundant) with self-test functionality.
• Input Points: 32 points, commoned in groups of 8.
• Nominal Voltage: 48 VAC/VDC.
• Voltage Range: 35 to 95 VAC/VDC.
• Frequency Range: DC or 47–63 Hz.
• Nominal Input Impedance: Greater than 2.9 KΩ.
• Switching Thresholds: Off to On: less than 32 VAC/VDC; On to Off: greater than 11 VAC/VDC.
• Input Delay: OFF to ON: less than 8 ms; ON to OFF: less than 15 ms.
• Point Isolation: 1,500 VDC.
• Nominal Turn-On Current: 6 to 9 mA.

One distinctive feature is the integrated stuck-On self-test. During this test, a switch within the input circuitry closes to allow a zero input (Off) to be read by the optical isolation circuitry, while the last data reading is frozen in the I/O communication processor. This ensures that the module can detect a point that fails to turn Off, a critical diagnostic for safety systems.

Applications and Use Cases

The 3502E is well-suited for safety applications where de-energize-to-trip logic is employed. In a typical emergency shutdown system, the module monitors field contacts from pressure switches, limit switches, or pushbuttons. If a contact remains closed when it should open, the self-test function identifies the stuck-On condition, allowing maintenance to intervene before a dangerous situation occurs.

Because the module accepts both AC and DC signals, it can be used in a variety of field wiring configurations. The 32-point density, with groups of 8 commoned points, offers flexibility in connecting multiple field devices while maintaining isolation between groups.

Installation and Setup

Proper installation is critical for reliable operation. The 3502E is mechanically keyed to prevent improper installation in a configured chassis. It requires a separate external termination panel (ETP) with a cable interface to the Tricon controller backplane. Ensure that the ETP is correctly wired to the field devices and that the cable is securely connected.

Before powering up, verify that the input voltage is within the specified range of 35 to 95 VAC/VDC and that the frequency is either DC or 47–63 Hz. The module's status LEDs (PASS, FAULT, and ACTIVE) provide immediate visual feedback on operational state.

Maintenance and Reliability

Regular inspection of the module and its terminations is recommended to ensure long-term reliability. Check that all connections are tight and free from corrosion. The self-test feature can be initiated periodically to verify that all input points can transition to the Off state, helping to identify potential failures before they affect system operation.

Because the 3502E is a TMR module, it provides redundancy that enhances system availability. If one channel fails, the other two continue to operate, allowing the system to remain functional while the faulty module is replaced.

Compatibility and Integration

The 3502E is designed for use with Tricon controllers. It supports hot-spare capability, meaning a spare module can be installed in the chassis and automatically take over if the primary module fails. The module communicates with the controller via the backplane, and the external termination panel provides the interface to field wiring.

For integration into a safety system, the 3502E works with other Tricon modules to form a complete TMR architecture. The module's input status indicators (one LED per point) provide local diagnostics, while the module status LEDs (PASS, FAULT, ACTIVE) indicate overall health.

Troubleshooting and Common Issues

If the 3502E fails to detect an input signal, check the following:

• Verify that the input voltage is within the specified range.
• Check the wiring to the external termination panel.
• Ensure that the module is properly seated in the chassis.
• Review the status LEDs for fault indications.

The self-test feature can be used to diagnose stuck-On conditions. If a point fails the self-test, it may indicate a field wiring issue or a module fault. Consult the Triconex documentation for detailed troubleshooting procedures.

Product Support and Availability

The 3502E is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can provide technical support and assist with integration questions.
