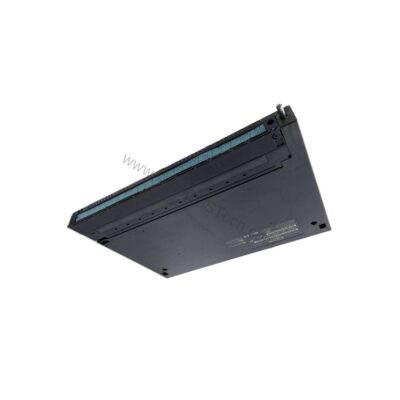

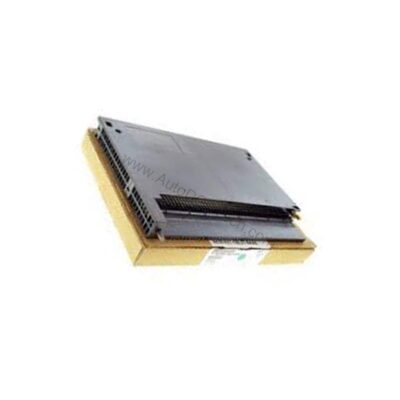

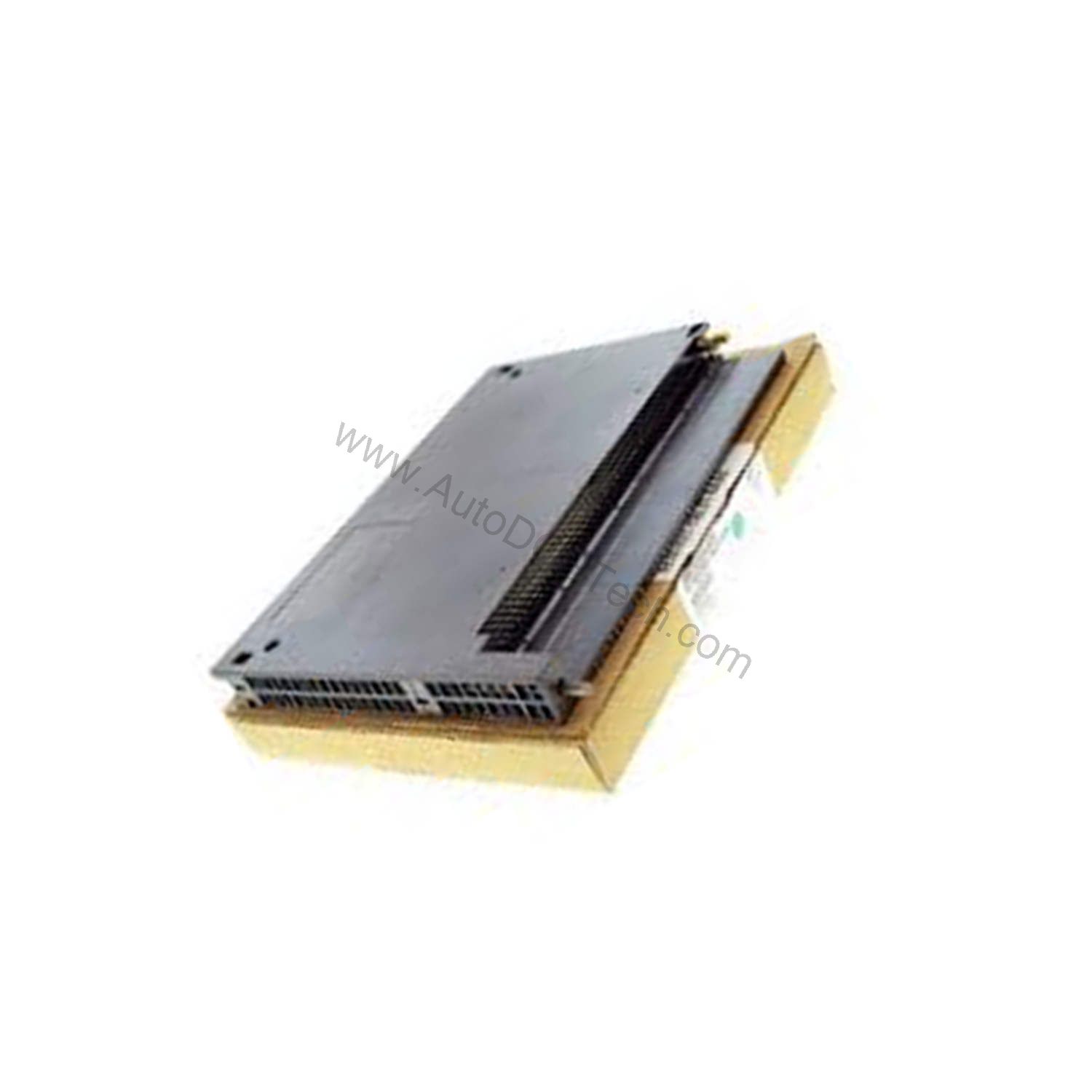

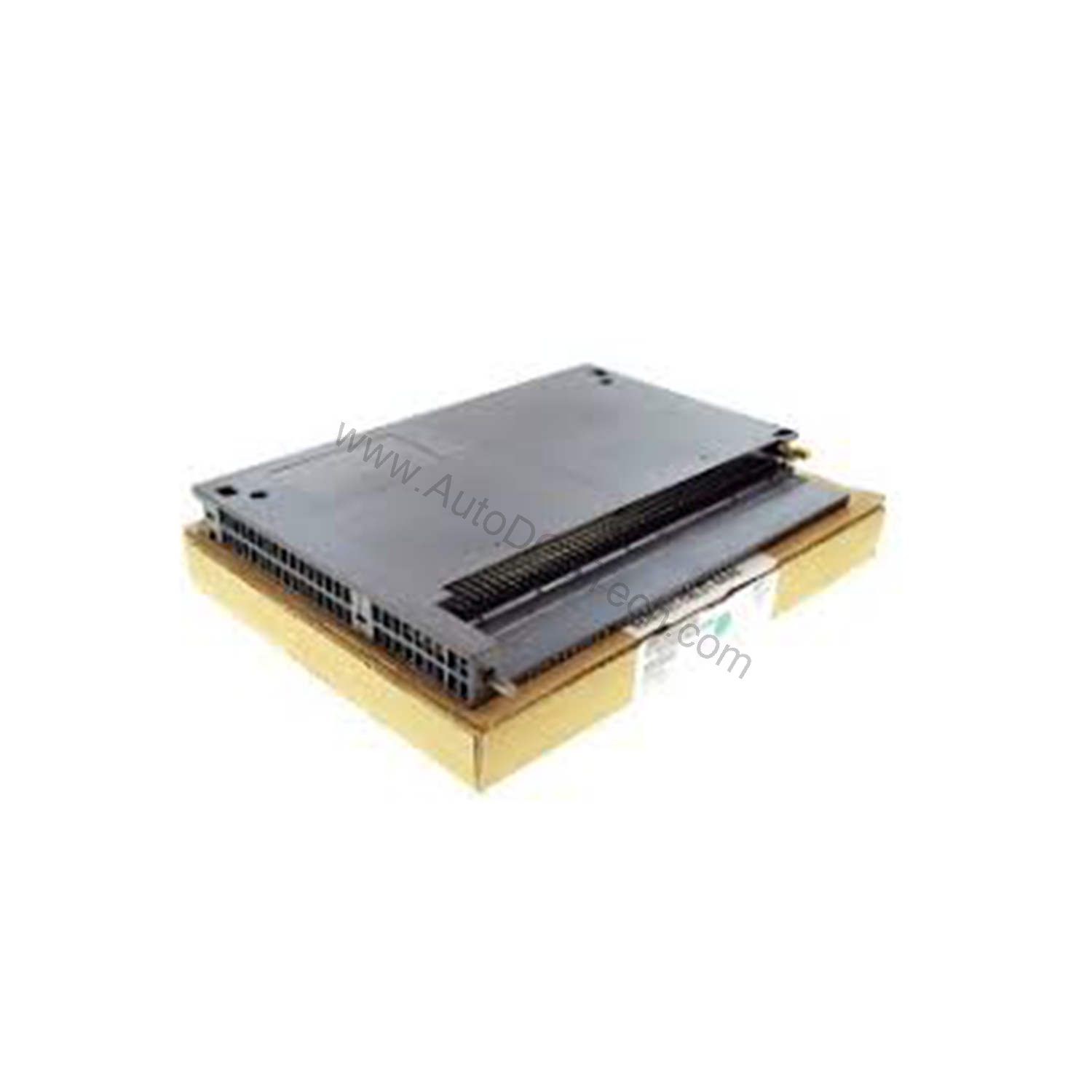

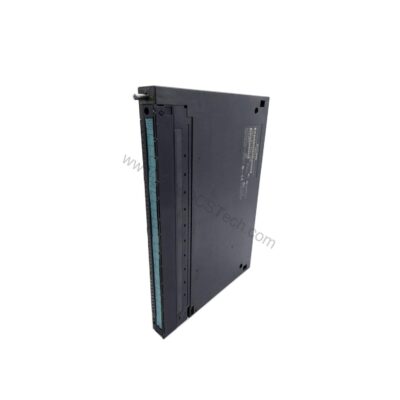

6ES7421-7BH01-0AB0 16 DI 24V DC Isolated SM421

Introduction to the Siemens 6ES7421-7BH01-0AB0

When your S7-400 system demands reliable signal acquisition, the 6ES7421-7BH01-0AB0 stands ready. This SIMATIC S7-400 digital input module delivers 16 isolated inputs, engineered for industrial environments where precision and uptime matter.

With a rated input voltage of 24 V DC and a permissible range from 20.4 V to 28.8 V, this module tolerates supply fluctuations. Reverse polarity protection adds a layer of safety, preventing damage from wiring errors. The module consumes up to 120 mA from L+ and 130 mA from the 5 V backplane bus, ensuring efficient operation.

Key Features and Technical Specifications

The 6ES7421-7BH01-0AB0 is packed with features that simplify integration and enhance reliability. Below are the core specifications extracted from the datasheet:

• Digital Inputs: 16, isolated in groups of 8
• Input Voltage: Rated 24 V DC; signal "0" from -30 V to +5 V; signal "1" from 11 V to 30 V
• Input Current: For signal "1" typ. 6 mA (6-8 mA); for signal "0" min. 6 mA (less than 6 mA)
• Input Delay: Parameterizable, options 0.05 ms, 0.1 ms, 0.5 ms, 3 ms
• Encoder Supply: 2 outputs, L+ (-2.5 V), short-circuit protected, rated 120 mA (max 150 mA)
• Diagnostics: Parameterizable, including wire-break monitoring (I < 1 mA), supply voltage monitoring, diagnostic alarm, and hardware interrupt
• Isolation: Between channels and backplane bus, tested with 500 V DC
• Power Loss: Typ. 5 W
• Dimensions: 25 mm x 290 mm x 210 mm; weight approx. 600 g

A distinctive feature is the parameterizable input delay, allowing you to tailor response times from 0.05 ms to 3 ms. This flexibility is critical when filtering noise or matching sensor dynamics, ensuring accurate readings without false triggers.

Applications and Use Cases

Use it to monitor limit switches, proximity sensors, or pushbuttons. For high-speed counting or fast event detection, the 0.05 ms delay setting captures rapid transitions. In contrast, the 3 ms setting filters electrical noise, reducing spurious signals. Whether upgrading an existing line or designing a new cell, the 6ES7421-7BH01-0AB0 adapts to your needs.

Installation and Setup

Mounting the module is straightforward. It fits into a standard S7-400 rack, occupying one slot. Connect the 24 V DC load voltage to L+ and M, observing polarity (reverse protection is built-in). Wire your sensors to the input terminals, respecting the group isolation (8 channels per group). For encoder supply, use the two outputs, each rated for 120 mA (max 150 mA). Ensure total current does not exceed the limit. The module supports 2-wire sensors with a max quiescent current of 3 mA. For wire-break monitoring, the threshold is set between 10 kΩ and 18 kΩ. Use shielded cables up to 1000 m for long runs (with appropriate delay settings) or unshielded up to 600 m. Always refer to the S7-400 manual for detailed wiring diagrams.

Maintenance and Reliability

Routine inspection is minimal. Check the diagnostic LEDs (PWR green, INTF red, EXTF red) for any faults. The module performs self-diagnostics, monitoring supply voltage and wire breaks. Periodically verify that the input delay settings match your application. Clean the module exterior with a dry cloth; avoid solvents. The module's robust design ensures long service life, reducing downtime and maintenance costs.

Compatibility and Integration

As part of the SIMATIC S7-400 family, this module integrates with S7-400 CPUs and other SM modules. It communicates over the backplane bus, requiring no additional configuration for basic operation. Use STEP 7 software to parameterize input delays, diagnostics, and interrupts. The module is compatible with various I/O configurations, making it a flexible choice for expanding your system.

Troubleshooting and Common Issues

If a channel fails, check the wiring and sensor supply. The diagnostic alarm can indicate wire-break (I < 1 mA) or supply voltage issues. Verify that the input voltage is within 20.4-28.8 V DC. If the module shows an internal fault (INTF red), consult the diagnostics buffer in STEP 7. For external faults (EXTF red), inspect the field wiring. If problems persist, contact AutoDCSTech for support.

Product Support and Availability

The 6ES7421-7BH01-0AB0 is available at AutoDCSTech. We stock genuine Siemens modules, ready to ship. Our team can assist with configuration and troubleshooting. Contact us for current availability and pricing.
