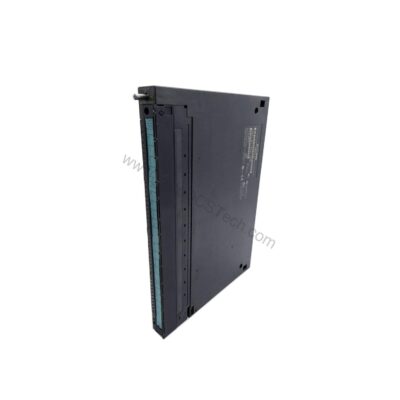

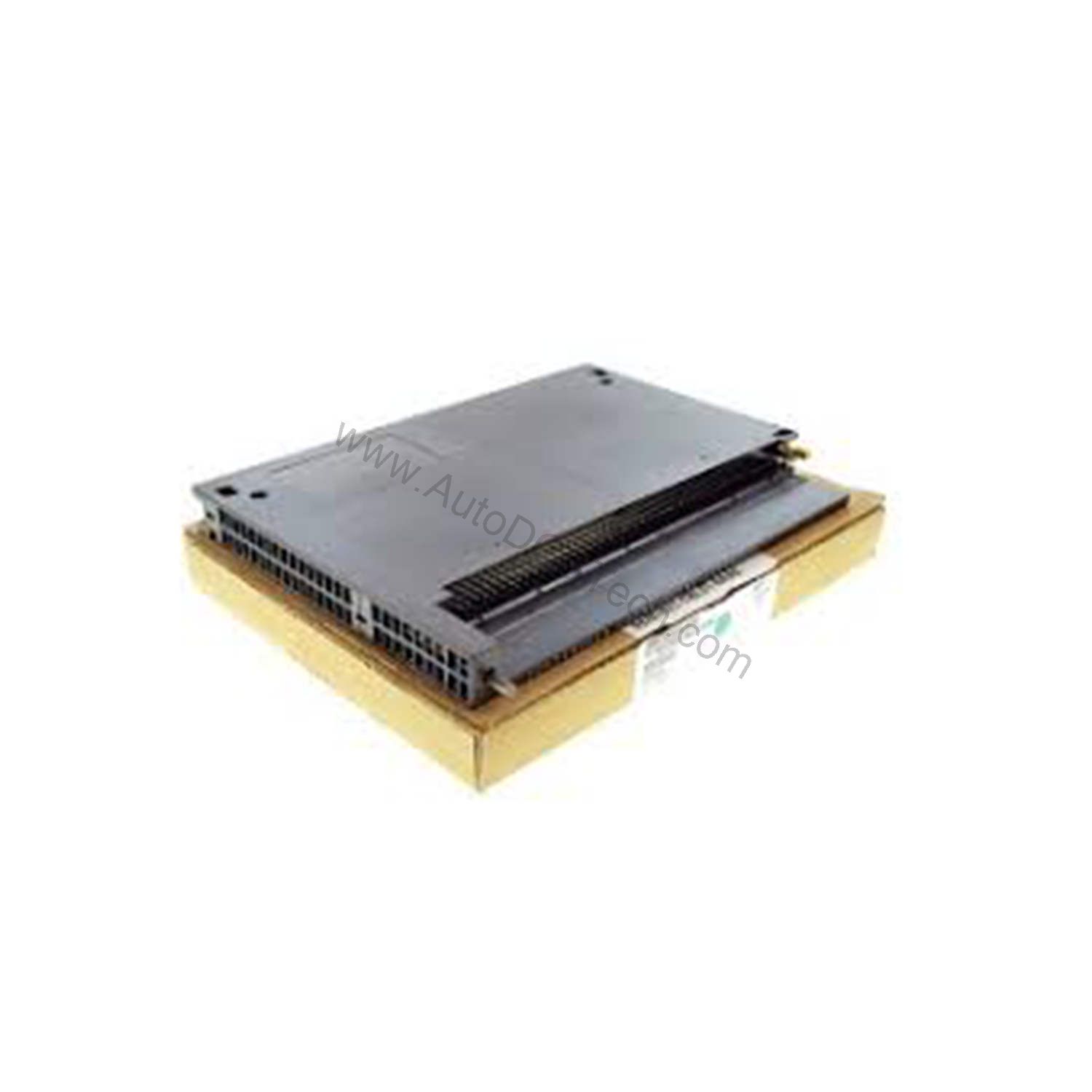

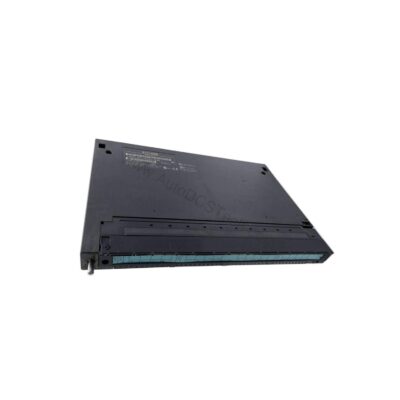

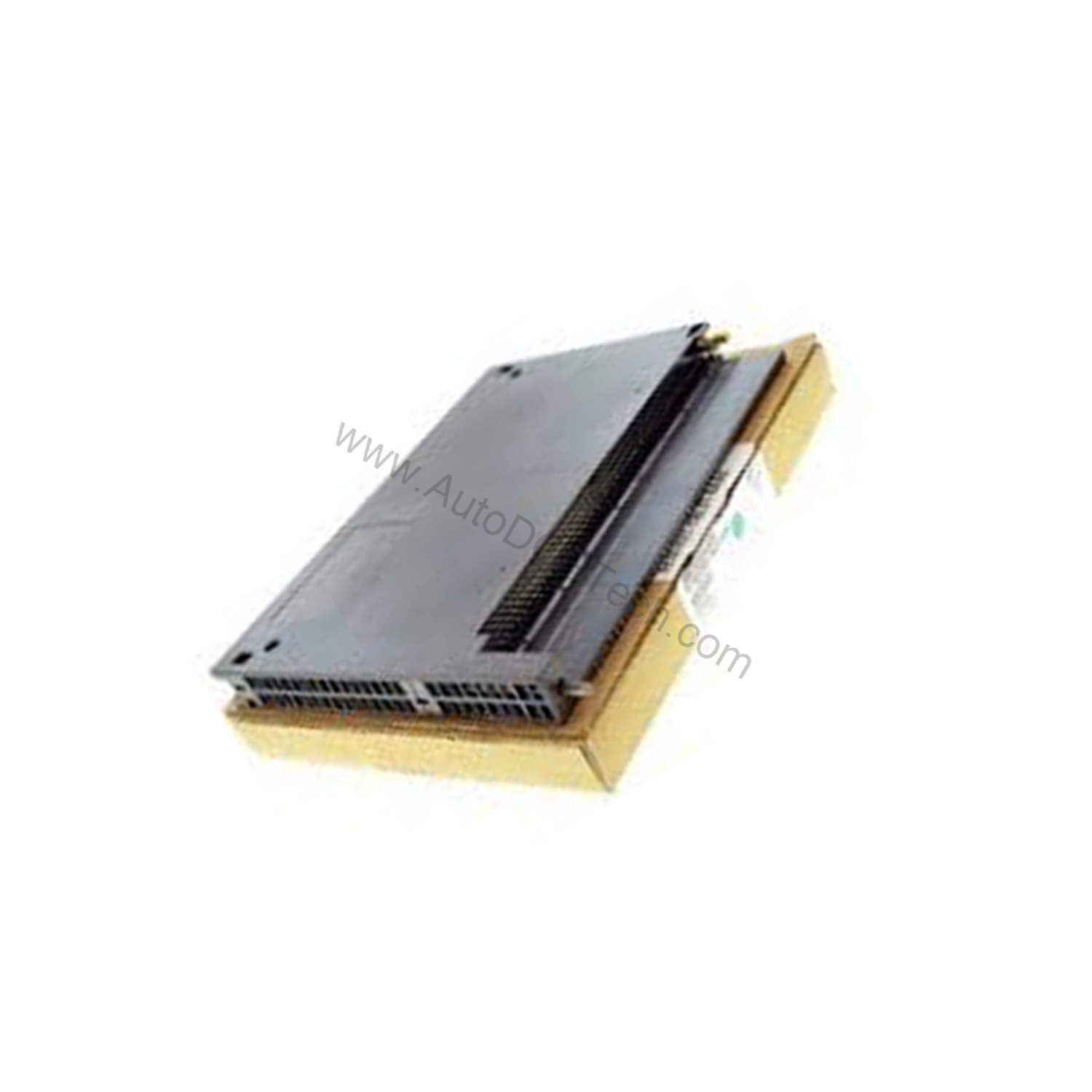

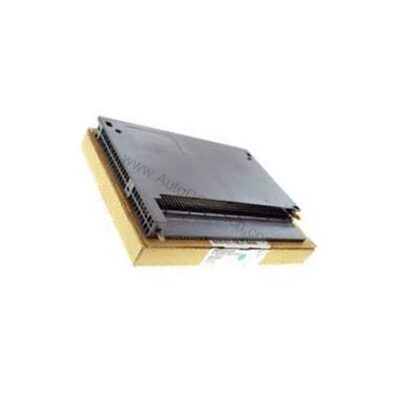

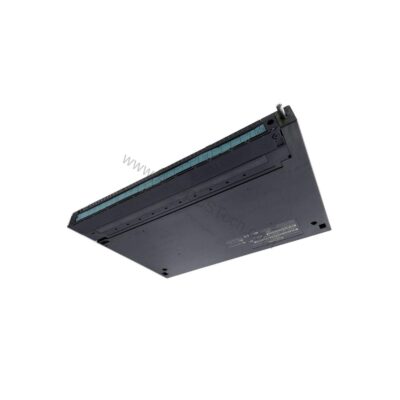

6ES7421-1FH20-0AA0 16 DI 230V AC/DC Digital Input Module

Introduction to the 6ES7421-1FH20-0AA0

When your control system must handle high-voltage AC/DC signals with absolute reliability, the 6ES7421-1FH20-0AA0 from Siemens is engineered to meet that demand. This SIMATIC S7-400 digital input module provides 16 isolated inputs designed for universal voltage operation at 120/230 V AC/DC (47–63 Hz). It is built to IEC 61131-2 Type 2 characteristics, ensuring compatibility with a wide range of industrial sensors and switches.

For engineers managing legacy or mixed-voltage plants, this module simplifies integration by accepting both AC and DC signals without additional converters—reducing hardware complexity and installation cost.

Key Features and Technical Specifications

• Input voltage range: 120/230 V AC/DC (47–63 Hz) for signal "1" from 74 to 264 V AC and 80 to 264 V DC.
• Signal "0" detection: 0 to 40 V AC and -40 to +40 V DC, with a maximum permissible quiescent current of 6 mA AC / 2 mA DC.
• Input current for signal "1": typical 10 mA at 120 V AC, 1.8 mA DC; 14 mA at 230 V AC, 2 mA DC.
• Input delay: max 20 ms (AC) / 15 ms (DC) for 0→1, and max 30 ms (AC) / 25 ms (DC) for 1→0.
• Isolation: channels isolated in groups of 4, with 1500 V AC isolation test voltage between channels and backplane bus.
• Power consumption: 80 mA from 5 V DC backplane bus; typical power loss 12 W.
• Dimensions: 25 mm width, 290 mm height, 210 mm depth; weight approx. 650 g.

These specifications translate into robust signal acquisition even in electrically noisy environments, reducing false triggers and improving process stability—directly lowering downtime and maintenance costs.

Applications and Use Cases

Typical applications include motor control centers, power distribution monitoring, and material handling systems where 120/230 V AC control signals are common. The module's ability to handle both AC and DC inputs makes it versatile for retrofitting older equipment without changing field wiring. For example, in a packaging line, the 6ES7421-1FH20-0AA0 can directly interface with existing limit switches and pushbuttons, minimizing conversion costs and speeding up installation.

Installation and Setup

Mount the module on a standard S7-400 rail and connect it to the backplane bus. Ensure that the input wiring is rated for the applied voltage and that shielded cables are used for distances up to 1000 m; unshielded cables are allowed up to 600 m. For 2-wire sensors, the permissible quiescent current is 5 mA AC. Always follow the mounting and wiring guidelines in the S7-400 manual to maintain isolation and safety.

Maintenance and Reliability

With no moving parts and solid-state inputs, the 6ES7421-1FH20-0AA0 requires minimal routine maintenance. Periodically inspect the module for dust accumulation and ensure that the ventilation slots are clear. Verify that the green status LEDs for each channel operate correctly during normal cycling. Because the module is isolated in groups of four, a fault in one group does not affect others, reducing the risk of total system failure and associated repair costs.

Compatibility and Integration

This module is part of the Siemens SIMATIC S7-400 family, designed to work with S7-400 CPUs and other SM modules. It supports 2-wire sensors and provides 16 digital inputs that are simultaneously controllable. The isolation between channels and the backplane bus ensures clean signal transfer without ground loops, which is critical for accurate data acquisition.

Troubleshooting and Common Issues

If a channel does not respond, first check the input voltage against the signal "1" thresholds (74–264 V AC or 80–264 V DC). Verify that the input current is within the specified range; a quiescent current above 6 mA AC may cause false "1" readings. Also, confirm that the cable length does not exceed the maximum recommended values. If problems persist, consult the module's diagnostic LEDs or refer to the S7-400 troubleshooting guide.

Product Support and Availability

The Siemens 6ES7421-1FH20-0AA0 is available from AutoDCSTech. Contact our team to confirm stock and lead times.
