6ES7422-5EH00-0AB0 16 DO 20-120V AC Digital Output Module

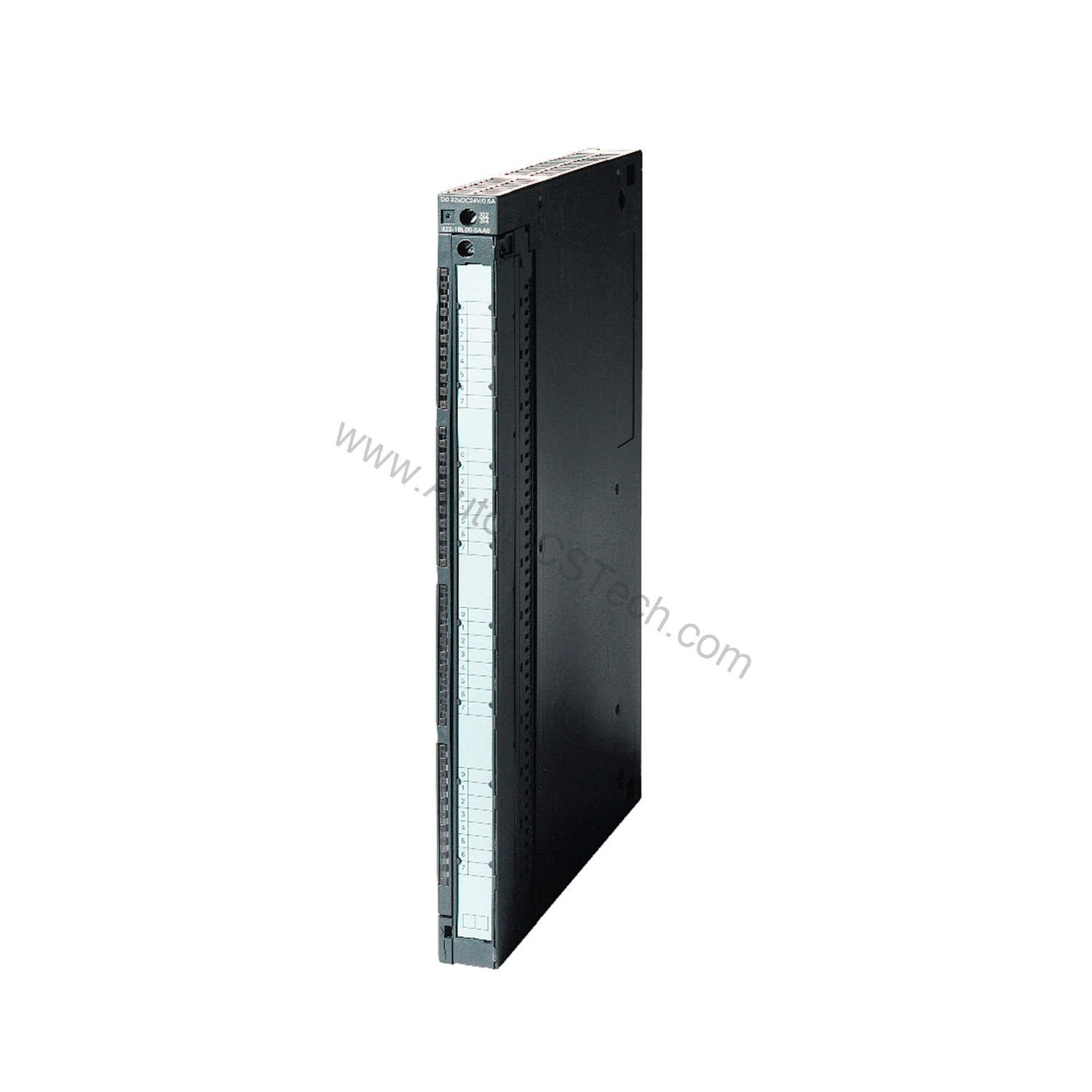

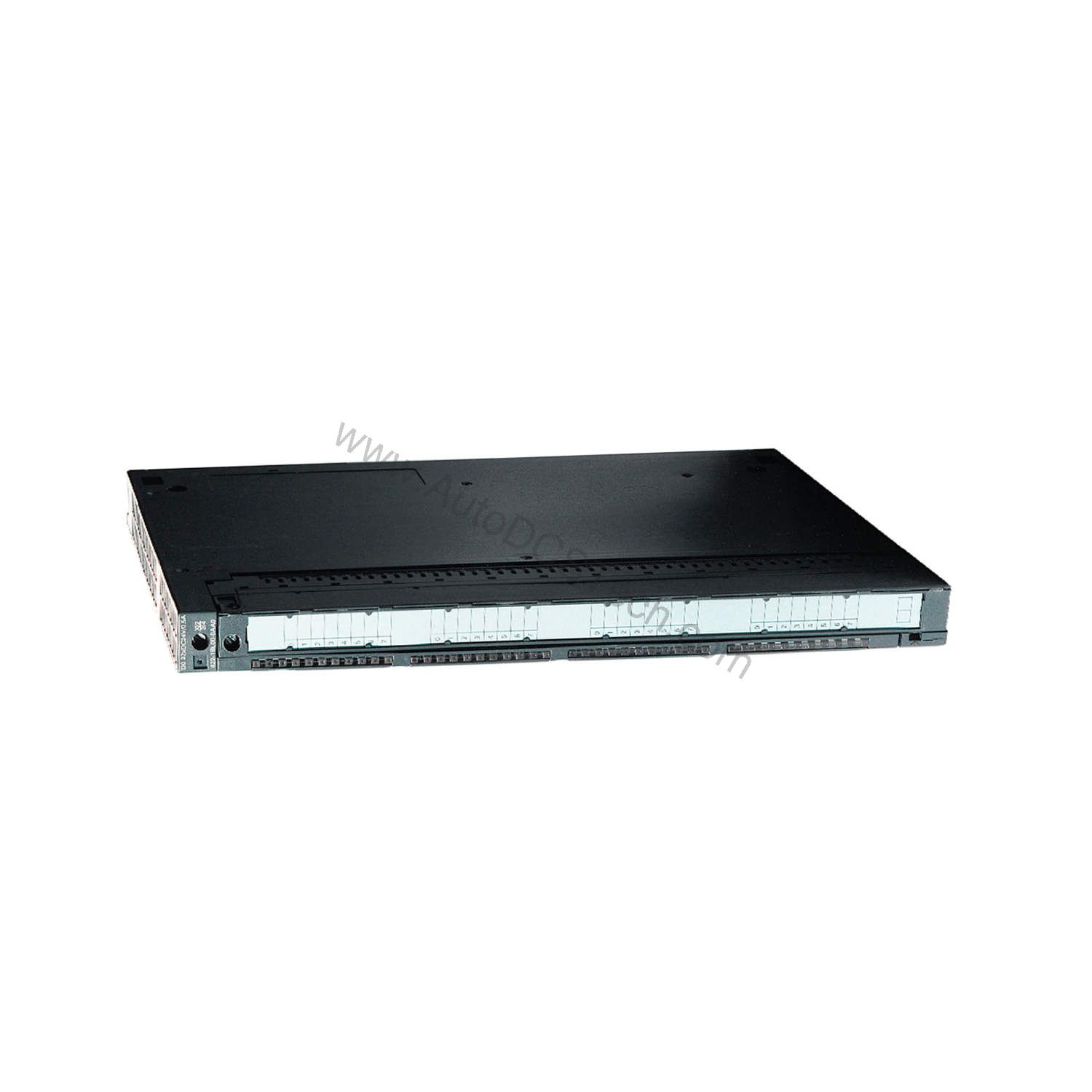

Introduction to the Siemens 6ES7422-5EH00-0AB0 SM 422 Digital Output Module

When your S7-400 system demands robust switching of AC loads, the 6ES7422-5EH00-0AB0 from Siemens delivers a dependable solution. This SIMATIC S7-400 digital output module offers 16 outputs designed for 20-120V AC operation, each rated at 2A. With optical isolation and one point per common, it ensures clean signal separation for industrial environments.

As part of the SM 422 family, this module is engineered for high-density output control. Its 16 channels provide ample capacity for controlling contactors, valves, and indicator lamps. The isolated design minimizes electrical noise interference, which is critical for maintaining process stability.

Key Features and Technical Specifications

• 16 digital outputs for flexible AC load control.
• 20-120V AC operating range matches common industrial supply voltages.
• 2A output current per channel handles moderate loads directly.
• Optically isolated channels protect the backplane from transients.
• One point per common simplifies wiring and reduces cross-talk.

The 6ES7422-5EH00-0AB0 is a discontinued product (PLM PM500) with end of lifecycle since October 1, 2016. It was deleted without replacement, so availability is limited to existing stock. For current projects, verify lifecycle status with your supplier.

Applications and Use Cases

Typical applications include controlling AC motors, heaters, and solenoid valves in manufacturing lines. The 20-120V AC range makes it suitable for regions using 110V or 120V control circuits.

For example, a packaging machine might use this module to switch multiple AC-powered actuators. The high channel count reduces wiring complexity, and the isolation prevents ground loops. Consequently, the 6ES7422-5EH00-0AB0 helps maintain uptime and simplifies troubleshooting.

Installation and Setup Guide

Installation follows standard S7-400 rack mounting procedures. Ensure the module is seated firmly in the backplane and the locking screw is tightened. Connect the AC supply to the designated terminals, observing polarity if required. Use proper wire gauges for 2A currents to avoid overheating.

Because the module is optically isolated, each output group is electrically separate. This allows mixing different AC phases or voltages safely. Always follow the wiring diagram in the official Siemens manual to prevent short circuits.

Maintenance and Reliability

Regular inspection of the module's status LEDs and terminal connections is recommended. Over time, vibration can loosen screws, so periodic tightening is prudent. The module's solid-state design reduces wear compared to electromechanical relays, lowering maintenance frequency.

Environmental factors such as dust and humidity can affect performance. Keep the enclosure clean and within specified operating conditions. Since the product is discontinued, proactive spares management is essential to avoid extended downtime.

Cost-Benefit Analysis of Using the 6ES7422-5EH00-0AB0

From a cost perspective, this module offers a straightforward path to expand output capacity. The 16-channel design reduces the number of modules needed, lowering per-point cost. Its 2A rating allows direct drive of many actuators, eliminating the need for external relays in some cases.

However, because the product is discontinued, long-term support may be limited. Engineers must weigh the initial savings against potential future replacement costs. For critical applications, consider stocking spare units or planning an upgrade path.

Troubleshooting Common Issues

If an output fails to energize, first check the load supply voltage and wiring. Verify that the module's logic supply is present and that the output is enabled in your program. Use a multimeter to confirm 20-120V AC at the output terminal when activated.

If multiple outputs fail, inspect the common connection and backplane seating. Optical isolation means a fault in one channel should not affect others. For persistent issues, consult the Siemens technical documentation or contact AutoDCSTech for guidance.

Support and Availability

AutoDCSTech offers the 6ES7422-5EH00-0AB0 for purchase while stock lasts. As a discontinued item, availability may be limited. Contact our team to check current inventory and lead times.
