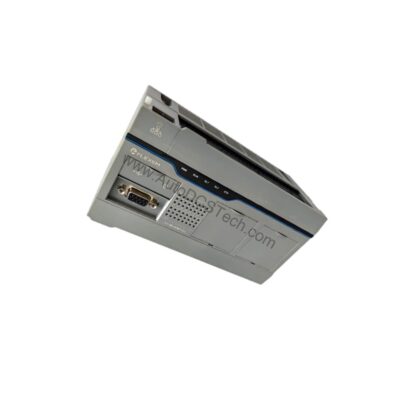

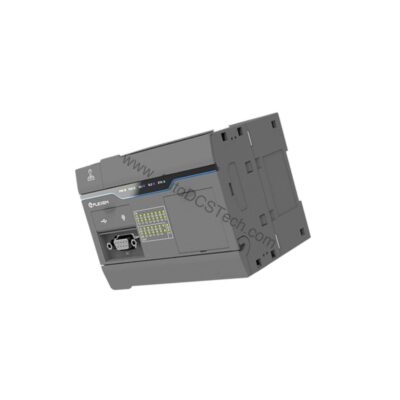

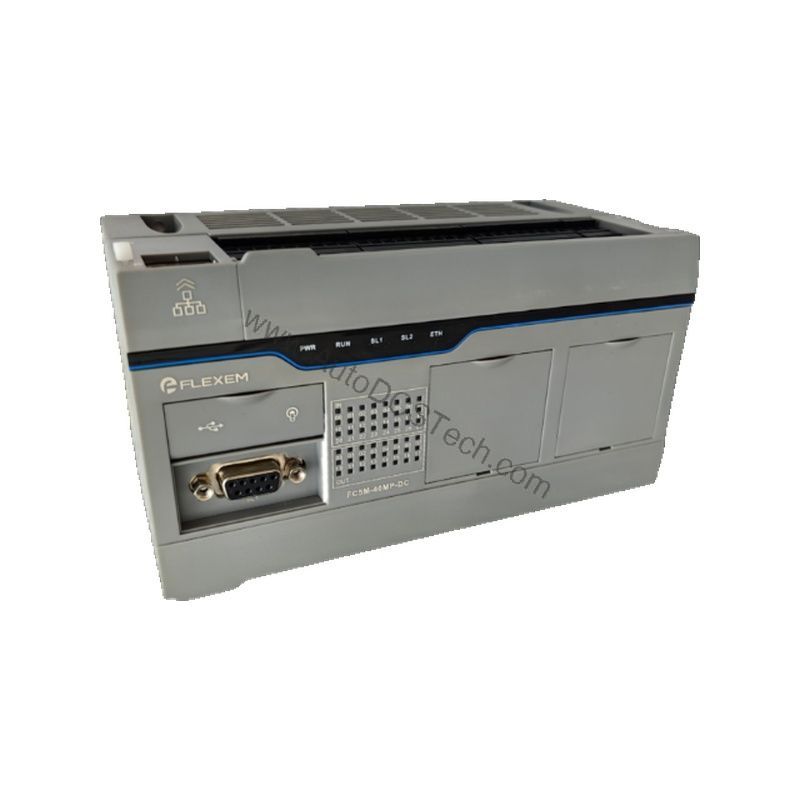

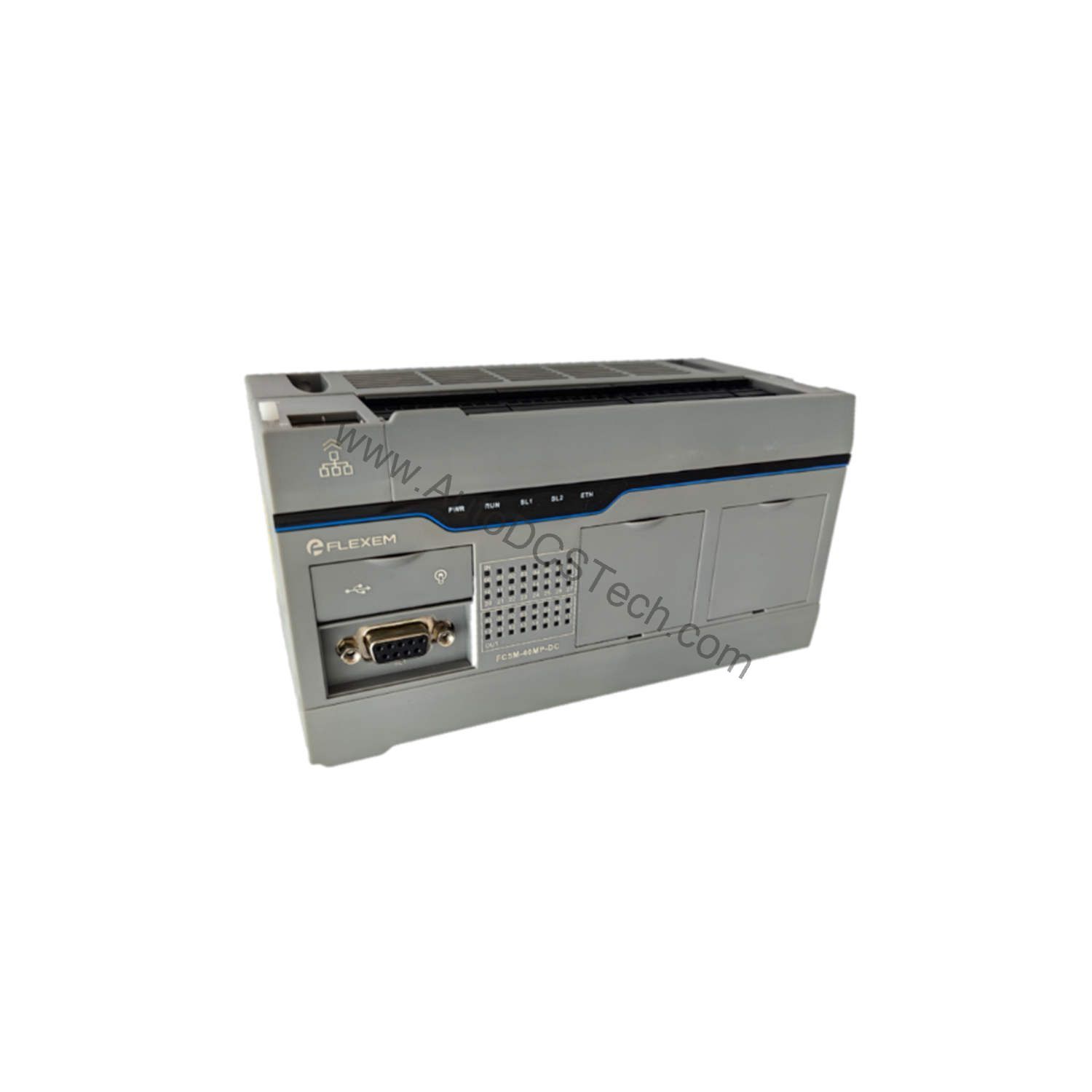

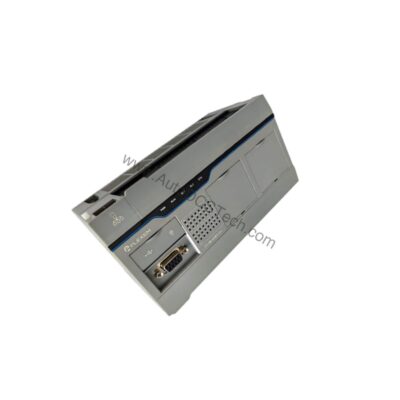

Flexem FC5M-40MP-DC PLC Controller with 24 I/O and Ethernet

Technical Specifications Breakdown

Key parameters for the FC5M-40MP-DC are listed below for quick reference:

Engineered for High-Speed Applications

The FC5M-40MP-DC is designed for applications requiring precise, high-speed control. With 7 fast inputs and 6 fast outputs, it can handle rapid counting, positioning, and pulse generation. The transistor outputs provide fast switching with a maximum output frequency of 1 kHz for standard outputs, while fast outputs support PTO up to 200 kHz (NPN) or 100 kHz (PNP) and PWM up to 50 kHz.

Installation and Setup Guidance

Proper installation is critical for optimal performance. Mount the controller in a clean, dry enclosure with adequate ventilation. Ensure the supply voltage is within the rated range of DC 24V (input range DC 0V~28.8V). Use shielded cables for fast outputs and keep cable lengths within 5 meters for high-speed signals. For standard inputs, shielded cables up to 100 meters or unshielded up to 50 meters are acceptable. Always follow local electrical codes and safety regulations.

Maintenance and Reliability

Regular inspection helps prevent unexpected downtime. Check all wiring connections periodically for tightness and signs of wear. Keep the controller free from dust and moisture, and verify that the ambient temperature stays within the specified range. The conformal coating provides additional protection against corrosive atmospheres. With proper care, the FC5M-40MP-DC will deliver years of dependable service.

The Evolution of Compact Automation

Industrial control systems have evolved from bulky relay panels to compact, networked logic controllers. Modern machines demand high-speed processing, flexible I/O, and seamless communication. The Flexem FC5M-40MP-DC represents this evolution, packing advanced features into a space-saving design. This programmable logic controller (PLC) from the FC5 series delivers the performance and connectivity required for today's dynamic manufacturing environments.

Flexible I/O Configuration

This logic controller offers 24 discrete inputs, compatible with both source and sink wiring, and supports 2-wire or 3-wire sensors. The inputs feature adjustable filter times from unfiltered to 100 ms, allowing customization for noisy environments. The 16 transistor outputs are PNP type, with a rated voltage of 24 V DC and a voltage range of 19.2V~28.8V. Each output can source up to 2A, with a group current limit of 4A. Short circuit protection and self-recovery after overload ensure reliable operation.

Built for Harsh Industrial Environments

The FC5M-40MP-DC is built to withstand demanding conditions. It operates in temperatures from -10°C to 60°C and stores safely between -20°C and 70°C. With an IP20 protection rating and conformal coating (dry film thickness ≥20μm, reinforced ≥40μm), it resists dust and moisture. The controller also meets pollution degree 2 (IEC60664) and can operate at altitudes up to 3,000 meters. Its robust design ensures long-term reliability.

Seamless Integration and Communication

Equipped with Ethernet PNP and EtherNet, the FC5M-40MP-DC integrates easily into modern industrial networks. This enables remote monitoring, programming, and data exchange with higher-level systems. The built-in Ethernet port simplifies connectivity, reducing wiring and setup time. For engineers upgrading legacy systems, this controller offers a straightforward path to networked automation.

Selection Guide and Purchasing Advice

When selecting a logic controller, consider your I/O count, communication needs, and environmental conditions. The FC5M-40MP-DC offers a balanced feature set for many applications. At AutoDCSTech, we stock this model and can advise on compatibility and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team is ready to assist you with your automation requirements.
