Flexem FR-D0808N Digital Mixed Input Module | 8-Point NPN/PNP

Technical Specifications Breakdown

Key parameters for the FR-D0808N are listed below for quick reference:

Industry Applications

Packaging Machinery

In packaging lines, the module reads sensor inputs (e.g., presence or position) and drives actuator outputs. The bidirectional inputs accept both NPN and PNP sensors, simplifying sensor selection. The 0.5A output current per point is adequate for small relays or indicator lamps, reducing the need for interposing relays.

Material Handling Systems

Conveyor systems often require mixed I/O for photo-eyes and solenoid valves. The FR-D0808N’s compact size allows mounting near the conveyor, shortening cable runs and improving signal integrity. The 24VDC operation aligns with standard industrial control voltages.

Machine Tool Controls

For retrofitting older machines, the module’s NPN outputs interface directly with many PLC input cards. The wide input range (0~28.8V DC) accommodates various sensor supply voltages, making it a flexible choice for mixed-vintage equipment.

Installation & Setup Guidance

• Mount the module on a DIN rail or panel using the provided slots. Ensure adequate clearance for ventilation and wiring.
• Connect 24VDC power to the rated voltage terminals. Observe polarity.
• For inputs, wire sensors according to their type (NPN or PNP). The bidirectional design accepts both, but verify the common connection.
• For outputs, connect loads such as relays, solenoids, or indicator lights. Ensure the load current does not exceed 0.5A per point. For groups, calculate the total current as 0.5A multiplied by the number of output points per group.
• Use appropriate wire gauges for the current levels. Tighten terminals to the recommended torque.
• After wiring, perform a continuity check before powering up.

Maintenance & Reliability

The FR-D0808N is designed for long-term reliability. However, periodic inspection is recommended:

• Check for loose connections or signs of overheating every 6 to 12 months.
• Keep the module free from dust and moisture. Use a dry, lint-free cloth for cleaning.
• Verify that the ambient temperature stays within the specified range (if provided).
• Inspect wiring for damage or wear, especially in high-vibration environments.

Compact Digital I/O for Modern Control Panels

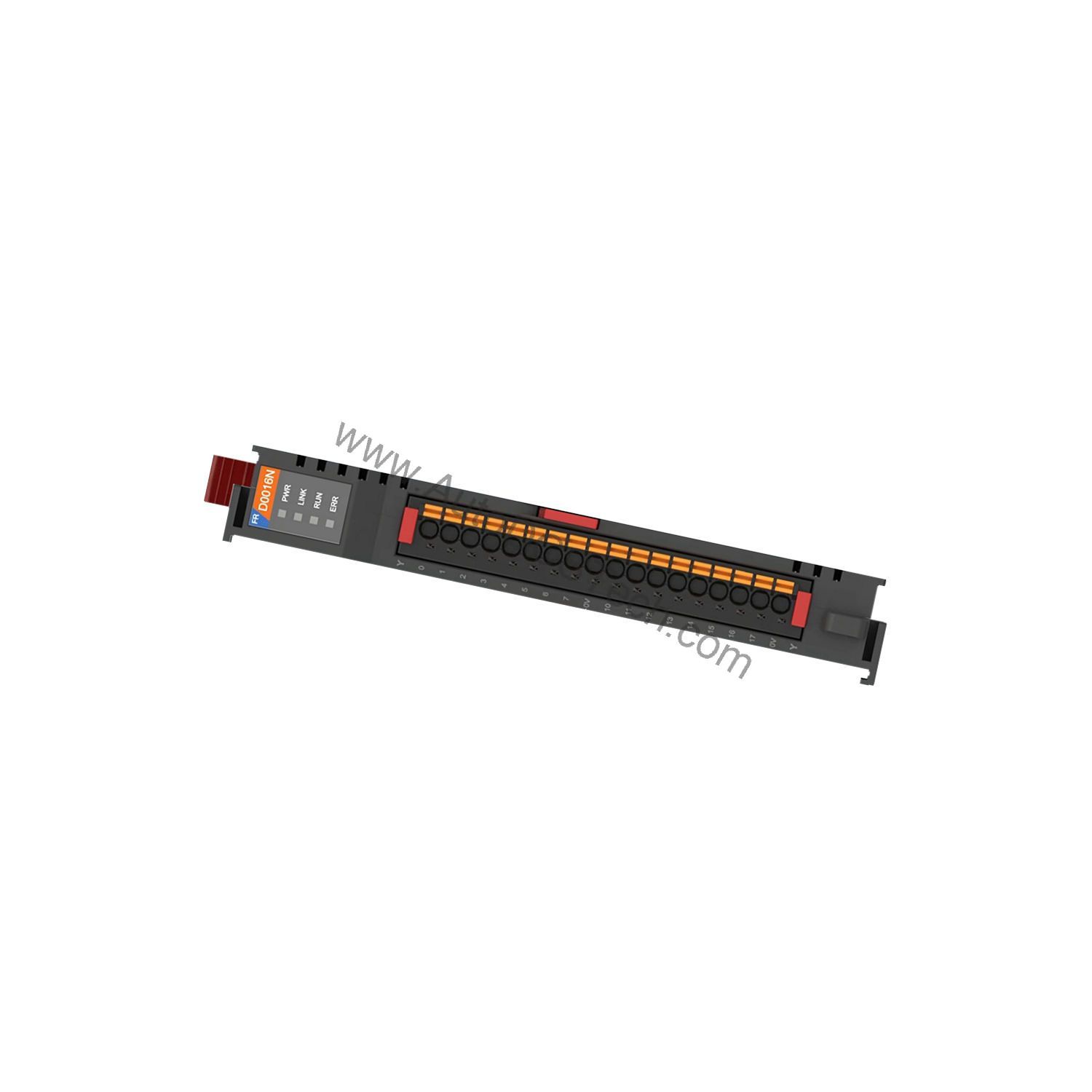

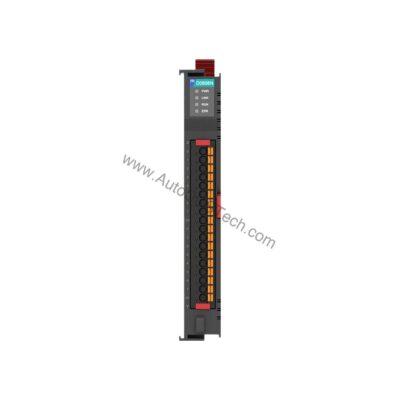

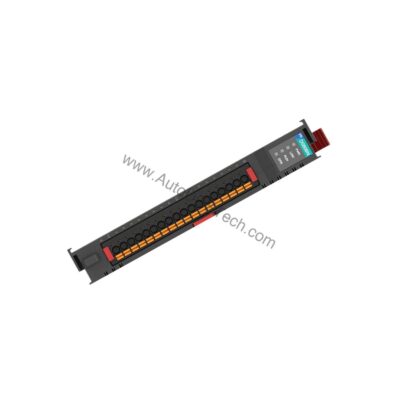

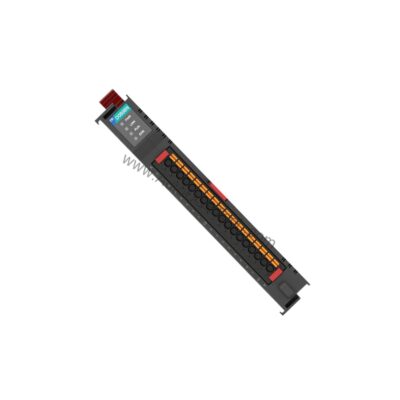

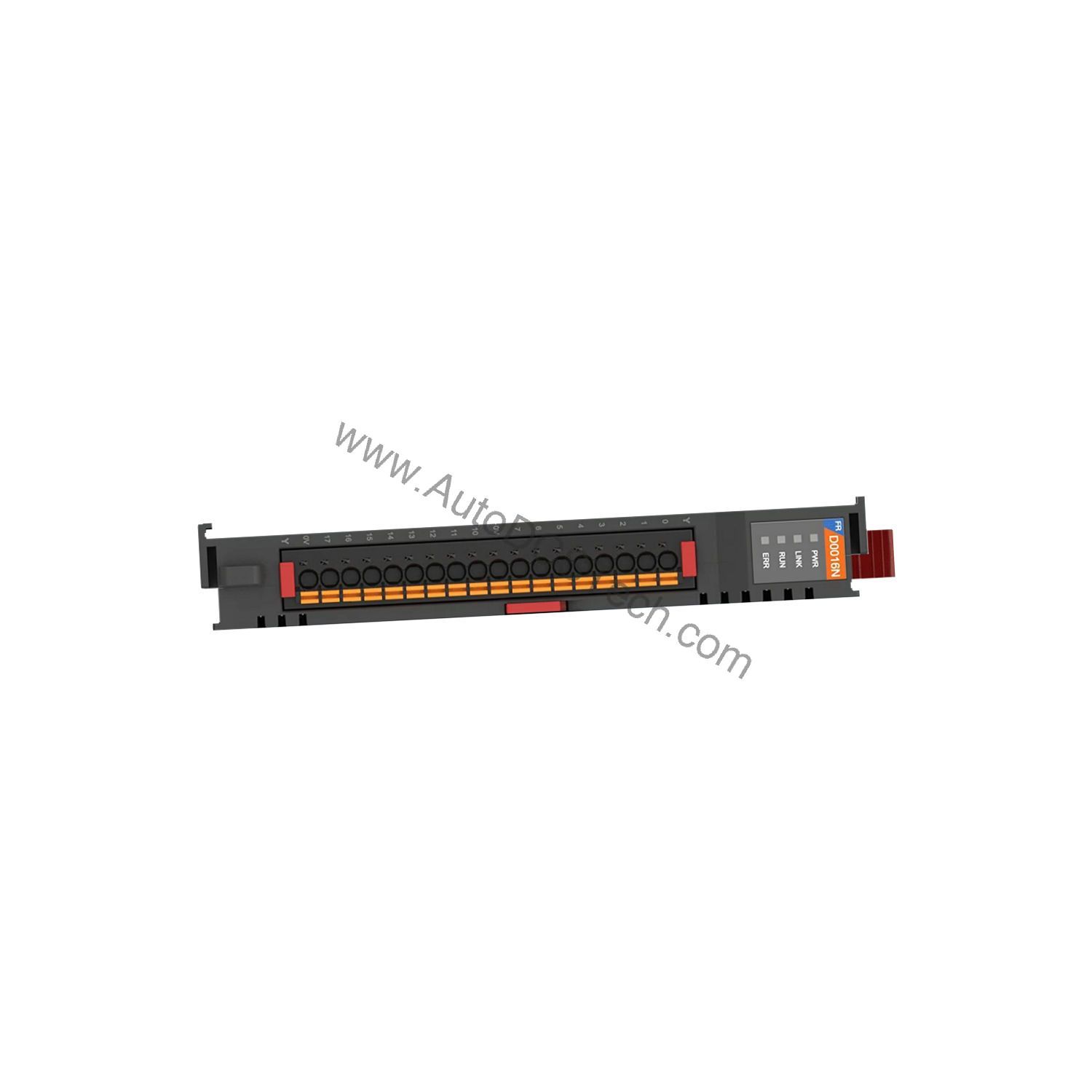

The Flexem FR-D0808N digital mixed input module combines 8 bidirectional input channels with 8 NPN output channels in a slim 1111876 mm housing. This space-saving design fits neatly into crowded control cabinets, reducing panel depth and simplifying wiring. Whether you are retrofitting an existing line or building a new machine, the FR-D0808N offers a practical solution for discrete signal handling.

Compatibility & Integration

The module’s NPN/PNP input compatibility allows integration with most PLCs and sensors. The 24VDC logic level is standard across many industrial controllers. For output, the NPN configuration (sinking) is common in Asian and European control systems. Always check your PLC’s input/output specifications to ensure matching.

Selection Guide & Purchasing Advice

When selecting a digital I/O module, consider the number of I/O points, voltage, and output type. The FR-D0808N offers 8 inputs and 8 outputs in one unit, saving space and cost. For larger systems, you may need multiple modules or a higher-density alternative. Contact AutoDCSTech to verify availability and lifecycle status. We stock a wide range of Flexem and other automation parts.

Troubleshooting & Common Issues

• Input not reading: Check sensor wiring and polarity. Ensure the input voltage is within 0~28.8V DC. Verify the sensor type matches the input configuration.
• Output not energizing: Check the load wiring and power supply. Confirm the output current is within 0.5A. If the load draws more, use an external relay.
• Module not communicating: Verify power supply voltage (24VDC) and connections. Check for loose terminals.
• Intermittent operation: Inspect for loose wiring or marginal power supply. Use a multimeter to measure voltage at the module terminals.

For persistent issues, consult the product manual or contact AutoDCSTech for technical support. Always disconnect power before servicing.
