Product Overview

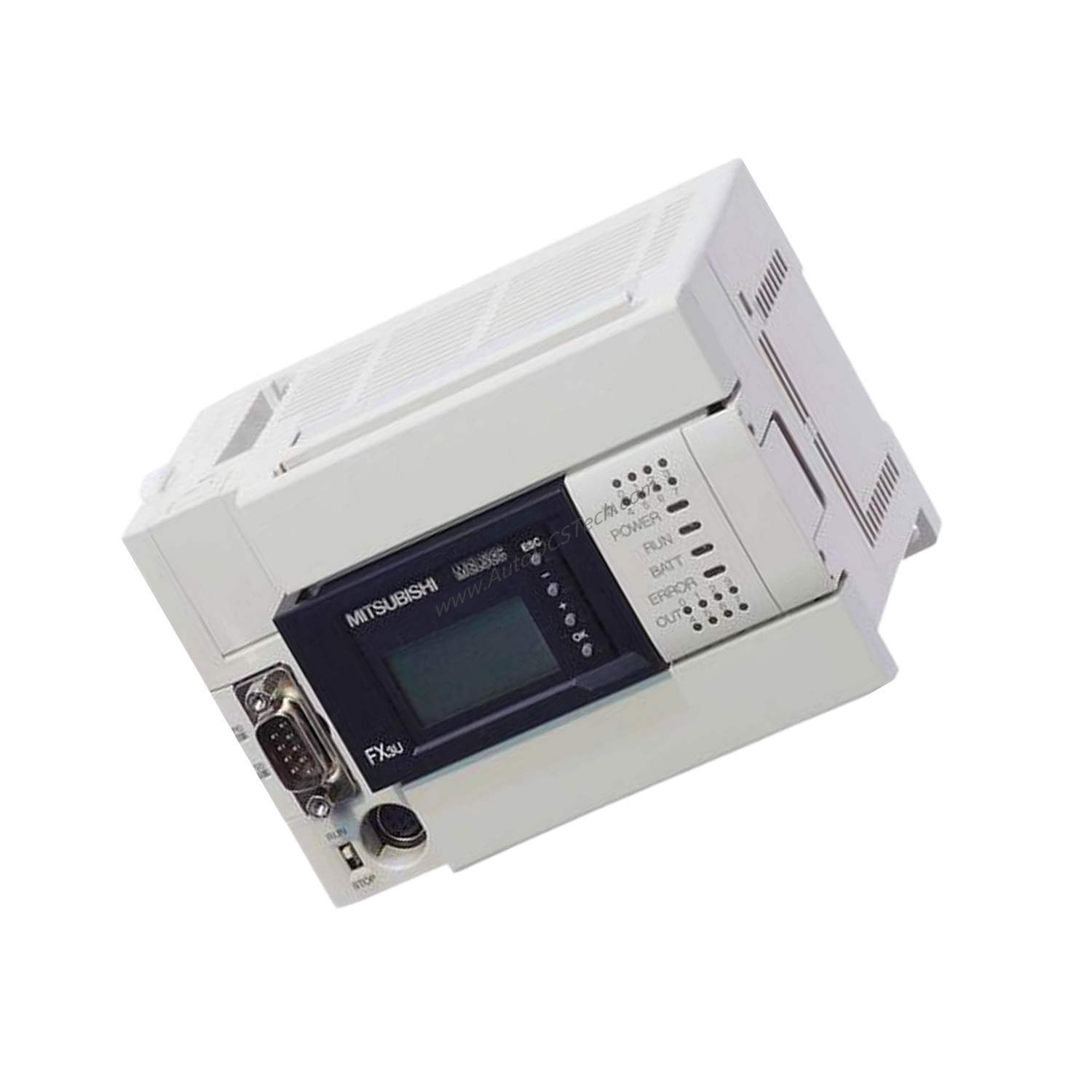

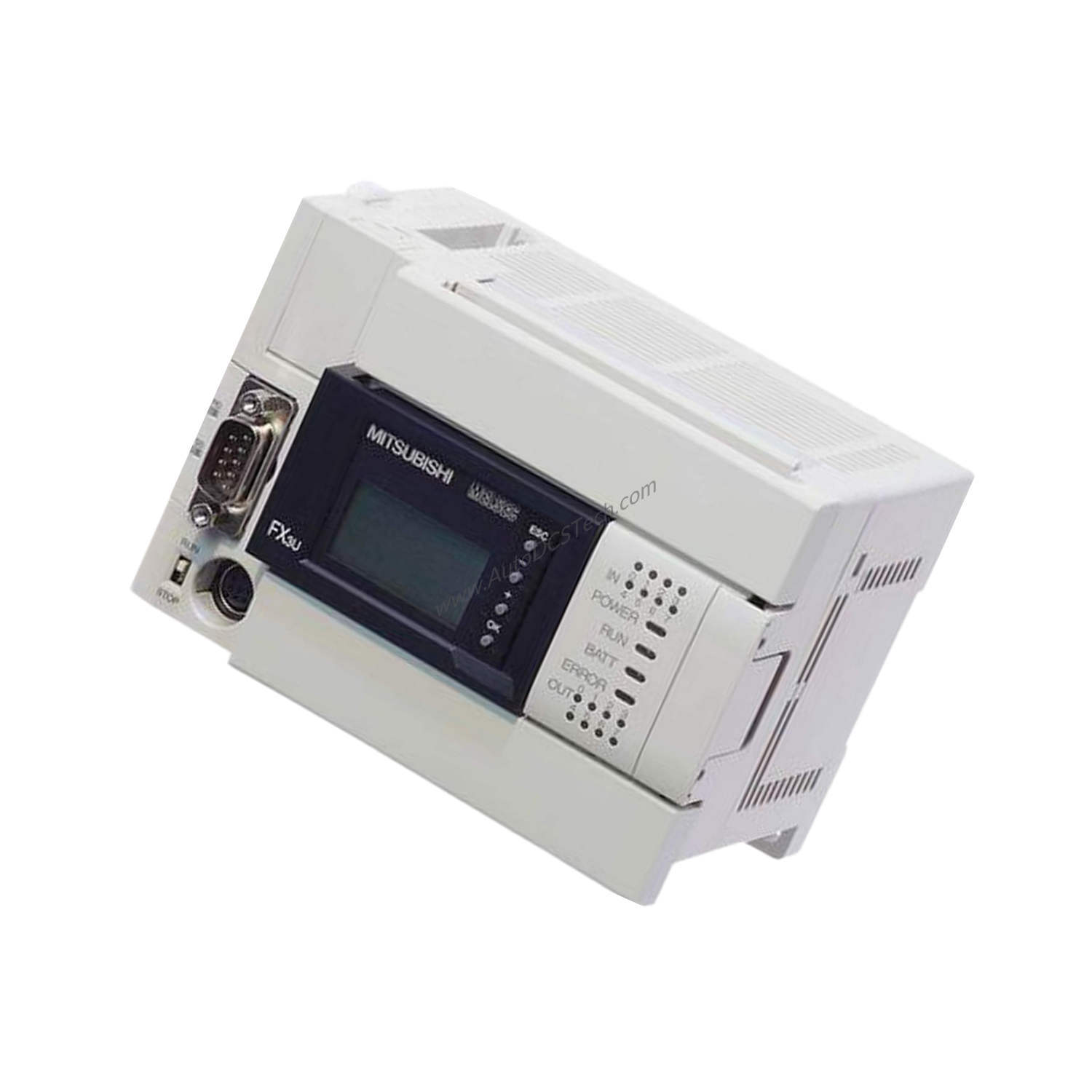

When a production line faces frequent downtime due to controller failures, the Mitsubishi FX3U-48MT-ES-A provides a robust solution. This main unit with 48 I/O is part of the MELSEC-F series and delivers dependable performance for small to medium automation tasks. With 24 digital inputs and 24 transistor sink outputs, it handles discrete control efficiently. The unit operates on 100-240 VAC power and consumes 40 W, making it suitable for standard industrial environments.
Technical Specifications Breakdown
From a maintenance engineer's perspective, the FX3U-48MT-ES-A offers practical specs that simplify troubleshooting and expansion. The program memory of 64K steps ensures ample space for complex logic, while the integrated real-time clock aids in time-stamped diagnostics. With 235 counters and 512 timers, you can manage precise sequencing without external modules. The cycle time of 65 ns for LD instructions and 642 ns for MOV instructions guarantees fast execution, critical for high-speed applications. The unit supports local I/O up to 256 points and local plus remote I/O up to 384 points, with expandability via the bus adapter for up to 10 blocks. An RS-422 port is included for programming and communication, and the buffer battery retains data during power loss. The IP10 protection class and ambient temperature range of 0°C to 55°C suit typical factory floors.
Industry Applications
This main unit excels in material handling systems where 48 I/O points control conveyors, sensors, and actuators. For example, in a packaging line, the FX3U-48MT-ES-A manages 24 inputs from proximity sensors and 24 outputs to pneumatic valves, ensuring reliable sorting and wrapping. The transistor sink outputs switch loads quickly, reducing wear on mechanical relays. Another application is in small assembly stations, where the compact 182 mm width fits tight cabinets, and the 0.85 kg weight simplifies mounting. The 64K steps memory allows for modular program updates without hardware changes.
Installation and Setup Guidance
Mount the FX3U-48MT-ES-A on a DIN rail or panel using the provided slots. Ensure the ambient temperature stays between 0°C and 55°C and avoid dusty or humid environments beyond IP10 rating. Connect the 100-240 VAC supply to the designated terminals, observing polarity and grounding. For programming, use the integrated RS-422 port with a compatible cable like FX-USB-AW, USB-SC09, or USB-SC09. The buffer battery retains the program and real-time clock settings during power outages; check it periodically. Expansion modules attach via the bus adapter on the right side, supporting up to 10 additional blocks.
Maintenance and Reliability
Routine inspection of the FX3U-48MT-ES-A focuses on the power supply and I/O terminals. Verify the 100-240 VAC input is stable and within tolerance. Check the buffer battery status annually; replace it if the low-battery indicator lights. Clean the enclosure with a dry cloth to prevent dust buildup on the IP10-rated housing. The transistor outputs do not require contact cleaning, reducing maintenance effort. The 0°C to 55°C operating range ensures reliable operation in most factory conditions. For long-term reliability, avoid exceeding the 40 W power consumption limit by not overloading outputs.
Compatibility and Integration
The FX3U-48MT-ES-A integrates seamlessly with other MELSEC-F series modules via the bus adapter. It supports RS-422 communication for programming and data exchange with HMIs or SCADA systems. The 256 local I/O points and 384 total I/O points with remote expansion allow flexible system scaling. For network communications, the bus adapter enables connection to block networks and extended special features. The unit works with standard Mitsubishi programming software and cables (FX-USB-AW, USB-SC09, USB-SC09).
Selection Guide and Purchasing Advice
Before ordering the FX3U-48MT-ES-A, verify your system requires 48 I/O with 24 transistor sink outputs. Confirm the power supply is 100-240 VAC and the environment stays within 0°C to 55°C. If you need more I/O, plan for expansion modules up to 10 blocks. SpareTechPLC stocks this Mitsubishi main unit and offers fast shipping. Contact our team to confirm availability and lifecycle status before placing an order.
Frequently Asked Questions
Q: What is the power supply requirement for the FX3U-48MT-ES-A?
A: The unit requires 100-240 VAC input and consumes 40 W.
Q: How many inputs and outputs does this PLC have?
A: It has 24 digital inputs and 24 transistor sink outputs, totaling 48 I/O.
Q: Can I expand the I/O capacity?
A: Yes, the FX3U-48MT-ES-A supports expansion via the bus adapter for up to 10 additional blocks, with local I/O up to 256 points and local plus remote I/O up to 384 points.
Q: What programming memory does it offer?
A: It provides 64K steps of program memory with RAM storage.
Q: Is the unit suitable for high-speed applications?
A: Yes, with a cycle time of 65 ns for LD instructions and 642 ns for MOV instructions, it handles fast logic execution.
