Product Overview

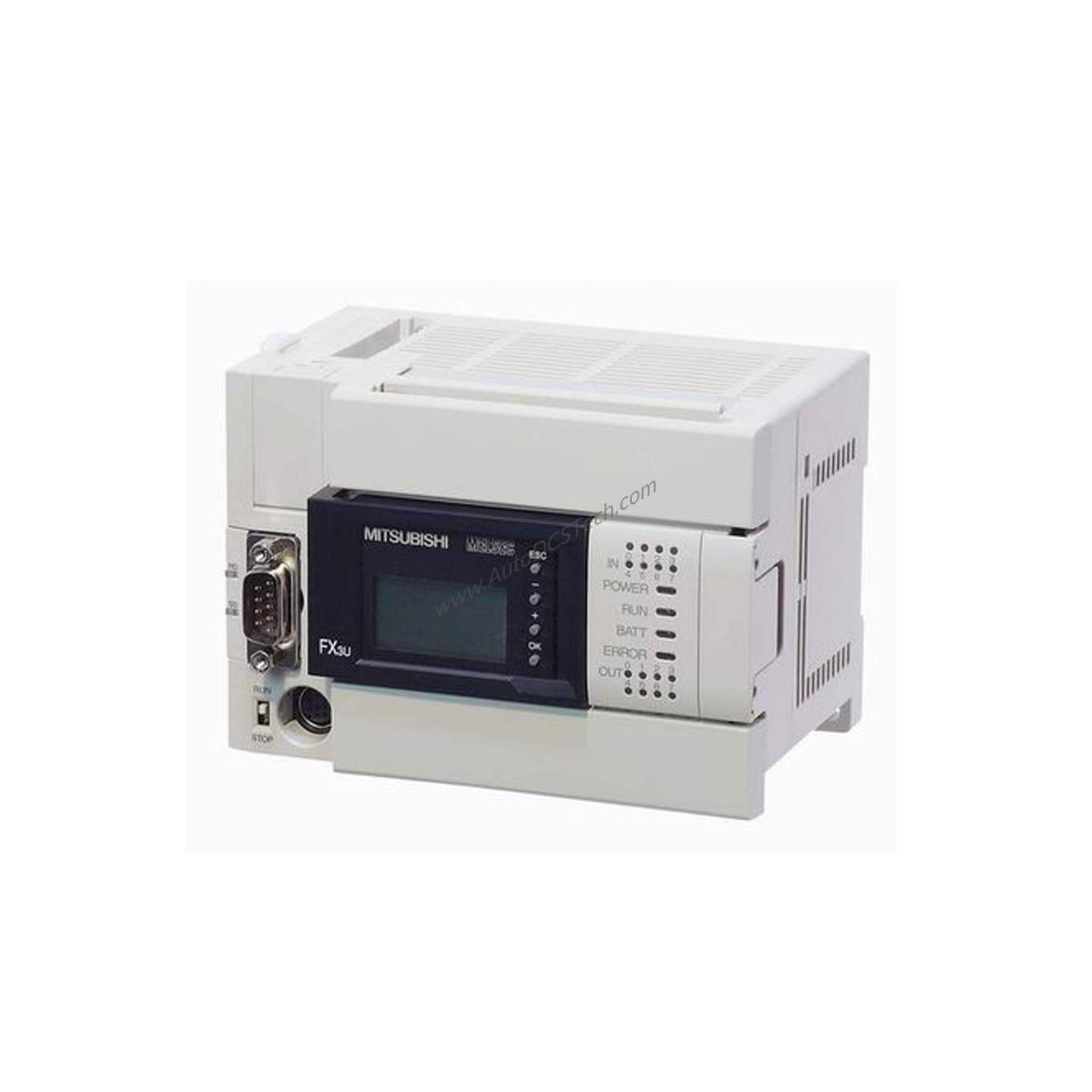

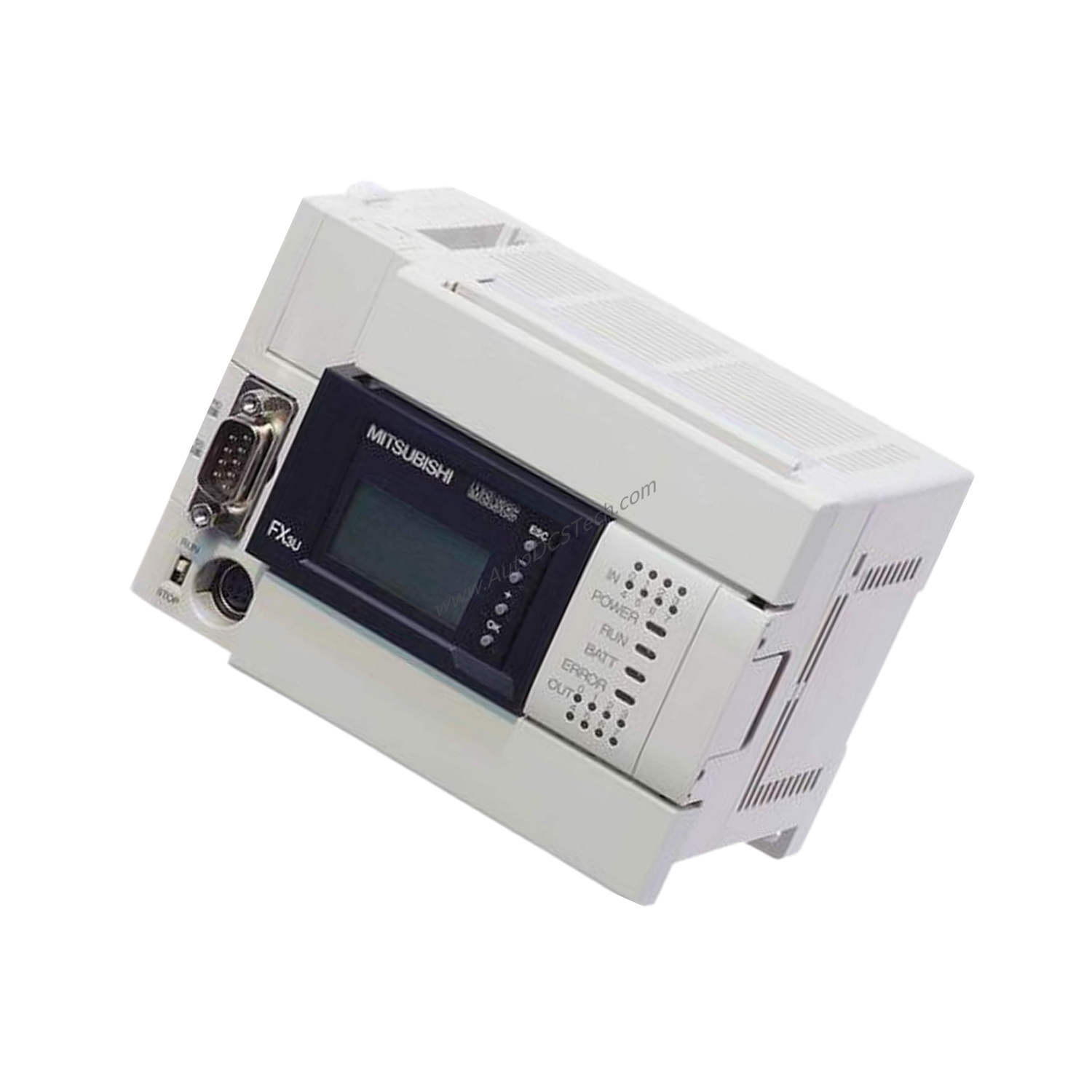

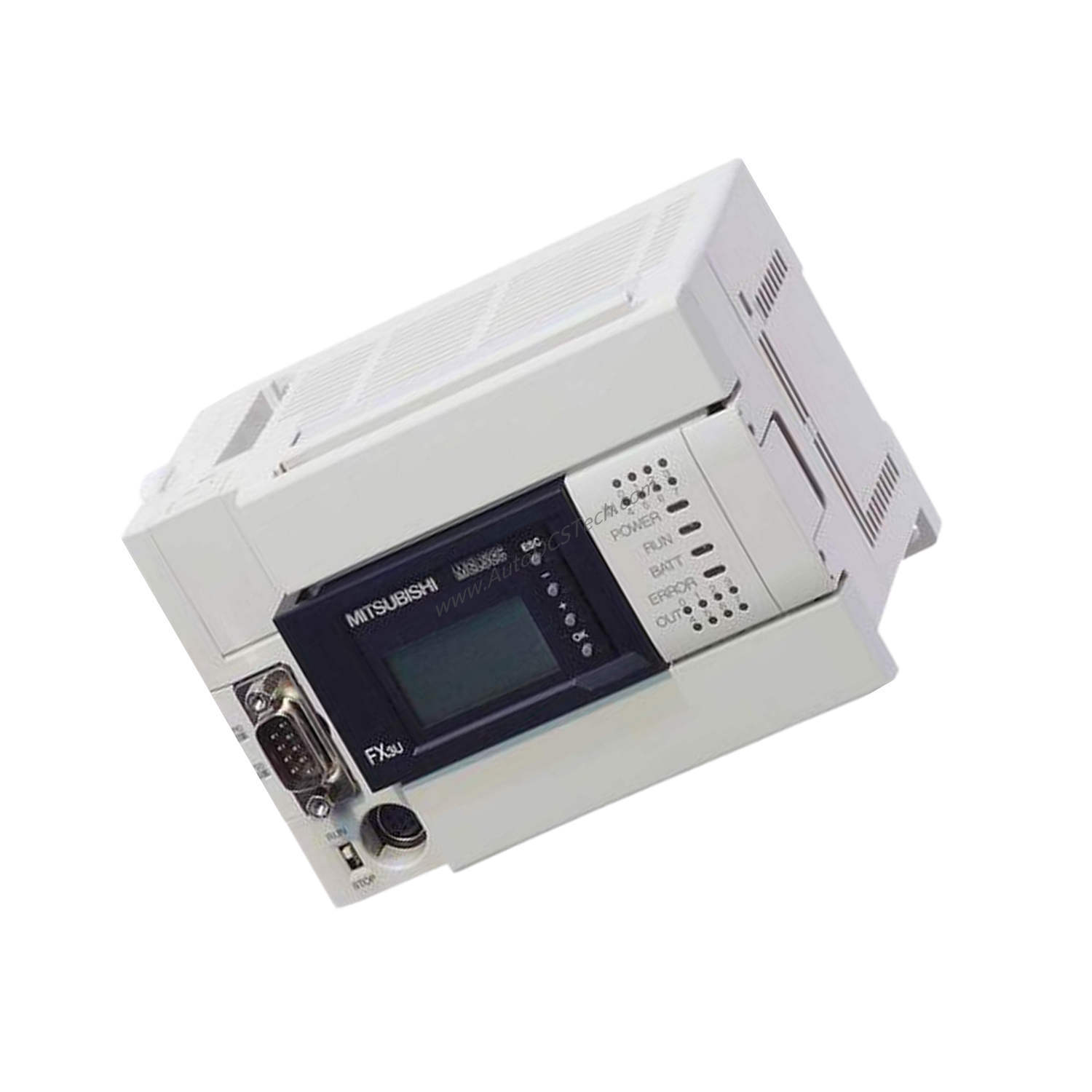

When a control system demands reliable logic processing with straightforward relay switching, the Mitsubishi FX3U-16MR-ES-A Logic Module delivers. This compact unit from the FX3U series combines 8 sink inputs with 8 relay outputs, making it a practical choice for discrete automation tasks. Built for industrial environments, it operates between 0°C and 50°C and mounts easily on a DIN rail. For maintenance engineers, this module offers a balance of simplicity and dependability—critical for minimizing unplanned downtime.
Technical Specifications Breakdown
Understanding the key parameters helps you plan integration and maintenance. The FX3U-16MR-ES-A operates on a supply voltage of 100 to 240 V AC, accommodating standard industrial power systems. It provides 8 inputs configured as sink type, meaning the input common connects to the negative side of the power supply—a common setup for many sensor families. The 8 relay outputs each handle up to 8 A of current, suitable for driving small motors, contactors, or indicator loads directly. The module includes a built-in display for local status monitoring and supports battery backup to retain program memory during power loss. Programming uses ladder logic, a familiar language for most technicians, with a program capacity of 64,000 steps. Communication ports include RS232C, RS422, RS485, and USB, offering flexible connectivity to HMIs, other PLCs, or programming tools.
Industry Applications
This logic module fits well in packaging lines, conveyor systems, and simple material handling stations. For example, in a small sorting conveyor, the 8 inputs can read photoelectric sensors detecting package presence, while the 8 relay outputs control solenoid valves for diverters. The relay output type provides electrical isolation, reducing noise issues in electrically noisy environments. Maintenance engineers appreciate the DIN rail mount for quick swaps and the display for on-site diagnostics without needing a laptop.
Installation & Setup Guidance
Mount the FX3U-16MR-ES-A on a standard 35 mm DIN rail inside an enclosure rated for the environment. Ensure adequate airflow around the module to stay within the 0°C to 50°C operating range. Connect the AC supply to the designated terminals, observing local electrical codes. For sink inputs, wire the common terminal to the negative side of the 24 V DC sensor supply. Relay output terminals handle up to 8 A; use appropriately rated fuses for each output circuit. After wiring, apply power and verify the display illuminates. Use the USB or RS232C port to connect a programming device and download your ladder logic program. Test each input and output individually before full system commissioning.
Maintenance & Reliability
For maintenance engineers focused on uptime, the FX3U-16MR-ES-A requires minimal routine care. Periodically inspect the DIN rail mounting for secure fit and check terminal connections for tightness, especially after temperature cycles. The battery backup ensures program retention; replace the battery every 3-5 years or as indicated by the module's low-battery alarm. Keep the enclosure clean and within the specified temperature range to prolong component life. Relay contacts have a finite mechanical life; plan for replacement after 100,000 operations under rated load. The built-in display aids quick fault finding without external tools.
Compatibility & Integration
This module integrates seamlessly with other FX3U series components and many Mitsubishi HMIs. Communication via RS485 allows networking with multiple controllers in a simple multi-drop configuration. The USB port provides fast program uploads and downloads from a PC. For systems requiring higher-level integration, use the RS232C port to connect to a SCADA host or printer. The ladder logic programming environment is consistent across the FX family, making code reuse straightforward. Always verify that the sink input configuration matches your sensor output type (NPN sensors are typical).
Selection Guide & Purchasing Advice
Before ordering, confirm that the 8-input, 8-relay output count matches your I/O requirements. The sink input type means you need NPN sensors or a compatible wiring scheme. If your application needs more I/O, consider adding FX3U expansion modules. The FX3U-16MR-ES-A is available now at SpareTechPLC. We stock genuine Mitsubishi parts and can advise on compatible accessories. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: Can I use PNP sensors with the FX3U-16MR-ES-A?
A: No, the input type is sink (NPN). For PNP sensors, you would need a sourcing input module or an external interface.
Q: What is the maximum current per relay output?
A: Each relay output is rated for 8 A maximum. Ensure your load does not exceed this value.
Q: Does the module retain the program if power is lost?
A: Yes, the battery backup maintains the program memory during power outages. Replace the battery periodically as recommended.
Q: What programming software is required?
A: Mitsubishi GX Works2 or GX Developer software supports ladder logic programming for the FX3U series.
Q: Can I expand the I/O count later?
A: Yes, the FX3U series supports expansion modules. Connect them via the expansion port on the right side of the base unit.
