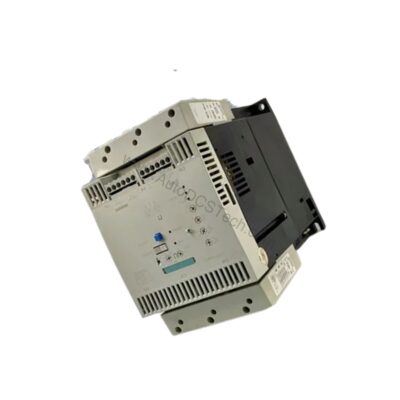

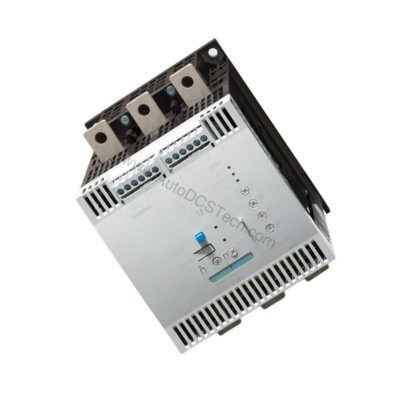

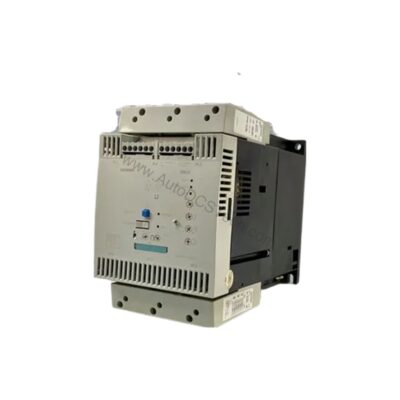

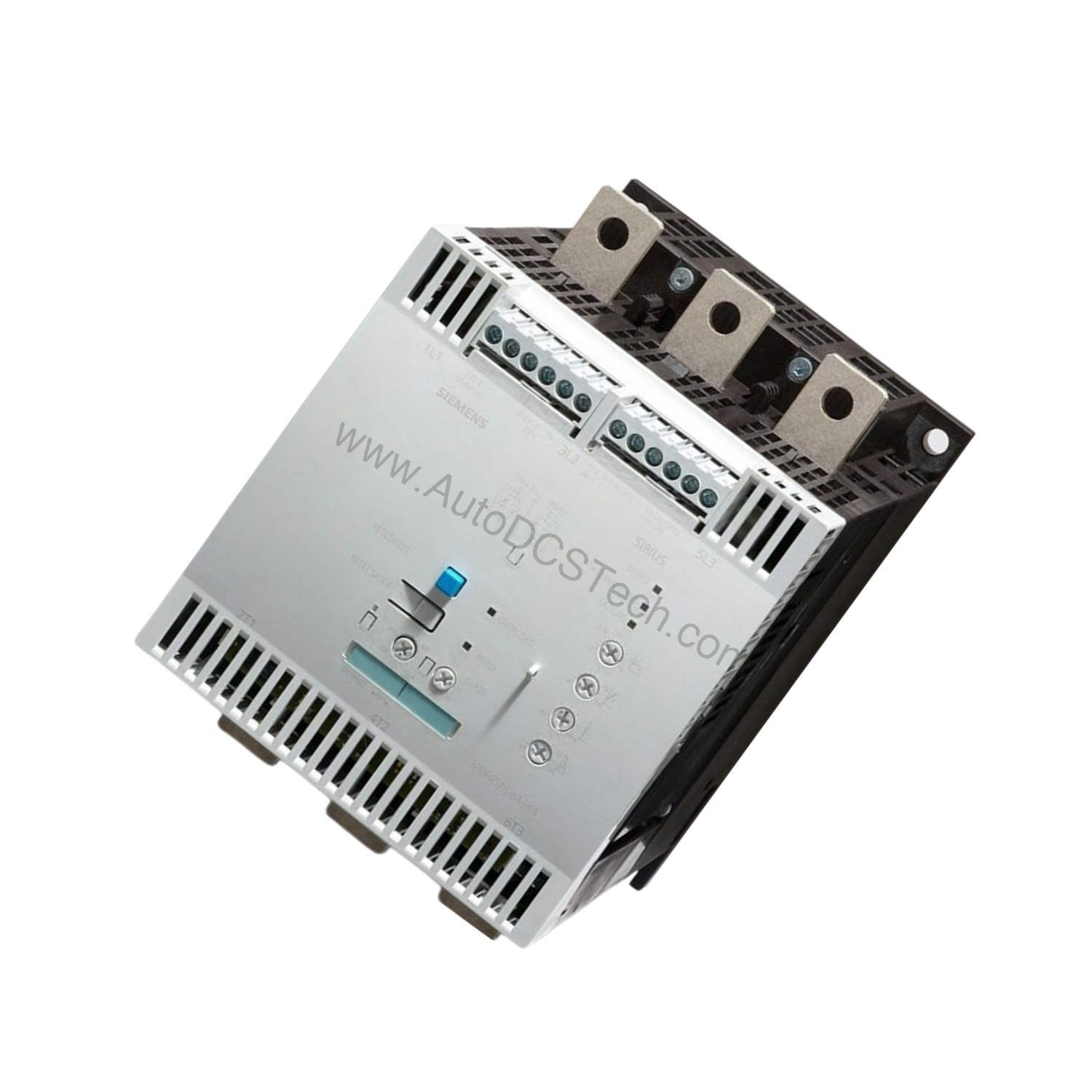

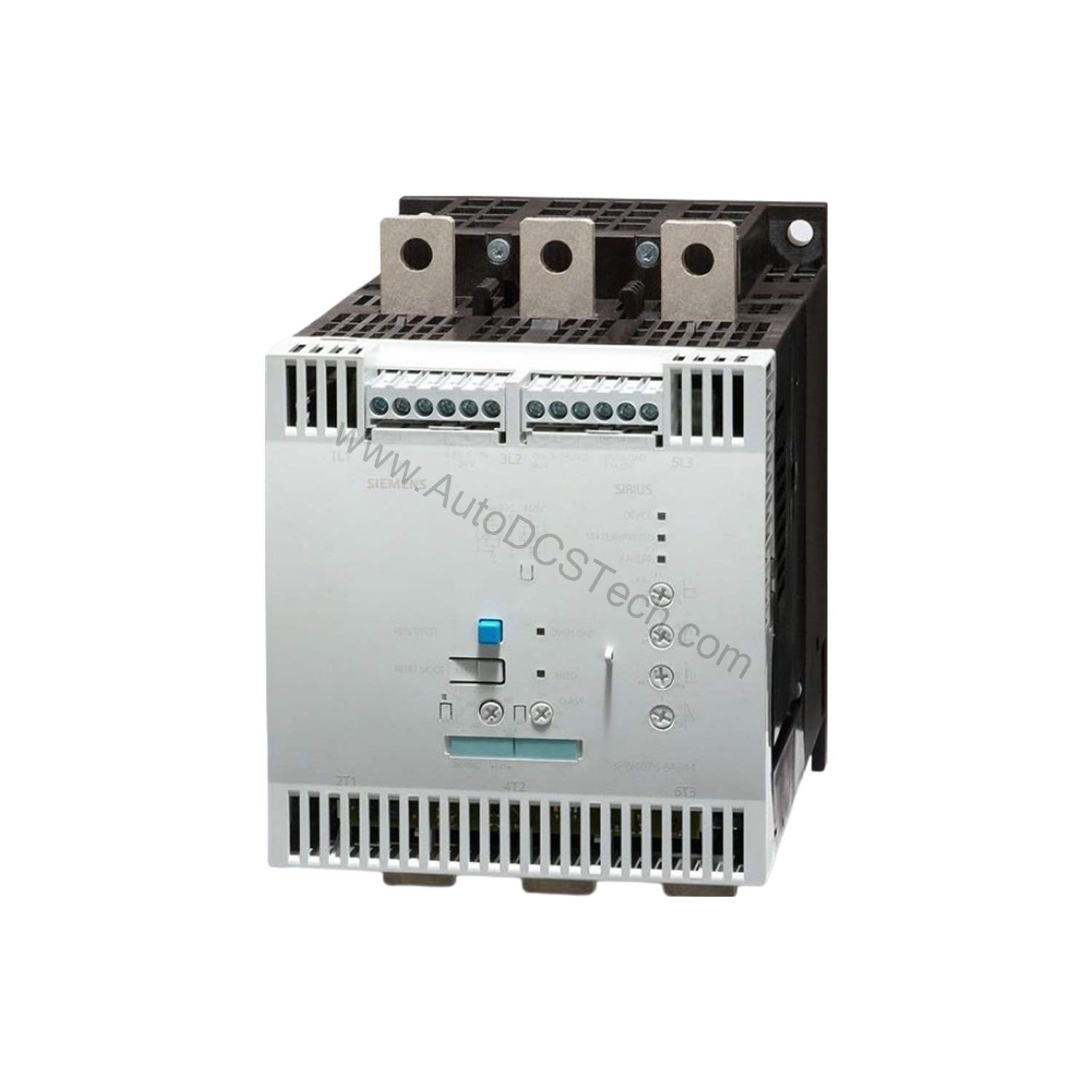

Introduction to the Siemens 3RW4074-6BB44 Soft Starter
When motor starting demands precise control and protection, the 3RW4074-6BB44 from Siemens provides a robust solution. This SIRIUS soft starter is engineered for standard applications, offering a rated operating current of 280 A at 40 °C. It handles three-phase motors with an emitted mechanical power of 160 kW at 400 V, making it a solid choice for industrial operations.
With a wide operating voltage range of 200–460 V AC and a control supply voltage of 230 V AC, this unit integrates seamlessly into existing systems. The screw terminals simplify wiring, while the integrated bridging contact system and thyristors ensure efficient performance.
Key Features and Technical Specifications
- Rated current: 280 A at 40 °C, 248 A at 50 °C, 215 A at 60 °C.
- Power rating: 160 kW at 400 V, 90 kW at 230 V.
- Operating voltage: 200–460 V AC with ±10% tolerance.
- Control supply: 230 V AC at 50/60 Hz.
- Frequency: 50–60 Hz.
- Protection: IP00, motor overload protection, intrinsic device protection.
- Mounting: Screw fixing, with flexible mounting positions.
The 3RW4074-6BB44 includes adjustable current limitation and a thermal model for motor protection. Its compact design (160 mm width, 230 mm height, 278 mm depth) fits well in control panels.
Cost-Efficiency and ROI Analysis
Investing in a quality soft starter reduces mechanical stress on motors, lowering maintenance costs. The 3RW4074-6BB44 supports continuous operation at 115% of rated current at 40 °C, minimizing downtime. Its typical active power loss of 90 W during operation contributes to energy savings over time.
By enabling smooth acceleration, this soft starter extends motor and driven equipment life, reducing replacement expenses. The adjustable current limitation prevents overcurrent damage, further cutting repair costs.
Applications and Use Cases
The 3RW4074-6BB44 suits conveyors, pumps, fans, and compressors in industries like automotive, food and beverage, and water treatment. For example, in a pumping station, it ensures gentle starts that protect pipes from pressure surges, lowering leak risks. In material handling, it reduces belt wear, saving on replacement parts.
Its ability to operate at altitudes up to 5,000 meters makes it versatile for high-altitude installations, such as mining or mountain facilities.
Installation and Setup
Mounting the 3RW4074-6BB44 is straightforward with screw fixing. Maintain clearances: 100 mm above, 5 mm sideways, and 75 mm below for proper airflow. The unit can be rotated ±10° without an additional fan, or ±90° with one, offering flexibility.
Connect main circuit via busbar connections, and auxiliary circuits via screw terminals. Use appropriate cable sizes: 70–240 mm² for finely stranded conductors, or 95–300 mm² for stranded. For AWG, 3/0–600 kcmil is acceptable.
Maintenance and Reliability
Routine inspection of the soft starter ensures long-term reliability. Check for dust accumulation on the heat sink and verify that all terminal connections remain tight. The integrated bridging contact system reduces wear, but periodic testing of the overload protection is recommended.
Operating temperature range is -25 °C to +60 °C, with storage from -40 °C to +80 °C. Keeping the unit within these limits prevents premature failure and maintains performance.
Compatibility and Integration
The 3RW4074-6BB44 integrates with standard three-phase motors and control systems. It supports external reset and provides two NO contacts and one changeover contact for status feedback. The control supply accepts 230 V AC at 50 or 60 Hz, making it compatible with global power grids.
For advanced monitoring, the unit can be connected to PLCs via its auxiliary contacts, enabling remote diagnostics.
Troubleshooting and Common Issues
If the soft starter fails to start, check the control supply voltage and frequency. Verify that the motor overload protection settings match the motor's rated current (adjustable from 130 A minimum). Ensure the load is above 20% of the motor's rated current to avoid nuisance trips.
Overheating may occur if ambient temperature exceeds 60 °C or if clearances are insufficient. Confirm that the unit is not derated beyond its 40 °C rating.
Product Support and Availability
The 3RW4074-6BB44 is available from AutoDCSTech, a trusted industrial automation parts supplier. Contact AutoDCSTech for current pricing and lead times. Please verify lifecycle status before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 3RW4074-6BB44 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
