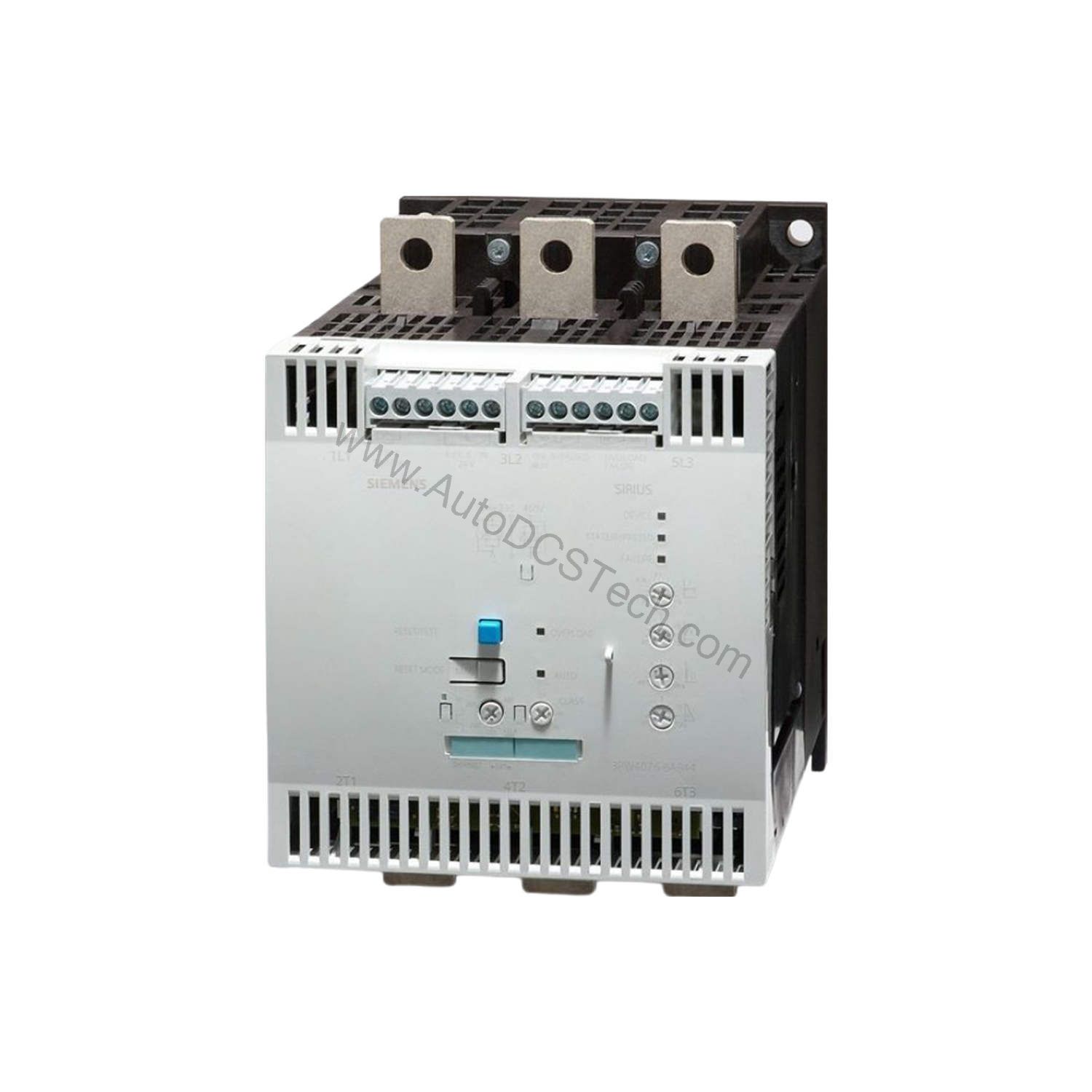

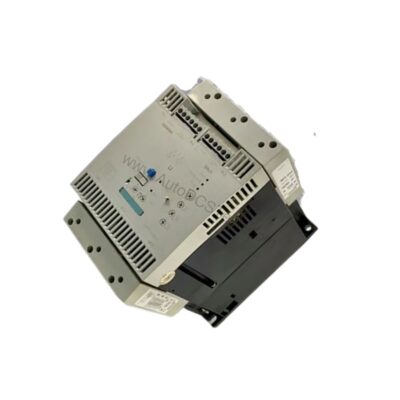

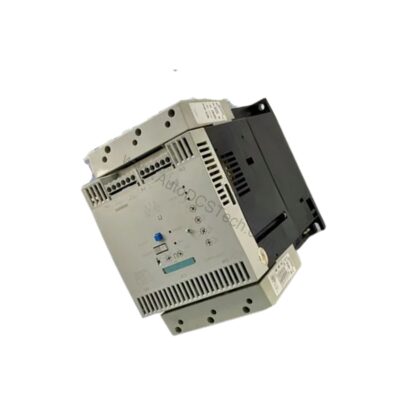

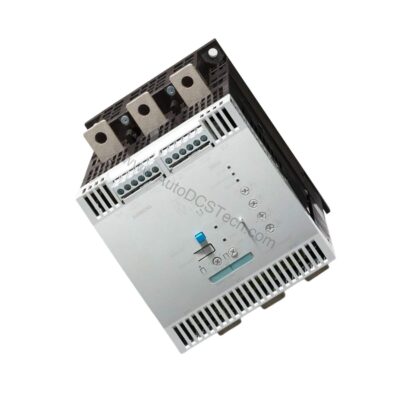

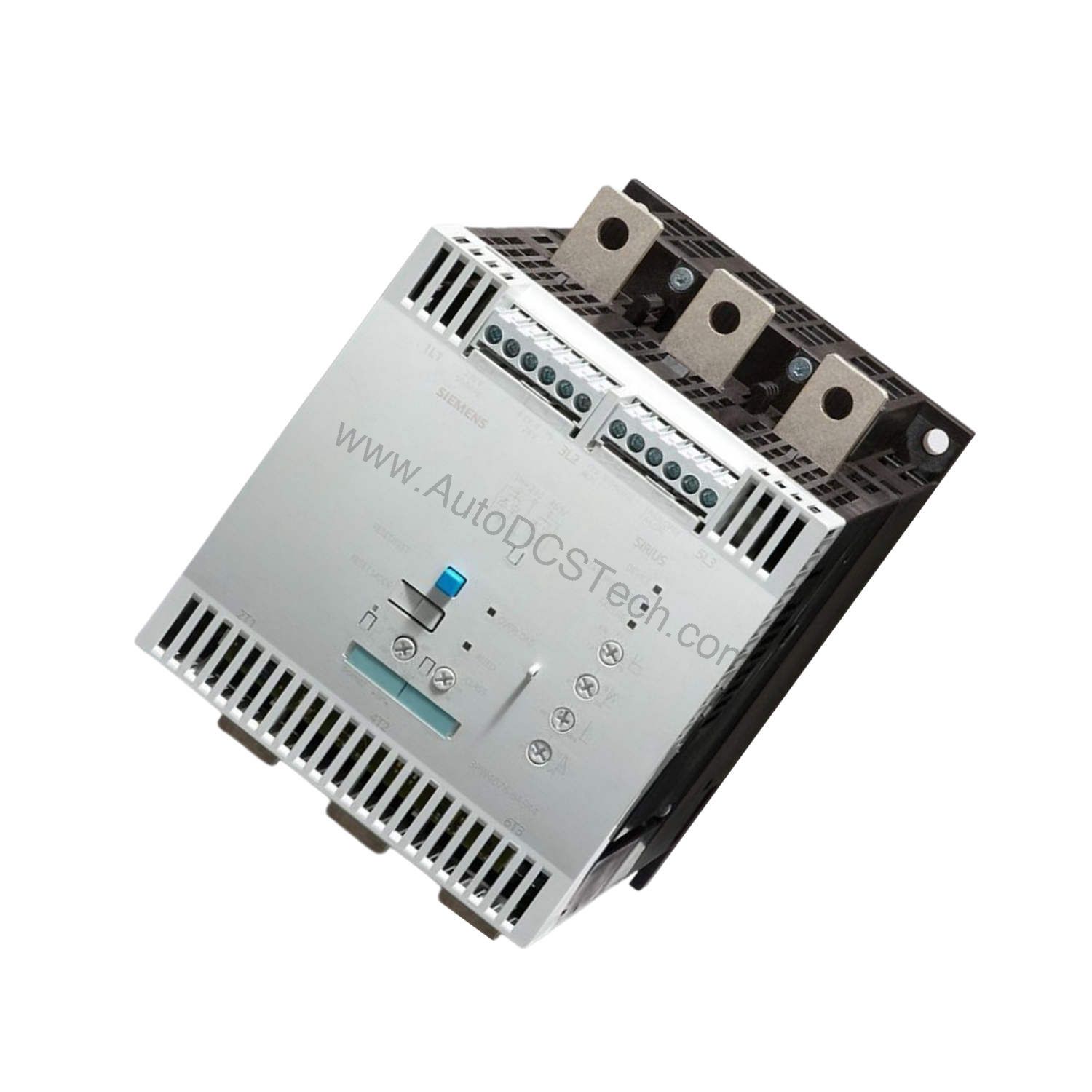

3RW4056-6BB44 162 A Soft Starter 200-460 V AC

Introduction to the Siemens 3RW4056-6BB44 Soft Starter

When your three-phase motors demand controlled starting, the 3RW4056-6BB44 from Siemens provides a robust solution. This SIRIUS soft starter is engineered for standard applications, offering a rated operating current of 162 A at 40 °C. It handles motor starting smoothly, reducing mechanical stress and electrical surges. With a wide operating voltage range of 200-460 V AC, it adapts to various supply systems. The device integrates a bridging contact system and thyristors for efficient operation. For engineers seeking reliable motor control, this unit delivers consistent performance.

Key Features and Technical Specifications

Let's examine the core parameters that define the 3RW4056-6BB44. These specifications ensure it meets demanding industrial requirements.

• Rated operating current: 162 A at 40 °C, 145 A at 50 °C, 125 A at 60 °C.
• Emitted mechanical power: 90 kW at 400 V (40 °C), 45 kW at 230 V (40 °C).
• Operating voltage: 200-460 V AC (standard circuit).
• Control supply voltage: 230 V AC at 50/60 Hz.
• Operating frequency: 50-60 Hz.
• Adjustable rated current range: minimum 87 A.
• Active power loss: 75 W typical at 40 °C.
• Protection class: IP00.

These specs highlight the unit's capability for medium-power motors. The integrated motor overload protection and intrinsic device protection add layers of safety. The adjustable current limitation allows fine-tuning to match motor characteristics. With a minimum load of 20% of I_M, it handles light loads effectively.

Applications and Use Cases

The 3RW4056-6BB44 suits various industrial sectors. In pump applications, it reduces water hammer by ramping up speed gradually. For conveyor systems, it prevents belt slippage and mechanical shock. Fans benefit from controlled acceleration, extending bearing life. Compressors start smoothly, reducing wear on belts and pulleys. The device's wide voltage range makes it versatile across global installations. Its compact size (120 mm width, 198 mm height, 250 mm depth) fits standard enclosures. The screw terminals simplify wiring for auxiliary and control circuits.

Installation and Setup

Proper installation ensures optimal performance. The 3RW4056-6BB44 supports screw fixing for secure mounting. Mounting positions vary with or without an additional fan. With a fan, you can rotate the unit ±90° on a vertical surface or tilt it ±22.5° front/back. Without a fan, rotation is limited to ±10°. Maintain clearances: 100 mm upwards, 5 mm sidewards, and 75 mm downwards to other assemblies. The device operates at altitudes up to 5,000 meters above sea level. For main circuit connections, use busbar connections; auxiliary circuits use screw-type terminals. Connectable conductor cross-sections range from 16 to 70 mm² for main contacts (box terminal). For DIN cable lugs, finely stranded conductors accept 16-95 mm², stranded 25-120 mm². Ensure cable length does not exceed 300 meters.

Maintenance and Reliability

Routine care keeps the soft starter functioning reliably. Since the unit has no moving parts except the bridging contactor, maintenance is minimal. Periodically inspect the device for dust accumulation, especially on heatsinks. Verify that all terminal connections remain tight. Check the ambient temperature stays within -25 °C to +60 °C during operation. The device includes a red fault signal display for quick diagnostics. Its design with thyristors and integrated bridging ensures long service life. By following the manufacturer's manual, you can maximize uptime and reduce downtime costs.

Compatibility and Integration

The 3RW4056-6BB44 integrates easily into existing motor control centers. It works with standard three-phase squirrel-cage motors. The control supply voltage of 230 V AC matches common control circuits. The device offers two NO contacts and one changeover contact for auxiliary signaling. External reset capability allows remote operation. The inside-delta circuit is not supported, so plan wiring accordingly. For motor overload protection, the adjustable rated current range starts at 87 A. This flexibility ensures compatibility with various motor ratings.

Troubleshooting and Common Issues

Common issues with soft starters include overheating and nuisance trips. The 3RW4056-6BB44 mitigates these with its thermal design. If the unit trips frequently, check the ambient temperature and load current. Ensure the operating current does not exceed the rated values at the respective temperatures. Verify the control supply voltage is stable at 230 V AC. The red fault indicator helps identify problems. For persistent issues, consult the Siemens documentation or contact AutoDCSTech for support.

Product Support and Availability

The 3RW4056-6BB44 is available at AutoDCSTech. We stock this Siemens soft starter for immediate shipment. Contact our team for pricing and delivery details. We are ready to support your industrial automation needs.
