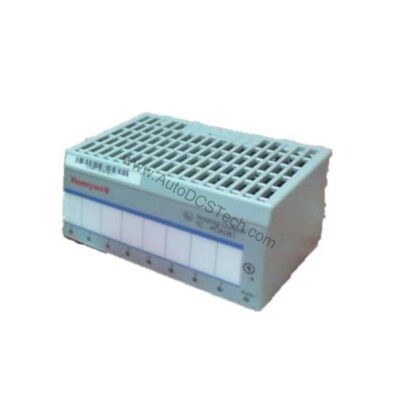

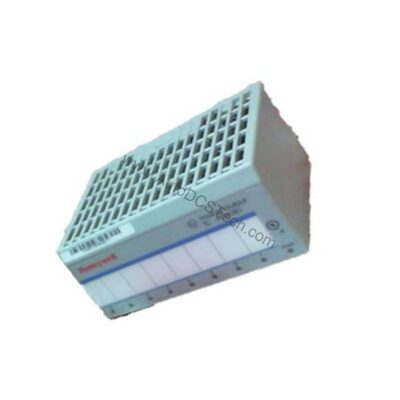

Honeywell TC-PIA081 Analog Current Input Module 8-Point

Product Overview

The Honeywell TC-PIA081 is an 8-point analog current input module designed for industrial process control. It accepts signals from 2-wire and 3-wire transmitters, making it a flexible choice for monitoring pressure, flow, or level in hazardous areas. This module is part of Honeywell's proven series, known for reliability and precision.

As a maintenance engineer, you need modules that deliver accurate data without frequent recalibration. The TC-PIA081 meets that need with 0.1% accuracy and a fast 4ms response time. This ensures your control system reacts quickly to process changes, reducing downtime and improving safety.

Note: This module is withdrawn from sale, replaced by TC-PIA082. For current availability, contact AutoDCSTech.

Technical Specifications Breakdown

Key parameters for the TC-PIA081 are listed below for quick reference:

Industry Applications

Hazardous Area Process Monitoring

The TC-PIA081 is certified for intrinsically safe operation in Europe (II (1) 2G EEx ia/ib IIB/IIC T4). The module safely interfaces with transmitters in Zone 1 or Zone 2 areas without requiring heavy explosion-proof enclosures.

Accurate Flow and Level Measurement

With 16-bit resolution and 0.1% accuracy, this module delivers precise readings for custody transfer or critical level control. The extended range (2 to 22mA) allows you to detect underrange or overrange conditions, helping you catch sensor drift or wiring issues early.

Retrofit and Upgrade Projects

Many plants still run legacy analog systems. The TC-PIA081 offers a drop-in solution for upgrading older I/O without changing your field wiring. Its 2-wire and 3-wire support covers most transmitter types, simplifying migration.

Installation & Setup Guidance

When installing the TC-PIA081, follow these engineer-level best practices:

• Mounting: The module fits into a terminal base with a keyswitch position of 3. Ensure the base is correctly keyed to prevent mismating.
• Wiring: For 2-wire transmitters, connect per the terminal assignments (Ch0 – 0,1; Ch1 – 4,5; etc.). For 3-wire, use the additional terminal (Ch0 – 0,1,2; Ch1 – 4,5,6; etc.).
• Grounding: Use shielded multicore cables with a shield for each channel to achieve EMC protection class. The isolation for each channel must be greater than 500V.
• Environment: The module is rated IP20, so it must be installed in an enclosure with at least IP54 protection if used in the field.
• Configuration: Set the filter cutoff frequency for input channel groups (0-3 and 4-7) as needed; options include 0.5, 1, 2, 4, and 10 Hz. Lower frequencies reduce noise but slow response.

Maintenance & Reliability

Regular maintenance ensures long-term accuracy. Here are key practices:

• Inspection: Periodically check all field wiring for tightness and signs of corrosion. Loose connections can cause intermittent readings.
• Cleaning: Keep the module and terminal base free of dust and moisture. Use dry, low-pressure air or a soft brush. Do not use liquid cleaners.
• Environmental Monitoring: The module operates in temperatures from –20°C to 70°C and up to 95% relative humidity (non-condensing). Ensure your enclosure maintains these conditions.
• Pollution Gas: The module passes G3 test level per ISA-S71.04-1985, so it can handle moderate industrial atmospheres. Still, avoid direct exposure to corrosive gases.
• Shock and Vibration: The module withstands 15g peak shock (11ms duration) and 2g vibration from 10Hz to 500Hz per IEC 68-2-6. Mount it securely to avoid mechanical stress.

Compatibility & Integration

The TC-PIA081 communicates over a vendor-specific bus with intrinsically safe output. It is designed to work with Honeywell's distributed control systems, but it can be integrated into other systems via the terminal base. The module provides lead breakage and short circuit detection, with alarms transmitted through the backplane bus and channel LED flashing red for faults.

Selection Guide & Purchasing Advice

When selecting a replacement for the TC-PIA081, consider the following:

• Lifecycle: The TC-PIA081 is withdrawn from sale, replaced by TC-PIA082. Verify current lifecycle status and availability with AutoDCSTech before ordering.
• Alternative: If you need a similar module, the TC-PIA082 is the direct replacement. Check compatibility with your existing terminal base and system.
• Spare Parts: Keep a spare module in stock to minimize downtime. AutoDCSTech offers competitive pricing and fast shipping for Honeywell automation parts.

Troubleshooting & Common Issues

No Output or Zero Reading

• Check if the transmitter is powered. The module provides >15V @ 22mA, so it can power 2-wire transmitters.
• Verify wiring connections per the terminal assignments. A loose wire on channel 0 (terminals 0 and 1) is a common cause.
• Use a multimeter to measure the current at the input. If it's below 4mA, the transmitter may be faulty.

Erratic Readings

• Check for electromagnetic interference. Ensure shielded cables are used and properly grounded.
• Adjust the filter cutoff frequency to a lower value (e.g., 0.5 Hz) to suppress noise, but be aware this slows response.

Lead Breakage Alarm

• The module detects lead breakage when current falls below 2mA. Check the transmitter and wiring for open circuits.
• If the alarm is false, you can configure the lead breakage indication off for all channels via software.

Short Circuit Indication

• The module indicates a short circuit when voltage drops below 4V. Inspect the transmitter and wiring for shorts.

For persistent issues, consult the Honeywell user manual or contact AutoDCSTech for technical support.
