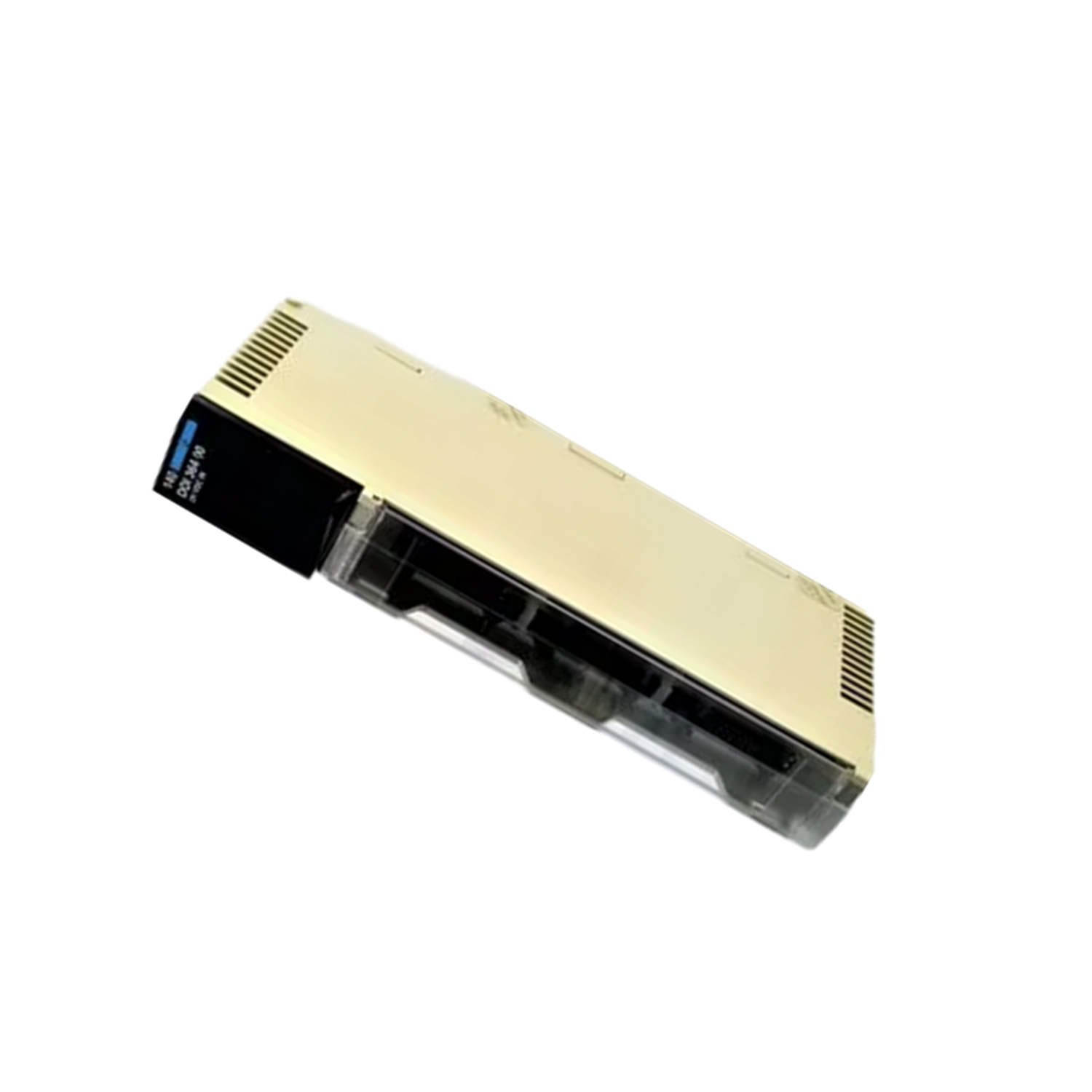

Product Overview

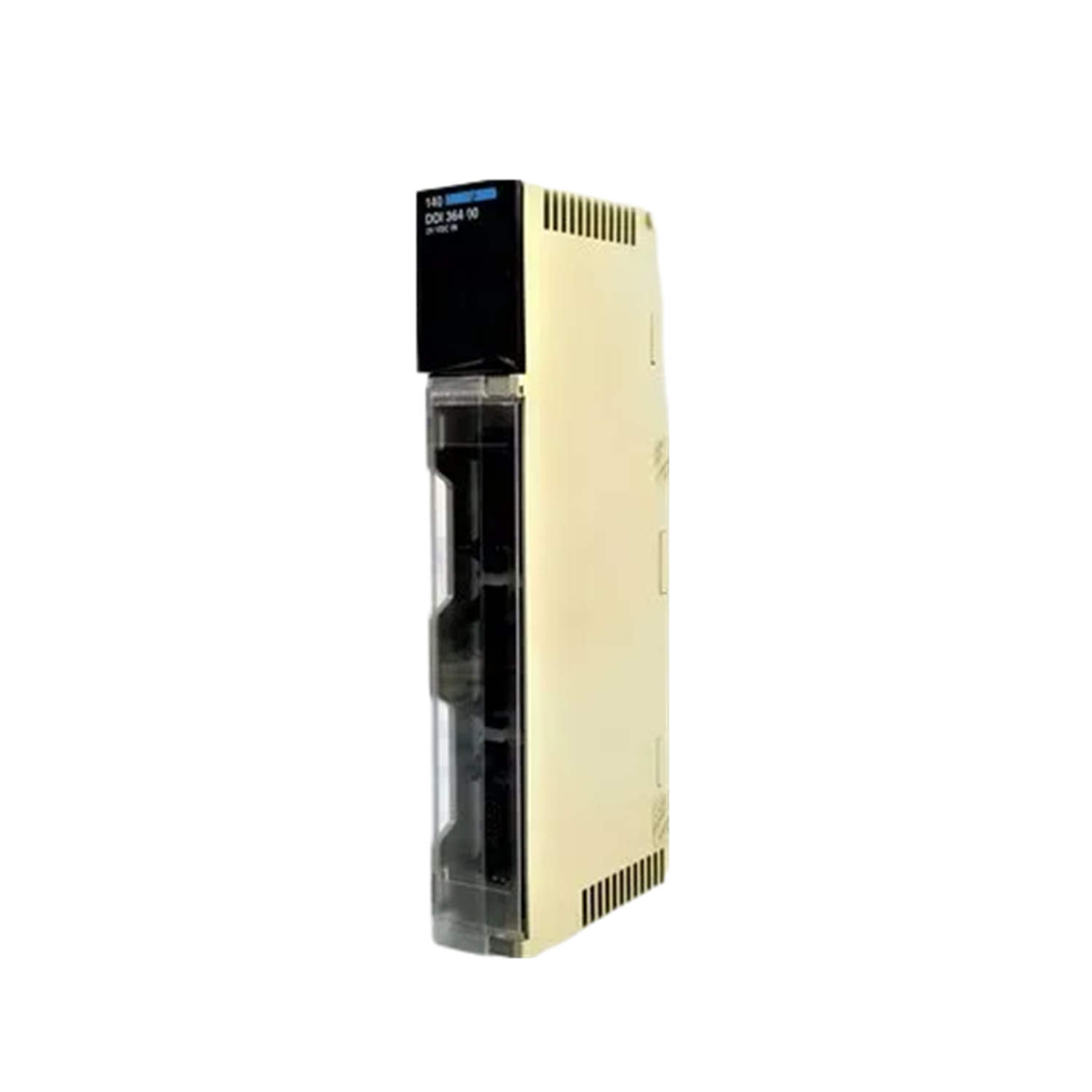

For maintenance engineers managing extensive control systems, the Schneider Electric 140DDI36400C input module offers a reliable solution for high-density signal acquisition. Part of the Modicon Quantum series, this module handles up to 96 discrete inputs, reducing cabinet space and wiring complexity. It operates at a nominal 24 V DC with a range of 19.2 to 30 V DC, ensuring compatibility with standard industrial sensors. The positive logic design simplifies integration with PLC architectures.
Technical Specifications Breakdown
Key parameters for the 140DDI36400C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Modicon Quantum |
| Part Number | 140DDI36400C |
| Type | Input Module |
| Number of Inputs | 96 Inputs |
| Input Voltage Rating | 24 V DC |
| Input Voltage Range | 19.2 to 30V DC |
| Input Impedance | 6700 Ohms |
| Logic Type | Positive Logic |
| Low-Voltage Module | Yes |
| Addressing Requirement | 6 Words |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | 0 to 50 degrees Celsius |
| Max Relative Humidity (Operation) | 80%, non-condensing |
| Max Relative Humidity (Storage) | 80%, non-condensing |
| Max Altitude (Operation) | 1000m above sea level |
| Max Altitude (Storage) | 1000m above sea level |
| Operating Environment | Clean indoor, no corrosive chemicals |
Industry Applications
This module excels in high-channel-count monitoring tasks. In a packaging line, its 96 inputs can track dozens of proximity sensors and limit switches simultaneously, reducing the need for multiple smaller modules. For water treatment plants, the 24 V DC range and 6700 Ohms impedance ensure reliable readings from level transmitters and flow meters. The 0 to 40 degrees Celsius operating range suits most indoor control cabinets.
Installation & Setup Guidance
Mount the module securely in a Quantum backplane. Verify the backplane power supply can handle the additional load. Configure the addressing using 6 words in your PLC program. Ensure all field wiring uses shielded cable for noisy environments. The positive logic means inputs are active when voltage is present. Double-check polarity before powering up.
Maintenance & Reliability
Inspect the module quarterly for dust accumulation. The 80% non-condensing humidity limit means avoid placement near steam lines. Keep ambient temperature below 40 degrees Celsius. The clean indoor requirement prohibits exposure to corrosive gases. No user-serviceable parts inside; replace the module if faults persist.
Compatibility & Integration
The 140DDI36400C integrates seamlessly with Modicon Quantum processors and I/O racks. It uses standard Quantum addressing. No special adapters needed. The 96 inputs can be mapped to discrete memory bits for easy ladder logic programming.
Selection Guide & Purchasing Advice
When expanding an existing Quantum system, this module provides a cost-effective way to add 96 inputs. SpareTechPLC stocks the 140DDI36400C for fast delivery. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
If inputs fail to register, check the 24 V DC supply is within 19.2 to 30 V DC. Verify field device wiring and polarity. A blown fuse on the field power supply can cause multiple inputs to fail. If the module shows no communication, reseat it in the rack and check backplane connections.
