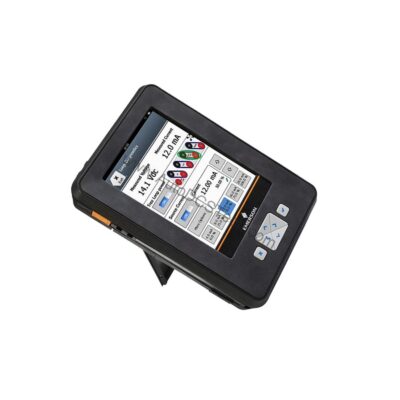

Emerson TREXLFPNAWP1 AMS Trex Device Communicator with Wireless

Technical Specifications Breakdown

Key parameters for the TREXLFPNAWP1 are listed below for quick reference:

HART and Foundation Fieldbus Device Configuration

The TREXLFPNAWP1 supports both HART and Foundation Fieldbus protocols. This dual capability makes it invaluable for plants running mixed-fieldbus infrastructures. Technicians can commission, configure, and troubleshoot transmitters, valves, and analyzers without carrying multiple tools. The wireless option (W) allows remote connectivity, reducing the need to physically access hazardous or hard-to-reach locations.

Valve Diagnostics and Loop Verification

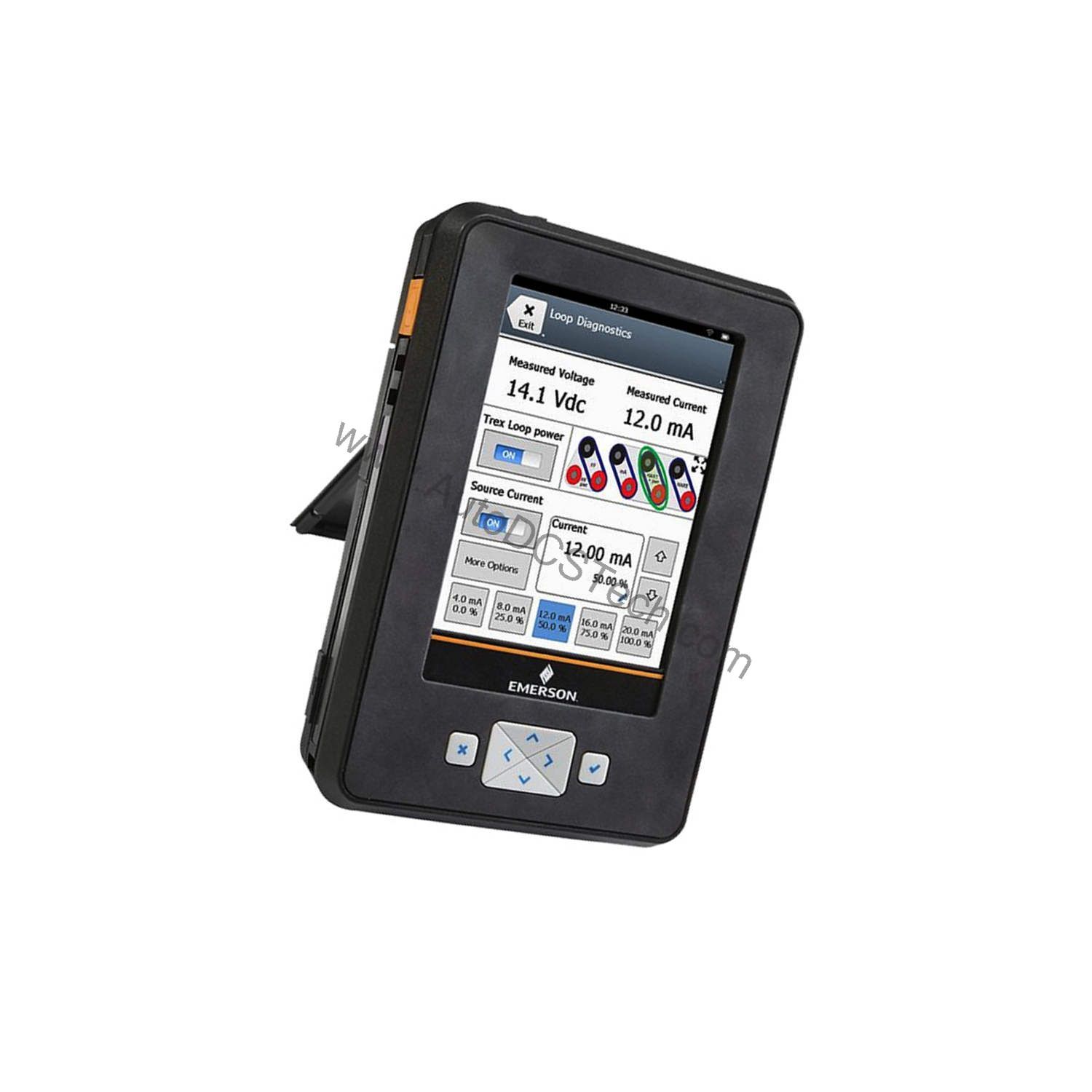

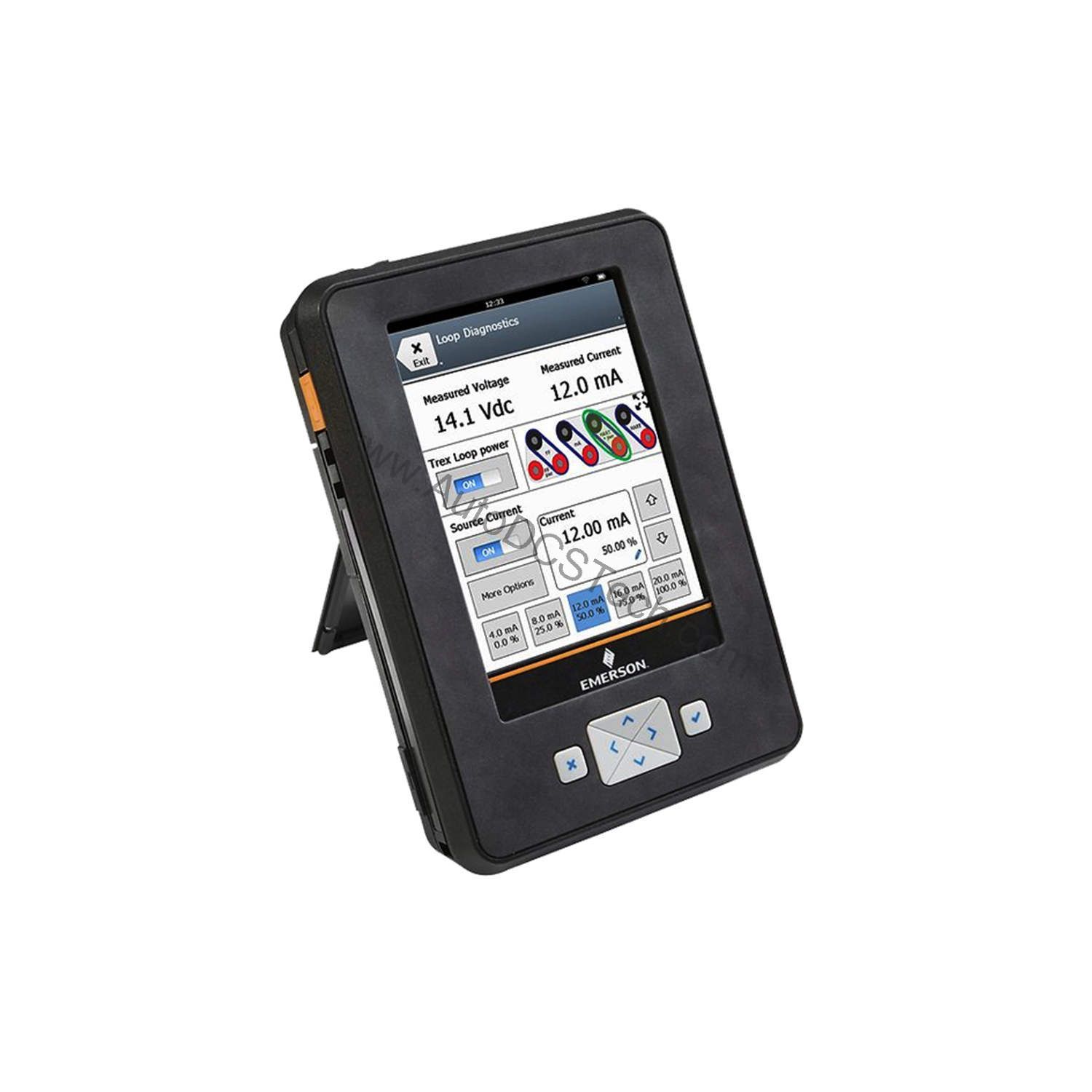

Using ValveLink Mobile, the communicator enables on-site valve diagnostics, including signature analysis, dynamic error band, and step response tests. This non-intrusive approach helps identify stuck valves or calibration drift without removing the valve from the line. The large 640 x 480 pixel touchscreen displays detailed graphs, making it easier to spot anomalies.

Powering Field Instruments Directly

The built-in power module (rechargeable Li-Ion) can supply power to the connected device. This isolates the instrument from the loop, allowing technicians to verify if issues stem from the instrument itself or external wiring, I/O cards, or configuration. This feature accelerates troubleshooting and reduces downtime.

Installation & Setup Guidance

Before first use, fully charge the rechargeable Li-Ion power module. Connect the communicator to the device using the appropriate HART or FF cables. The Windows Embedded Compact 2013 interface boots quickly, and the touchscreen responds to gloved hands. For wireless operation, ensure the radio option is enabled and paired with the plant's Wi-Fi network. Always verify that the device is within the specified operating temperature range (-20 to 55°C) to avoid performance issues.

Maintenance & Reliability

The TREXLFPNAWP1 is built for rugged field use. Its IP54-rated enclosure protects against dust and water splashes. Regularly inspect the display and connectors for dirt or damage. Calibrate the touchscreen periodically if it becomes unresponsive. The Li-Ion battery should be replaced only by qualified personnel. For long-term storage, keep the device in a cool, dry place and recharge the battery every six months to maintain capacity.

The TREXLFPNAWP1: A Field Communicator Built for Modern Plant Efficiency

Field technicians face constant pressure to reduce turnaround time while ensuring device accuracy. The Emerson TREXLFPNAWP1 AMS Trex Device Communicator addresses this directly. It combines the Base Trex Platform with the Device Communicator Plus communication module and HART + Foundation Fieldbus applications. This configuration is designed for professionals who need reliable, on-the-spot diagnostics and configuration in demanding industrial environments.

Compatibility & Integration

The communicator runs Windows Embedded Compact 2013, which supports AMS Device Manager synchronization. This allows field data to be uploaded to the host system for analysis and record-keeping. The built-in Bluetooth, USB, and Wi-Fi (wireless option) provide flexible data exchange. The 32 GB extended flash memory offers ample space for future application upgrades.

Selection Guide & Purchasing Advice

When selecting a field communicator, consider the protocols you support (HART, FF, or both), the need for wireless connectivity, and the level of support. The TREXLFPNAWP1 covers all these bases with its Device Communicator Plus module and premium support. At AutoDCSTech, we stock this model and can advise on compatibility with your existing Emerson systems. Contact us to verify current lifecycle status and availability before ordering.

Troubleshooting & Common Issues

• Device Not Recognized: Ensure the communication cable is properly seated and the device is powered. Check that the correct protocol (HART or FF) is selected.
• Battery Drains Quickly: If the battery depletes faster than usual, check for background applications or excessive wireless usage. Recalibrate the battery gauge if necessary.
• Touchscreen Unresponsive: Clean the screen with a soft, dry cloth. If the issue persists, restart the communicator.
• Wireless Connection Drops: Move closer to the access point or check for interference from other devices. Verify the Wi-Fi credentials.
• Slow Performance: Close unused applications and ensure the internal flash has free space. Restart the device periodically to clear temporary files.

For persistent issues, consult the Emerson user manual or contact AutoDCSTech for technical support.
