Product Overview

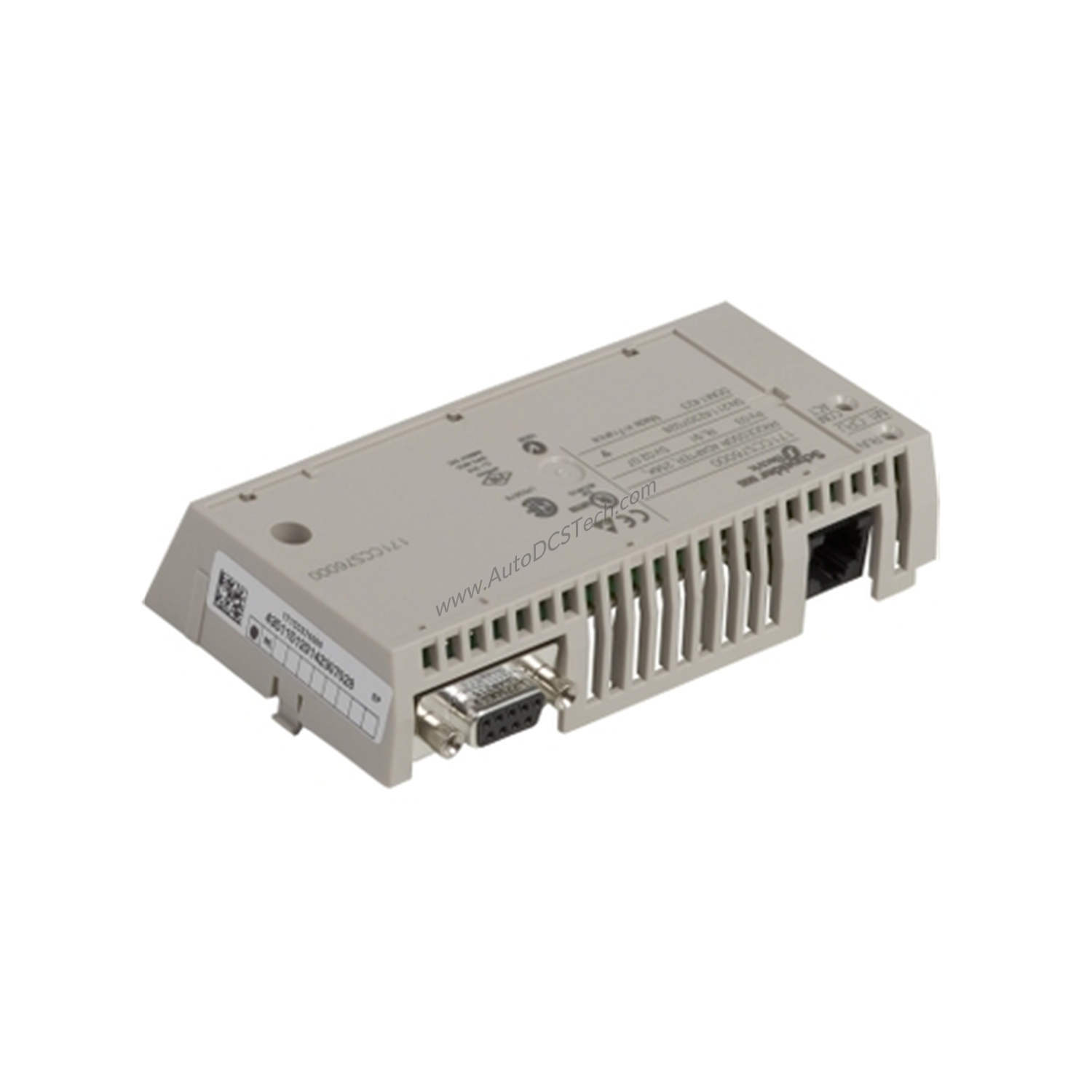

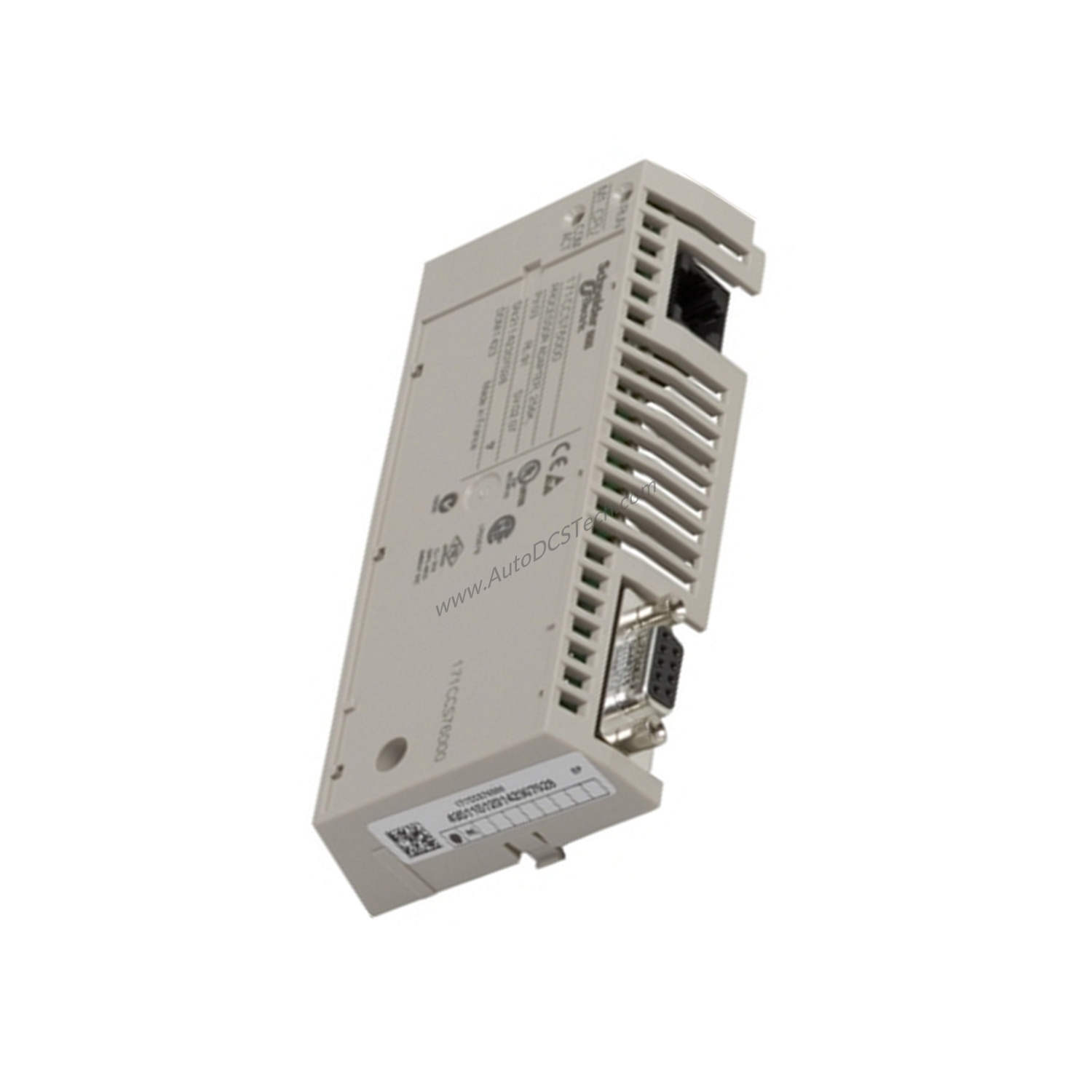

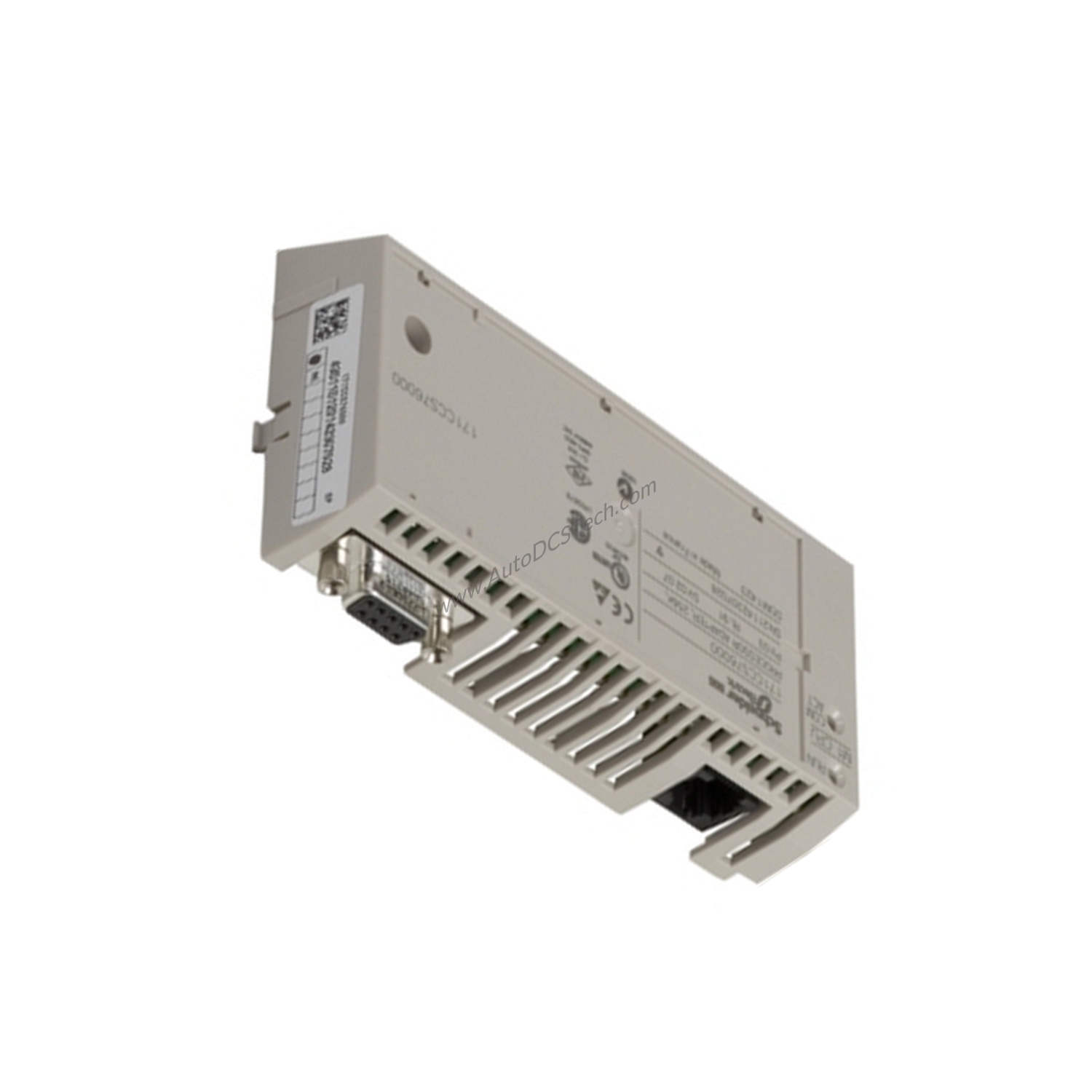

When industrial automation systems demand reliable and efficient processing, the Schneider Electric 171CCS76000 delivers. This M1/M1E processor adapter module belongs to the Modicon Momentum series, a platform known for flexibility and performance. With 256 kilobytes of RAM and a clock frequency of 32 megahertz, it handles complex control tasks with ease. The 171CCS76000 operates on a rated supply voltage of 5 Volts DC, ensuring compatibility with standard Momentum I/O bases.
Technical Specifications Breakdown
Key specifications of the 171CCS76000 include:
- Memory: Flash memory and 256 kB RAM for program and data storage.
- Processing Speed: Clock frequency of 32 MHz, delivering a scan time of 0.63 milliseconds per kilobyte.
- I/O Capacity: Supports up to 8,192 bits maximum for I/O limit processing and 4,096 words maximum for register I/O.
- Word Length: 16-bit architecture for efficient data handling.
- Communication: One RS-232C Modbus port and one I/O bus port for seamless integration.
- Environmental Range: Operates from 0 to 60°C and stores from -40 to 85°C in non-condensing environments.
These parameters make the module suitable for demanding industrial environments where timing and reliability are critical.
Industry Applications
Discrete Manufacturing
In assembly lines and packaging systems, the 171CCS76000 manages discrete I/O up to 8,192 bits. Its fast scan time ensures real-time response to sensor inputs, reducing downtime.
Process Control
For batch processing or material handling, the module’s 4,096-word register capacity handles analog data and setpoints efficiently. The Modbus communication protocol simplifies integration with SCADA and HMI systems.
Replacement & Upgrade Projects
Many facilities upgrade from older Momentum processors to the 171CCS76000 for improved memory and speed. This model supports Concept V2.6, Modsoft >= V2.5, ProWORX NxT V2.0, and ProWORX 32 software, easing migration.
Installation & Setup Guidance
Mount the 171CCS76000 onto a compatible Momentum I/O base. The module draws power from the base, so verify the base provides 5 VDC. Connect the RS-232C Modbus port to a programming device or network. Use the I/O bus port to link additional I/O modules. Ensure ambient temperature stays between 0 and 60°C and avoid condensation. No special tools are required for installation.
Maintenance & Reliability
Regular inspection of the module’s connections and environmental conditions helps maintain reliability. Keep the area free of dust and moisture. The module’s protective treatment (TC) and certifications (FM Class 1 Division 2, cUL, UL) indicate robust design for industrial use. Follow the manufacturer’s guidelines for periodic testing to ensure long service life.
Compatibility & Integration
The 171CCS76000 integrates with the Modicon Momentum automation platform. It communicates via Modbus protocol through one RS-232C port and one I/O bus port. Compatible software includes Concept V2.6, Modsoft >= V2.5, ProWORX NxT V2.0, and ProWORX 32. The module supports discrete I/O processor capacity of 2048 I/2048 O and register I/O of 4096 words total. It works with any Momentum I/O base that supplies 5 VDC.
Selection Guide & Purchasing Advice
Before purchasing the 171CCS76000, confirm your system requires an M1/M1E processor adapter module. Verify the I/O base compatibility and available power. Check software version requirements (Concept V2.6 or later). For current availability and lifecycle status, contact SpareTechPLC. We stock this module and offer fast shipping. Order with confidence from our experienced team.
Frequently Asked Questions
Q: What is the RAM capacity of the 171CCS76000?
A: The module has 256 kilobytes of RAM, plus 256 kB of flash memory.
Q: What communication ports does the 171CCS76000 have?
A: It includes one RS-232C Modbus port and one I/O bus port.
Q: What is the operating temperature range for this module?
A: It operates from 0 to 60°C in non-condensing environments.
Q: Can I use this module with ProWORX 32 software?
A: Yes, the 171CCS76000 supports ProWORX 32, along with Concept V2.6, Modsoft >= V2.5, and ProWORX NxT V2.0.
Q: What is the maximum I/O limit processor capacity?
A: The module handles up to 8,192 bits maximum for I/O limit processing.
