Product Overview

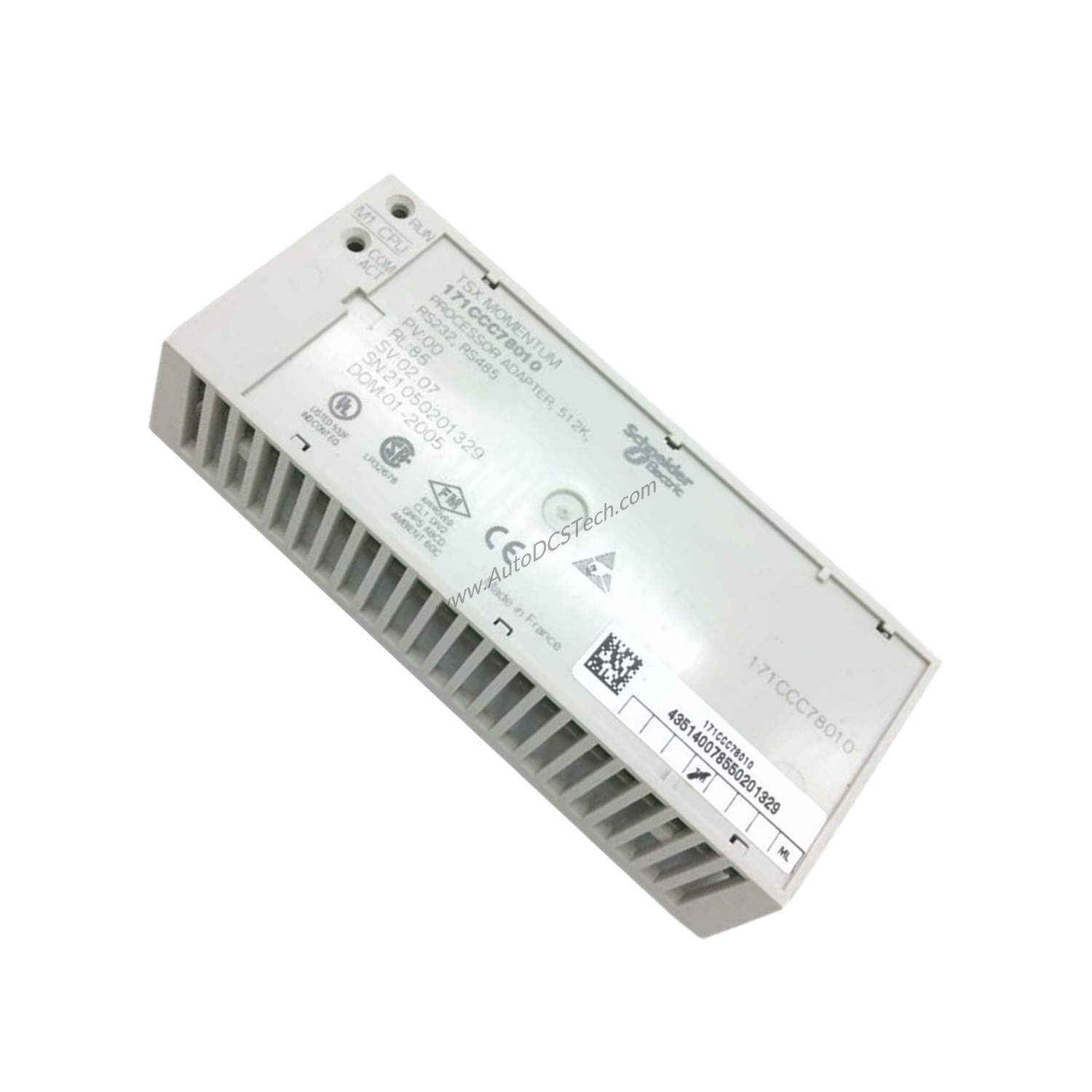

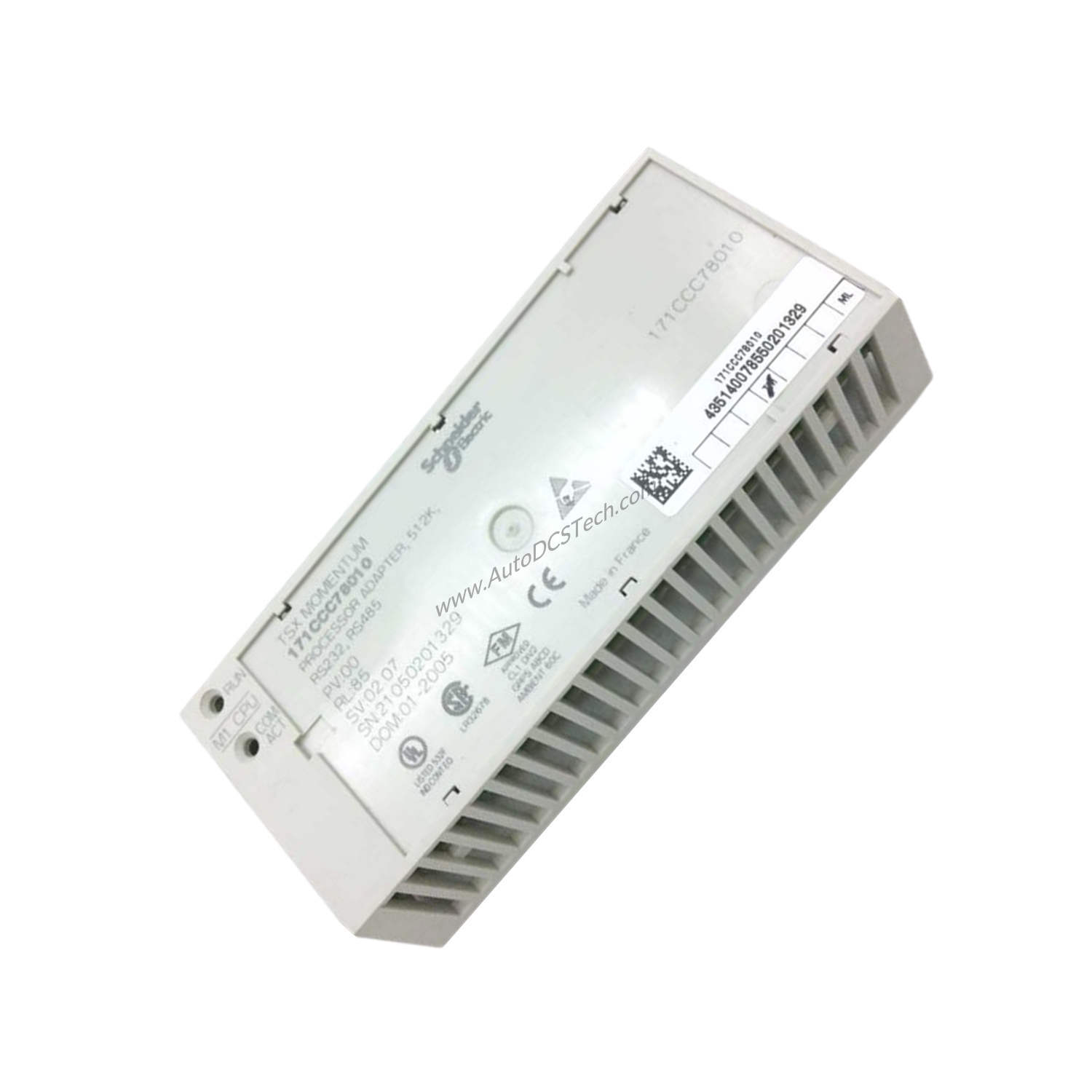

When your Modicon Momentum automation platform demands a dependable processor adapter, the Schneider 171CCC78010 M1/M1E Processor Adapter Module delivers consistent performance. Designed for maintenance engineers who prioritize reliability and ease of service, this module integrates seamlessly into existing systems. It uses the Modbus protocol for efficient communication and supports a wide range of discrete and register input/output operations.
Technical Specifications Breakdown
This module processes data with a 32 megahertz clock frequency and a 16-bit word length. It handles up to 8,192 bits for discrete input/output and up to 26,048 words for register input/output. Memory includes 512 kilobytes of flash and 512 kilobytes of RAM, ensuring ample storage for operational data. The scan time is 1 millisecond per kilobyte, enabling rapid data processing.
Industry Applications
In manufacturing environments, the 171CCC78010 excels at controlling conveyor systems and packaging machinery. Its Modbus protocol support allows easy integration with PLCs and SCADA systems. For water treatment facilities, the module's robust I/O capacity manages multiple sensors and actuators reliably.
Installation & Setup Guidance
Mount the module on a standard DIN rail within the Modicon Momentum I/O base. Connect the non-isolated RS-232C port for local programming and the dedicated RS-485 Modbus port for network communication. Ensure the supply voltage is 5 Volts DC, provided by the Momentum I/O base. Operate within an ambient temperature range of 0 to 60°C in non-condensing conditions.
Maintenance & Reliability
From a maintenance engineer's perspective, the 171CCC78010 offers easy access for inspection. Periodically check the module's connection to the I/O base and verify the Modbus network integrity. The module's Lexan material resists impact, and its protective treatment (TC) enhances durability in industrial settings. With a storage temperature range of -40 to 85°C, it withstands harsh environments when not in use.
Compatibility & Integration
This processor adapter module is part of the Modicon Momentum family. It supports Concept V2.6, Modsoft >= V2.5, ProWORX NxT V2.0, and ProWORX 32 software. The dedicated RS-485 Modbus port ensures seamless integration with other Modbus devices. The module also carries CE, cUL, UL, and FM Class 1 Division 2 certifications for safe operation in hazardous locations.
Selection Guide & Purchasing Advice
Before ordering, verify that your system uses a 5 VDC supply from the Momentum I/O base. Confirm compatibility with your existing software version. For current availability and lifecycle status, contact SpareTechPLC, your trusted supplier for industrial automation parts. We stock the 171CCC78010 and can assist with replacement options.
Frequently Asked Questions
Q1: What is the maximum discrete I/O capacity of the 171CCC78010?
A: The module supports up to 8,192 bits for discrete input/output processing.
Q2: What communication ports does this module have?
A: It includes one non-isolated RS-232C port and one dedicated RS-485 Modbus port.
Q3: What is the scan time for this processor adapter?
A: The scan time is 1 millisecond per kilobyte.
Q4: What memory types and capacities are available?
A: It has 512 kilobytes of flash memory and 512 kilobytes of RAM.
Q5: What is the operating temperature range?
A: The ambient operating temperature is 0 to 60°C in a non-condensing environment.
