Product Introduction

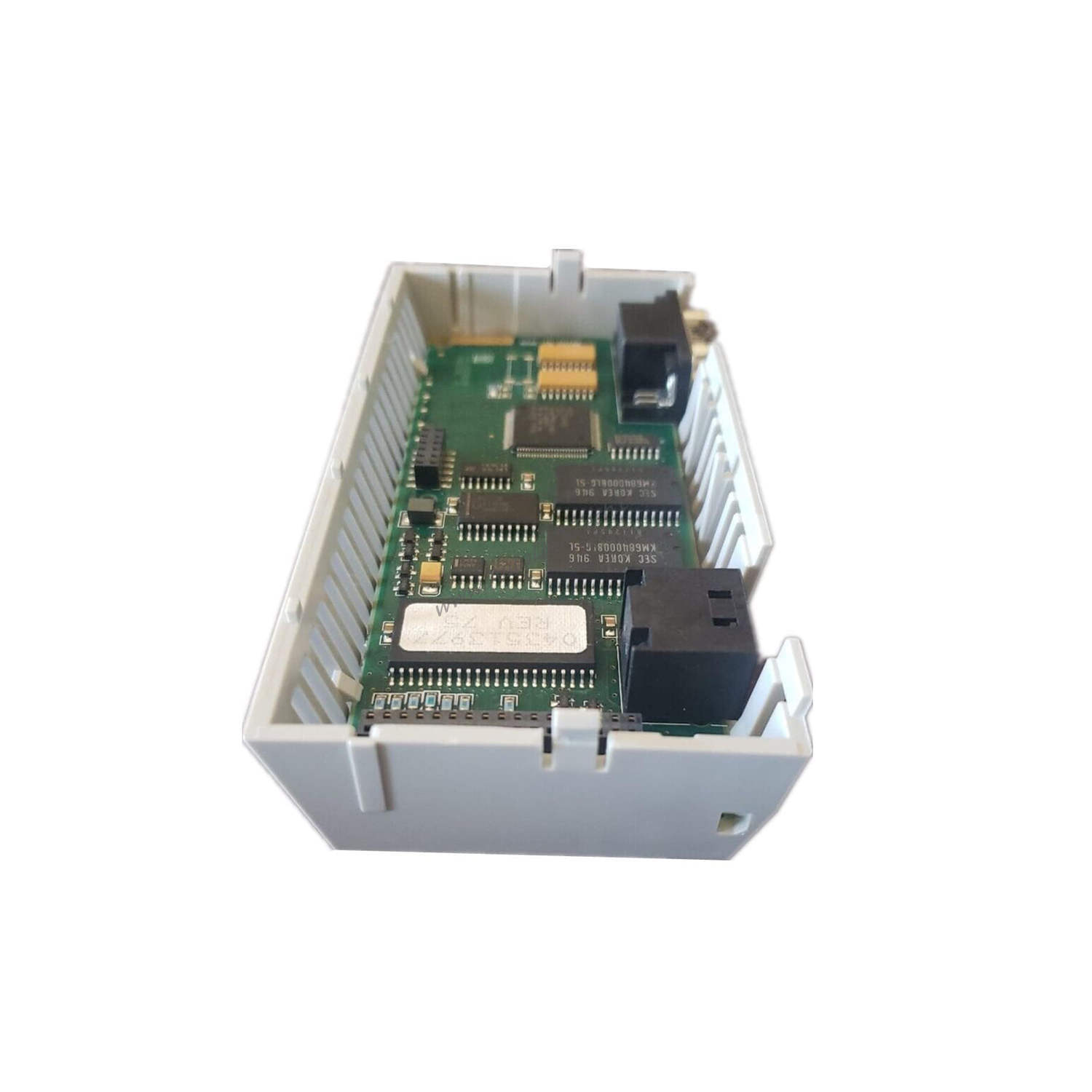

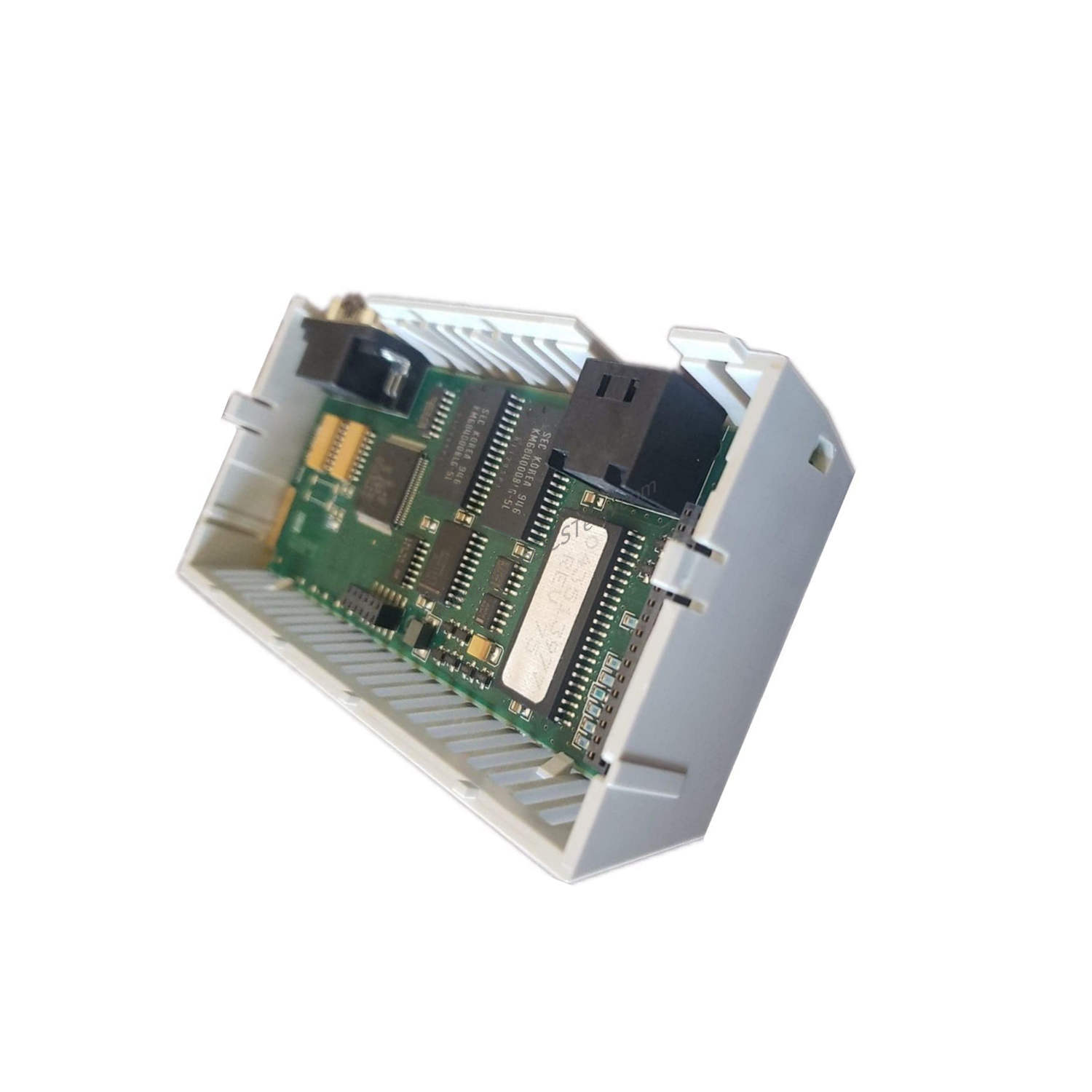

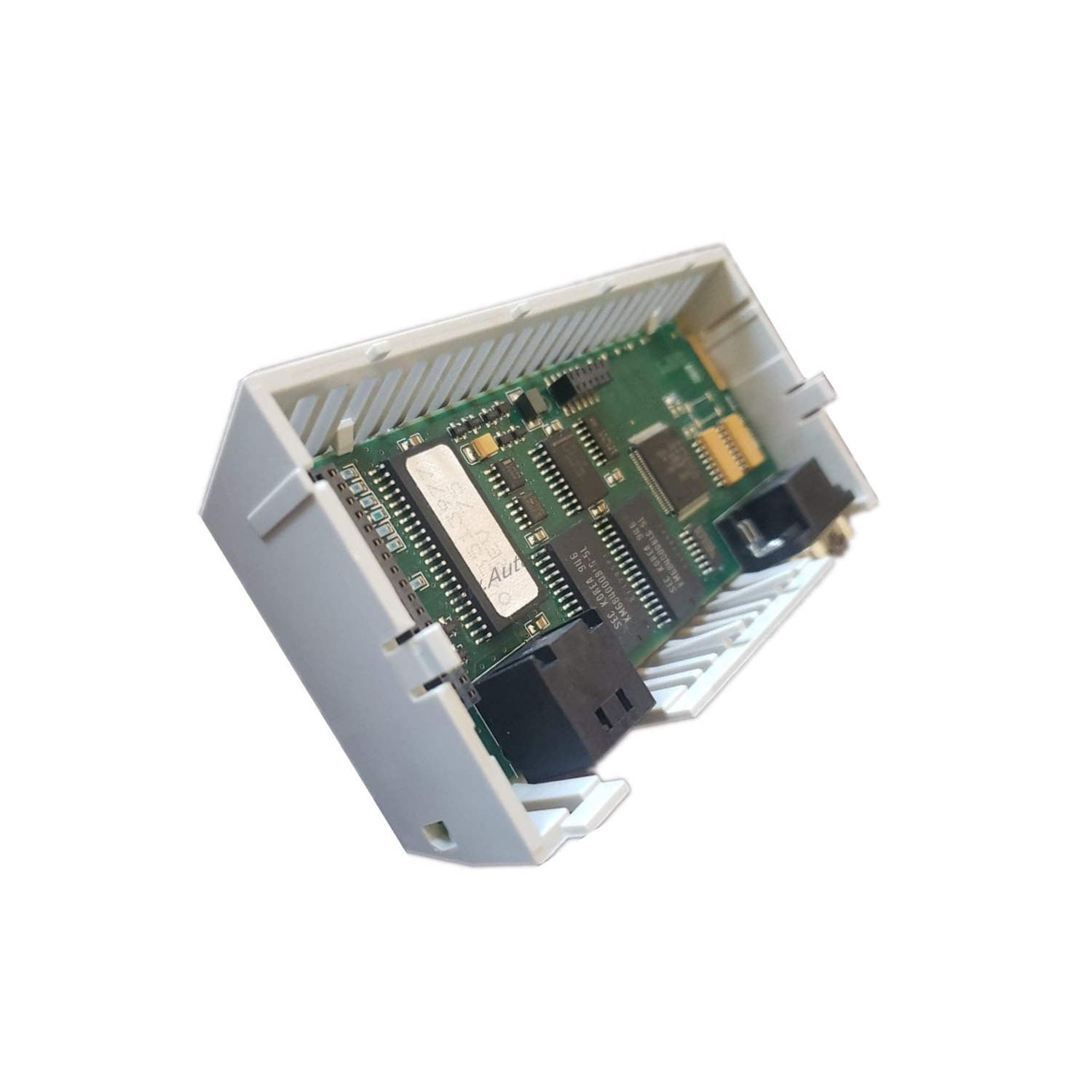

When you need a reliable processor adapter for your Modicon Momentum automation platform, the Schneider Electric 171CCC76010 delivers efficient control without unnecessary complexity. This M1/M1E Processor Adapter Module serves as the core computing unit, executing logic and managing I/O operations. By using a proven X86-based architecture and the industry-standard Modbus protocol, it integrates seamlessly into existing systems while keeping your hardware costs predictable.
Technical Specifications Breakdown
Understanding the key specifications helps you assess the value this module brings to your operation. The 171CCC76010 operates with a 32 MHz clock frequency, providing sufficient processing power for mid-range control tasks. Its memory architecture includes 512 KB of flash memory and 512 KB of RAM, offering a total of 512 KB for both program and data storage. This dual-memory design reduces the need for frequent reprogramming, lowering maintenance costs over time.
Program memory is available in two configurations: 18 KB for LL984 logic and 240 KB for IEC programming. This flexibility allows you to choose the most cost-effective programming environment for your application. The module executes 1,000 instructions in exactly 1 millisecond, ensuring real-time responsiveness that minimizes production delays.
Data memory stands at 4 KB, while the processor can handle up to 8,192 I/O bits maximum. The 16-bit word length ensures compatibility with standard data handling. These specs translate to efficient resource utilization—you pay only for the capacity you need, avoiding over-specification costs.
Industry Applications
In material handling systems, the 171CCC76010 coordinates conveyor sequences and sorting logic. Its 1 ms instruction time keeps throughput high, reducing cycle times and improving overall equipment effectiveness (OEE). For packaging machinery, the module manages multiple sensors and actuators via its RS-232C and I/O bus ports, enabling precise control without expensive add-on cards.
In water treatment plants, the Modbus protocol simplifies integration with SCADA systems, cutting integration costs. The module's 0 to 60°C operating range and 5 to 96% non-condensing humidity tolerance ensure reliable performance in harsh environments, reducing unplanned downtime expenses.
Installation & Setup Guidance
Mount the 171CCC76010 directly onto a Momentum I/O base, which supplies the required 5 VDC rated supply voltage. Ensure the base is properly secured before inserting the module. Connect the non-isolated RS-232C port to a programming device using a standard serial cable. For I/O expansion, link the I/O bus port to additional Momentum bases. Verify that the ambient temperature stays between 0 and 60°C and that humidity remains non-condensing to avoid performance issues. Always power down the system before installation to prevent damage.
Maintenance & Reliability
Regular inspection of the module's connections and environmental conditions extends its service life. Check that the storage temperature range of -40 to 85°C is maintained during downtime. The Lexan material housing provides impact resistance, but avoid exposing the unit to excessive vibration beyond 0.75 mm displacement at 1 gn. Periodic cleaning of the RS-232C port contacts with a dry cloth prevents signal degradation. Following these simple steps reduces replacement frequency, directly lowering your total cost of ownership.
Compatibility & Integration
The 171CCC76010 works with the Modicon Momentum automation platform and supports programming via Concept V2.6, Modsoft V2.5 or later, ProWORX NxT V2.0, and ProWORX 32. Its Modbus protocol enables communication with a wide range of PLCs, drives, and HMIs. The module accepts 128 I/O words per drop in Concept and 80 I/O words per drop in ProWORX, allowing flexible system scaling. This broad compatibility reduces the need for protocol converters, saving both hardware and engineering costs.
Selection Guide & Purchasing Advice
Before ordering the 171CCC76010, confirm that your Momentum base supports this processor adapter and that your programming software matches the supported versions. Verify the 5 VDC supply from the I/O base is adequate. The module weighs only 0.093 lb (0.042 kg) and ships in a package measuring 10.2 x 7.09 x 2.2 inches. For current lifecycle status, contact SpareTechPLC to ensure availability. We stock genuine Schneider parts and can advise on replacement options if needed.
Troubleshooting & Common Issues
If the module fails to communicate, check the RS-232C cable and port connections first. A loose connection is the most common cause of intermittent faults. If the processor does not start, verify that the I/O base supplies stable 5 VDC. For memory errors, ensure the program size does not exceed the 18 KB (LL984) or 240 KB (IEC) limits. Overloading the 8,192 I/O bit maximum can cause erratic behavior—distribute I/O across multiple drops if needed. Always refer to the manufacturer's guidelines for detailed diagnostics.
Frequently Asked Questions
Q: What is the exact instruction execution time for the 171CCC76010?
A: The module executes 1,000 instructions in exactly 1 millisecond, providing deterministic real-time control.
Q: Can I use this module with Modbus TCP networks?
A: The 171CCC76010 supports the Modbus protocol via its RS-232C port. For Modbus TCP, you would need an additional gateway.
Q: What is the maximum number of I/O points this processor can handle?
A: The processor supports up to 8,192 I/O bits maximum, with 128 I/O words per drop in Concept and 80 I/O words per drop in ProWORX.
Q: Does the module require an external power supply?
A: No, it receives its 5 VDC rated supply voltage directly from the Momentum I/O base.
Q: What certifications does the 171CCC76010 hold?
A: It carries FM Class 1 Division 2, UL, Nema type 250, and cUL certifications, along with CE marking.
