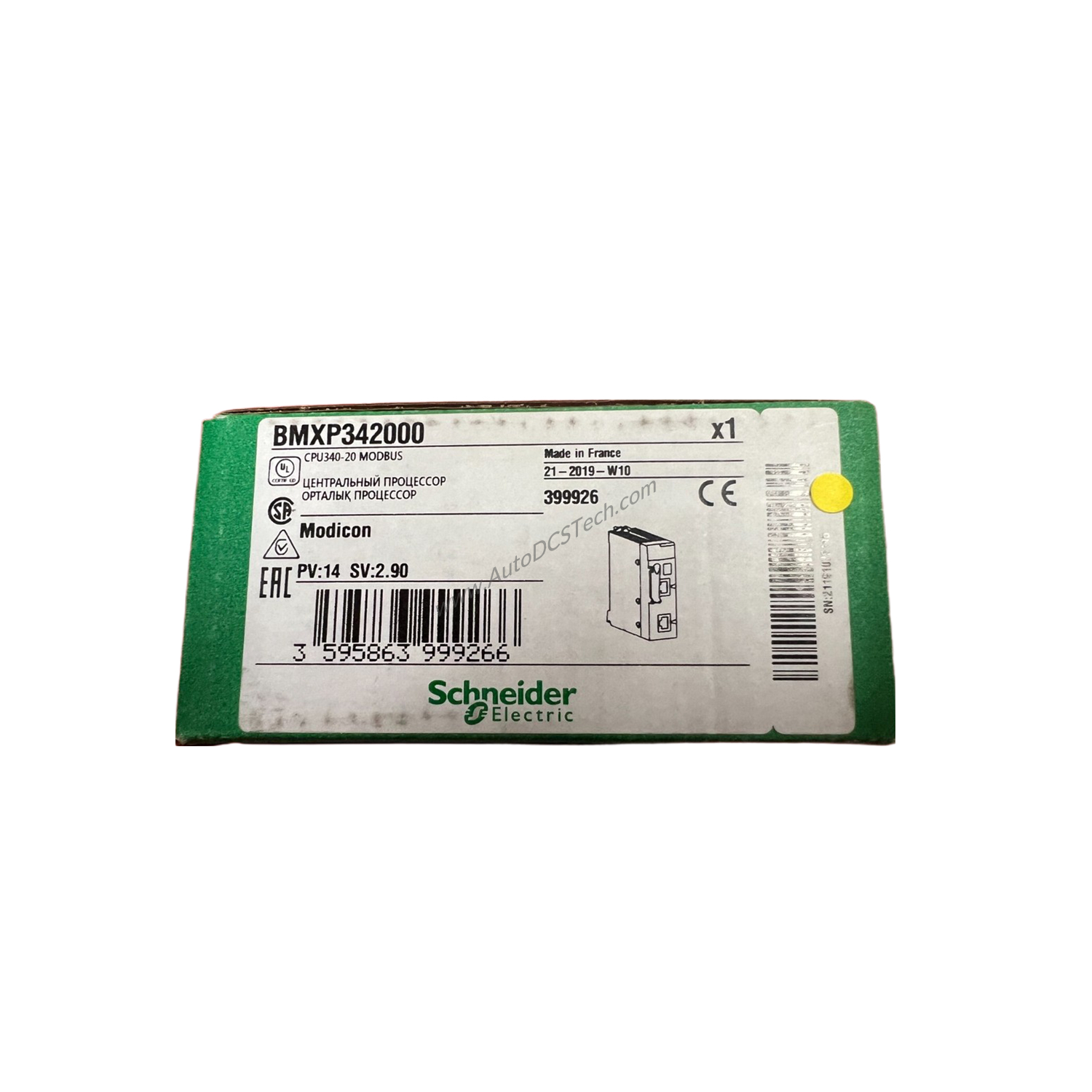

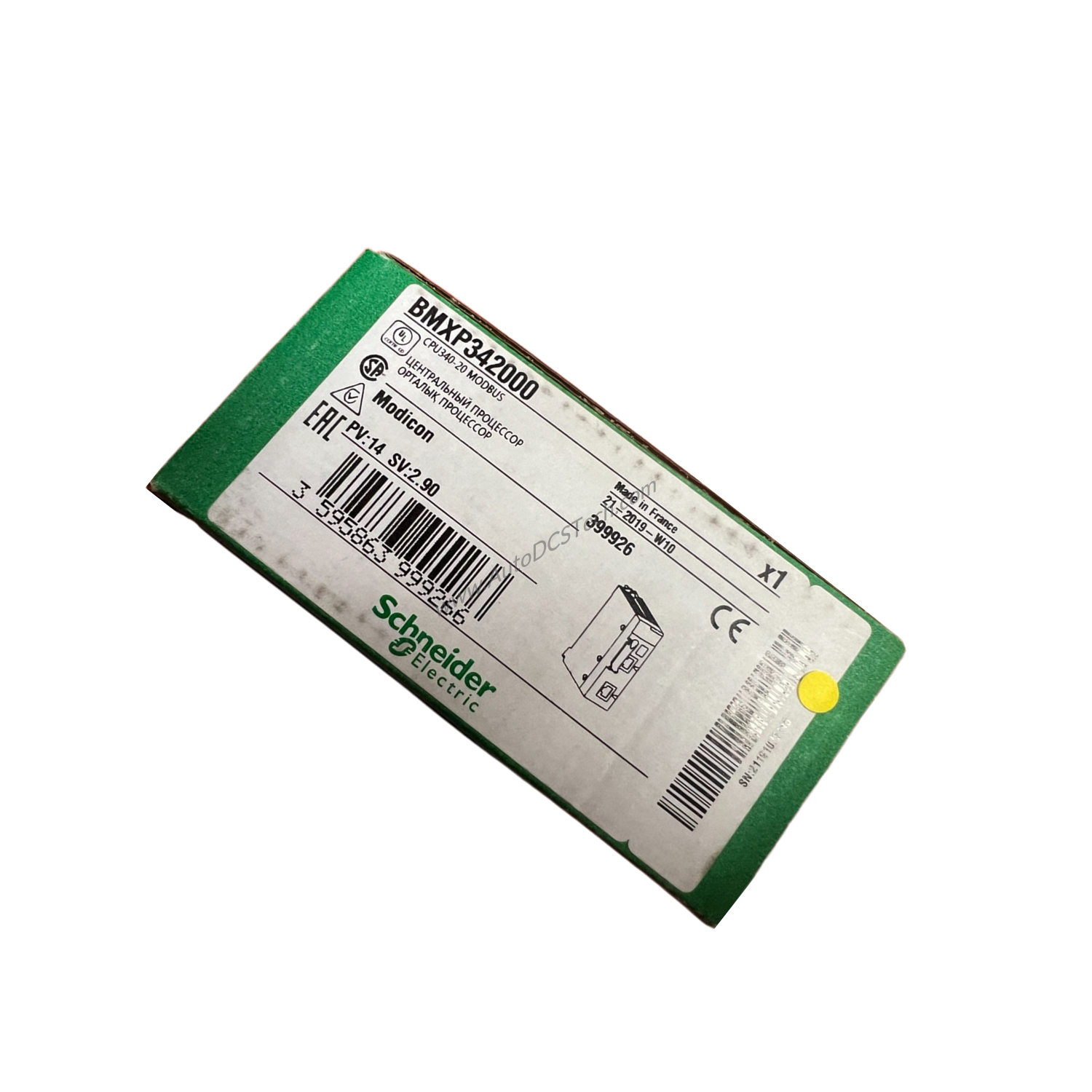

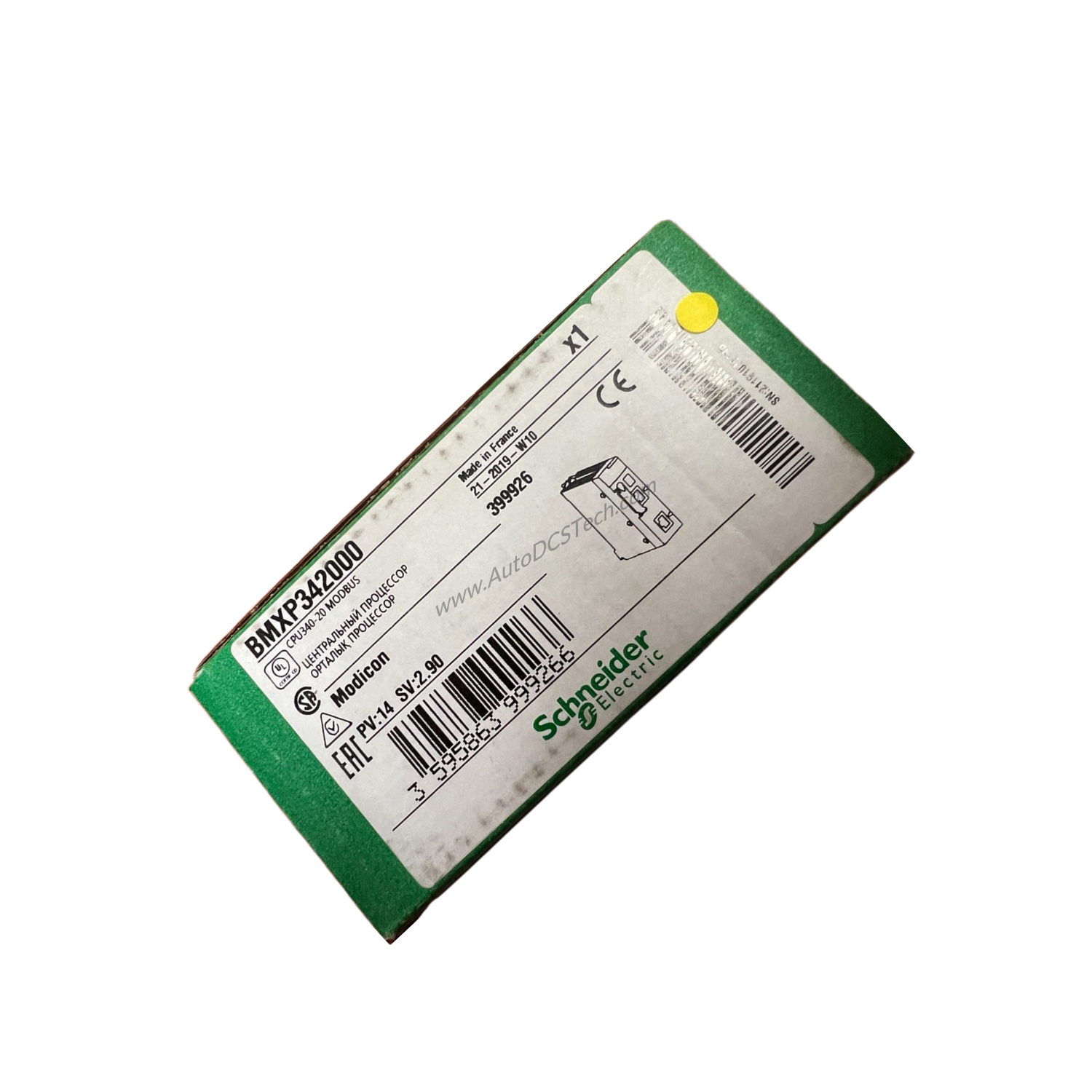

What Is the BMXP342000?
When your control system demands reliable processing for both discrete and analog signals, the Schneider BMXP342000 processor module from the Modicon M340 automation platform delivers. This compact module handles up to 1024 discrete I/O in a single-rack configuration and up to 256 analog I/O in a multi-rack setup. It also supports 36 application-specific channels, making it a versatile choice for mid-range industrial automation.
Technical Specifications Breakdown
Memory and Performance
- Internal RAM totals 4096 kB, with 256 kB dedicated to data and 3584 kB for program constants and symbols.
- Execution times: 0.18 µs for Boolean operations, 0.26 µs for double-length words, 0.38 µs for single-length words, and 1.74 µs for floating points.
- Throughput reaches 5.4 K instructions per ms with 100% Boolean logic.
Communication Capabilities
- Integrated non-isolated serial links support RS232C and RS485 at 0.3 to 19.2 kbit/s in character mode and Modbus RTU/ASCII.
- A USB port operates at 12 Mbit/s.
- The module can manage up to 2 Ethernet communication modules and 4 AS-Interface modules.
Power and Environment
- Current consumption is 72 mA at 24 V DC, supplied via the rack.
- Operating temperature range: 32 to 140 °F (0 to 60 °C).
- IP20 degree of protection and CE, UL, CSA, RCM, EAC, and Merchant Navy certifications.
Industry Applications
Discrete Manufacturing
In automotive assembly lines, the BMXP342000 handles up to 1024 discrete I/O, managing sensors and actuators across multiple stations. Its fast Boolean execution (0.18 µs) ensures quick response to proximity switches and limit sensors.
Process Control
For water treatment plants, the module’s 256 analog I/O capacity (multi-rack) processes flow, pressure, and level signals. The Modbus serial links enable integration with remote terminal units and SCADA systems.
Building Automation
In HVAC systems, the BMXP342000 controls 36 application-specific channels for temperature and humidity monitoring. Its 1.05 ms master task overhead maintains stable loop control.
Installation Guide
Mount the BMXP342000 in the first slot of a Modicon M340 rack. Ensure the rack supplies 24 V DC power. Connect the serial link via RJ45 for Modbus or character mode communication. For multi-rack configurations, use the appropriate bus extension cables. Verify the USB port is accessible for local programming. Always follow the EN 61131-2 standard for installation.
Maintenance & Reliability
Routine inspection of the BMXP342000 includes checking the status LEDs: RUN (green), I/O fault (red), CARD ERR (red), ERR (red), and SER COM (yellow). Operating within 32 to 140 °F and 10 to 95% relative humidity without condensation ensures longevity. The module’s protective treatment (TC) resists corrosion in harsh environments. Periodic backup of programs using the supplied memory card (BMXRMS008MP) safeguards against data loss.
Compatibility & Integration
The BMXP342000 integrates seamlessly with Modicon M340 racks and I/O modules. It supports Modbus serial links (RS232C and RS485) for communication with drives, HMIs, and other controllers. The USB port allows direct connection to a PC for programming with EcoStruxure Control Expert. Up to 2 Ethernet communication modules can be added for network connectivity.
Selection Guide & Purchasing Advice
Before purchasing the BMXP342000, verify your I/O requirements: up to 1024 discrete I/O (single rack) or 256 analog I/O (multi rack). Ensure your rack provides 24 V DC power. The module ships with a memory card for program backup. SpareTechPLC stocks this processor module with fast shipping and full warranty. Contact us for current lifecycle status and availability.
Troubleshooting Guide
If the ERR LED is red, check for processor or system faults. A red CARD ERR LED indicates a memory card issue—reseat or replace the BMXRMS008MP card. For I/O faults (red I/O LED), verify the module connections and configuration. If SER COM LED is off, check the Modbus cable and baud rate settings (0.3 to 19.2 kbit/s). Use diagnostic counters in the software to isolate communication errors.
