Product Overview

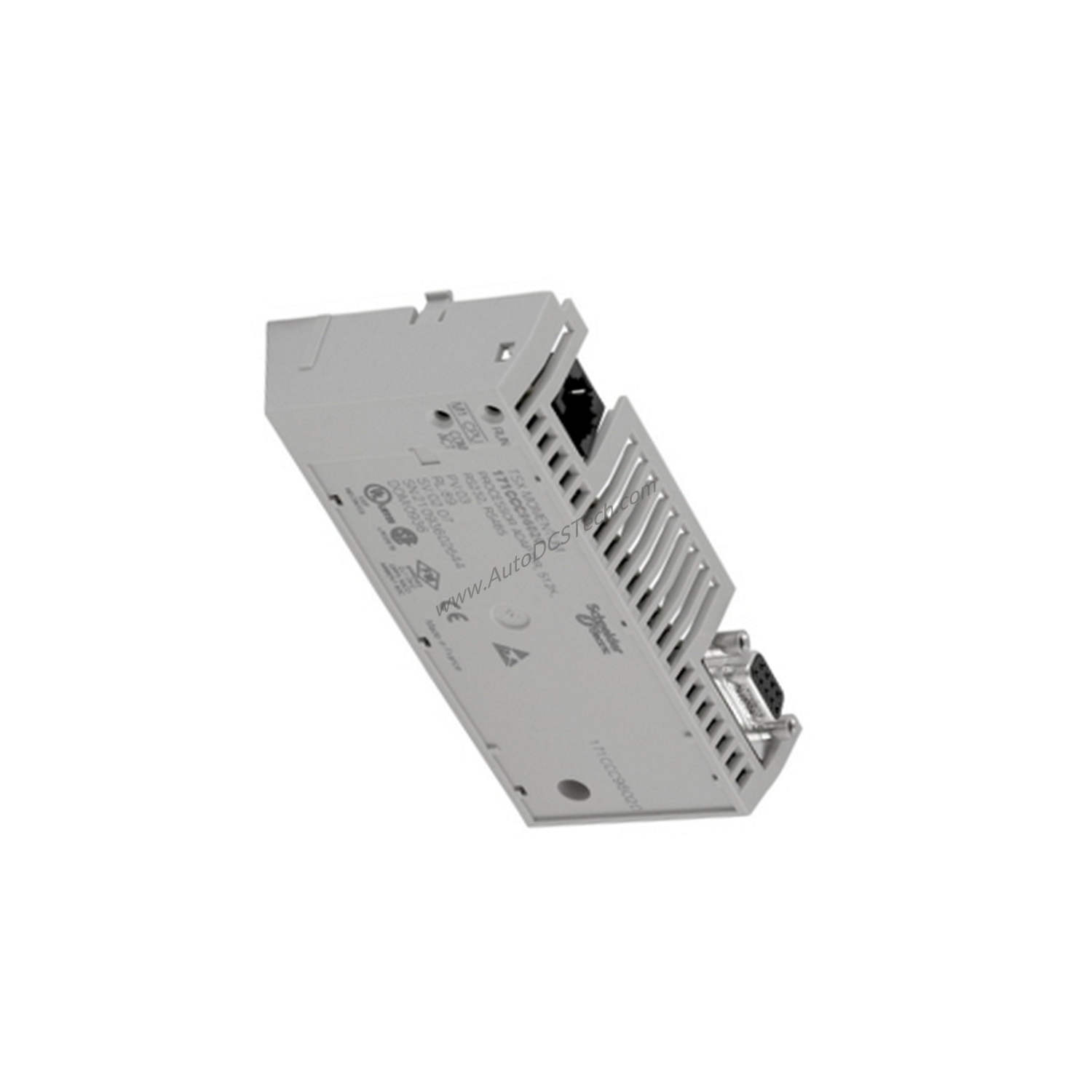

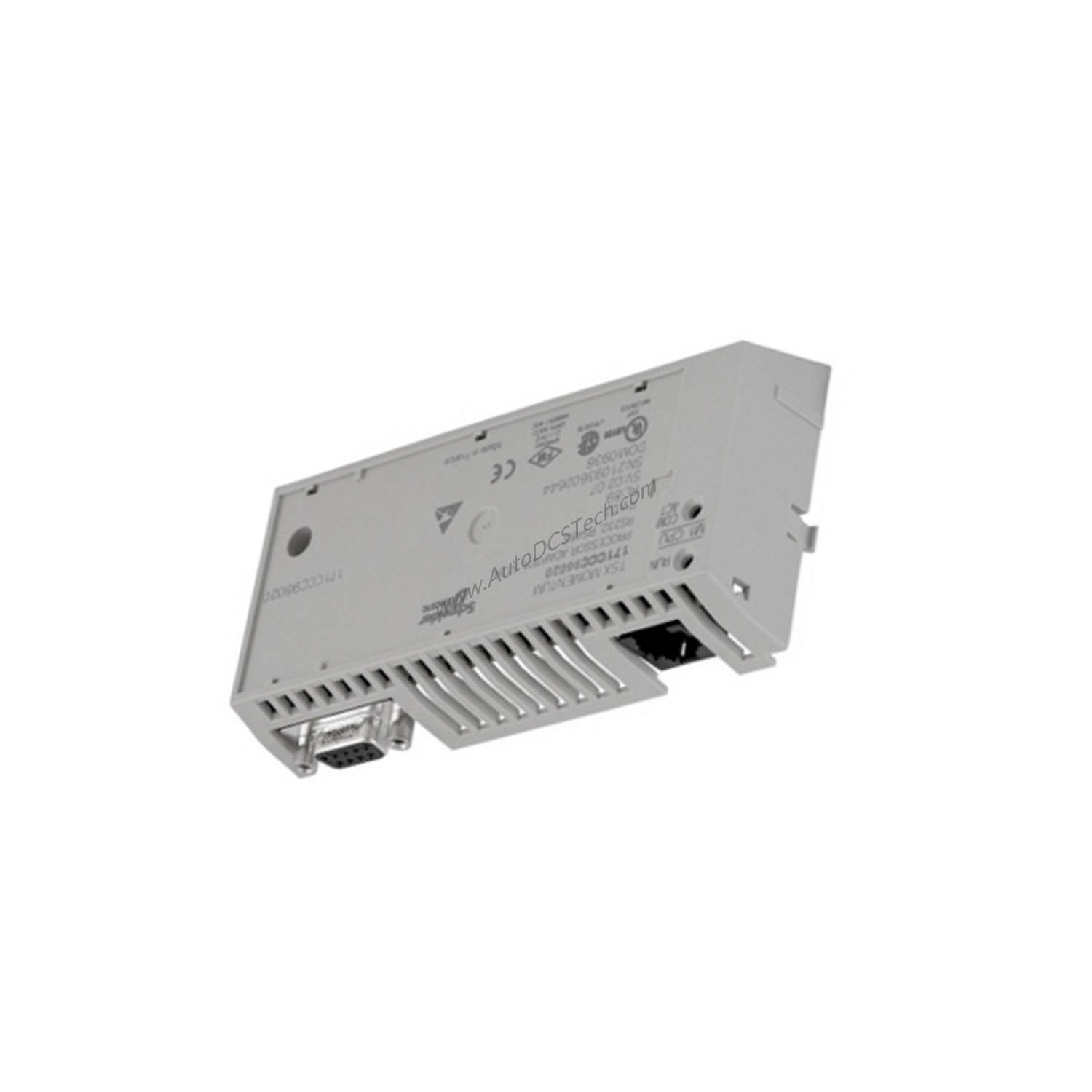

When your automation system demands reliable processing and seamless communication, the Schneider 171CCC96020 M1/M1E Processor Adapter Module delivers a cost-effective solution. This module integrates Ethernet connectivity with a dual-port architecture, enabling efficient I/O operations while reducing the need for additional hardware. By centralizing control tasks, it lowers overall system costs and simplifies maintenance.
Technical Specifications Breakdown
The 171CCC96020 operates at a clock frequency of 50 megahertz, ensuring fast data handling for time-sensitive processes. Its memory configuration includes 512 kilobytes of flash memory and 544 kilobytes of RAM, providing ample space for program storage and data buffering. This combination reduces the risk of bottlenecks, directly improving throughput and minimizing downtime costs.
With a scan time of 0.3 milliseconds per kilobyte, the module processes logic quickly, allowing for tighter control loops and faster response to field events. The discrete I/O processor capacity handles up to 8,192 bits, while the register I/O processor capacity supports 26,048 words. These capacities enable the module to manage large I/O counts without requiring additional processors, saving on capital expenditure.
Industry Applications
In manufacturing lines, the 171CCC96020 manages discrete I/O for conveyor systems, sensors, and actuators. Its 8,192-bit I/O capacity handles numerous inputs and outputs, reducing the need for expansion modules and lowering per-point costs. For process control applications, the 26,048-word register capacity supports analog data handling for temperature, pressure, and flow loops, improving process accuracy and reducing waste.
In building automation, the module's Ethernet port integrates with supervisory systems for remote monitoring and control. This connectivity reduces wiring costs and enables centralized data collection, leading to energy savings and lower operational expenses.
Installation & Setup Guidance
Mount the 171CCC96020 on a compatible Momentum I/O base, ensuring the ambient operating temperature remains between 0 and 60°C in a non-condensing environment. Connect the Ethernet port to your network using a standard RJ45 cable. The I/O bus port links to local I/O modules. Verify the supply voltage is 5.0 V DC +/-5% from the base. For optimal performance, keep the module away from high-vibration areas and ensure proper grounding.
Maintenance & Reliability
To maximize uptime and reduce lifecycle costs, inspect the module periodically for dust accumulation and ensure ventilation openings are clear. The module operates reliably in storage temperatures from -40 to 85°C. Regular checks of network connections and I/O wiring prevent intermittent faults. By following these simple steps, you extend the module's service life and avoid costly replacements.
Compatibility & Integration
The 171CCC96020 integrates with the Modicon Momentum automation platform and supports Ethernet communication using Modbus TCP messaging. It is compatible with software tools like Concept V2.6, Modsoft >= V2.5, ProWORX NxT V2.0, and ProWORX 32. This broad compatibility allows seamless integration into existing systems, reducing migration costs and training time.
Selection Guide & Purchasing Advice
Before ordering, verify that your system uses a Momentum I/O base and requires a 5.0 V DC supply. Confirm the ambient temperature range matches your installation environment. The 171CCC96020 is a cost-effective choice for applications needing up to 8,192 I/O bits and 26,048 register words. Contact SpareTechPLC for current availability and lifecycle status to ensure timely delivery.
Frequently Asked Questions
Q: What is the maximum discrete I/O capacity of the 171CCC96020?
A: The module supports up to 8,192 bits for discrete inputs and outputs combined.
Q: Does the 171CCC96020 support Ethernet communication?
A: Yes, it includes one Ethernet port for Modbus TCP messaging and I/O scanning.
Q: What memory types are available on this module?
A: It features 512 kilobytes of flash memory and 544 kilobytes of RAM.
Q: What is the scan time of the 171CCC96020?
A: The scan time is 0.3 milliseconds per kilobyte of logic.
Q: What is the operating temperature range for this module?
A: It operates from 0 to 60°C in a non-condensing environment.
