Product Overview

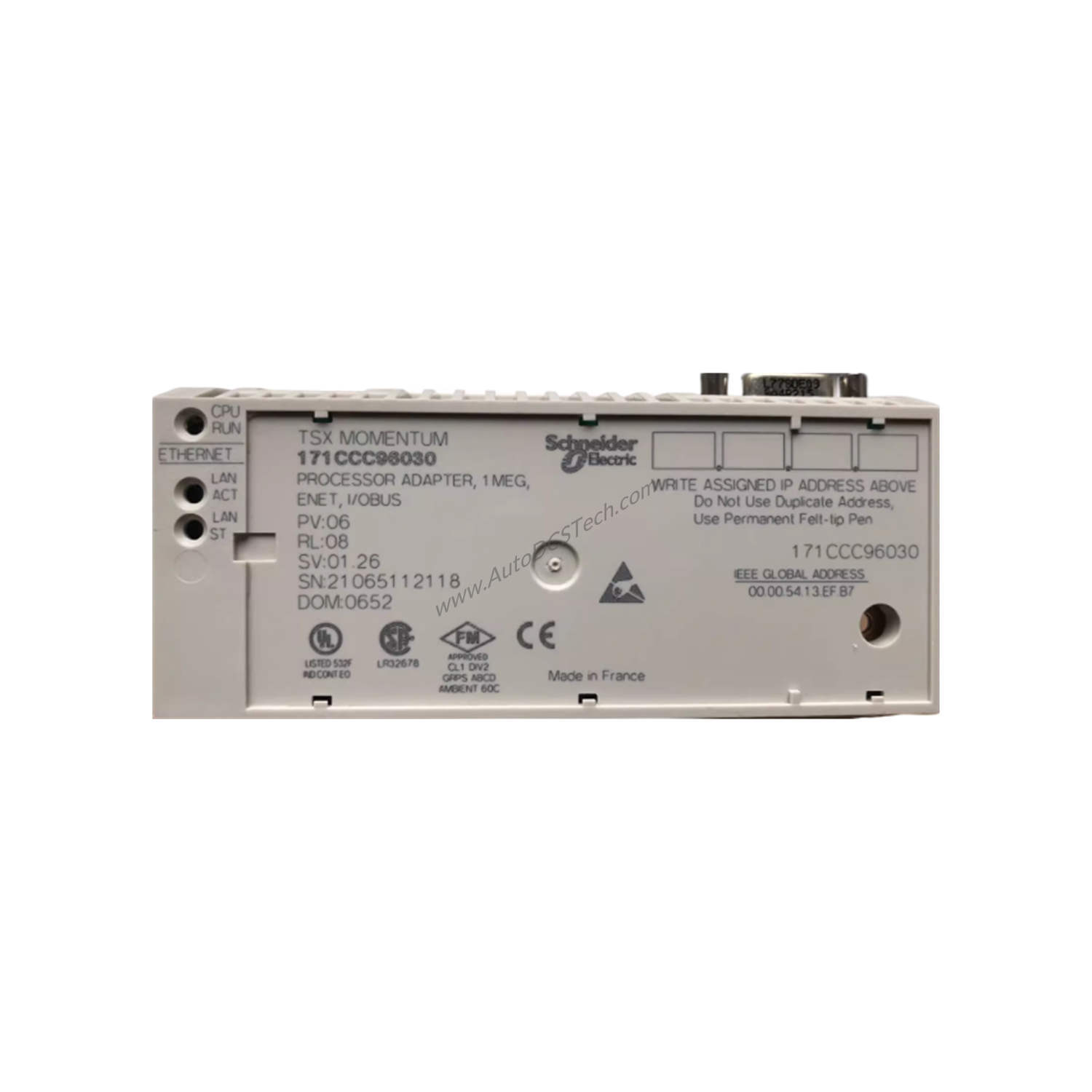

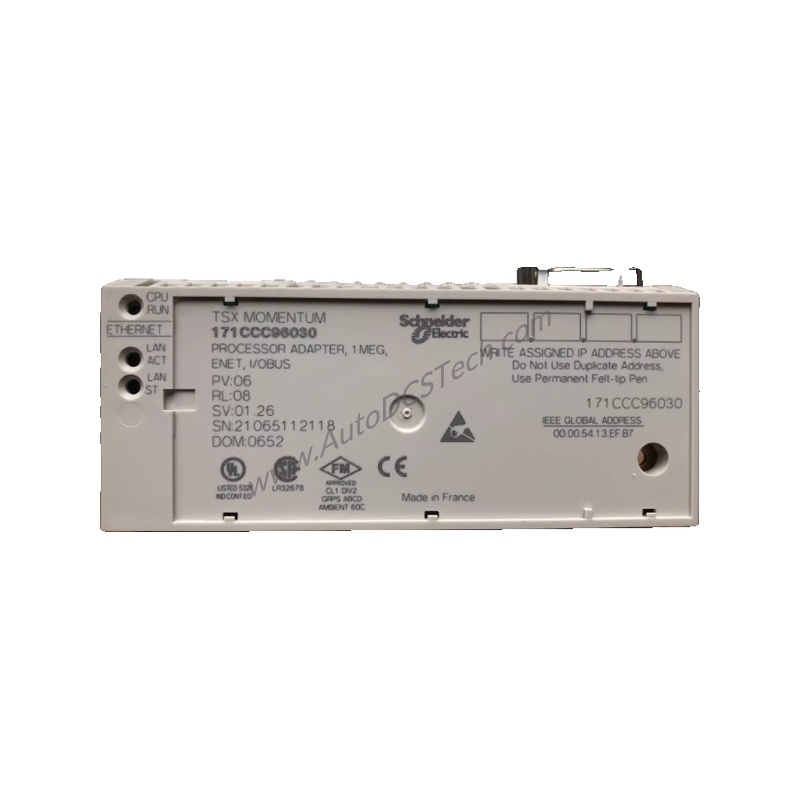

When your automation system demands a reliable and efficient processor adapter, the Schneider 171CCC96030 M1/M1E Processor Adapter Module delivers. Part of the Modicon Momentum family, this module operates at a clock frequency of 50 megahertz and uses Ethernet as its communication protocol, ensuring seamless integration into modern control networks. Its compact design and robust performance make it a smart choice for engineers seeking to optimize their industrial processes.
Technical Specifications
Let’s examine the key parameters that define the 171CCC96030’s capabilities. The module is powered by a rated supply voltage of 5 Volts DC, supplied by the Momentum I/O base, which keeps power consumption low. It features 1 megabyte of flash memory and 544 kilobytes of RAM, providing ample storage for your control programs and data. The register input/output processor capacity reaches 26,048 words maximum, with a word length of 16 bits, enabling efficient handling of large data sets. With a scan time of 0.3 milliseconds per kilobyte, this module processes instructions rapidly, supporting time-critical applications.
Industry Applications
In manufacturing environments, the 171CCC96030 excels at managing discrete and process control tasks. For example, in a packaging line, its Ethernet connectivity allows for real-time data exchange with supervisory systems, while its 8192 discrete I/O processor capacity handles numerous sensors and actuators. Similarly, in material handling applications, the module’s 544 kB RAM supports complex logic sequences, reducing cycle times and improving throughput.
Installation & Setup Guidance
Mount the 171CCC96030 onto a compatible Momentum I/O base, ensuring the base supplies the required 5 VDC power. Connect the Ethernet port to your network switch using a standard RJ45 cable. The I/O bus port links to expansion bases for additional I/O. Verify the ambient operating temperature stays between 0 and 60°C in a non-condensing environment. For storage, keep the module between -40 and 85°C. Always follow the manufacturer’s guidelines for proper grounding and wiring to avoid electrical noise issues.
Maintenance & Reliability
To maximize uptime, inspect the 171CCC96030 periodically for dust accumulation and ensure ventilation is unobstructed. The module’s protective treatment (TC) helps resist environmental contaminants. Operate at altitudes below 6,561 feet (2,000 meters) to maintain performance. With a shock resistance of ≤15 gn peak and vibration resistance of 1 gn, the module withstands typical industrial conditions. Regular firmware updates via the Ethernet port can enhance functionality and security.
Compatibility & Integration
The 171CCC96030 integrates with the Modicon Momentum automation platform and supports software tools like Concept V2.6, Modsoft ≥ V2.5, ProWORX NxT V2.0, and ProWORX 32. It uses Ethernet for Modbus TCP messaging and I/O scanning. The module is compatible with a wide range of Momentum I/O bases and expansion modules, allowing flexible system scaling. It carries CE, UL, cUL, and FM Class 1 Division 2 certifications, ensuring compliance with international standards.
Selection Guide & Purchasing Advice
Before ordering the 171CCC96030, verify that your system’s I/O base supplies 5 VDC and that your network supports Ethernet communication. Confirm the required memory capacity — 1 MB flash and 544 kB RAM — meets your application needs. At SpareTechPLC, we stock this module and offer competitive pricing. Contact our team to check availability and lifecycle status, as this product may have limited production runs. We provide fast shipping and expert support to keep your operations running smoothly.
Frequently Asked Questions
Q: What is the clock frequency of the 171CCC96030?
A: The module operates at a clock frequency of 50 megahertz.
Q: How much memory does the 171CCC96030 have?
A: It includes 1 megabyte of flash memory and 544 kilobytes of RAM.
Q: What communication protocol does the 171CCC96030 use?
A: It uses Ethernet as its communication protocol.
Q: What is the rated supply voltage for this module?
A: The rated supply voltage is 5 Volts DC, supplied by the Momentum I/O base.
Q: What is the operating temperature range?
A: The ambient operating temperature is 0 to 60°C in a non-condensing environment.
