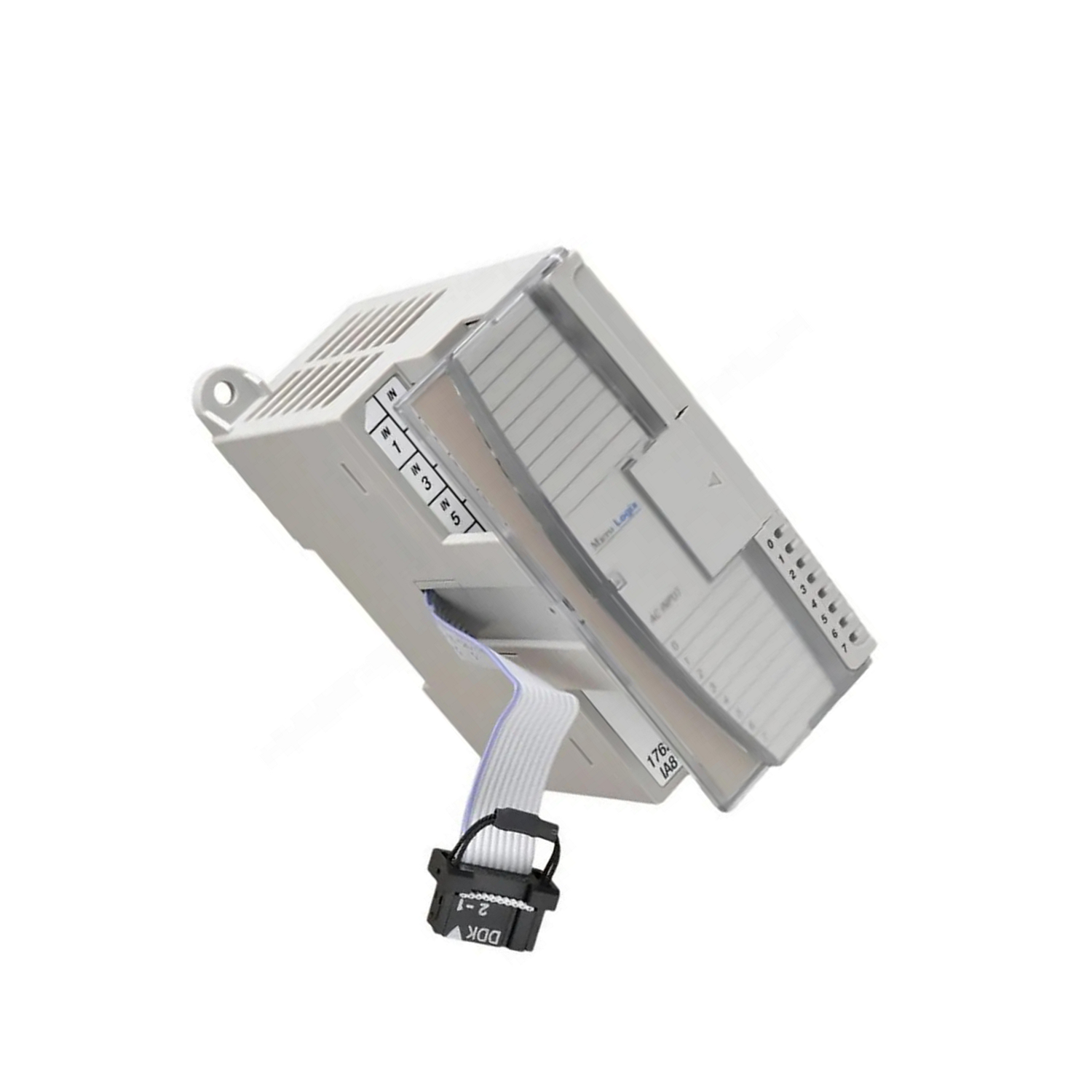

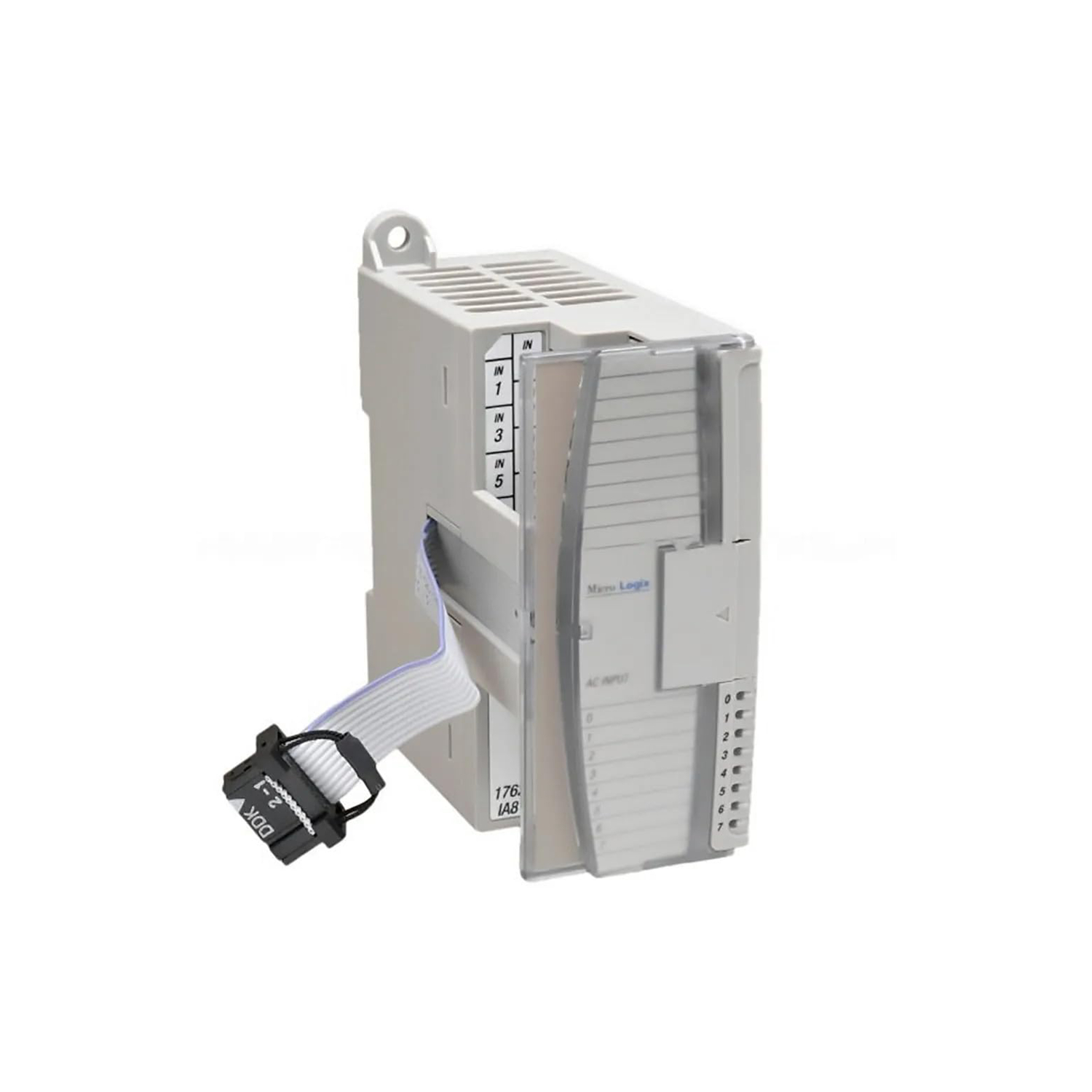

Cost-Effective I/O Expansion with the Allen-Bradley 1762-OB16
Industrial automation often requires additional output channels beyond built-in controller I/O. The Allen-Bradley 1762-OB16 discrete output module offers a cost-efficient solution for expanding MicroLogix systems without replacing existing hardware. By adding 16 sourcing outputs, this module reduces the need for separate relay panels, lowering installation and maintenance costs.
Technical Specifications Breakdown
Key parameters for the 1762-OB16 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | Discrete Output Module |
| Number of Outputs | 16 (Sourcing) |
| Output Voltage Range | 20.4-26.4 VDC |
| Voltage Category | 24 VDC |
| Signal Delay, On | 0.1 ms |
| Signal Delay, Off | 1.0 ms |
| Bus Current Draw, Max | 175 mA @ 5V DC (0.88W) |
| Maximum Surge Current | 2.0 A |
| Mounting | DIN Rail |
| Compatible Controllers | MicroLogix 1100, 1200, 1400 |
Industry Applications and Cost Benefits
The 1762-OB16 is well-suited for applications requiring discrete actuation of devices such as solenoid valves, pilot lights, relay coils, and motor starters. For example, in a packaging line, adding this module to a MicroLogix 1400 can control multiple actuators without extra wiring costs. The fast 0.1 ms on delay ensures responsive operation, reducing cycle time and improving throughput. Using sourcing outputs simplifies wiring in positive-logic systems, lowering labor expenses.
Installation and Setup Guidance
Mount the 1762-OB16 on a DIN rail in a well-grounded enclosure. Ensure adequate clearance for ventilation as per standard practices. The module supports up to 4 expansions with MicroLogix 1100, 6 with MicroLogix 1200, and 7 with MicroLogix 1400. Maintain a power supply distance of no more than 6 modules to avoid voltage drop, which can affect output reliability and increase downtime costs.
Maintenance and Reliability
For long-term reliability, periodically inspect the module for dust accumulation and ensure ambient conditions stay within 5 to 95% non-condensing humidity. The solid-state design minimizes wear compared to electromechanical relays, reducing replacement frequency and total cost of ownership.
Compatibility and Integration
This module integrates seamlessly with MicroLogix 1100, 1200, and 1400 controllers. It uses the backplane bus for communication, drawing a maximum of 175 mA at 5V DC. No additional communication protocol setup is required, simplifying integration and saving engineering time.
Selection Guide and Purchasing Advice
When expanding your MicroLogix system, the 1762-OB16 offers a reliable, cost-effective way to add 16 sourcing outputs. Verify current lifecycle status and availability with SpareTechPLC before ordering to ensure compatibility with your project timeline.
Troubleshooting and Common Issues
If outputs fail to energize, check the external power supply voltage (20.4-26.4 VDC) and bus current draw. A blown fuse or overloaded output may cause intermittent operation. Use the signal delay times (0.1 ms on, 1.0 ms off) to diagnose timing-related issues in fast sequences.
