Product Overview

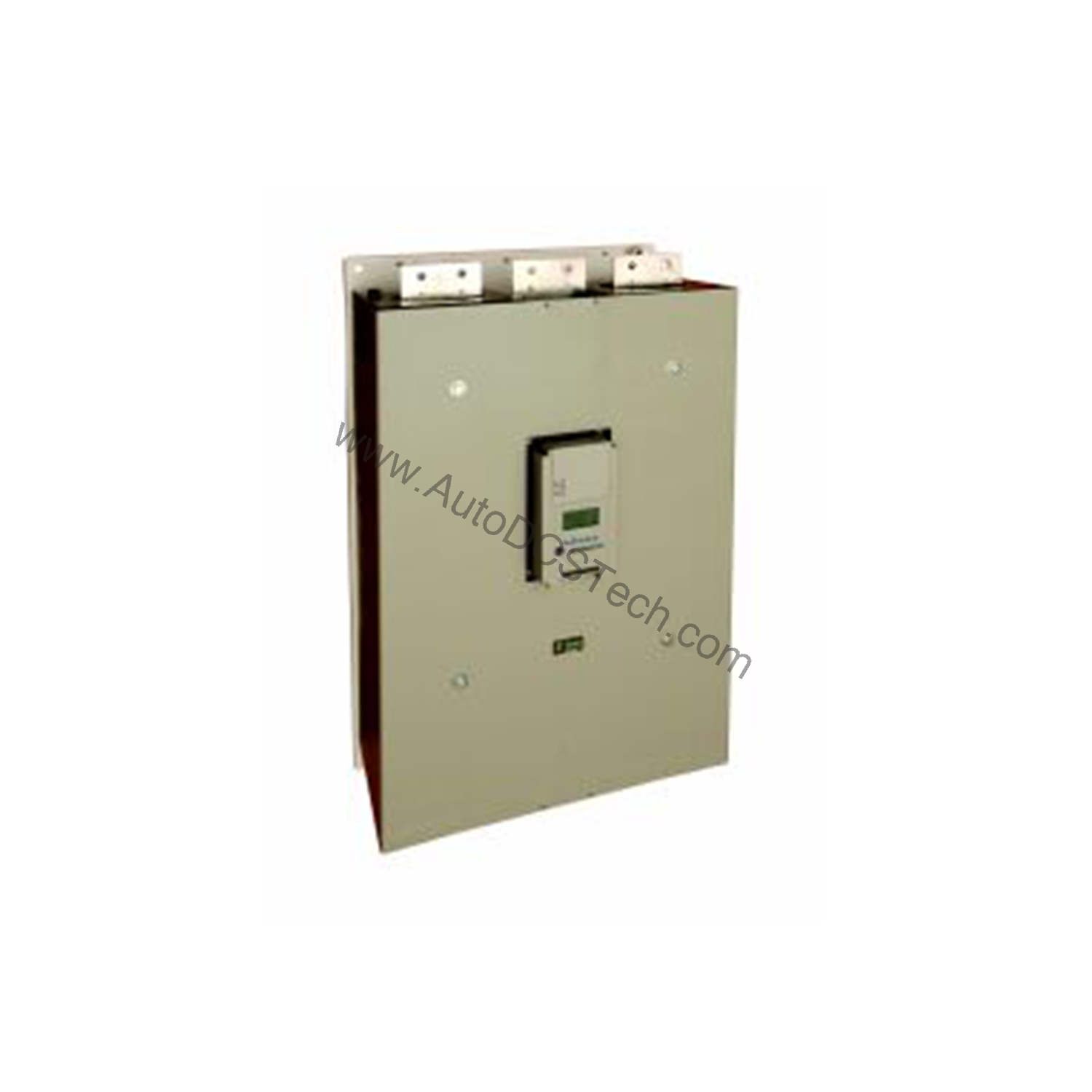

Industrial motor control demands precision and reliability, especially in high-power applications. The Allen-Bradley 150-F1250NBAB SMC Flex open smart motor controller delivers advanced solid-state starting and stopping for three-phase AC motors. This unit is part of the Bulletin 150 series and is designed to handle demanding loads up to 1250 amps. With a pump control option, it reduces mechanical stress and fluid surges in pumping systems. The open enclosure allows for flexible integration into existing panels or custom enclosures.
Technical Specifications Breakdown
Key parameters for the 150-F1250NBAB are listed below for quick reference:
| Feature | Specification |
|---|---|
| Controller Type | Bulletin 150, Solid State Controller |
| Enclosure Type | Open |
| Input Line Voltage | 200..480V AC, 3-Phase, 50/60Hz |
| Control Voltage | 230...240V AC |
| Rated Current | 1250 A |
| Motor Power @ 460V AC | 1000 Hp |
| Control Options | Pump Control |
Industry Applications
Pump Control in Water and Wastewater
It provides smooth acceleration and deceleration, reducing water hammer and extending pump life. The 1250A rating supports large centrifugal pumps common in municipal systems.
High-Horsepower Industrial Fans and Blowers
With 1000 HP capacity at 460V, this unit handles large ventilation fans in mining, cement, and power generation. The solid-state design eliminates mechanical wear from across-the-line starting.
Conveyor Systems in Bulk Material Handling
Heavy-duty conveyors in ports and mines benefit from controlled starting torque. The SMC Flex reduces belt stress and mechanical shock, improving system uptime.
Installation and Setup Guidance
Mount the open-style controller in a clean, dry enclosure rated for the environment. Ensure incoming three-phase power matches the 200..480V AC range. Connect control voltage per the 230...240V AC specification. Use appropriately sized copper conductors rated for 1250A continuous current. Follow all local electrical codes and the manufacturer's wiring diagram. Verify that the motor full-load current does not exceed the controller rating.
Maintenance and Reliability
Periodically inspect the controller for dust, debris, and signs of overheating. Check all power and control connections for tightness. Ensure the ambient temperature stays within the operating range specified in the manual. The solid-state design offers high reliability with minimal moving parts, but regular thermal imaging can detect developing issues.
Compatibility and Integration
The 150-F1250NBAB integrates with standard three-phase AC systems at 50 or 60 Hz. It supports pump control logic for soft starting and stopping. For communication or monitoring, consult the product manual for optional modules. Verify compatibility with your motor and load before installation.
Selection Guide and Purchasing Advice
When selecting a motor controller, match the rated current and voltage to your motor nameplate. The 150-F1250NBAB is suitable for 1000 HP motors at 460V. For lower voltages, derate accordingly. AutoDCSTech stocks this unit and can advise on availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 150-F1250NBAB |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
