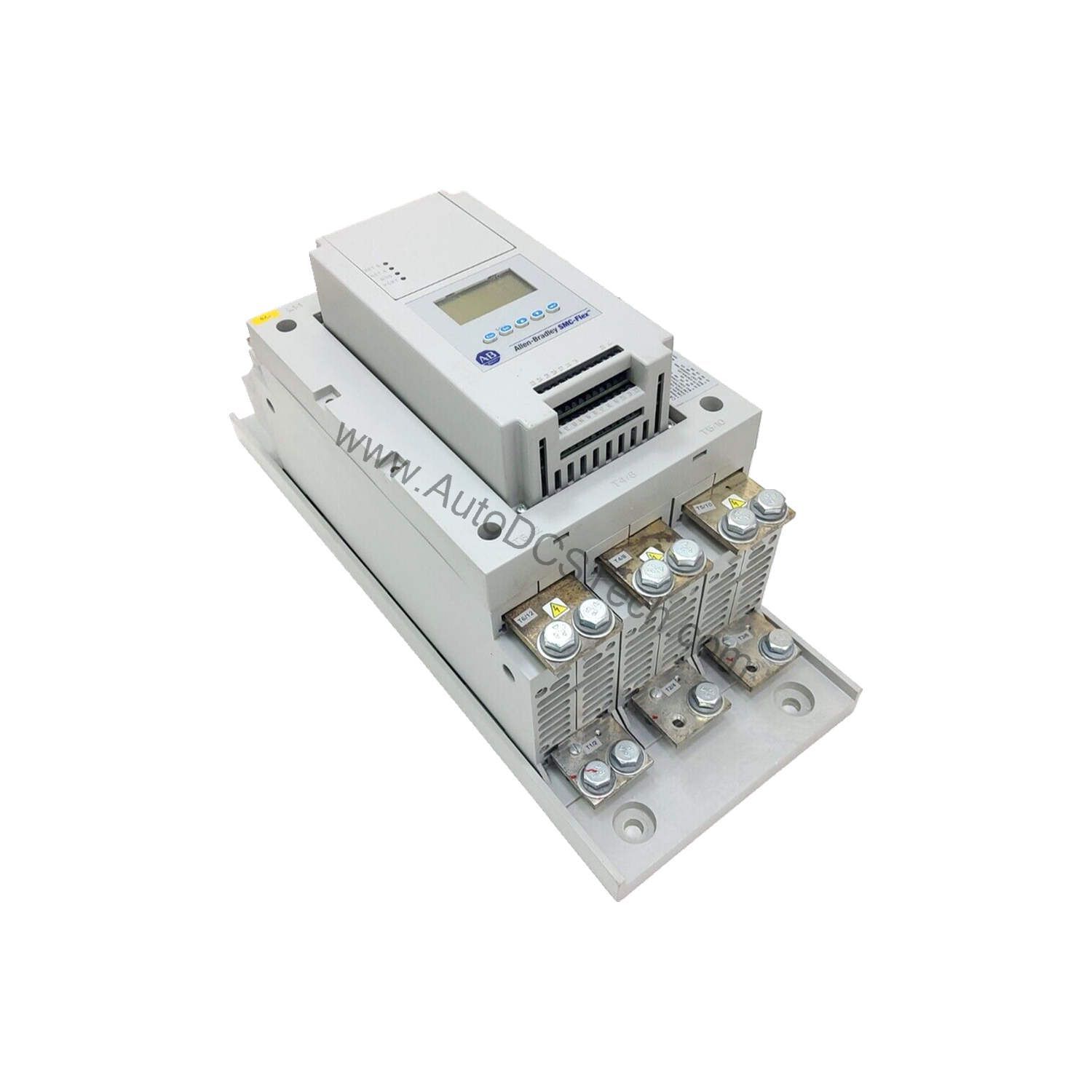

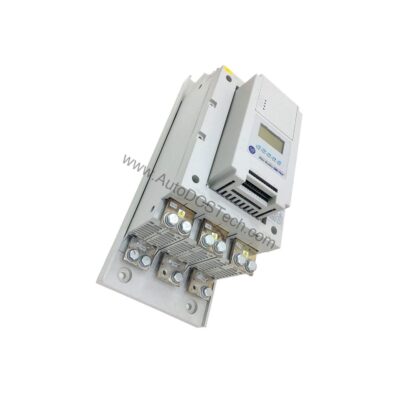

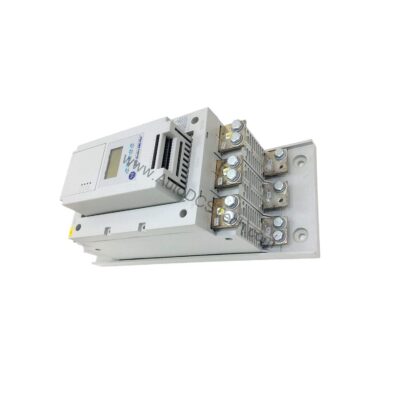

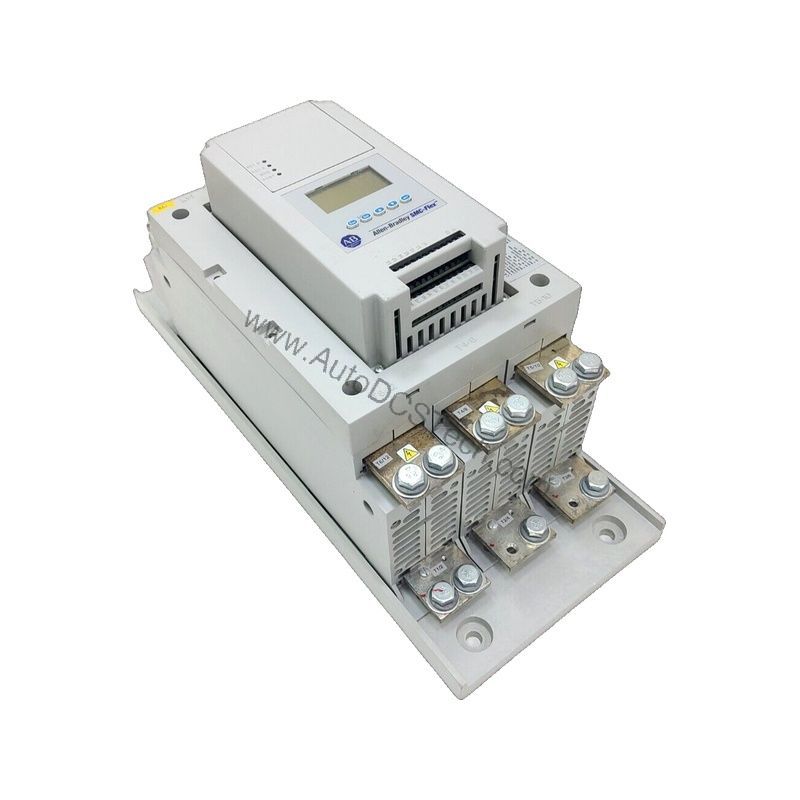

Allen-Bradley 150-F201NBDB SMC Flex Smart Motor Controller 201A

Technical Specifications Breakdown

Key parameters for the 150-F201NBDB are listed below for quick reference:

Reliable Motor Control for Demanding Applications

Industrial motor starting can cause mechanical stress, voltage dips, and downtime. The Allen-Bradley 150-F201NBDB SMC Flex smart motor controller addresses these challenges with solid-state soft starting and stopping. This 201-ampere device is designed for three-phase motors up to 150 HP at 460V AC, providing smooth acceleration and deceleration to protect both the motor and the driven load.

Industry Applications

Pump Control

Starting a pump directly can cause water hammer and pipe damage. The 150-F201NBDB includes a dedicated Pump Start mode that gradually ramps voltage to eliminate pressure surges. This protects valves and piping while maintaining process flow.

Conveyor Systems

Conveyors with heavy loads benefit from current limit starting. The controller limits inrush current to a preset level, reducing stress on the motor and gearbox. The dual ramp start feature allows different profiles for empty and loaded conveyors.

Fan and Compressor Control

Fans and compressors often have high inertia. Soft stopping prevents abrupt deceleration that can damage blades or unload valves. The smart motor braking function provides controlled stopping without mechanical brakes.

Installation and Setup Guidance

Mount the open-style controller inside a suitable enclosure rated for the environment. The panel mount design simplifies installation. Connect three-phase line voltage (208…460V AC) to the input terminals and the motor to the output. Wire the control voltage (100-240V AC) to the control terminals. Use the keypad and LCD display to configure operating modes, overload class, and ramp times. For short-circuit protection, install a motor circuit breaker upstream.

Maintenance and Reliability

Periodically inspect the controller for dust, moisture, and loose connections. The open-style enclosure requires a clean, dry environment. Check the LCD display for fault codes. The built-in metering provides real-time data on amps, volts, kW, and motor thermal capacity, helping to identify potential issues before they cause downtime.

Cost-Benefit and Operational ROI

Traditional electromechanical starters wear out over time and offer limited control. The 150-F201NBDB reduces mechanical shock on couplings, belts, and gears through programmable soft start and soft stop profiles. This extends equipment life and lowers maintenance costs. Energy savings from optimized starting also contribute to a fast return on investment, especially in high-cycle applications like conveyors and pumps.

Compatibility and Integration

The controller supports squirrel-cage induction motors and Wye-Delta, six-lead motors. Two DPI communication interfaces allow connection to an optional Human Interface Module (HIM) or a DPI-enabled communication module for remote monitoring and control.

Selection Guide and Purchasing Advice

When selecting a smart motor controller, match the current rating (201 A) and horsepower (150 HP) to your motor nameplate. Verify the line voltage range (208…460V AC) matches your supply. The 150-F201NBDB is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
