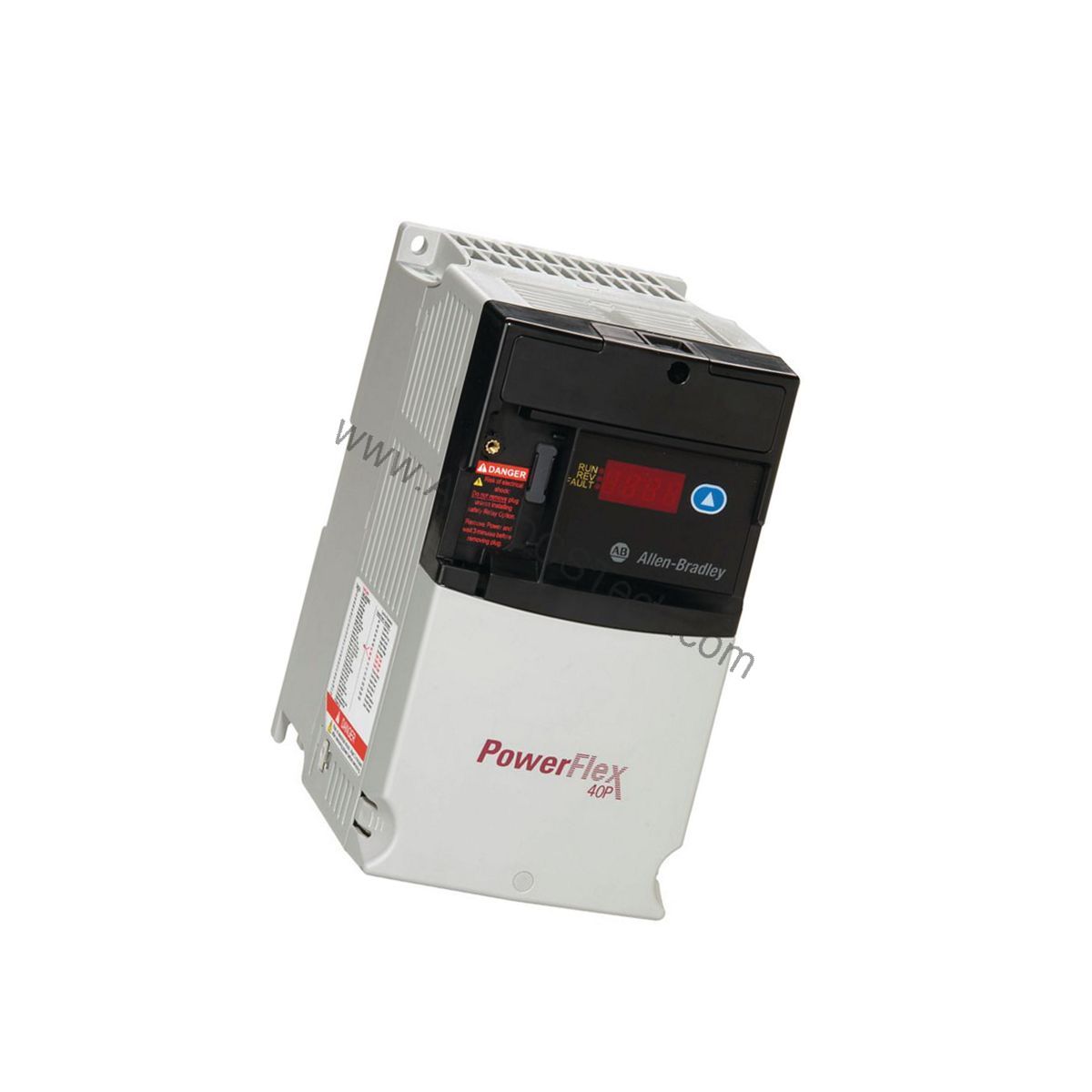

Allen-Bradley 22D-B033H204 PowerFlex 40P AC Drive

Technical Specifications Breakdown

Key parameters for the 22D-B033H204 are listed below for quick reference:

Designed for Real-World Applications

The PowerFlex 40P series is engineered for flexibility and ease of use. The 22D-B033H204 is well-suited for applications such as diverters, smart conveyors, palletizers, ring spinning machines, drafting machines, packaging machines, and synthetic fiber spinning machines. Its sensorless vector control provides high torque across the entire speed range, ensuring consistent performance even under varying loads. The drive's compact form factor and 75% reduction in enclosed watts make it an fit for OEM equipment where panel space is at a premium.

Installation and Setup Guidance

When installing the 22D-B033H204, consider the following practical tips:

• Mounting: The drive features an IP20 (NEMA Type Open) enclosure. Ensure adequate clearance for airflow and heat dissipation. An optional IP30 (NEMA 1) conduit box can be added to increase environmental protection.
• Wiring: The drive supports a DIP switch setting for 24 Volts DC sink or source control, offering wiring flexibility. Use the integral RS485 communications for multi-drop network configurations.
• Programming: Programming is achieved via an external HMI or through the resident DSI connection using a PC programming tool. This allows for quick setup and parameter adjustment.
• Grounding: The removable MOV to ground ensures trouble-free operation on ungrounded distribution systems. Verify proper grounding per local codes.

Maintenance and Reliability

The 22D-B033H204 is built for robust performance. It features 150% overload for 60 seconds and 200% overload for 3 seconds, providing strong protection against sudden load spikes. The adjustable PWM frequency up to 16 kHz ensures quiet operation, reducing acoustic noise in sensitive environments. For long-term reliability, periodically inspect the drive for dust accumulation, check all connections for tightness, and verify that the cooling fans (if present) are operational. Environmental conditions should remain within the specified operating range; refer to the product manual for exact limits.

A Compact Solution for Space-Constrained Speed Control

Industrial engineers often face a familiar challenge: fitting robust variable-speed control into a panel that has little room to spare. The Allen-Bradley 22D-B033H204 PowerFlex 40P adjustable frequency drive addresses this directly. Its plate-mounted design reduces enclosed wattage by 75%, allowing a smaller enclosure without sacrificing performance. This drive delivers 7.5 kW (10 Horsepower) of output power, making it a practical choice for OEMs and end-users who need reliable speed control in tight spaces.

Compatibility and Integration

The 22D-B033H204 supports integral RS485 communications, enabling multi-drop network configurations. A serial converter module (SCM) provides connectivity to any controller with a DFI port. If the controller acts as an RTU Master, the SCM can be eliminated, simplifying the network. The drive also supports configurable closed-loop control for speed or position feedback, making it suitable for applications requiring precise regulation. Additionally, the ½ DC Bus operation feature allows continued drive output during brownouts or low-voltage conditions, enhancing system uptime.

Selection Guide and Purchasing Advice

When selecting a drive for your application, consider the power requirements, enclosure type, and communication needs. The 22D-B033H204 offers a balanced combination of power, compactness, and connectivity. For procurement, AutoDCSTech is a reliable supplier of industrial automation parts. Before ordering, please verify current lifecycle status and availability with AutoDCSTech to ensure the product meets your project timeline.

Troubleshooting and Common Issues

If the drive does not start, check the input power supply and ensure the control wiring is correct. Verify that the DIP switch settings match your control signal type (sink or source). For communication issues, confirm the RS485 network termination and baud rate settings. If the drive trips on overload, inspect the motor and load for mechanical issues. Always refer to the user manual for detailed fault codes and troubleshooting procedures.
