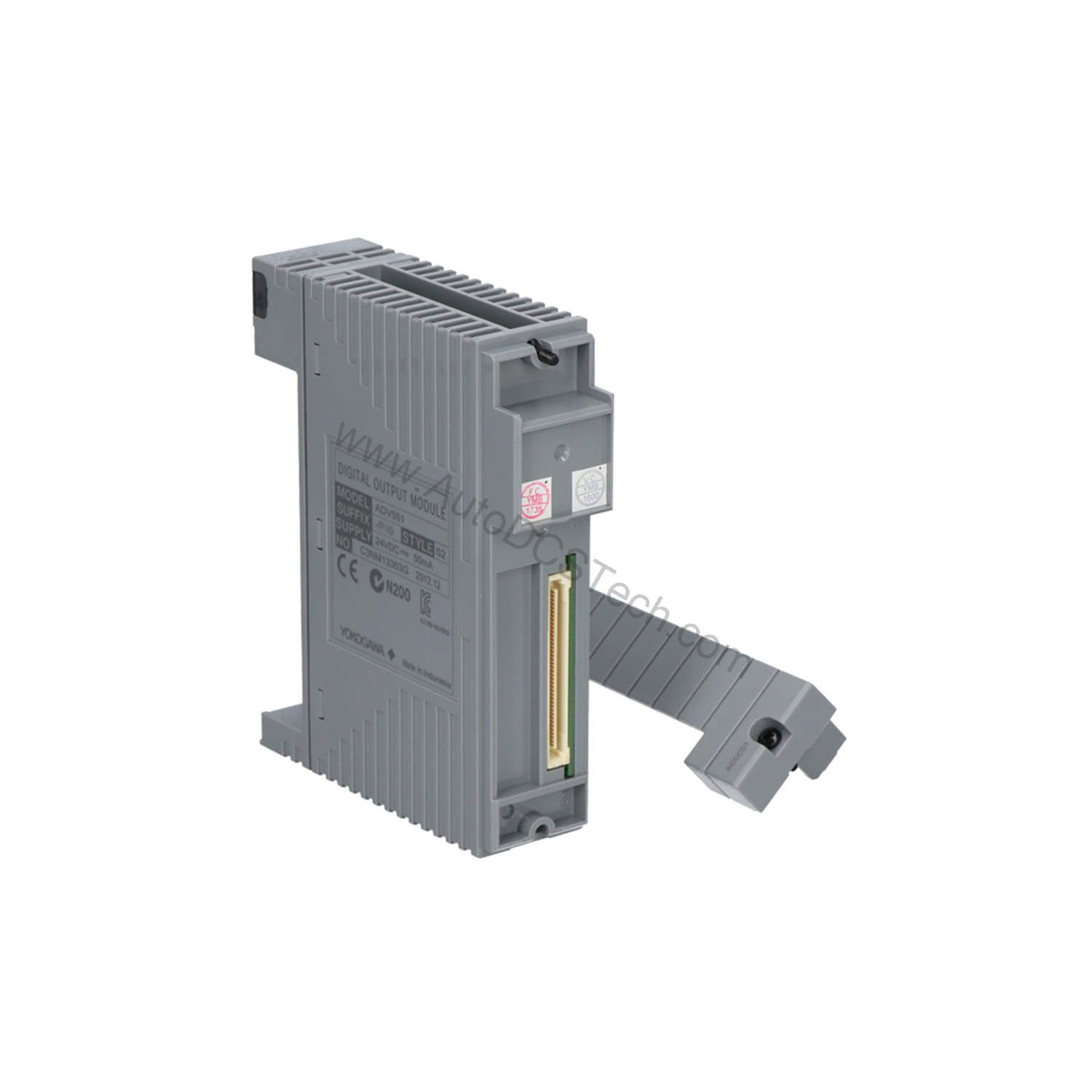

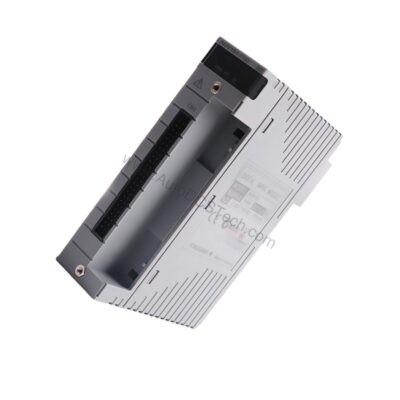

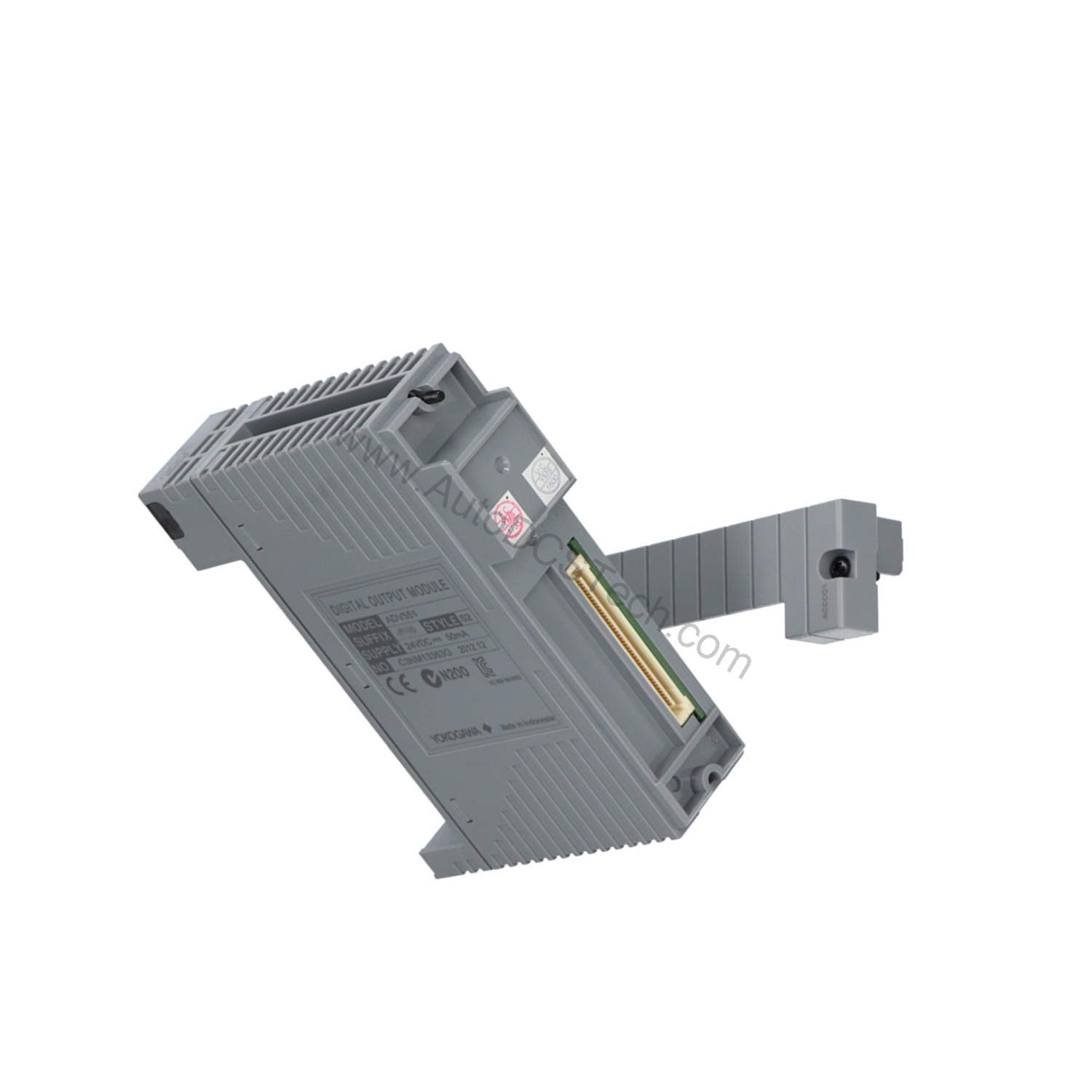

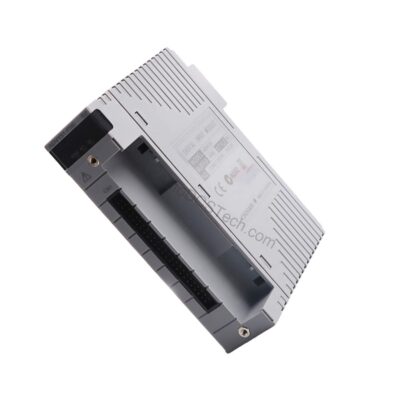

ADV551-P53/D5A00 Digital Output Module Overview
When precise control of multiple output channels is critical, the ADV551-P53/D5A00 from Yokogawa delivers reliable performance. This digital output module provides 32 isolated channels, each rated for 24 V DC operation. Designed for demanding industrial environments, it includes the ISA Standard G3 option and an extended temperature range of -20 to 70°C.
Key Features and Technical Specifications
The ADV551-P53/D5A00 is engineered for accuracy and durability. Below are the core specifications extracted from the official data:
- Output Channels: 32 channels, isolated
- Rated Applied Voltage: 24 V DC
- External Power Supply Rating: 24 V DC, 50 mA
- External Power Supply Voltage Range: 20.4 to 26.4 V DC
- Output ON Voltage Maximum: 2 V DC
- Leak Current at Output OFF: 0.1 mA maximum
- Output Format: Current sink
- Maximum Load Current: 100 mA/channel at 26.4 V
- Withstanding Voltage: 2 kV AC between output signal and system (1 minute), 500 V AC between commons (1 minute)
- Output Response Time: 3 ms or less (status output), 10 ms or less (mixed status and pulse outputs)
- Pulse Width: 8 ms to 7200 s
- Pulse Width Resolution: 8 ms (with max 1 ms ON/OFF delay)
- Current Consumption: 700 mA (5 V DC), 60 mA (external power supply)
- Weight: Approx. 0.20 kg
- External Connection: Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable
One distinctive feature is the pulse width output function, which allows one-shot pulse width and time-proportional output. This capability is valuable for precise timing control in process applications.
Comparison with Similar Output Modules
Compared to standard digital output modules, the ADV551-P53/D5A00 stands out with its built-in pulse width output and time-proportional output functions. Many conventional modules offer only simple ON/OFF control. The inclusion of the ISA G3 option and wide temperature range (-20 to 70°C) makes it suitable for harsh environments where standard modules may fail. Additionally, the isolated channel design (with 2 kV AC withstanding voltage) provides enhanced protection against electrical interference.
Applications and Use Cases
The ADV551-P53/D5A00 is ideal for applications requiring multiple discrete outputs, such as valve control, motor starters, and alarm systems. Its pulse width output function enables precise control of heating elements or proportional valves. The time-proportional output is particularly useful in temperature control loops. With 32 channels, it can consolidate multiple I/O points, reducing cabinet space and wiring complexity.
Installation and Setup
When installing the ADV551-P53/D5A00, ensure the external power supply is within the specified range (20.4 to 26.4 V DC). Use the dedicated cable (AKB331) or MIL connector cable for reliable connections. The module supports pressure clamp terminals for secure wiring. Always follow Yokogawa's installation manual for proper mounting and grounding.
Maintenance and Reliability
To maintain reliable operation, periodically inspect the module for dust or moisture accumulation. The ISA G3 option provides protection against corrosive gases, extending service life. Verify that the external power supply remains stable. If the module is used in high-vibration environments, check that all connections are tight. Regular inspection per the manufacturer's manual is recommended.
Troubleshooting and Common Issues
If an output channel fails to energize, first check the external power supply voltage. Confirm that the load current does not exceed 100 mA per channel. If pulse width output is not functioning, verify the pulse width settings (8 ms to 7200 s). Also, ensure that the common connection is correct, as the module uses common minus (–) side every 16 channels. For persistent issues, consult the Yokogawa documentation or contact AutoDCSTech.
Product Support and Availability
The ADV551-P53/D5A00 is available through AutoDCSTech. Please verify current lifecycle status and availability with our team before ordering. We are ready to assist with your industrial automation needs.
