Introduction

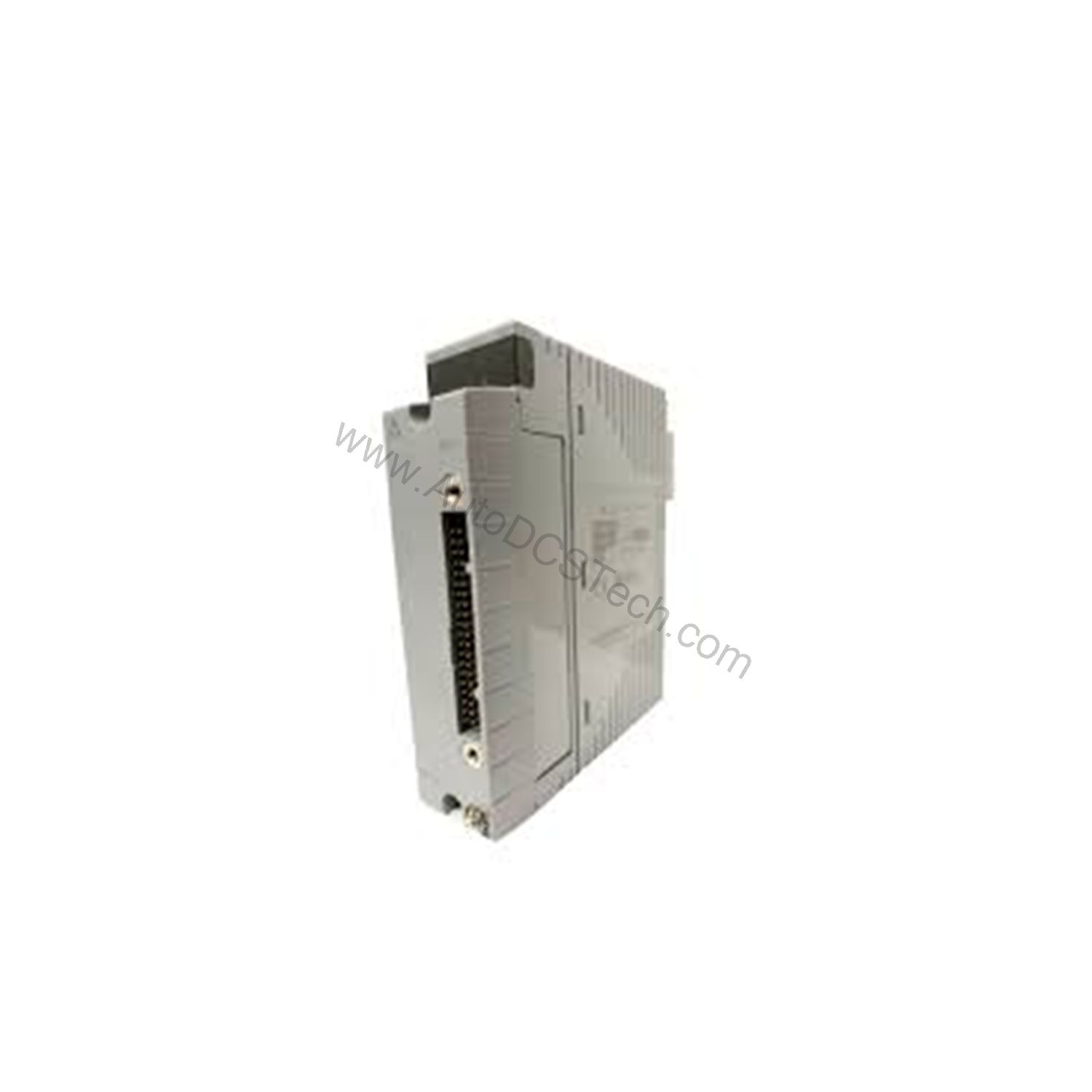

Industrial automation has evolved from simple relay logic to sophisticated distributed control systems. As plants demand higher accuracy and real-time data, the analog input module becomes the critical link between field transmitters and the control system. The AAI141-H50/K4A00 from Yokogawa addresses this need with a 16-channel, non-isolated design that supports 4 to 20 mA signals and HART digital communication.
Key Features and Technical Specifications
The AAI141-H50/K4A00 is engineered for reliable signal acquisition. Its key specifications include:
- 16 input channels, non-isolated
- Input signal: 4 to 20 mADC
- Allowable input current: 27 mA
- Input resistance: 400 Ω (at 20 mA) to 1000 Ω (at 4 mA) when powered
- Accuracy: ±16 μA
- Data update period: 10 ms
- Step response time: 100 ms
- Transmitter power supply: 14.8 V or higher (at 20 mA), 26.4 V or less (at 0 mA), output current limit 27 mA
- Drift due to ambient temperature: ±16 μA/10°C
- Maximum current consumption: 310 mA (5 V DC), 450 mA (24 V DC)
- Weight: 0.2 kg
The module supports both 2-wire and 4-wire transmitters, configurable per channel via a setting pin. This flexibility simplifies installation and reduces the need for external signal conditioners.
Applications and Use Cases
In process industries such as oil and gas, chemical, and power generation, the AAI141-H50/K4A00 excels at monitoring pressure, temperature, and flow transmitters. Its fast 10 ms update period enables responsive control loops, while the HART protocol allows remote calibration and diagnostics. For example, in a refinery, operators can use HART to read secondary variables like sensor temperature without extra wiring.
Furthermore, the module's non-isolated design is cost-effective for grounded transmitter installations, and the per-channel 2-wire/4-wire setting accommodates mixed field devices.
Installation and Setup
Mount the AAI141-H50/K4A00 in a suitable Yokogawa I/O rack. Connect field wiring using pressure clamp terminals, KS cable, or MIL connector cable, depending on your system configuration. The KS Cable Interface Adapter (option K4A00) simplifies wiring for KS cable systems.
Before power-up, verify that the input signal range matches the module's 4-20 mA specification. Set the 2-wire/4-wire selection pin for each channel according to the transmitter type. Ensure the transmitter power supply voltage stays within the specified limits to avoid overcurrent.
Maintenance and Reliability
Regular inspection of the module and its connections helps maintain measurement accuracy. Check for loose terminals, corrosion, and moisture ingress. Periodically verify the input current against a known reference to confirm the ±16 μA accuracy. The module's low drift of ±16 μA/10°C ensures stable performance across ambient temperature variations.
For safety-related applications, follow the manufacturer's manual for inspection intervals and functional testing. Always power down before removing or inserting the module.
Compatibility and Integration
The AAI141-H50/K4A00 is part of the Yokogawa AAI141 series, designed for use with Yokogawa distributed control systems (DCS). It supports HART communication, enabling integration with HART-enabled field devices and asset management software. The module's non-isolated design is compatible with common 4-20 mA transmitters.
For detailed integration guidelines, refer to the official Yokogawa documentation or contact AutoDCSTech for technical support.
Troubleshooting and Common Issues
Common issues with analog input modules include wiring errors, transmitter power supply problems, and configuration mistakes. If the module reads zero or over-range, check the input wiring and the 2-wire/4-wire setting. Verify that the transmitter power supply voltage is within 14.8 V to 26.4 V at the respective current levels.
If HART communication fails, ensure the HART filter is enabled and the loop resistance is adequate. For persistent issues, consult the Yokogawa manual or contact AutoDCSTech.
Product Support and Availability
The AAI141-H50/K4A00 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical questions and replacement needs.
