Addressing Vibration Monitoring Challenges with the 991-25-70-01-05
When unplanned downtime strikes rotating machinery, the cause often traces back to undetected axial thrust or vibration. The 991-25-70-01-05 from Bently Nevada directly tackles this problem by converting proximity probe signals into a standardized 4-20 mA output. This transmitter is engineered for continuous, reliable operation in demanding industrial environments. Its design simplifies integration with existing control systems, reducing the complexity of condition monitoring.
With a full-scale range of 25-0-25 mils, this unit provides precise measurement for axial position. The 4-20 mA signal is compatible with most PLCs, DCS, and SCADA systems. Consequently, maintenance teams gain real-time insight into machine health, enabling proactive interventions before minor issues escalate.
Key Features and Technical Specifications

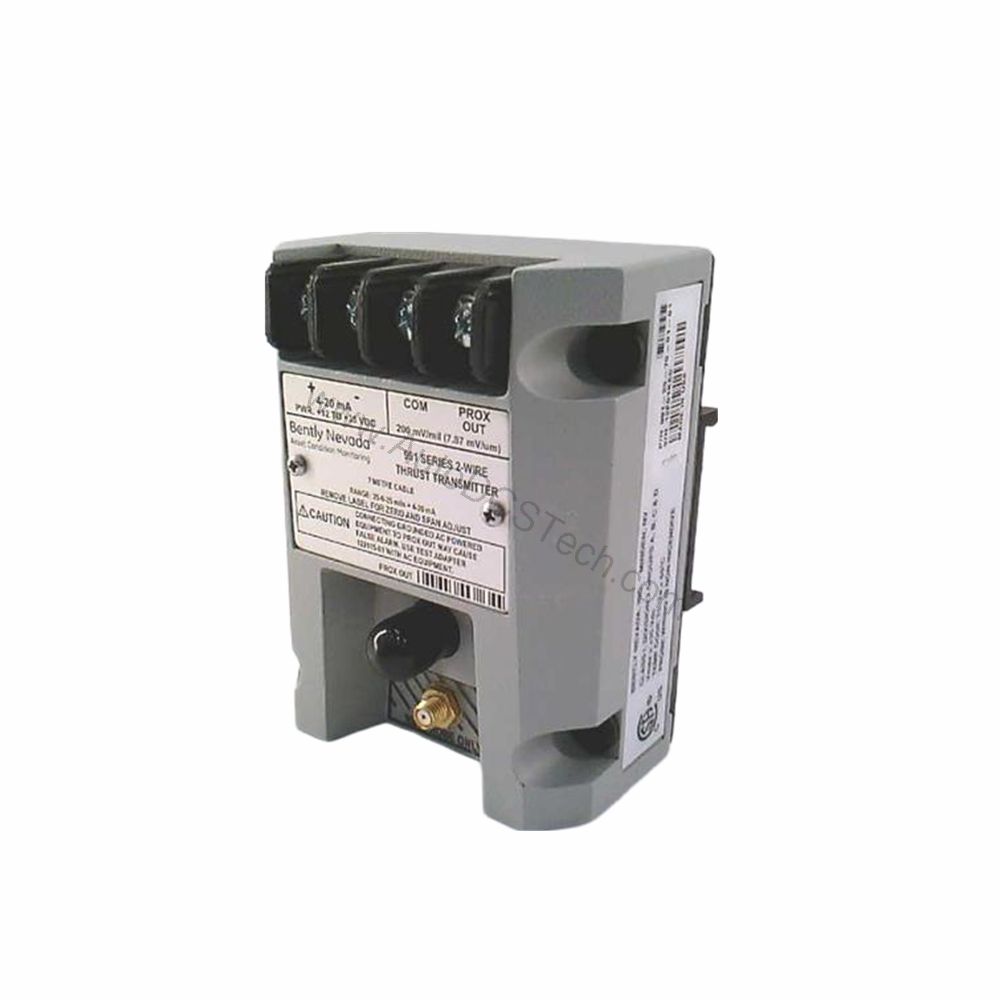

The 991-25-70-01-05 is a Probe Vibration Transmitter, part of the Bently Nevada 991 series. It operates as a Thrust Transmitter, specifically designed for axial position monitoring. The following table summarizes its core specifications:
- Full-scale Option: 25-0-25 mils
- System Length: 7.0 meters (23.0 feet)
- Mounting: 35 mm DIN-rail clips
- Output Signal: 4-20 mA (2-wire)
- Power Requirement: +12 to +35 Vdc at transmitter terminal
- Linear Range: 0.25 to 1.65 mm for Prox Out
- Operating Temperature: -35°C to +85°C
- Storage Temperature: -51°C to +100°C
- Weight: 0.43 kg (0.9 lbm)
- Loop Accuracy: ±1.5% typical
- Maximum Loop Resistance: 1,000 Ω at 35 Vdc
- Current Limiting: 23 mA typical
One distinctive feature is the Not OK/Signal Defeat function. If a fault condition occurs, the output drops below 3.6 mA within 100 µs, ensuring the control system recognizes the failure. This rapid response is critical for safety and preventing further damage.
Real-World Applications and Use Cases
This transmitter is ideal for axial thrust monitoring in turbines, compressors, and large pumps. For example, in a steam turbine, maintaining proper rotor position is essential to avoid contact between rotating and stationary parts. The 991-25-70-01-05 provides continuous 4-20 mA feedback, allowing operators to detect thrust bearing wear early.
Furthermore, its DIN-rail mounting simplifies installation in existing cabinets. The 7.0-meter system length offers flexibility in probe placement. Consequently, this transmitter suits both new installations and retrofits.
Installation and Setup Considerations
Proper installation is vital for accurate readings. The transmitter accepts one non-contacting 3300 NSv proximity probe and extension cable. Mount the unit on a 35 mm DIN rail using the provided clips. Ensure the probe is correctly positioned according to the manufacturer's guidelines.
Power the transmitter with +12 to +35 Vdc at the terminal. The 2-wire configuration simplifies wiring, reducing installation time. Always verify loop resistance does not exceed 1,000 Ω to maintain signal integrity. Following these steps ensures reliable operation.
Maintenance and Reliability Tips
Regular inspection of the transmitter and probe is recommended. Check for physical damage, loose connections, and contamination. The operating temperature range of -35°C to +85°C allows use in harsh environments. However, avoid exposing the unit to temperatures outside the storage limits of -51°C to +100°C.
Because the Not OK function is self-monitoring, it alerts operators to internal faults. This feature reduces the risk of undetected failures. For long-term reliability, follow the manufacturer's maintenance manual and schedule periodic calibration checks.
Compatibility and Integration
The 4-20 mA output makes this transmitter compatible with virtually any control system that accepts analog inputs. It is suitable for use with PLCs, DCS, and dedicated vibration monitors. The linear range of 0.25 to 1.65 mm for Prox Out ensures accurate representation of probe movement.
For systems requiring 25-0-25 mils current loop linear ranges, this unit is directly applicable. Its design aligns with standard industrial practices, facilitating straightforward integration.
Troubleshooting Common Issues
If the output signal is erratic, first check the loop resistance and power supply voltage. Ensure the probe is properly connected and the gap is within the specified range. If the output drops below 3.6 mA, a Not OK condition is present—inspect the probe and wiring for faults.
For persistent issues, consult the official Bently Nevada documentation or contact AutoDCSTech for technical support. Avoid adjusting zero and span without proper reference, as this can affect accuracy.
Product Support and Availability
The Bently Nevada 991-25-70-01-05 is available through AutoDCSTech. For pricing, lead time, and technical assistance, contact our team. We ensure genuine parts and reliable delivery.
